STEPS
Description

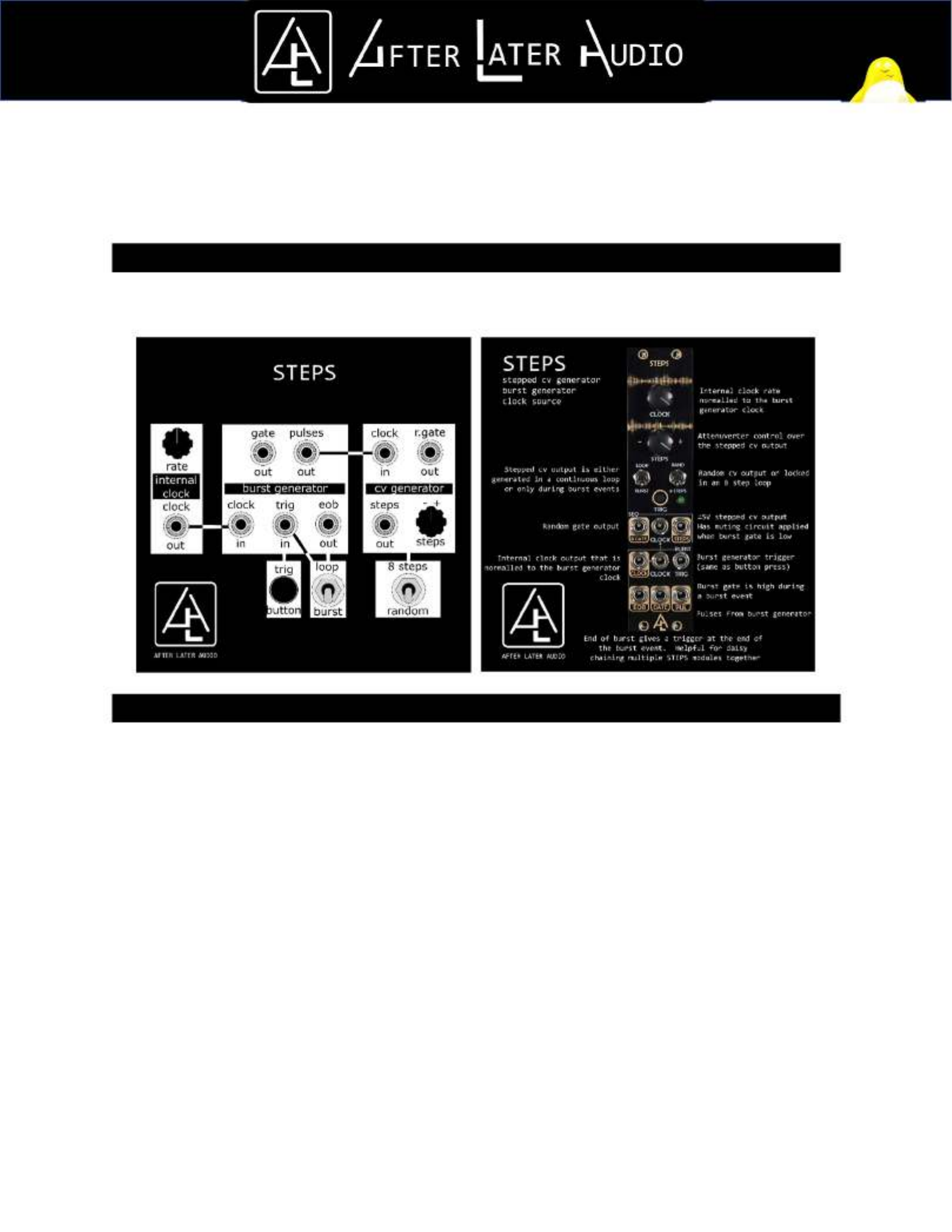

STEPS has three functional blocks:
1) Internal clock
a. Rate control and output
2) Burst generator
a. Pulses output which generates 8 pulses on every trigger
b. Gate output which is high during the burst event
c. EOB output which fires at the end of a burst event
3) Random Looping CV Generator
a. R.gate output outputs a random gate during a burst event
b. Random stepped output or a loop of 8 steps
c. Steps output with attenuverter. The Steps output is held
low while there is no burst event.
You can either use this as a random stepped CV source or as a
repeating 8 stepped CV source. You then can trigger the burst
generator to play the 8 step loop or 8 random steps. All of this can
use the internal or external clock signals. To get more complex
patterns you can daisy chain STEPS modules together by tying together
their clocks and sending EOB to TRIG. This way you can generate 16
step patterns (or longer).
When first turning on STEPS you will need to run the module in RAND
mode for at least 8 steps to fill the shift register with data.
A caveat about STEPS:
If a trigger is received off beat from the internal clock, the first
step duration will be shortened.
Walkthrough
Technical Details
Clock range: 1.5s/pulse to 100ms/pulse
End of burst level: 7.5V
Pulse output level: 7.5V
Burst gate level: 6V
Stepped CV range: -5V to 5V (8 graduations in steps)
Random gate output level: 7.5V
Power consumption:
o 12V – 75mA
o -12V – 65mA
Size: 6hp
