GB - User Manual
F - Manuel d'Utilisation
Assembled in PRC
Designed by LOTRONIC S.A.
Av. Z. Gramme 9
B - 1480 Saintes
LF-NW SERIES
CODE: 17-4710/17-4711/17-4712/17-4713
PROFESSIONAL PROJECTORS IP65 4000K
EN 2
© Copyright LOTRONIC 2019
INSTALLATION INSTRUCTIONS
WARNING:
1. ENSURE ELECTRICITY IS SWITCHED OFF BEFORE INSTALLATION.
2. Please read following instructions before installing the unit.
3. Prepare all necessary accessories and spare parts (not provided) including a junction box .
4. The Floodlight must be earthed.
5. If the safety shield is damages, you must replace it immediately by tempered glass.
6. Cables and leads should be attached in such a way that only the manufacturer, his service agent
or similarly qualied person can replace them.
MOUNTING
1. Do not mount a surface prone to vibrations.

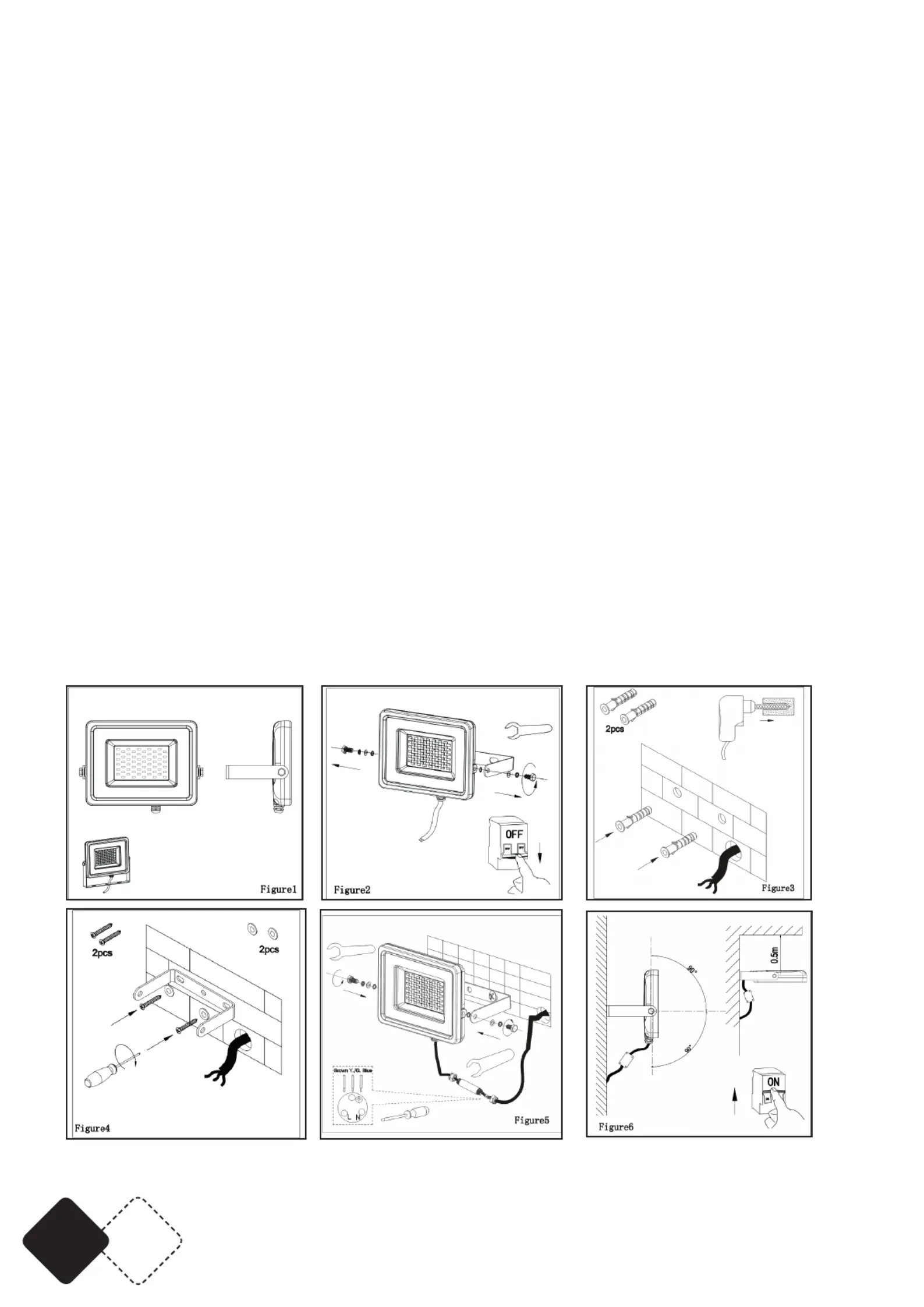

2. Remove the screw which is for mounting the bracket of the xture. Remove the bracket.(see g.1)
3. Mark the hole position to x the bracket onto the wall. Drill the wall at the marked positions
(screw not supplied) (see g.2).
4. Screw the xing bracket to the wall using a suitable screw (see g.3)
5. Mount the bracket back to the xture. Adjust the oodlight to the desired position and tighten
the screw of xing bracket (see g.4)
6. Connect your mains cable (H05RN-F3G1.0mm
2
Recommended) to the input lead of our product
via the waterproof junction box. Note the Line(-) of the lead (see g.5). Use a junction box of IP65
or above, tighten the waterproof screw)
7.Switch on the power to make sure if the product works. Adjust the projection angle according to
the condition of use (see g.6)
Please operate it strictly according to the instructions, in order to avoid damage and injuries.
Do not open the housing. In case of malfunction, please contact your dealer.
