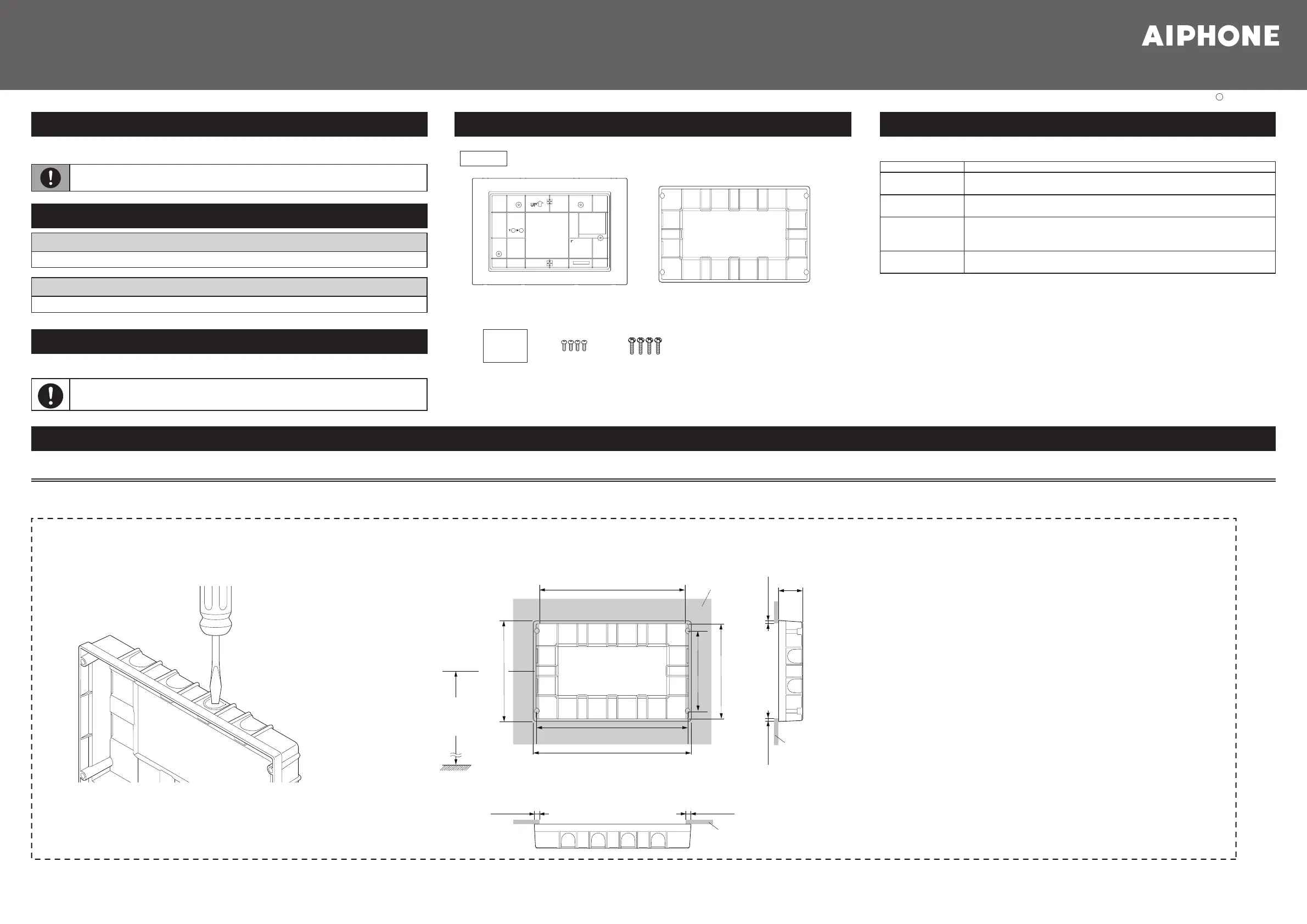

Side 1/2
IXG-FMK-2C7 (Flush mount kit for Tenant Station)
Issue Date: Mar. 2020 FK2532 A P0320 RQ 60235
Introduction
• Read this manual before installation and connection.
Read the "Installation Manual" included with IXG-2C7 or IXG-2C7-L.
Perform installation and connection only after gaining sufficient understanding of the
system and this manual.
Part Names and Accessories
Front view
Wall-mounting
screws × 4
Frame-mounting
screws ×4
Included accessories
Installation Manual ×1
(this manual)
Panel & Frame Back box
Installation Manual
Precautions
Notice
• The illustrations used in this manual may differ from the actual product.
Precautions for mounting
• Do not use an impact driver to fasten screws. Doing so may cause damage to the device.
Literature information
The important information concerning correct operation and what you should observe is marked with
the following symbols.
Restricts user actions / provides instructions.
How to Install
Tenant Station (IXG-2C7, IXG-2C7-L) is sold separately.
<Front>
<Underside >
<Side>
240 (9-7/16")
Opening dimension of wall
265 (10-7/16")
Back Box dimension
169 (6-5/8")
Back Box dimension
165 (6-1/2")
Opening dimension of wall
Wall
Wall
12.5 (1/2")
2 (1/16") 2 (1/16")
12.5 (1/2")
Wall
40
(1-9/16")
2. Install the back box in the wall.
Installation of Back Box
Recommended
Mounting height
(center of back box)
1,500mm (4' 11'')
1. Make a hole for the cable.
How to install Tenant Station is described on the back.
Pass the LAN cable and low voltage cable through the opened hole.
134 (5-1/4")
255 (10-1/16")
Specifications
■ IXG-FMK-2C7
Mounting Flush wall-mounted
Materials Panel: Self-extinguishing resin
Frame & Back Box: Self-extinguishing plastic
Color Panel & Frame: White
Back Box: Black
Dimensions Panel & Frame: 290 mm (11-7/16") [W] × 199 mm (7-13/16") [H] × 30 mm
(1-3/16") [D]
Back Box: 265 mm (10-7/16") [W] × 169 mm (6-5/8") [H] × 40 mm (1-9/16") [D]
Mass Panel & Frame: Approx. 110g (0.25 lbs)
Back Box: Approx. 220g (0.49 lbs)

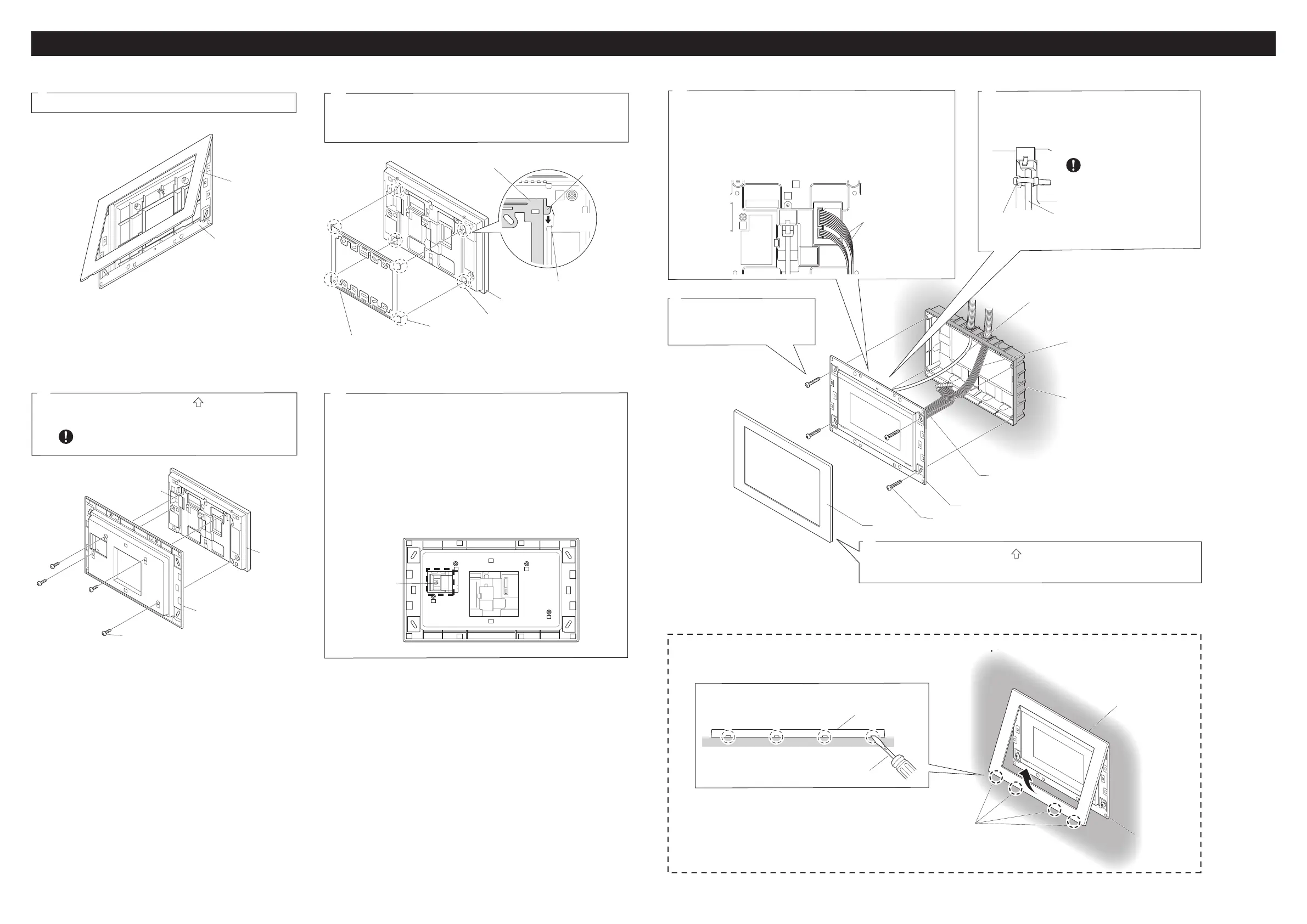

Installation of Tenant Station with Flush mount kit
12
34
Remove the panel from the frame.
Remove the mounting bracket from IXG-2C7(-L).
Slide the mounting bracket down and remove it.
* The mounting bracket is not needed.
Tab
Mounting bracket
Slide down
Slot
Mounting bracket
Tabs (4 locations)
Slots (4 locations)
[Back]
Position the frame with “UP ” facing up,
and attach the frame to IXG-2C7(-L).
[Back of the frame]
Frame-mounting screws  4 (included)
Frame
[Back]
microSD card slot
[Back]
* If microSD card is not needed, go to step 5.
(1) Pull the microSD card slot cover to open.
(2) Insert a microSD card.
*Push it in until you hear it click into place.
*When you take the microSD card out, push the microSD card
until you hear it click, and then remove it.
(3) Return the cover.
Insert a microSD card into the microSD card slot
if recording function is used.
Be careful not to scratch the monitor when
performing attachments.
IXG-2C7(-L)
IXG-2C7(-L)
* Using anything other than the bundled screws may damage the device.
Frame
Panel
microSD card slot
Position the panel with “UP ” facing up, and press all around
the panel to fit it firmly in place.
Panel
Attach the frame to the
installed back box.
[Back]
Cat-5e/6 cable
How to remove the panel from the installed station
Place a flat-bladed screwdriver in depression at the bottom and pull the panel toward you.
* Refer to the “Installation Manual” of IXG-2C7(-L) for
wiring connections.
e
p
p
p
p
p
p
an
[Underside]
Flat-bladed screwdriver
Panel
Depression
Fasten Cat-5e/6 cable to the station
with the cable tie (included)
Cable tie
Cat-5e/6 cable
Fasten Cat-5e/6 cable with cable
tie to ensure a good connection.
Connect the option connectors (included in
IXG-2C7(-L)) to the low-voltage lines using crimp-
ing method, then insert the option connectors and
Cat-5e/6 cable to the station.
Frame
Wall-mounting screws (included) p2-x4
Option connectors (included)
Low -voltage lines
Back box
Panel
Frame
56
7
8
Option connectors
How to Install
Installation of Tenant Station
