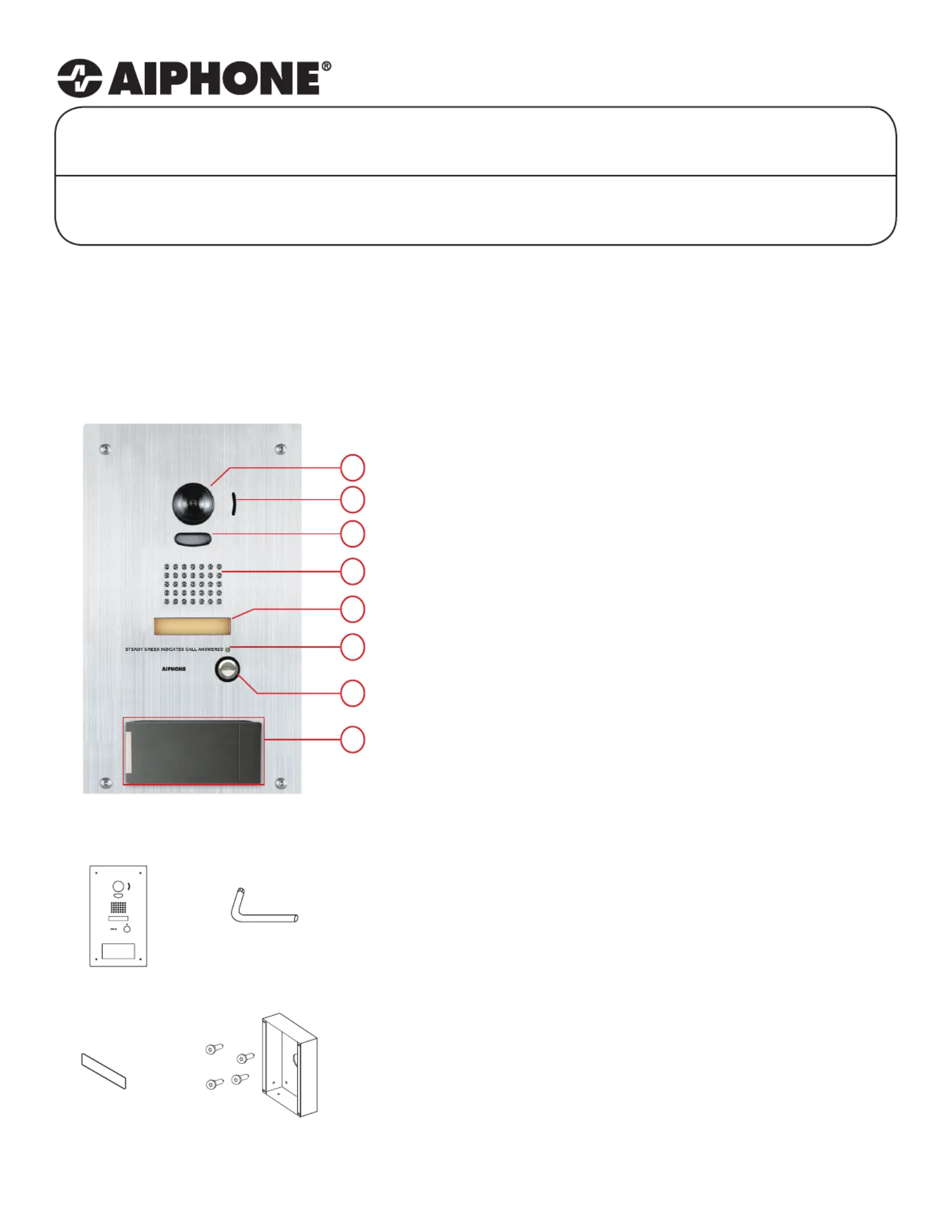

Pg. 1
IS-IPDVF-RP10
Vandal Resistant IP Color Video Door Station
with Built in HID multiCLASS SE® Card Reader
The IS-IPDVF-RP10 is an IS Series IP color video door station with a multiCLASS SE® Card Reader
built onto the same stainless steel faceplate. The card reader provides electronic access to a building
through a separate Access Control System, which is not supplied by Aiphone.
The IS-IPDVF-RP10 will connect directly to a network switch.
-INSTRUCTIONS-
1. Camera 5. Name Placard
2. Microphone 6. Call status indicator
3. LED Light 7. Call button
4. Speaker 8. multiCLASS SE®
Reader
FEATURES:
• All-in-one solution: Communication product &
card reader
• If a card is missing or malfunctioning,
audio/video communication can provide user
verication
• Standard Wiegand output to access panel
• Convenience of installing combined components
IS-IPDVF-RP10
1
2
3
4
5
6
7
8
STEADY N CA GREE INDI TES CALL ANSWERED
PACKAGE CONTENTS:
IS-IPDVF-RP10
Vandal-resistant Door Station
Security Driver
Flush backbox &
tamper-resistant screws
Blank name
placard
INSTALLATION:
• For ush mounting, cut a hole in the wall and use the
supplied back box.
Box dimensions are: 11-3/4” H x 5-13/16” W x 1-3/4” D
• For surface mounting, use the SBX-ISDVFP surface
mount box.
This box can mount to a standard 1 gang box or to any
at surface.
Pg. 2
IS-IPDVF-RP10 Instr.
0615JD
WIRING DIAGRAM:
IS-IPDVF-RP10
IS-IPMV
Pigtail Discription
Yellow Beeper Input
Orange Green (GRN) LED Input
Black Ground (RTN)
Red +VDC
Drain Unused
Brown Red LED Input
Blue Hold Input
Connect the reader to the host according to the
wiring table below and the host installation guide.
TESTING & OPERATION:
• When power is applied to the multiCLASS SE® reader, the LED will turn RED while the beeper
beeps simultaneously 3 times (the last tone is a higher frequency). The LED will then ash once
after the last tone. This indicates that the microcontroller is operating properly.
• Present an ID card to the reader (hold card directly in front of reader). The LED will momentarily
turn green while the beeper beeps once, indicating that the card was read successfully.
SPECIFICATIONS:
CARD READER:
Reader model: RP10
Power Source: 5 ~ 16V DC
Current: 75mA (Avg); 200mA (peak)
Transmit Freq. 13.56 MHz & 125 kHz
Terminations: Color-coded pre-wired pigtail
Wiring Distance: 500’
Operating Temp: -31° ~ 150°F / -35° ~ 65°C
Operating Humidity: 5-95% relative humidity
non-condensing
CAMERA:
Camera unit: CMOS camera
Scanning line: 525 lines
Min. illumination: 5 Lux at 1’6”
Terminations: RJ45 jack for audio/video
Screw terminals for door release
Operating Temp: 14° ~ 140°F / -10° ~ 60°C
Wiring Distance: 328’ with Cat5e/6 cable
Dimensions: 12-3/8” H x 7” W
w/SBX-ISDVFP: 12-13/16” H x 7-1/16” W x 2-13/16” D
(top), 1-13/16” D (bottom)
FCC WARNING:
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may cause undesired operation.
• For proper regulatory compliance, the drain wire should be disconnected at the power
supply end of the cable.
• Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
• The Reader is intended to be powered from a limited power source output of a
previously certifed power supply
NO
COM
NC
To Strike
& Power
CAT-5e
CAT-5e
Pigtail Discription
Red/Grn GPIO1 (RS232-T/RS485-A)
Tan GPIO2 (RS232-R/RS485-B)
Violet Open Collector Output
White Wiegand Data 1 / Clock
Green Wiegand Data 0 / Data
Pink GPIO3 (RS485-Z)
Gray GPIO4 (RS485-Y)
Aiphone Corporation
P: 800.692.0200
tech@aiphone.com
www.aiphone.com/home
