DESCRIPTION

Air King® 12" (30,4 cm) and 16" (40,6 cm) Wall Mounted Oscillating

Fans offer rotary knob/pull cord speed control, variable oscillation,

a permanent split capacitor motor and OSHA-complying front steel

mesh grill with a 6 ft (1,8m) 18/3 cord set.

SPECIFICATIONS

Motor .................................120V, 60 Hz (12" 30,4 cm)

120V, 60 Hz (16" 40,6 cm)

Blade diameter ...................12" ( 30,4 cm) Model 4C630P/9012P

16" (40,6 cm) Model 4C631Q/9016Q

Speeds ...............................3

Control ...............................Rotary Knob/Pull Cord

Air ﬂow distribution ...........90°

Approvals ...........................ETL Listed. Close mesh Fan Guard

meets OSHA requirements.

12084077

Rev. G 9/09

WALL MOUNTED

OSCILLATING FANS

12" (30,4 cm) MODEL 4C630P/9012P

16" (40,6 cm) MODEL 4C631Q/9016Q

82084077

Rev. G 9/09

MODELO 4C630P/9012P y 4C631Q/9016Q

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should

always be followed to reduce the risk of ﬁre, electric shock

and injury to person, including the following:

1. Read all instructions before using Fan.

2. Make certain that the power source conforms to the electrical

requirements of the Fan.

3. Use this Fan only as described in this manual. Any other use

not recommended by the manufacturer may cause ﬁre, electrical

shock, or injury to persons.

4. Unplug power cord before installing, servicing, or moving the

Fan.

WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH

AS THE SOLE MEANS OF DISCONNECTING POWER WHEN

INSTALLING OR SERVICING THE FAN. ALWAYS UNPLUG THE

POWER CORD.

5. This Fan must NOT be used in potentially dangerous

locations such as ﬂammable, explosive, chemical-laden

or wet atmospheres.

6. DO NOT use Fan in or near a window. Rain may create an

electrical hazard.

7. The power cord is equipped with a three-prong grounded

plug that must be inserted into a matching receptacle. Under

no circumstances should the grounding prong be cut off the

plug. Where a two-prong wall receptacle is encountered, it

must be replaced with a properly grounded three-prong re-

ceptacle installed in accordance with the National Electrical

Code (NEC) and all applicable local codes and ordinances.

This work must be done only by a qualiﬁed electrician, using

copper wire only.

WARNING: USE OF A THREE-PRONG TO TWO-PRONG ADAPTER

IS NOT RECOMMENDED. IMPROPER CONNECTION MAY CRE-

ATE THE RISK OF ELECTRIC SHOCK. USE OF SUCH ADAPTERS

IS NOT PERMITTED IN CANADA.

WARNING: THIS PLUG IS A SAFETY FEATURE. TO REDUCE

THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INjURY,

DO NOT REMOVE, REPLACE, REPAIR OR TAMPER WITH

THE ORIGINALLY SUPPLIED PLUG. IF THE FAN DOES NOT

FUNCTION PROPERLY, IT MAY bE DUE TO THE SAFETY DEVICE

INCORPORATED IN THIS PLUG.

8. Where possible, avoid the use of extension cords. If they must

be used, minimize the risk of overheating by ensuring that they

are UL listed. Never use a single extension cord to operate more

than one Fan.

9. NEVER operate any Fan with a damaged cord or plug or after

the Fan malfunctions, has been dropped or damaged in any

manner.

10.Do not insert or allow ﬁngers or foreign objects to enter any

ventilation or exhaust opening as it may cause an electric shock

or ﬁre, or damage the Fan. Do not block or tamper with the Fan

in any manner while it is in operation.

11.Always place the Fan on a stable, ﬂat, level surface when

operating, to avoid the chance of the Fan overturning. Locate

the Power Cord so the Fan or other objects are not resting on it.

Do not run Power Cord under carpeting. Do not cover Power

Cord with throw rugs, runners, or the like. Arrange Power Cord

away from room trafﬁc and where it will not be tripped over.

12.This Fan is not intended for use in wet or damp locations. Never

locate a Fan where it may fall into a bathtub or other water

container.

13.Do not use Fan outdoors.

14.This Fan is not suitable for use in agricultural facilities including

areas where livestock, poultry or other animals are conﬁned.

Please refer to National Electric Code (NEC) Article 547-7

(2008), or applicable state or local codes or standards relating

to electrical requirements for Agricultural Buildings. THIS FAN

DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE

547-7 (2008).

15.This Fan is not suitable for use in hazardous locations. Please

refer to National Electric Code (NEC) Article 500 or applicable

state or local codes or standards relating to electrical

requirements for Hazardous locations. THIS FAN DOES NOT

MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).

WARNING: REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK – DO NOT USE THIS FAN WITH ANY SOLID

STATE SPEED CONTROL DEVICES.

SAVE THESE INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DE-

SCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY

WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

OPERATING INSTRUCTIONS & PARTS MANUAL

LISTA DE REPUESTOS

1 2060316 2060316 Placa de Montaje 1

2 2090003 2090003 Tornillo Phillips #8 x 1-1/4" 2

3 02090045A 02090045A Tornillo Phillips Tipo 25 #8 x 3/4" 6

4 02090272 02090272 Pata de Caucho 2

5 2060202 2060202 Placa Tracera para Colgar 1

6 2010554 2010554 Tapa del Interruptor 1

7 2090008 2090008 Tornillo Phillips #8 x 1/2" 2

8 02055047 02055047 Interruptor con Cordón

Accionador 1

9 7091854 7091854 Plastico Protector 2

10 2010512P 2010512P Cuerpo 1

11 2090539 2090539 Casquillo del Cordón Accionador 1

12 02090744 02090744 Tire Cuerda 1

13 02035035 02035036 Conjunto de Motor 1

14 02010162B 02010162B Placa de Trinquete 1

15 02090518 02090518 Resorte de Elevación 1

16 02090521A 02090521A Eje de Elevación 1

17 02090033 02090033 Tuerca Hexagonal 1

18 02010548A 02010548A Boton Tipo H.C. 2

19 2010131 2010131 Botón del Interruptor (Rotatorio) 1

20 02050009FPB 02050009FPB Cordón Eléctrico 1

21 2011212 2011200M Rejilla Plástica Trasera 1

22 2010359 2010359 Tuerca de Seguridad 1

23 2010008 2011013 Aspa 1

24 2010058 2010090 Tapa 1

25 02096217 02096214I Rejilla Frontal 1

26 02010381A 02010381A Ornamento 1

Ref. Parte No. for Modelo

No. 4C630P/9012P 4C631Q/9016Q Descripción Cant.

MODEL

4C630P/9012P 4C631Q/9016Q

SPEED

HIGH MED LOW HIGH MED LOW

CFM 940 800 700 1510 1380 1190

/s 0.44 0.38 0.33 0.71 0.65 0.56

RPM 1470 1320 1100 1411 1280 1110

Amps 0.46 0.37 0.32 0.80 0.57 0.47

Watts 51 44 39 87 70 57

dBA 45 41 36 51 47 42

MODEL 4C630P/9012P and 4C631Q/9016Q

Rev. G 9/09 7 2084077

Rev. G 9/092084077

MODELO 4C630P/9012P y 4C631Q/9016Q

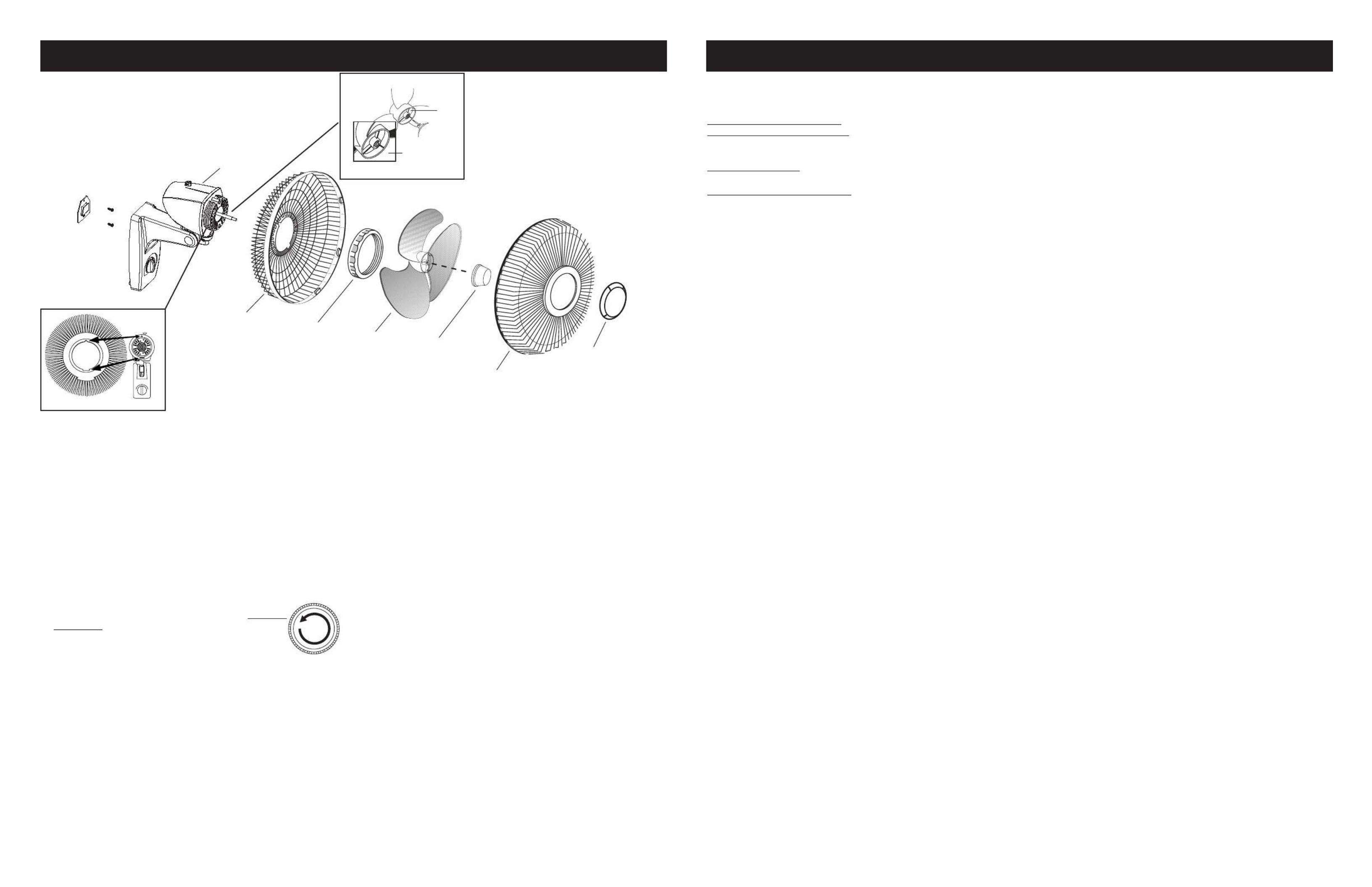

Motor

Detail 1

Rear

Grill Plastic

Nut Blade Spinner

Front

Grill

Ornament

ASSEMBLY (Figure 1)

1. Put on by aligning the tab on the Rear Grill Motor Rear Grill

with the groove on the . Motor (Detail 1)

2. Fully seat on and secure with Rear Grill Motor Plastic Nut

turning Clockwise.

3. Slide Blade onto Motor Shaft. (Align groove on blade hub with

pin on motor shaft.) (Detail 2)

4. To secure Blade, screw Spinner onto Shaft Counter

Clockwise until tight on Blade hub.

5. Snap into place.Front Grill

INSTALLATION

1. Locate a stud behind wall. If stud cannot be found, special types

of mounting anchors are available at your hardware store.

2. Secure Mounting Plate to wall with Screws supplied (#8 X 1

1/4" Wood Screws). Make sure ﬂange is pointing up as shown

in exploded view above.

3. Fan is now ready to hang on Mounting Plate.

OPERATION

VARIABLE OSCILLATION: Pull oscillation knob on the rear of the

motor up. Turn fan head to left, right, or straight ahead. Push oscil-

lation knob down and fan will oscillate about the set angle.

VERTICLE ANGLE: To adjust vertical angle, tilt fan head up or

down, as desired.

MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD BEFORE MOV-

ING OR SERVICING THE FAN.

WARNING: DO NOT IMMERSE FAN IN WATER!

CLEANING: Use a soft cloth moistened with a mild soap solu-

tion, such as liquid dish washing detergent. Dry ALL PARTS COM-

PLETELY before reassembling. After any maintenance or servicing,

COMPLETELY REASSEMBLE unit as described in this instruction

manual before reconnecting to the power supply.

CAUTION: Do not use gasoline, benzine, thinner, harsh

cleaners, etc. as they will damage the Fan. NEVER use

ALCOHOL OR SOLVENTS.

LUBRICATION: Precision bearings are sealed at the factory for

life and will not require any further lubrication.

STORAGE: Store the Fan, with these instructions, in a cool, dry

place.

QUÉ CUBRE ESTA GARANTÍAS: Este producto está garantizado contra defectos de mano de obra y/o materiales.

CUÁNTO DURA ESTA GARANTÍA: Esta garantía se extiende únicamente al comprador original del producto y dura un (1) año a partir de

la fecha original de compra o hasta que el comprador original del producto venda o transﬁera el producto, cualesquiera de ambas que

ocurriera en primer lugar.

QUÉ HARÁ AIR KING: Durante el período de garantía, Air King, a opción propia, reparará o reemplazará cualquier parte o partes que

demuestren ser defectuosas o reemplazará el producto completo por el mismo modelo u otro comparable.

QUÉ NO CUBRE ESTA GARANTÍA: Esta garantía no tiene validez si el producto fue dañado o falló debido a un accidente, manipulación u

operación inadecuadas, daño en el envío, abuso, mal uso, reparaciones no autorizadas hechas o el intento de hacerlas. Esta garantía

no cubre los costos de envío para la devolución de productos a Air King para su reparación o reemplazo. Air King abonará los cargos

de envío de devolución a Air King con posterioridad a las reparaciones o el reemplazo bajo garantía.

CUALESQUIERA Y TODAS LAS GARANTÍAS, EXPLÍCITAS O IMPLÍCITAS (INCLUYENDO, SIN LIMITACIÓN,

CUALESQUIERA GARANTÍA IMPLÍCITA DE COMERCIABILIDAD), DURAN UN AÑO A PARTIR DE LA FECHA ORIGINAL

DE COMPRA O HASTA QUE EL COMPRADOR ORIGINAL DEL PRODUCTO VENDA O TRANSFIERA EL PRODUCTO,

CUALESQUIERA DE AMBAS QUE OCURRIERA EN PRIMER LUGAR Y EN NINGÚN CASO LA RESPONSABILIDAD

DE AIR KING BAJO CUALQUIER GARANTÍA EXPLÍCITA O IMPLÍCITA INCLUIRÁ (I) DAÑOS INCIDENTALES O POR

CONSECUENCIA POR CUALQUIER CAUSA QUE FUERE, O (II) REEMPLAZO O REPARACIÓN DE CUALESQUIERA

FUSIBLES HOGAREÑOS, CORTA-CIRCUITOS O TOMACORRIENTES. INDEPENDIENTEMENTE DE CUALQUIER

DECLARACIÓN CONTRARIA, EN NINGÚN CASO LA RESPONSABILIDAD DE AIR KING BAJO CUALQUIER GARANTÍA

EXPLÍCITA O IMPLÍCITA PODRÁ EXCEDER EL PRECIO DE COMPRA DEL PRODUCTO Y DICHA RESPONSABILIDAD

TERMINARÁ AL VENCIMIENTO DEL PERÍODO DE GARANTÍA.

Algunos estados y provincias no permiten limitaciones sobre la duración de una garantía implícita, o sobre la exclusión o limitación

de los daños incidentales o por consecuencia, por lo tanto dichas exclusiones o limitaciones podrían no aplicarse en su caso. Esta

garantía le otorga a usted derechos legales especíﬁcos. Usted también podría tener otros derechos que varían de estado en estado y

de provincia en provincia.

Se requiere prueba de compra antes que se acepte un reclamo bajo garantía.

GARANTÍA LIMITADA

SPEED: Speed is controlled by a pull-cord switch. The speed setting

is shown by switch knob on front cover. (Off-Low-Med-High-Off)

POWER SUPPLY CORD: Plug power supply cord into a wall outlet

(AC 120Volts, 60 Hz).

Detail 2

Groove

Produkt Specifikationer

Mærke:	Air King
Kategori:	Ventilator
Model:	9012

Har du brug for hjælp?

Hvis du har brug for hjælp til Air King 9012 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ventilator Air King Manualer

Air King 9701 Manual

28 August 2025

Air King AK200LS Manual

28 August 2025

Air King MFAS Manual

28 August 2025

Air King 9318 Manual

28 August 2025

Air King 9174 Manual

28 August 2025

Air King DRLC701 Manual

27 August 2025

Air King E80DG Manual

27 August 2025

Air King AK863L Manual

27 August 2025

Air King 9670 Manual

27 August 2025

Air King 9119 Manual

27 August 2025

Ventilator Manualer

Nyeste Ventilator Manualer

DeepCool FL12 SE Manual

30 September 2025

Heller HMTF40 Manual

30 September 2025

Heller HWF40P Manual

30 September 2025

Life On Products LCAF025 Manual

30 September 2025

BlueBuilt SV1810 Manual

29 September 2025

MPM MWP-27/C Manual

29 September 2025

DeepCool FL12R SE Manual

29 September 2025

DeepCool CF140 Manual

28 September 2025

XPower FC-250AD Manual

28 September 2025

XPower FC-250D Manual

28 September 2025
