READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT

YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH

INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions

should always be followed to reduce the risk of fire,

electric shock and injury to person, including the following:

1. Read all instructions before installing or using exhaust fan.

2. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer.

3. Before servicing or cleaning the unit, switch power off at

service panel and lock the service disconnecting means to

prevent power from being switched on accidentally. When

the service disconnecting means cannot be locked, securely

fasten a prominent warning device, such as a tag, to the

service panel.

4. Installation work and electrical wiring must be done by

qualified person(s) in accordance with all applicable codes

and standards, including fire-related construction.

5. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equipment

to prevent back drafting. Follow the heating equipment

manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA)

and the American Society for Heating, Refrigeration, and Air

Conditioning Engineers (ASHRAE), and the local code authorities.

CAUTION: FOR GENERAL VENTILATING USE ONLY. DO

NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS

AND VAPORS.

Models: AK863L, AK863FL

www.airkinglimited.com

211572097 Rev. B 1-10

Exhaust Fan with Light

SAVE THESE INSTRUCTIONS

6. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

7. Ducted fans must always be vented to the outdoors.

8. This unit must be grounded.

9. To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. off

power unit.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL

DEVICE.

10. Acceptable for use over a bathtub or shower when installed

in a GFCI protected branch circuit.

11. NEVER place a switch where it can be reached from a tub or

shower.

12.

Do not install in a ceiling with thermal insulation value greater

than R40.

WARNING: DO NOT USE IN KITCHENS

IMPORTANT INSTRUCTIONS -

OPERATING MANUAL

1 of 12

5. Select the most convenient

electrical knockout and remove

using a straight-blade screw driver

(Figure 3).

SECTION 2

New Construction

1a. Install the rails on the housingMounting Rail Installation:

and position the housing next to the joist with the transition

plate flush to the underside of the joist. Secure the ends of

the rails with screws or nails (not included) to the joists and

slide the housing into the final position .(Figure 4)

1b. Mounting Tab Installation: Position the fan so that the tabs

rest flat against the joist with the transition plate flush to the

underside of the joist. Secure with four nails or screws (not

provided) to ensure proper installation .(Figure 5)

SECTION 3

Existing Construction

1a. Mounting Rail Installation: Set housing in position between

the joist and trace an outline onto the ceiling material (Figure

6). Set housing aside and cut opening, being careful not to

cut or damage any electrical or other hidden utilities. Install

the rails on the housing and position the housing in the

previously cut hole so that it is flush with the finished ceiling.

Secure the ends of the rails with screws or nails (not included)

to the joists .(Figure 4)

INSTALLATION INSTRUCTIONS

CAUTION:

MAKE SURE POWER IS SWITCHED OFF AT

SERVICE PANEL BEFORE STARTING INSTALLATION.

SECTION 1

Preparing the Exhaust Fan

1. Unpack fan from the carton and confirm that all pieces are

present. In addition to the exhaust fan you should have:

1 - Grill with Light Lens

1 - Damper Assembly (attached)

4 - Mounting Rails

1 - Instruction/Safety Sheet

2. Remove the fan’s light reflector, which is secured in place

with one center located screw. Also remove the lock washer

washer and flat washer. Keep all parts in the carton until

needed so they do not get damaged or lost .(Figure 1)

3. Remove the fan’s venturi assembly, which is secured in place

with one screw through the venturi. Keep the venturi assembly

in the carton until needed so it does not get damaged or lost

(Figure 2).

4. Choose the location for your fan. To ensure the best air and

sound performance, it is recommended that the length of

ducting and the number of elbows be kept to a minimum, and

that insulated hard ducting be used. Larger duct sizes will

reduce noise and airflow restrictions. This fan will require at

least 6" of clearance in the ceiling or wall, and will mount

through drywall up to 3/4" thick. The fan can be mounted

directly to the joist using the mounting tabs on the side of

the housing or between 16" on center joists using the 4

provided mounting rails.

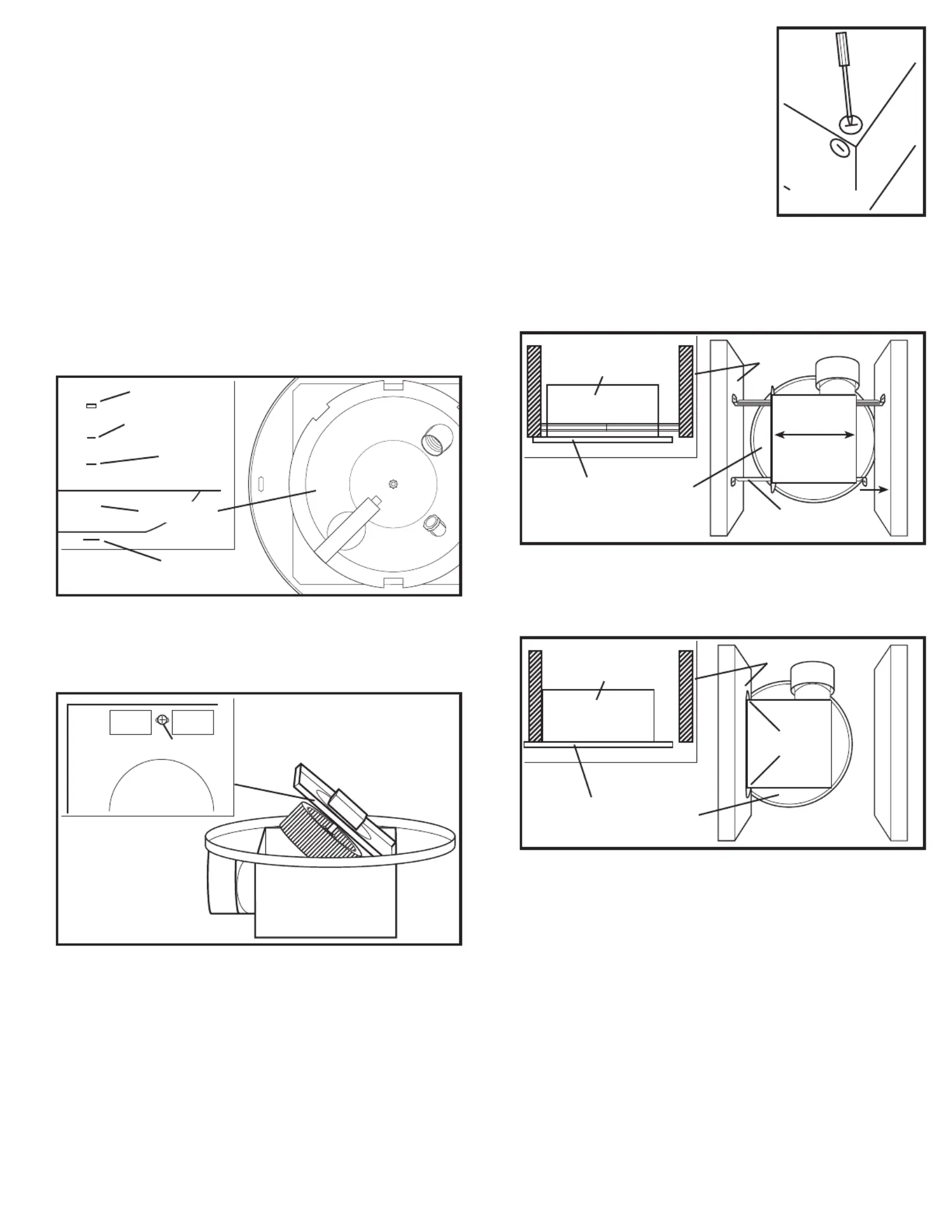

Figure 3

www.airkinglimited.com

211572097 Rev. B 1-10 2 of 12

Nut

Flat Washer

Figure 1

Lock Washer

Washer

Screw

Figure 2

Reflector

Figure 4

Joist

Housing

Hanger Bar

Transition Plate

Figure 5

Joist

Housing

Transition Plate

Tabs
