1. Read all instructions before using Fan.
2. Make certain that the power source conforms to the electrical
requirements of the Fan.
3. Use this Fan only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electrical
shock, or injury to persons.
4. To reduce the risk of personal injury and electric shock, the Fan
should not be played with or placed where small children can
reach it.
5. Unplug power cord before servicing, or moving the Fan.
WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH
AS THE SOLE MEANS OF DISCONNECTING POWER WHEN
INSTALLING OR SERVICING THE FAN. ALWAYS UNPLUG THE
6. This Fan must NOT be used in potentially dangerous
locations such as flammable, explosive, chemical-laden
or wet atmospheres.
7. DO NOT use Fan in or near a window. Rain may create an
electrical hazard.
8. Completely reassemble Fan, according to instructions, before
reconnecting to power supply.
9. The power cord is equipped with a three-prong grounded plug
that must be inserted into a matching receptacle. Under no
circumstances must the grounding prong be cut off the plug.
Where a two-prong wall receptacle is encountered, it must
be replaced with a properly grounded three-prong receptacle
installed in accordance with the National Electrical Code (NEC)
and all applicable local codes and ordinances. This work must
be done only by a qualified electrician, using copper wire
only.
WARNING: USE OF A THREE-PRONG TO TWO-PRONG
ADAPTER IS NOT RECOMMENDED. IMPROPER CONNECTION
MAY CREATE THE RISK OF ELECTROCUTION. USE OF SUCH
ADAPTERS ARE NOT PERMITTED IN CANADA.
10. Where possible, avoid the use of extension cords. If they must
be used, minimize the risk of overheating by ensuring that they
are UL listed. Never use a single extension cord to operate
more than one Fan.
11. Do not operate any Fan with a damaged cord or plug or after the
Fan malfunctions, has been dropped or damaged in any manner.
Return Fan to authorized service facility for examination,
electrical or mechanical adjustment or repair.
12. Do not insert or allow fingers or foreign objects to enter any
ventilation or exhaust opening as it may cause an electric shock
or fire, or damage the Fan. Do not block or tamper with the Fan
in any manner while it is in operation.
13.Locate the Power Cord so the Fan or other objects are not
resting on it. Do not run Power Cord under carpeting. Do not
cover Power Cord with throw rugs, runners, or the like. Arrange
Power Cord away from room traffic and where it will not be
tripped over.
14.This Fan is not intended for use in wet or damp locations.
Never locate a Fan where it may fall into a bathtub or other
water container.
15. Do not use Fan outdoors.
16. This Fan is not suitable for use in agricultural facilities including
areas where livestock, poultry or other animals are confined.
Please refer to National Electric Code (NEC) Article 547-7
(2008), or applicable state or local codes or standards relating
to electrical requirements for Agricultural Buildings. THIS
FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7
(2008).
17. This Fan is not suitable for use in hazardous locations. Please
refer to National Electric Code (NEC) Article 500 or applicable
state or local codes or standards relating to electrical
requirements for Hazardous locations. THIS FAN DOES NOT
MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).
WARNING: REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
– DO NOT USE THIS FAN WITH ANY SOLID STATE SPEED
CONTROL DEVICES.
CAUTION: BECAUSE OF THE SIZE AND WEIGHT OF THIS
FAN, MAKE SURE ALL PARTS ARE COMPLETELY ASSEMBLED
ACCORDING TO INSTRUCTIONS. FAILURE TO DO SO COULD
RESULT IN FAN COMING APART DURING OPERATION AND/OR
PERSONAL INJURY.
24” / 30” OSCILLATING CEILING MOUNT FAN
MODEL 9324, 9335, 9374, 9375
24” / 30” NON-OSCILLATING CEILING MOUNT FAN
MODEL 9724, 9330, 9371, 9370
4Rev. A 11/07 5084416 1Rev. A 11/07
5084416
MAINTENANCE
WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING.
WARNING: DO NOT IMMERSE FAN IN WATER!
CLEANING: Use a soft cloth and mild soap solution such as liquid dish washing detergent. Dry all parts completely before reconnecting
to power supply.
CAUTION: Do not use gasoline, benzine, thinner, harsh cleaners, etc. as they will damage the Fan. NEVER use AL-
COHOL OR SOLVENTS.
SERVICING: All other servicing, with the exception of general user maintenance, should be performed by an authorized service repre-
sentative. Call 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m.and 5:00 p.m. Eastern for the location of your
nearest service center.
LUBRICATION: Precision bearings are sealed at the factory for life and do not require further lubrication.
STORAGE: Store the Fan, with these instructions, in a clean and dry place.
GENERAL SAFETY INFORMATION
When using electrical appliances,
basic precautions should always be followed
to reduce the risk of fire, electric shock and injury to person,
including the following:
FOR OSCILLATING MODELS:
OSCILLATION: Push down oscillation knob on motor housing
to make fan head move from side to side.
NOTE FOR OSCILLATING MODELS: FAN IS SHIPPED
WITH 90º OSCILLATION ANGLE, FOR 45º OSCILLATION
ANGLE, CONNECT THE OSCILLATION LINK TO THE INNER-
MOST HOLE IN THE CAM GEAR. (Inset A)
1.
2.
3.
(Inset A)
Cam Gear
90˚
45˚
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
IMPORTANT INSTRUCTIONS - OPERATING MANUAL
CUSTOMER SERVICE:
Toll-Free (800) 233-0268. Email: producthelp@laskoproducts.com
Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They
can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style
(located on the underside of your product). Please do not return product to place of purchase.
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380 (Please do not send product to this location) www.laskoproducts.
com
PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS,
MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION
OR REPLACEMENT.
LIMITED WARRANTY
WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.
HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of
original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.
WHAT AIR KING WILL DO: During the warranty period, Air King will, at its sole option, repair or replace any part or parts that prove to be defective or
replace the whole product with the same or comparable model.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling
or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of
products to Air King for repair or replacement. Air King will pay return shipping charges from Air King following warranty repairs or replacement
ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY),
LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS
THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL AIR KING'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY
INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACMENT OR REPAIR OF ANY HOUSE
FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL AIR KING'S LIABILITY
UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE
UPON THE EXPIRATION OF THE WARRANTY PERIOD.
Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these
exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to
province. Proof of purchase is required before a warranty claim will be accepted.
Figure 2A
Motor Mounting
Adapter
Exploded View for Detail
Oscillating Motor View
Application Loctite 243
Loctite 243
IMPORTANT INSTRUCTIONS - OPERATING MANUAL IMPORTANT INSTRUCTIONS - OPERATING MANUAL

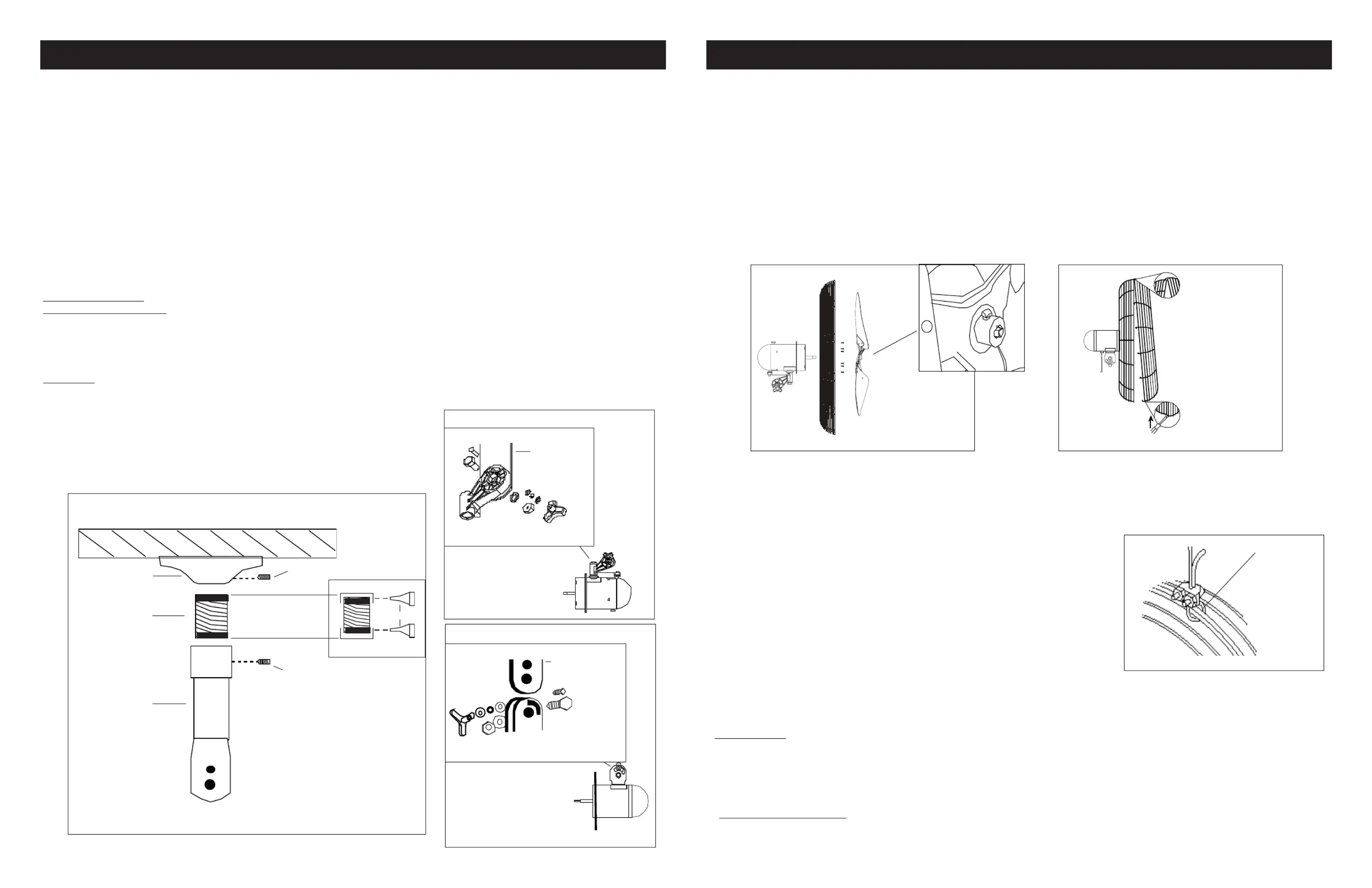

CEILING MOUNT INSTALLATION (Figures 1 and 2)
NOTE: Distance mounted from the ceiling can be changed by using a length of 1-1/2” NPT pipe. Simply substitute your pipe for the
provided threaded pipe.
1. Locate the , securely mount to ceiling structure. Ensure ceiling structure can safely support the installed Fan.Pipe Mounting Flange
2. Open one tube of Loctite #243 by snapping tube neck just below end cap. Be Certain to follow all warnings noted on Loctite #243 tube.
3. Apply (1) ENTIRE tube of Loctite #243 onto the first 2 threads of one end of the Threaded Pipe that will be screwed into the Motor
Mounting Adapter (Figure 1 - Inset).
4. Screw into . The screwed in at least 4 full revolutions. Do not Threaded Pipe Motor Mounting Adapter Threaded Pipe MUST BE
allow Loctite #243 to dry before joining. Tighten provided into . 1/4” Set Screw Motor Mounting Adapter (Figure 1)
5. Open second tube of Loctite #243 by snapping tube neck just below end cap. Be Certain to follow all warnings noted on Loctite #243 tube.
6. Apply (1) ENTIRE tube of Loctite #243 onto the first 2 threads of the opposite end of the Threaded Pipe that is now screwed into the
Motor Mounting Adapter (Figure 1 - Inset).
7. Screw Threaded Pipe with Motor Mounting Adapter Pipe Mounting Flange Threaded Pipe with Motor Mounting to the .The
Adapter MUST BE screwed in at least 4 full revolutions into the . Do not allow Loctite #243 to dry before Pipe Mounting Flange
joining. (Figure 1)
8. Tighten provided into . 1/4” Set Screw Pipe Mounting Flange (Figure 1)
CAUTION: FAN IS HEAVY AND MAY REQUIRE TWO PEOPLE TO MOUNT.
9. Attach pull string to motor speed switch, if desired
For Oscillating Motor: Place the flat section on the Motor Mounting Adapter next to the Motor Neck. (Figure 2A)
For Non-Oscillating Motor: Slide the Motor Neck Slot over the Motor Mounting Adapter. Align the 1/2” diameter hole in the Adapter with
the 1/2” diameter holes in the Motor neck Slot. (Figure 2B)
10. Insert the 1/2” X 1” Hex Bolt (3/4” head) through the Motor Neck, and the Motor Mounting Adapter. Place 1/2” diameter Split Lock-
washer then the 1/2” diameter Hex Nut (3/4” head) and tighten fully with 2 adjustable wrenches.
11. From the same side of the Motor Neck, insert one 1/4-20 X 1 5/8” Carriage Bolt through the Arc-Shaped Slot in the Motor Neck and Hole
in the Motor Mounting Adapter.
To Fasten: Place one 1/4” Flatwasher, one 1/4” Internal Tooth Lockwasher, a second 1/4” Flatwasher and then tighten the Adjustable
Knob over the remaining threads.
2Rev. A 11/07
5084416
3Rev. A 11/07
5084416
Figure 1
Flange
Threaded Pipe
Motor Mounting
Adapter
Set Screw
GRILL AND BLADE ASSEMBLY (Figures 3 and 4)
NOTE: The assembly of the blade and grill is identical, regardless if the Fan has an oscillating motor or a non-
oscillating motor. One of each is shown in the illustrations below.
1. Install the Rear Grill onto the , lining up the six holes in the grill with the six threaded holes in the Motor Motor. Install (6) 10-32 X 5/16”
Hex Screws through the into the . Securely tighten all (6) screws.Rear Grill Motor (Figure 3)
2. Push the onto the , centering the Hub facing away from the motor, until it stops against the shaft. Fan Blade Motor Shaft (Inset A)
Align Square Head Bolt with flat of the . Motor Shaft TIGHTEN VERY SECURELY WITH AN ADJUSTABLE WRENCH. Failure to se-
curely tighten the Bolt could result in damage to the Fan and/or personal injury.
3. Hold the Front Grill so that the name, in the center, is right side up and straight across. Starting at the top: Fasten Front Grill to Rear
Grill Front Grill by sliding the hooked wires on the over the outermost ring on the . . The bottom most Rear Grill (Figure 4 / Detail A)
hooks will require the use of a flathead screwdriver to complete assembly. Stand behind the Fan. Slip the flat of the screwdriver be-
tween the Front and Rear Grills, next to one of the unfastened hooks. (Figure 4 / Detail B) Pull screwdriver handle upwards towards
the Rear Grill. Slip the Front Grill hook over the Rear Grill outer ring with a push. Repeat procedure with remaining hooks.
CAUTION: DO NOT BEND WIRES ON THE FRONT OR THE REAR GRILLS.
Figure 3
Inset A
Oscillating Motor Shown
OPERATING INSTRUCTIONS
1. TO OPERATE: Plug cord into a grounded 120V, 60 Hz outlet. Select desired operating speed with pull cord on the rear of the motor:
First pull: High Second pull: Medium
Third pull: Low Fourth pull: OFF
NOTE: THIS FAN IS VERY HEAVY.
Failure to securely hold onto head assembly while adjusting head angle
could result in personal injury.
2. TO ADJUST HEAD ANGLE: While holding head firmly, loosen knob under motor (turn counterclockwise). Tilt head to desired position
FIRMLY retighten knob under motor.
NOTE: Motor Head Adjustment Knob and the On/Off Pull Cord have the same location on oscillating or non-oscillating models.
CAUTION: THE SECONDARY SUPPORT CABLE PROVIDED SHOULD BE
U S E D A N Y T I M E T H E CI R C U L A T O R I S MO U N T E D OV E R H E A D F O R
AD DI TIONAL SAFETY.
SECONDARY SUPPORT CABLE (Figure 5)
1. Loop one end of Cable around the Large Guard Wires of both the Front and Rear Grills.
2. Attach a Cable Clamp with the “U” on the tail side of the loop leaving a tail approxi-
mately 1 to 2 inches. Tighten Clamp Nuts. Make sure no part of the Cable interferes with
the Blade.
3. Wrap the other end of the Cable around a secure building joist, truss, or other support near
the Fan. Take up all excess slack in the Cable.
CAUTION: USE ONLY THE MOUNTING HARDWARE WHICH
IS RECOMMENDED FOR USE ON THIS FAN.
4. Attach the remaining Cable Clamp as indicated in Step 2. The excess tail should be
trimmed to extend 1 to 2 inches past the Clamp.
5. Check the Assembly to assure the Blade is free of all obstructions.
CAUTION: Use of the secondary support cable does not guarantee protection against injury of persons, mounting of both
the circulator and cable could fail if subjected to abuse, neglect or improper installation.
Detail B
Bottom Hooks
Detail A
Top Hooks
Non-Oscillating Motor Shown
Figure 4
Set Screw
Inset
Figure 2B
Motor Mounting
Adapter
Exploded View for Detail
Non-Oscillating Motor View
Ceiling Mount Assembly
Large Guard
Wires
Figure 5

Produkt Specifikationer

Mærke: Air King
Kategori: Ventilator
Model: 9375

Har du brug for hjælp?

Hvis du har brug for hjælp til Air King 9375 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ventilator Air King Manualer

Air King

Air King 9701 Manual

28 August 2025
Air King

Air King AK200LS Manual

28 August 2025
Air King

Air King MFAS Manual

28 August 2025
Air King

Air King 9318 Manual

28 August 2025
Air King

Air King 9174 Manual

28 August 2025
Air King

Air King DRLC701 Manual

27 August 2025
Air King

Air King E80DG Manual

27 August 2025
Air King

Air King AK863L Manual

27 August 2025
Air King

Air King 9670 Manual

27 August 2025
Air King

Air King 9119 Manual

27 August 2025

Ventilator Manualer

Nyeste Ventilator Manualer

XPower

XPower FC-250AD Manual

28 September 2025
XPower

XPower FC-250D Manual

28 September 2025
Duux

Duux Whisper Flex Manual

28 September 2025
Vornado

Vornado OSC73 Manual

27 September 2025
Vortice

Vortice Nordik Evolution 120 WE Manual

27 September 2025
Vornado

Vornado VFAN Petite Alchemy Manual

26 September 2025
Vornado

Vornado 673T Manual

26 September 2025
Vornado

Vornado 573T Manual

25 September 2025
Vornado

Vornado 561 Manual

25 September 2025
Vornado

Vornado Swan Vintage Manual

25 September 2025
