IMPORTANT INSTRUCTIONS -

OPERATING MANUAL

1. Read all instructions before using Fan.

2. Make certain that the power source conforms to the electrical

requirements of the Fan.

3. Use this Fan only as described in this manual. Any other use not

recommended by the man ufacturer may cause fire , electrical

shock, or injury to persons.

4. To reduce the risk of personal injury and electric shock, the Fan

should not be played with or placed where small children can

reach it.

5. Unplug power cord before servicing, or moving the Fan.

WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH AS

THE SOLE MEANS OF DISCONNECTING POWER WHEN IN-

STALLING OR SERVICING THE FAN. ALWAYS UNPLUG THE

POWER CORD.

6. This Fan must NOT be used in potentially dangerous

locations such as flammable, explosive, chemical-laden

or wet atmospheres.

7. DO NOT use Fan in or near a window. Rain may create an

electrical hazard.

8. Completely reassemble Fan, according to instructions, be-

fore reconnecting to power supply.

9. The power cord is equipped with a three-prong grounded plug

that must be inser ted into a matching receptacle . Under no

circumstances must the g rounding prong be cut off the plug.

Where a two-prong wall receptacle is encountered, it m ust be

replaced with a proper ly grounded three-prong receptacle

installed in accordance with the National Electrical Code (NEC)

and all applicable local codes and ordinances. This work must

be done only by a qualified electrician, using copper wire only.

WARNING: USE OF A THREE-PRONG TO TWO-PRONG

ADAPTER IS NOT RECOMMENDED. IMPROPER CONNECTION

MAY CREATE THE RISK OF ELECTROCUTION. USE OF SUCH

ADAPTERS ARE NOT PERMITTED IN CANADA.

10. Where possible, avoid the use of extension cords. If they must be

used, minimize the risk of overheating by ensuring that they are

UL listed. Never use a single extension cord to operate more than

one Fan.

11.Do not operate any Fan with a damaged cord or plug or after the

Fan malfunctions, has been dropped or damaged in any manner.

Return Fan to authorized service facility for examination, electrical

or mechanical adjustment or repair.

12.Do not inser t or allo w fingers or f oreign objects to enter an y

ventilation or exhaust opening as it may cause an electric shock

or fire, or damage the Fan. Do not block or tamper with the Fan

in any manner while it is in operation.

13.Locate the Power Cord so the Fan or other objects are not resting

on it. Do not run Power Cord under carpeting. Do not cover Power

Cord with throw rugs, runners, or the like. Arrange Power Cord

away from room traffic and where it will not be tripped over.

14.This Fan is not intended f or use in w et or damp locations .

Never locate a Fan where it may fall into a bathtub or other

water container.

15. Do not use Fan outdoors.

WARNING: REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK

– DO NO T USE THIS FAN WITH ANY SOLID ST ATE SPEED

CONTROL DEVICES.

CAUTION: BECAUSE OF THE SIZE AND WEIGHT OF THIS

FAN, MAKE SURE ALL PARTS ARE COMPLETELY AS-

SEMBLED ACCORDING TO INSTRUCTIONS. FAILURE TO

DO SO COULD RESULT IN FAN COMING APART DURING

OPERATION AND/OR PERSONAL INJURY.

24" / 30" OSCILLATING I-BEAM MOUNT FAN

MODEL 9625, 9635, 9674, 9675

24" / 30" NON-OSCILLATING I-BEAM MOUNT FAN

MODEL 9424, 9430, 9671, 9670

4New 8/04

FOR PARTS:

Check package contents. If parts are missing, or replacement parts required, please call our PARTS DEPARTMENT

TOLL-FREE AT 1-800-233-0268. MONDAY THROUGH FRIDAY, BETWEEN THE HOURS OF 8 AM AND 4 PM EST.

"PLEASE DO NOT RETURN PRODUCT TO PLACE OF PURCHASE."

Reference the type and style of product (located on the underside of the product) when you call.

FOR TECHNICAL ASSISTANCE and SERVICE CENTER LOCATIONS:

For any questions, comments or the location of your nearest service center,

PLEASE CALL OUR TOLL-FREE "HOTLINE" AT 1-800-233-0268.

MONDAY THROUGH FRIDAY, BETWEEN THE HOURS OF 8 AM AND 5 PM EST.

Please reference product name and model no. when you call.

Appliance Service Dept. • P.O. Box 569 Franklin, TN 37064

PLEASE DO NOT SEND PRODUCT TO THIS LOCATION!

5084417

LIMITED WARRANTY

AIRKING THREE-YEAR LIMITED WARRANTY. Products are warranted by AirKing to the original user against defects in workmanship or

materials under normal use for three years on the motor and one year on all other parts, after date of purchase. Any part which is determined by

AirKing to be detective in material or workmanship and returned to an authorized service location, as AirKing designates, shipping costs prepaid,

will be, as the exclusive remedy, repaired or replaced at AirKing’s option. For limited warranty claim procedures, see PROMPT D ISPOSITION

below. This limited warranty gives purchasers specific legal rights which vary from state to state.

LIMITATION OF LIABILITY. To the extent allowable under applicable law. AirKing’s liability for consequential and incidental

damages is expressly disclaimed. AirKing’s liability in all events is limited to, and shall not exceed, the purchase price.

WARRANTY DISCLAIMER. AirKing has made a diligent effort to illustrate and describe the products in this literature accurately;

however, such illustrations and descriptions are for the sole purpose of identification, and do not express or imply a warranty the

products are merchantable, or fit a particular purpose, or that the products will necessarily conform to the illustrations or

descriptions.

Except as provided below, no warranty or affirmation of fact, expressed or implied, other than as stated in “LIMITED WARRANTY” above is made

or authorized by AirKing.

PRODUCT SUITABILITY. Many states and locations have codes and regulations governing sales, construction, installation, and/or use

of products for certain purposes, which may vary from those in neighboring areas. While AirKing attempts to assure that its pro ducts

comply with such codes, it cannot guarantee compliance, and cannot be responsible for how the product is installed or used. Bef ore

purchase and use of a product, please review the product application, and national and local codes and regulations, and be sure that the

product, installation, and use will comply with them.

Certain aspects of disclaimers are not applicable to consumer products; e.g., (a) some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above limitation or exclusion may not apply to you; (b) also, some states do not al low

limitations on how long an implied warranty lasts, consequently the above limitation may not apply to you; and (c) by law, during the period

of the Limited Warranty, and implied warranties of merchantability or fitness for a particular purpose applicable to consumer p roducts

purchased by consumers, may not be excluded or otherwise disclaimed.

PROMPT DISPOSITION. AirKing will make a good faith effort for prompt correction or other adjustment with respect to any product which proves to

be defective within limited warranty. For any product believed to be defective within limited warranty, first write or call dealer from whom product was

purchased. Dealer will give additional directions.

1New 8/04

5084417

MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING.

WARNING: DO NOT IMMERSE FAN IN WATER!

CLEANING: Use a soft cloth and mild soap solution such as liquid dish washing detergent. Dry all parts completely before reconnecting to

power supply.

CAUTION: Do not use gasoline , benzine, thinner, harsh cleaners, etc. as the y will damage the Fan. NEVER use

ALCOHOL OR SOLVENTS.

SERVICING: All other servicing, with the exception of general user maintenance, should be performed by an authorized service representative.

Call 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m.and 5:00 p.m. the location of your nearest se vice center.EST for r

LUBRICATION: Precision bearings are sealed at the factory for life and do not require further lubrication.

STORAGE: Store the Fan, with these instructions, in a clean and dry place.

GENERAL SAFETY INFORMATION

When using electrical appliances,

basic precautions should always be followed

to reduce the risk of fire, electric shock and injury to person,

including the following:

FOR OSCILLATING MODELS:

OSCILLATION: Push down oscillation knob on motor housing

to make fan head move from side to side.

NOTE FOR OSCILLATING MODELS: FAN IS SHIPPED

WITH 90º OSCILLATION ANGLE, FOR 45º OSCILLATION

ANGLE, CONNECT THE OSCILLATION LINK TO THE IN-

NERMOST HOLE IN THE CAM GEAR.

(Insert A)

Cam Gear

90°

45°

IMPORTANT INSTRUCTIONS - OPERATING MANUAL

SAVE THESE INSTRUCTIONS

IMPORTANT INSTRUCTIONS - OPERATING MANUAL IMPORTANT INSTRUCTIONS - OPERATING MANUAL

2New 8/04

5084417

3New 8/04

5084417

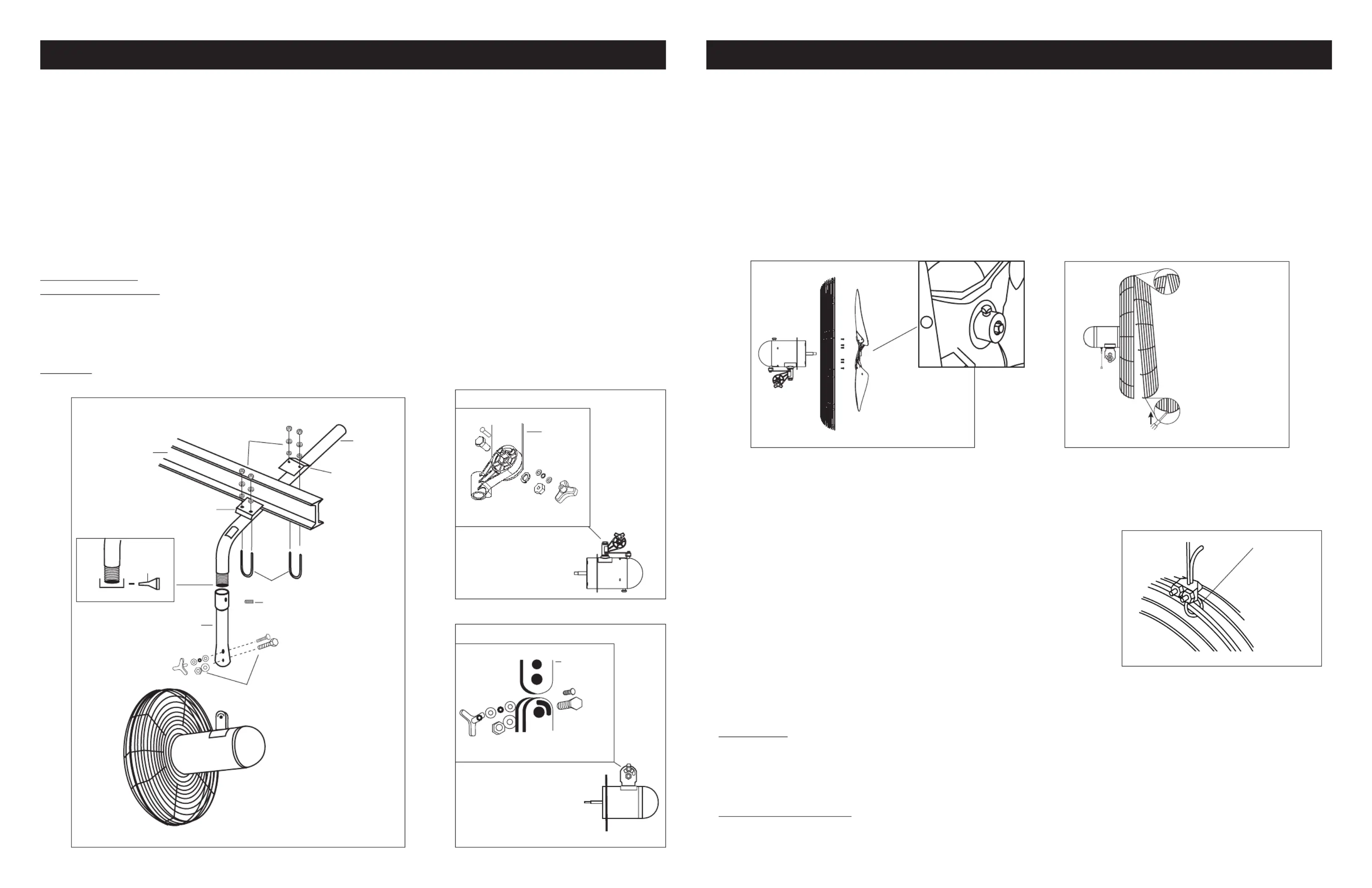

GRILL AND BLADE ASSEMBLY

(Figures 3 and 4)

NOTE: The assembly of the blade and grill is identical, regardless if the Fan has an oscillating motor or a non-oscillating

motor. One of each is shown in the illustrations below.

1. Install the

Rear Grill

onto the

Motor

, lining up the six holes in the grill with the six threaded holes in the

Motor

. Install (6) 10-32 X 5/16”

Hex Screws through the

Rear Grill

into the

Motor

. Securely tighten all (6) screws.

(Figure 3)

2. Push the

Fan Blade

onto the

Motor Shaft

, centering the Hub facing away from the motor, until it stops against the shaft

(Inset A)

. Align

Square Head Bolt with flat of the

Motor Shaft

. TIGHTEN VERY SECURELY WITH AN ADJUSTABLE WRENCH. Failure to securely

tighten the Bolt could result in damage to the Fan and/or personal injury.

3. Hold the

Front Grill

so that the name, in the center, is right side up and straight across. Starting at the top: Fasten

Front Grill

Rear

Grill

by sliding the hooked wires on the

Front Grill

over the outermost ring on the

Rear Grill

(Figure 4/ Detail A)

. The bottom most hooks

will require the use of a flathead screwdriver to complete assembly. Stand behind the Fan. Slip the flat of the screwdriver between the

Front and Rear Grills, next to one of the unfastened hooks.

(Figure 4/ Detail B)

Pull screwdriver handle upwards towards the Rear Grill.

Slip the Front Grill hook over the Rear Grill outer ring with a push. Repeat procedure with remaining hooks.

CAUTION: DO NOT BEND WIRES ON THE FRONT OR THE REAR GRILLS.

Figure 3

Inset A

Oscillating Motor Shown

I-BEAM MOUNT INSTALLATION

(Figure 1 and 2)

1. Open one tube of Loctite #243 by snapping tube neck just below end cap. Be Certain to follow all warnings noted on Loctite #243 tube.

2. Apply (1) ENTIRE tube of Loctite #243 onto the first 2 threads on the end of the

L-Shaped Pipe. (Figure 1 - Inset)

3. Screw

Motor Mounting Adapter

into

L-Shaped Pipe

.The

Motor Mounting Adapter

MUST BE screwed in at least 4 full revolutions.

Do not allow Loctite #243 to dry before joining.

4. Rotate the

Motor Mounting Adapter

back to desired location and tighten set screw.with the provided 1/4”

5. Locate the

L-Shaped Pipe with attached Motor Mounting Adapter

to the desired location on the I-Beam flange. Install the

5/16 x 2" U-Bolts

over the

L-Shaped Pipe

and through the

Clamping Plate Holes

. The flat part of the

Clamping Plate

fits on the I-Beam flange and the end

with the slight bend goes against the pipe. Install flat washer, lock washer and nuts. Finger tighten the nuts on the U-Bolt.

(Figure 1)

6. Slide the

Clamping Plate

onto I-Beam flange until

U-Bolts

contact flange.

7. Adjust

L-Shaped Pipe

so forward

Clamping Plate

is as close to the label at the bend as possible

8. Tighten nuts on bolt so

L-Shaped Pipe

does not move.

CAUTION: FAN IS HEAVY AND MAY REQUIRE TWO PEOPLE TO MOUNT.

9. Attach pull string to motor speed switch, if desired.

For Oscillating Motor: Place the flat section on the Motor Mounting Adapter next to the Motor Neck.

(Figure 2A)

For Non-Oscillating Motor: Slide the Motor Neck Slot over the Motor Mounting Adapter. Align the 1/2” diameter hole in the Adapter with the

1/2” diameter holes in the Motor neck Slot.

(Figure 2B)

10.Insert the 1/2” X 1” Hex Bolt (3/4” head) through the Motor Neck, and the Motor Mounting Adapter. Place 1/2” diameter Split Lockwasher

then the 1/2” diameter Hex Nut (3/4” head) and tighten fully with 2 adjustable wrenches.

11.From the same side of the Motor Neck, insert one 1/4-20 X 1 5/8” Carriage Bolt through the Arc-Shaped Slot in the Motor Neck and Hole

in the Motor Mounting Adapter.

To Fasten: Place one 1/4” Flatwasher, one 1/4” Internal Tooth Lockwasher, a second 1/4” Flatwasher and then tighten the Adjustable Knob

over the remaining threads.

OPERATING INSTRUCTIONS

1. TO OPERATE: Plug cord into a grounded 120V, 60 Hz outlet. Select desired operating speed with pull cord on the rear of the motor:

First pull: High Second pull: Medium

Third pull: Low Fourth pull: OFF

NOTE: THIS FAN IS VERY HEAVY.

Failure to securely hold onto head assembly while adjusting head angle

could result in personal injury.

2. TO ADJUST HEAD ANGLE: While holding head firmly, loosen knob under motor (tur n counterclockwise). Tilt head to desired position

FIRMLY retighten knob under motor.

NOTE: Motor Head Adjustment Knob and the On/Off Pull Cord have the same location on oscillating or non-oscialling models.

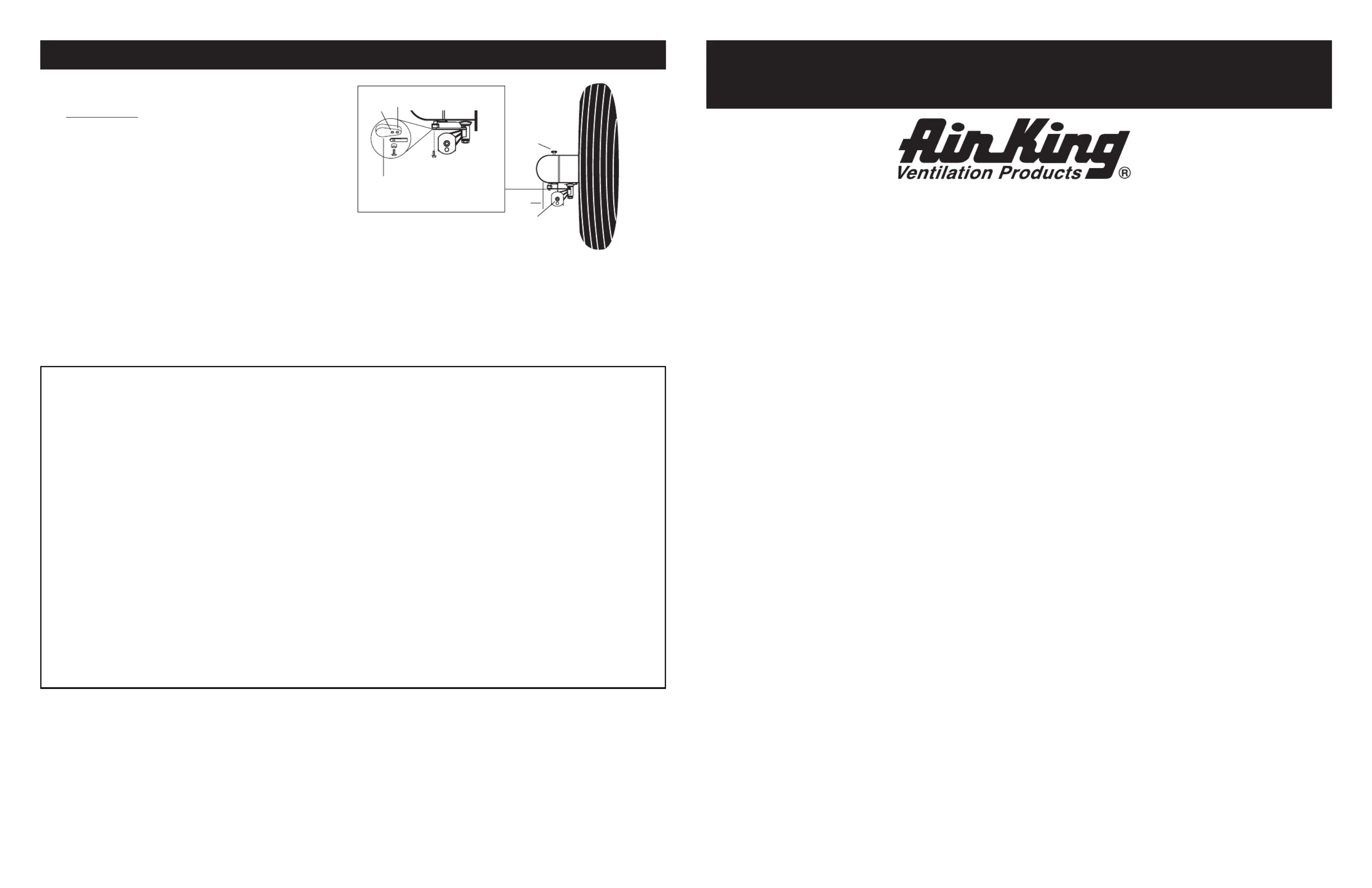

CAUTION: THE SECONDARY SUPPORT CABLE PROVIDED SHOULD BE

USED ANYTIME THE CIRCULATOR IS MOUNTED OVERHEAD FOR

ADDITIONAL SAFETY.

SECONDARY SUPPORT CABLE

(Figure 5)

1. Loop one end of Cable around the

Large Guard Wires

of both the Front and Rear Grills.

2. Attach a Cable Clamp with the "U" on the tail side of the loop leaving a tail

approximately 1 to 2 inches. Tighten Clamp Nuts. Make sure no part of the Cable

interferes with the Blade.

3. Wrap the other end of the Cable around a secure building joist, truss, or other support near

the Fan. Take up all excess slack in the Cable.

CAUTION: USE ONLY THE MOUNTING HARDWARE WHICH

IS RECOMMENDED FOR USE ON THIS FAN.

4. Attach the remaining Cable Clamp as indicated in Step 2. The excess tail should be

trimmed to extend 1 to 2 inches past the Clamp.

5. Check the Assembly to assure the Blade is free of all obstructions.

CAUTION: Use of the secondary support cable does not guarantee protection against injury of persons, mounting of both the

circulator and cable could fail if subjected to abuse, neglect or improper installation.

Detail B

Bottom Hooks

Detail A

Top Hooks

Non-Oscillating Motor Shown Figure 4

Large Guard

Wires

Figure 5

Figure 2A

Motor

Mounting

Adapter

Exploded View for Detail

Oscillating Motor View

Figure 2B

Motor

Mounting

Adapter

Exploded View for Detail

Non-Oscillating Motor View

U-Bolts

Motor Mounting

Adapter

L-Shaped

Pipe

Non-Oscillating Motor Shown

Clamping

Plate

I-Beam Flange

Set Screw

I-Beam

Mounting

Hardware

Motor Mounting

Hardware

Clamping

Plate

Loctite 243

Application Loctite 243

Inset

Produkt Specifikationer

Mærke:	Air King
Kategori:	Ventilator
Model:	9424

Har du brug for hjælp?

Hvis du har brug for hjælp til Air King 9424 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ventilator Air King Manualer

Air King 9701 Manual

28 August 2025

Air King AK200LS Manual

28 August 2025

Air King MFAS Manual

28 August 2025

Air King 9318 Manual

28 August 2025

Air King 9174 Manual

28 August 2025

Air King DRLC701 Manual

27 August 2025

Air King E80DG Manual

27 August 2025

Air King AK863L Manual

27 August 2025

Air King 9670 Manual

27 August 2025

Air King 9119 Manual

27 August 2025

Ventilator Manualer

Nyeste Ventilator Manualer

XPower FC-250AD Manual

28 September 2025

XPower FC-250D Manual

28 September 2025

Duux Whisper Flex Manual

28 September 2025

Vornado OSC73 Manual

27 September 2025

Vortice Nordik Evolution 120 WE Manual

27 September 2025

Vornado VFAN Petite Alchemy Manual

26 September 2025

Vornado 673T Manual

26 September 2025

Vornado 573T Manual

25 September 2025

Vornado 561 Manual

25 September 2025

Vornado Swan Vintage Manual

25 September 2025
