READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.

PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH

INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

DESCRIPTION

The AirKing 18" (45.7 cm) I-Beam Mount Fan features Pull Cord operation

and a 3-paddle Fan Blade. This Fan has a permanently lubricated motor

with a 9 ft (2.74 m) 18/3 cord set and are constructed of sturdy, powder

coated steel.

SPECIFICATIONS

Motor ....................................... 120 V, 50/60 Hz

Blade diameter ....................... 18" (45.7 cm) Model 9618

Speeds .................................... 3

Control .................................... Pull Cord

Air flow distribution ................. 360°

Approvals ................................ UL Listed. Close mesh Fan guard

meets OSHA requirements.

HIGH VELOCITY

I-BEAM MOUNT FAN

18" (45.7 cm) MODEL 9618

OPERATING INSTRUCTIONS & PARTS MANUAL

GENERAL SAFETY INFORMATION

1. Make certain that the power source conforms to the electrical require-

ments of the Fan.

2. The power cord is equipped with a three-prong grounded plug that must

be inserted into a matching receptacle. Under no circumstances must the

grounding prong be cut off the plug. Where a two-prong wall receptacle

is encountered, it must be replaced with a properly grounded three-prong

receptacle installed in accordance with the National Electrical Code

(NEC) and all applicable local codes and ordinances. This work must be

done only by a qualified electrician, using copper wire only.

WARNING: USE OF A THREE-PRONG TO TWO-PRONG ADAPTER IS

NOT RECOMMENDED. IMPROPER CONNECTION MAY CREATE THE

RISK OF ELECTROCUTION. USE OF SUCH ADAPTERS ARE NOT

PERMITTED IN CANADA.

3. Where possible, avoid the use of extension cords. If they must be

used, minimize the risk of overheating by ensuring that they are UL

listed and of the proper gage and length. Never use a single extension

cord to operate more than one fan.

4. Do not insert fingers or foreign objects into the fan. Do not block or

tamper with the fan in any manner while it is in operation. Do not touch

the fan while in operation or just after it has been turned off, as some

parts may be hot enough to cause injury.

5. Unplug power cord before installing or servicing the fan.

WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH AS THE

SOLE MEANS OF DISCONNECTING POWER WHEN INSTALLING OR

SERVICING THE FAN. ALWAYS UNPLUG THE POWER CORD.

6. This fan is intended for general use ONLY. It must NOT be used in

potentially dangerous locations such as flammable, explosive, chemi-

cal-laden or wet atmospheres.

New 6/01 1 5084036

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT USE THIS FAN WITH ANY SOLID STATE SPEED CONTROL DEVICE.

CAUTION: BECAUSE OF SIZE AND WEIGHT OF THIS FAN, MAKE

SURE ALL PARTS ARE COMPLETELY ASSEMBLED ACCORDING TO

INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN FAN COM-

ING APART DURING OPERATION AND/OR PERSONAL INJURY.

7. Be sure Fan is mounted to a stable surface when operating.

8. DO NOT mount Fan near windows or bay doors. Rain may create an

electrical hazard.

9. Completely reassemble Fan, according to instructions before recon-

necting to power supply.

MODEL

9618

SPEED

HIGH MED LOW

CFM 5350 4180 3010

/s 2.52 1.97 1.42

RPM 1600 1275 950

Amps 1.65 1.27 .95

Watts 194 148 110

dB A 67 58 49

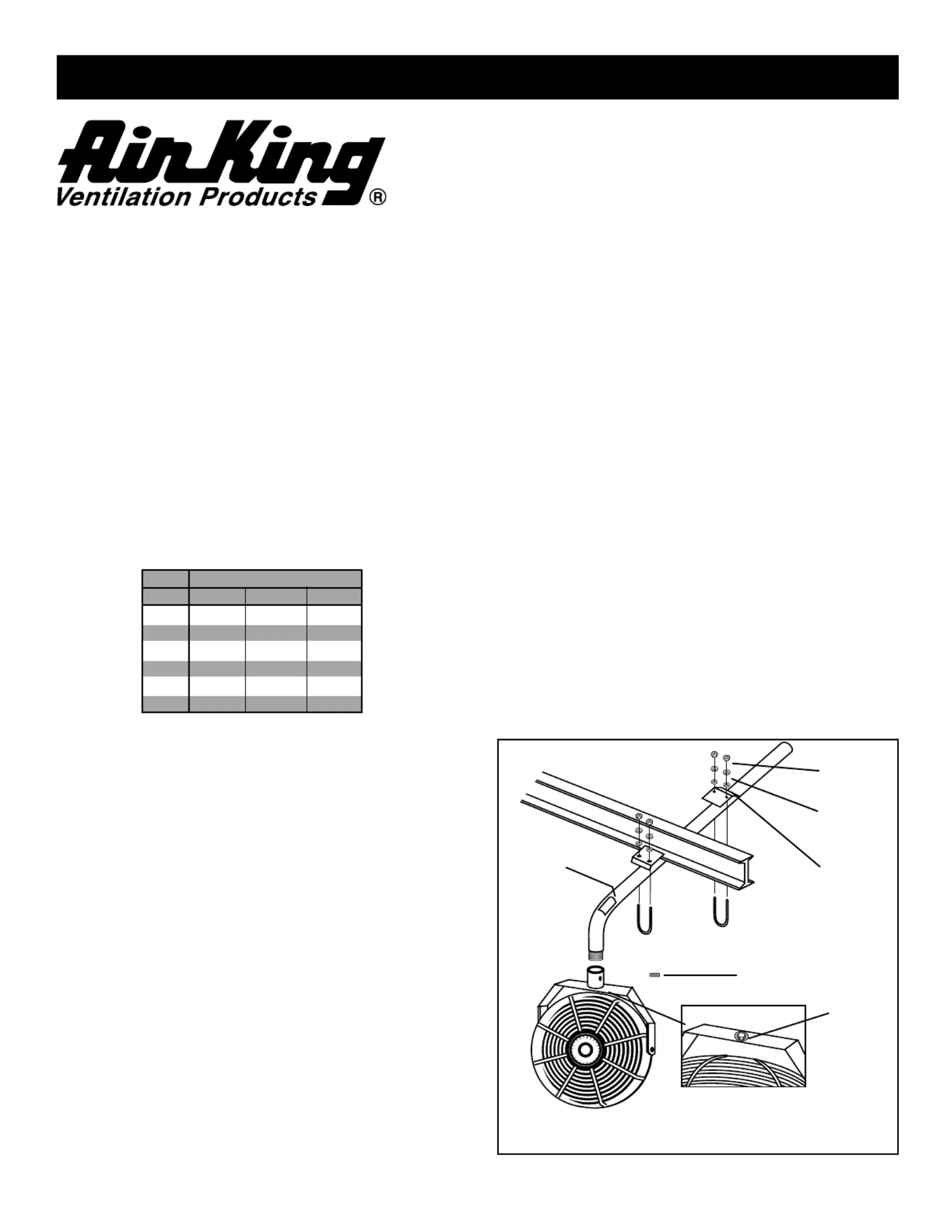

I-BEAM MOUNT INSTALLATION

1. Locate the L-shaped pipe to the desired location on the I-B eam

flange. Install the 5/16 x 2" U-B olt over the pipe and through the

clamping plate holes. The flat part of the clamping plates fits on the

I-Beam flange and the end with the slight bend goes against the

pipe. Install flat washers, lock washers and nuts. Finger tighten the

nuts on the U-Bolt. (

Figure 1

)

2. Slide the clamping plates onto I-Beam flange until U-Bolts contact flange.

3. Adjust L-shaped pipe so forward clamp plate is as close to the label at

the bend as possible.

4. Tighten nuts on bolt so pipe does not move.

5. Screw on the adapter mount as far as it will go onto the L-shaped pipe.

Tighten set screw in pipe coupling with Allen Key provided.

6. Tighten Bolt on Fan Mount after positioning fan to desired position.

5/16 Nut

5/16 Lock

Washer

5/16 Flat

Washer

1/4" Set Screw

Figure 1

Tighten

Bolt

Tighten Clamp

Plate Here

MODEL 9618

New 6/01 2 5084036

CAUTION: THE SECONDARY SUPPORT CABLE PROVIDED

SHOULD BE USED ANYTIME THE CIRCULATOR IS MOUNTED

OVERHEAD FOR ADDITIONAL SAFETY.

SECONDARY SUPPORT CABLE

1. Loop one end of Cable around the Large Diameter Wires of both the

Front and Rear Circulator Guard.

(Figure 2)

2. Attach a Cable Clamp with the "U" on the tail side of the loop leaving

a tail approximately 1 to 2 inches. Tighten Clamp Nuts. Make sure no

part of the Cable interferes with the Blade.

(Figure 2)

3. Wrap the other end of the Cable around a secure building joist, truss,

I-beam or other support near the Fan. Do not attach cable to I-beam

mount pipe.

(Figure 3)

Take up all excess slack in the Cable.

CAUTION: USE ONLY THE MOUNTING HARDWARE WHICH

IS RECOMMENDED FOR USE ON THIS FAN.

4. Attach the remaining Cable Clamp as indicated in

Step 2

. The excess

tail should be trimmed to extend 1 to 2 inches past the Clamp.

5. Check the Assembly to assure the Blade is free of all obstructions.

CAUTION: USE OF THE SECONDARY SUPPORT CABLE DOES NOT

GUARANTEE PROTECTION AGAINST INJURY OF PERSONS,

MOUNTING OF BOTH THE CIRCULATOR AND CABLE COULD FAIL

IF SUBJECTED TO ABUSE, NEGLECT OR IMPROPER INSTALLATION.

Large Guard Wires

Figure 3

Figure 2

OPERATION

1. Plug the power cord into a properly grounded three-prong receptacle.

2. Using the Pull Cord Switch, set the desired Fan Speed.

3. WARNING: This fan should be used only in a clean, dry environment.

Mounting of this product in any way other then specified in the

instruction sheet will null and void the manufacturers warranty.

MAINTENANCE

WARNING: ALWAYS UNPLUG CORD BEFORE SERVICING.

CLEANING: Use a soft cloth and a mild soap solution such as liquid dish

washing detergent.

CAUTION: Do not use gasoline, benzine, thinner, harsh cleaners,

etc. which will damage the Fan.

Dry all parts with a soft cloth completely before reconnecting to power supply.

STORAGE: When not in use, keep unit in a clean dry place.

MOTOR IS PERMANENTLY LUBRICATED.

Secondary

Support

Cable

FOR PARTS:

Check package contents. If parts are missing, or replacement parts required, please call our PARTS DEPARTMENT TOLL-FREE AT 1-800-966-2028.

MONDAY THROUGH FRIDAY, BETWEEN THE HOURS OF 8 AM AND 4 PM EST. "PLEASE DO NOT RETURN PRODUCT TO PLACE OF

PURCHASE." Reference the type and style of product (located on the underside of the product) when you call.

FOR TECHNICAL ASSISTANCE and SERVICE CENTER LOCATIONS:

For any questions, comments or the location of your nearest service center, PLEASE CALL OUR TOLL-FREE "HOTLINE" AT 1-800-233-0268. MONDAY

THROUGH FRIDAY, BETWEEN THE HOURS OF 8 AM AND 5 PM EST. Please reference product name and model no. when you call.

Appliance Service Dept. • P.O. Box 569 Franklin, TN 37065-0569 PLEASE DO NOT SEND PRODUCT TO THIS LOCATION!

LIMITED WARRANTY

SHOULD ACCESSORY PARTS BE NEEDED, CONTACT THE MANUFACTURER FOR IN-WARRANTY REPLACEMENT PARTS. A COPY OF PROOF-

OF-PURCHASE MUST BE INCLUDED ALONG WITH THE TYPE AND STYLE, WHICH IS LOCATED ON THE BOTTOM OF YOUR APPLIANCE.

This product is warranted for one year from the date of original purchase against defects in workmanship and/or materials. At our option, parts that prove

to be defective will either be repaired or replaced or the whole product will be replaced.

Should electrical or mechanical repair become necessary during the warranty period, send your complete product, postage or frei ght

pre-paid to the nearest service center. Call the number below for the service station nearest you.

Should a part need replacement, you must give us the type and style of your appliance. You will find this at the bottom of the appliance. In either case,

a copy of your proof of purchase is requested.

This warranty does not apply if the damage occurs because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized

repairs made or attempted, or the use of the product for commercial service.

ALL WARRANTIES, EXPRESSED OR IMPLIED, LAST FOR ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE. THIS WARRANTY DOES

NOT COVER LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR ANY CAUSE WHATSOEVER.

Some states do not allow limitations on how long any implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so

that the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary

from state to state.

PART BAG

Description Qty.

5/16 x 2" U-Bolt 2

Clamp Plate 2

5/16-13 Nut 4
