IMPORTANT INSTRUCTIONS -

OPERATING MANUAL

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.

PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH

INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should always be followed to

reduce the risk of ﬁre, electric shock and injury to person, including the following:

SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND

INJURY TO PERSON, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer.If you have

questions, contact the manufacturer.

b) Before servicing or cleaning the unit, switch power off at service panel and

lock the service disconnecting means to prevent power from being switched on

accidentally. When the service disconnecting means cannot be locked, securely

fasten a prominent warning device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND

INJURY TO PERSON, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualiﬁed person(s) in

accordance with all applicable codes and standards, including ﬁre-related

construction.

b) Sufﬁcient air is needed for proper combustion and exhausting of gases through

the ﬂue (chimney) of fuel burning equipment to prevent back drafting. Follow

the heating equipment manufacturer’s guideline and safety standards such

as those published by the National Fire Protection Association (NFPA) and the

American Society for Heating, Refrigeration, and Air Conditioning Engineers

(ASHRAE), and the local code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and

other hidden utilities.

CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO

EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.

CAUTION: TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST

AIR, BE SURE TO DUCT AIR OUTSIDE - DO NOT VENT EXHAUST AIR INTO

SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES, OR

GARAGES.

d) Ducted fans must always be vented to the outdoors.

e) This unit must be grounded.

f) To avoid motor bearing damage and noisy and/or unbalanced impellers, keep

drywall spray, construction dust, etc. off power unit.

g) Read all instructions before installing or using range hood.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DO NOT

USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boil overs cause

smoking and greasy spillovers that may ignite. Heat oils slowly on low or

medium settings.

b) Always turn hood ON when cooking at high heat or when ﬂambéing food

(ie. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should not be allowed to

accumulate on fan ﬁlter.

d) Use proper pan size. Always use cookware appropriate for the size of the

surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE

EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

a) SMOTHER FLAMES with a close-ﬁtting lid, cookie sheet, or metal tray, then

turn off burner. BE CAREFUL TO PREVENT BURNS. If the ﬂames do not go out

immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

b) NEVER PICK UP A FLAMING PAN - You may be burned.

c) DO NOT USE WATER, including wet dishcloths or towels -

a violent steam explosion will result.

d) Use an extinguisher ONLY if:

I. You know you have a Class ABC extinguisher, and you already know

how to operate it.

II. The ﬁre is small and contained in the area where it started.

III. The ﬁre department is being called.

IV. You can ﬁght the ﬁre with your back to an exit.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL

DUCTWORK.

www.airkinglimited.com

6728037 Rev. B 12-12 1 of 12

Range Hood

AB Series

INSTALLATION INSTRUCTIONS

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE

STARTING INSTALLATION.

SECTION 1

Preparing the Range Hood

1. Unpack hood from the carton and conﬁrm that all pieces are present. In addition to the

range hood you should have:

2 - Aluminum Grease Filters (36" models - 3)

2 - 50 watt GU10 Lamps

1 - 3-1/4" x 10" Damper

1 - 7" Round Damper

10 - Damper Mounting Screws

4 - #8 Mounting Screws

1 - Instruction/Safety Sheet

NOTE: Some hoods may be shipped with a protective plastic adhered to the range hood. It is

recommended to leave this in place during installation to protect the hood from scratching.

Remove when the installation is complete.

TIP: Use a hair dryer to warm the plastic coating. This will allow the coating to easily release

from the hood.

2. Lay the hood ﬂat on a table so the underside is facing you. Use a piece of cardboard to

avoid damaging the table or the hood.

3. Remove the following items from the hood and place in a safe place until needed (Figure 1):

Pull on tabs to remove.Grease ﬁlters:

Both the damper assemblies and lamps are contained with the Damper and Lamp Box:

box located on the inside of the hood. Remove and place in a safe place until needed.

Remove the screws holding it in place.Wire compartment cover:

4. Install the included 50 watt GU10 lamps into the lamp holder by lining up the pins on the

lamp base to the socket of the lamp holder and turning the lamp body clockwise until the

lamp snaps into place and is ﬁrmly seated in the lamp holder.

SECTION 2

Prepare the location for Hood Support

1. If the hood will be installed under cabinets that have a recessed bottom, it will be necessary

to install wood mounting strips (not included) so the hood will mount properly (Figure 2).

www.airkinglimited.com

6728037 Rev. B 12-12 2 of 12

2. The thickness of the strips should be the same as the recess of the cabinet and they

should be approximately 2" wide.

3. Install the strips using appropriate length wood screws (not included). Make sure the

strips line up to the keyhole slots of the range hood.

SECTION 3

Prepare the Hood for Installation

1. Choose the type of ducting you will require. This model is equipped to vent either

Vertically or Horizontally through a 3-1/4" x 10" duct or through a 7" round duct. It can

be modiﬁed to be ductless (re-circulates the air back into the kitchen) with the addition

of a model CF-09S Charcoal Filter (not included) (Figure 3).

2a. Horizontal or Vertical - Remove the rectangular knockout by inserting a screw driver under

the edge and break the tabs holding it in place. Peel back with pliers (Figure 4).

2b. - From inside the hood, depress the latches with your ﬁngers before removing Ductless

the shutter. Pull down on the tab in front of the fan blade. Bend the shutter at the creased

area and break the top part of the shutter off and discard. Insert the remaining part of the

shutter back into the slot (Figure 4).

2c. 7" Round - Remove the round knockout located on the top of the hood by inserting a screw

driver under the edge and break the tabs holding it in place. Peel back with pliers (Figure 4).

3. Determine where the electrical service will enter the hood and remove the appropriate

electrical knockout by inserting a screw driver into the slot and rocking back and forth until the

knockout comes loose (Figure 4).

SECTION 4

Installing the Range Hood

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE

STARTING INSTALLATION.

1. Once the proper knockout(s) have been removed, either hold the hood up to the installation

location and mark the locations of the ducting (if applicable), electrical, and mounting holes

or mark the locations by measurement.

2. Cut appropriate holes for ducting connection (if applicable) and electrical connection in the

wall/cabinet.

3. For vertical or horizontal ducting, install the appropriate damper assembly to the hood by

placing the assembly over the opening and securing in place with the provided screws

(Figure 5). If using the 3-1/4" x 10" damper, make sure the damper hinge is towards the

front or the top of the hood to ensure the best possible performance.

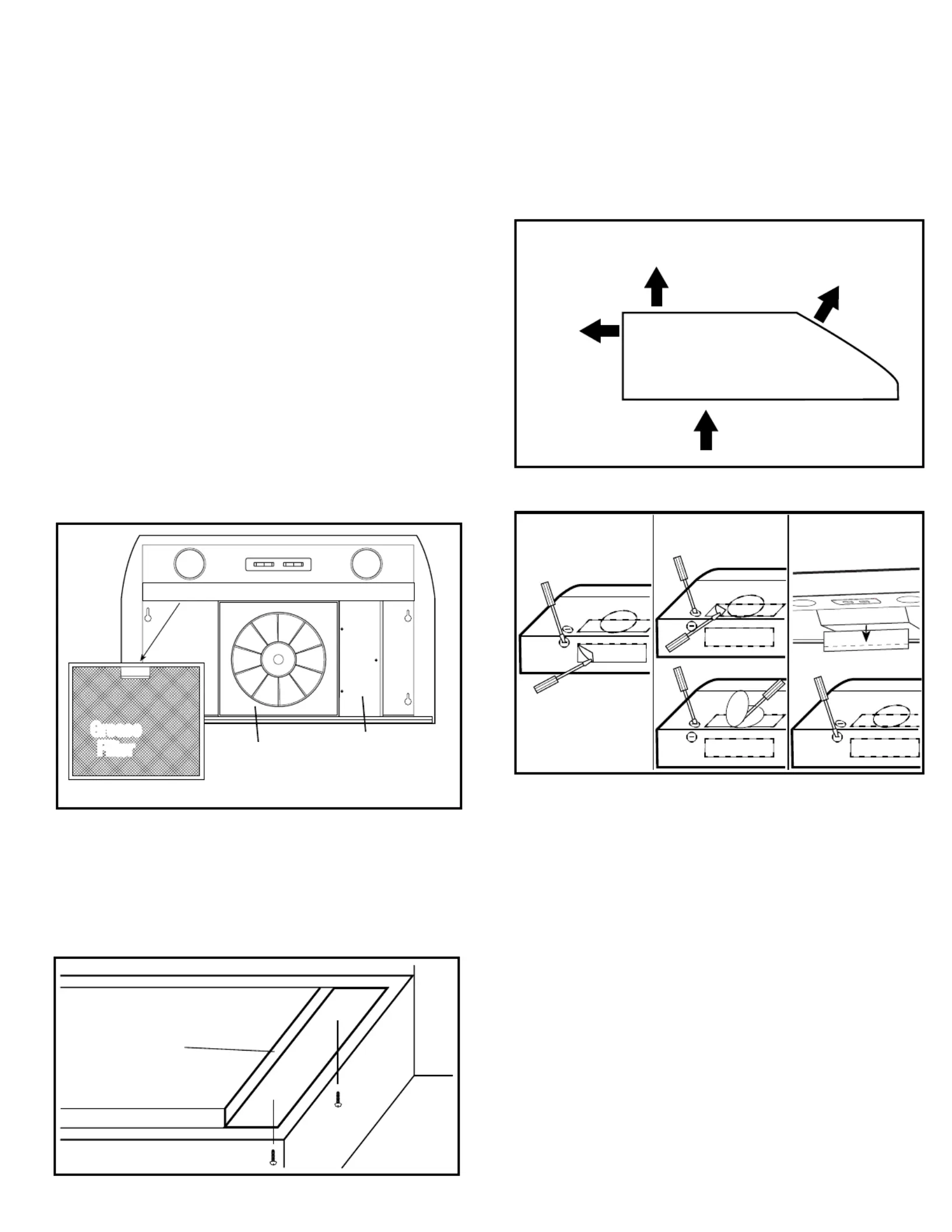

Figure 2

Wood Strip

Figure 3

Horizontal

Vertical

Ductless

Figure 1

Motor

Wire

Compartment

Cover

Grease

Filter

Figure 4

Horizontal Vertical Ductless
