Side 1/12
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT
YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electric shock and injury to person, including the following:
2. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer.
3. Before servicing or cleaning the unit, switch power off at
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. When
the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the
service panel.
4. Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes
and standards, including fire-related construction.
5. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent back drafting. Follow the heating equipment
manufacturers guideline and safety standards such as those
published by the National Fire Protection Association (NFPA)
and the American Society for Heating, Refrigeration, and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
CAUTION: FOR GENERAL VENTILATING USE ONLY. DO
NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS
AND VAPORS.
Models: AK864L
www.airkinglimited.com
210572097 Rev. B 1-10
Exhaust Fan with Light
SAVE THESE INSTRUCTIONS
6. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. This unit must be grounded.
9. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off
power unit.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL
DEVICE.
10. Acceptable for use over a bathtub or shower when installed
in a GFCI protected branch circuit.
11. NEVER place a switch where it can be reached from a tub or
shower.
12.
Do not install in a ceiling with thermal insulation value greater
than R40.
WARNING: DO NOT USE IN KITCHENS
IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
1 of 12

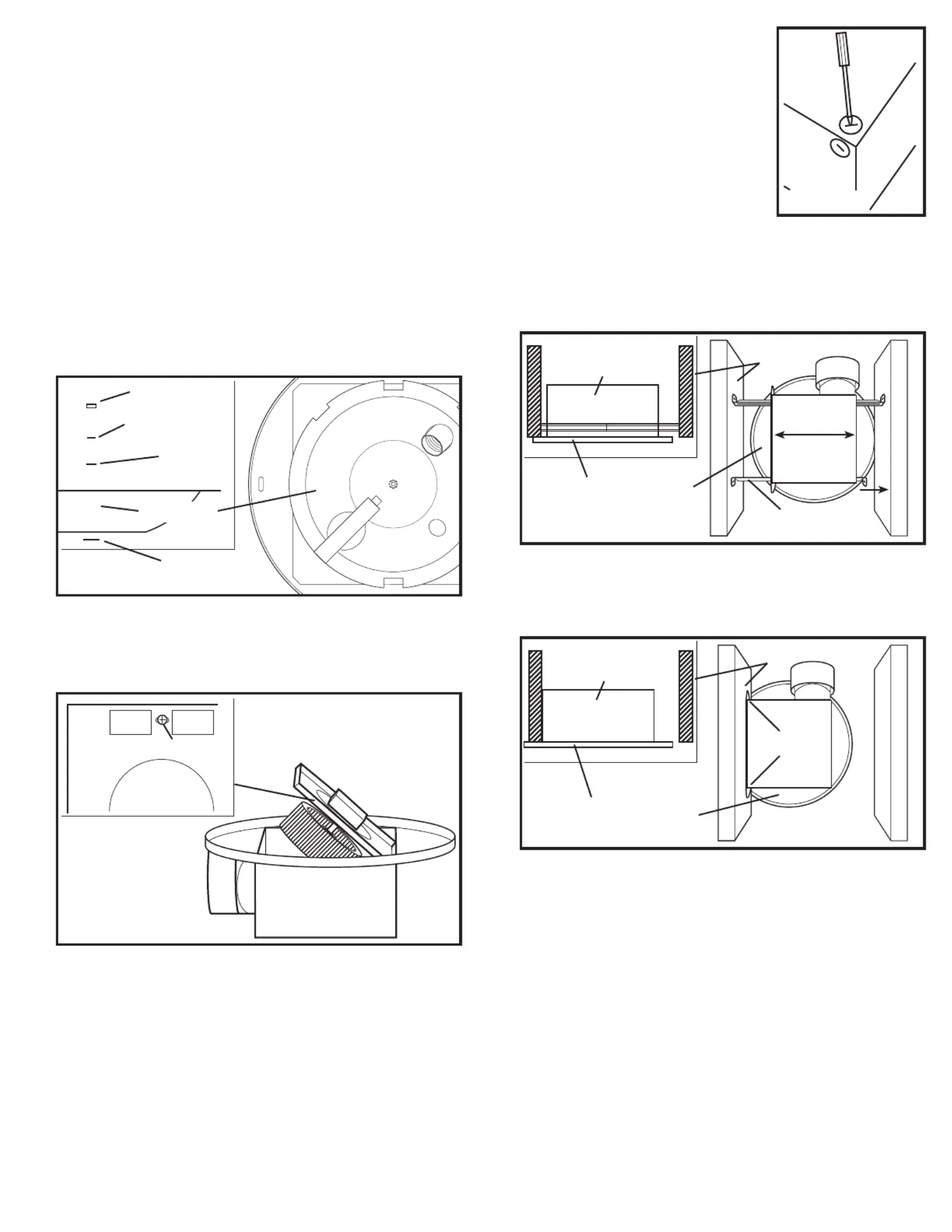

5. Select the most convenient
electrical knockout and remove
using a straight-blade screw driver
(Figure 3).
SECTION 2
New Construction
1a. Install the slide rails on the housingSlide Rail Installation:
and position the housing next to the joist with the transition
plate flush to the underside of the joist. Secure the ends of
the rails with screws or nails (not included) to the joists and
slide the housing into its final position .(Figure 4)
1b. Mounting Tab Installation: Position the fan so that the tabs
rest flat against the joist with the transition plate flush to the
underside of the joist. Secure with four screws or nails (not
provided) to ensure proper installation .(Figure 5)
SECTION 3
Existing Construction
1a. Set housing in position between theSlide Rail Installation:
joist and trace an outline onto the ceiling material (Figure 6).
Set housing aside and cut opening, being careful not to cut
or damage any electrical or other hidden utilities. Install the
slide rails on the housing and position the housing in the
previously cut hole so that it is flush with the finished ceiling.
Secure the ends of the rails with screws or nails (not included)
to the joists .(Figure 4)
INSTALLATION INSTRUCTIONS
CAUTION:
MAKE SURE POWER IS SWITCHED OFF AT
SERVICE PANEL BEFORE STARTING INSTALLATION.
SECTION 1
Preparing the Exhaust Fan
1. Unpack fan from the carton and confirm that all pieces are
present. In addition to the exhaust fan you should have:
1 - Grill with Light Lens
1 - Damper Assembly (attached)
4 - Mounting Rails
1 - Instruction/Safety Sheet
2. Remove the fan s light reflector, which is secured in place
with one center located screw. Also remove the lock washer,
washer and flat washer. Keep all parts in the carton until
needed so they do not get damaged or lost .(Figure 1)
3. Remove the fan s venturi assembly, which is secured in place
with one screw through the venturi. Keep the venturi assembly
in the carton until needed so it does not get damaged or lost
(Figure 2).
4. Choose the location for your fan. To ensure the best air and
sound performance, it is recommended that the length of
ducting and the number of elbows be kept to a minimum, and
that insulated hard ducting be used. Larger duct sizes will
reduce noise and airflow restrictions. This fan will require at
least 6" of clearance in the ceiling or wall, and will mount
through drywall up to 3/4" thick. The fan can be mounted
directly to the joist using the mounting tabs on the side of
the housing or between 16" on center joists using the 4
provided mounting rails.
Figure 3
www.airkinglimited.com
210572097 Rev. B 1-10 2 of 12
Screw
Figure 2
Figure 4
Joist
Housing
Hanger Bar
Transition Plate
Figure 5
Joist
Housing
Transition Plate
Tabs
Nut
Flat Washer
Figure 1
Lock Washer
Washer
Reflector
