IMPORTANT INSTRUCTIONS -

OPERATING MANUAL

SAVE THESE INSTRUCTIONS

www.airkinglimited.com

210572203 Rev. N 1-16 1 of 12

Exhaust Fan with Light

Models: AKF50, AKF80LS, AKF100,

AKF80H, AKF100H,

LEDAK80, LEDAK100

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN

THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY

INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL

INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should

always be followed to reduce the risk of ﬁre, electric shock and

injury to person, including the following:

WARNING:

TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO

PERSON, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer.If you have

questions, contact the manufacturer.

b) Before servicing or cleaning the unit, switch power off at service

panel and lock the service disconnecting means to prevent power

from being switched on accidentally. When the service disconnecting

means cannot be locked, securely fasten a prominent warning

device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO

PERSON, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualiﬁed

person(s) in accordance with all applicable codes and standards,

including ﬁre-related construction.

b) Sufﬁcient air is needed for proper combustion and exhausting of

gases through the ﬂue (chimney) of fuel burning equipment to prevent

back drafting. Follow the heating equipment manufacturer’s guideline

and safety standards such as those published by the National Fire

Protection Association (NFPA) and the American Society for Heating,

Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local

code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

CAUTION: FOR GENERAL VENTILATING USE ONLY.

DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE

MATERIALS AND VAPORS.

d) Ducted fans must always be vented to the outdoors.

e) This unit must be grounded.

f) To avoid motor bearing damage and noisy and/or unbalanced impellers,

keep drywall spray, construction dust, etc. off power unit.

g) Read all instructions before installing or using exhaust fan.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, DO NOT USE THIS FAN WITH

ANY SOLID-STATE SPEED CONTROL DEVICE.

a) If this unit is to be installed over a tub or shower, it must be

marked as appropriate for the application and be connected to a

GFCI (Ground Fault Circuit Interrupter) – protected branch circuit.

b) Do not install in a ceiling with thermal insulation value greater

than R40.

WARNING: DO NOT USE IN KITCHENS.

WARNING: THE DUCTING FROM THIS FAN TO THE

OUTSIDE OF THE BUILDING HAS A STRONG EFFECT

ON THE AIR FLOW, NOISE AND ENERGY USE OF THE FAN. USE

THE SHORTEST, STRAIGHTEST DUCT ROUTING POSSIBLE FOR

BEST PERFORMANCE, AND AVOID INSTALLING THE FAN WITH

SMALLER DUCTS THAN RECOMMENDED. INSULATION AROUND

THE DUCTS CAN REDUCE ENERGY LOSS AND INHIBIT MOLD

GROWTH. FANS INSTALLED WITH EXISTING DUCTS MAY NOT

ACHIEVE THEIR RATED AIRFLOW.

INSTALLATION INSTRUCTIONS

CAUTION:

MAKE SURE POWER IS SWITCHED OFF AT

SERVICE PANEL BEFORE STARTING INSTALLATION.

SECTION 1

Preparing the Exhaust Fan

1. Unpack fan from the carton and conﬁrm that all pieces are present. In addition to the

exhaust fan you should have:

1 - Grill

1 - Light Assembly

1 - Damper Assembly (attached)

4 - Mounting Rails

1 - Fluorescent Lamp

1 - Instruction/Safety Sheet

2. Choose the location for your fan. To ensure the best air and sound performance, it

is recommended that the length of ducting and the number of elbows be kept to a

minimum, the radius of each elbow be as large as possible for the installation, and that

insulated hard ducting be used. This fan will require

at least 8” of clearance in the ceiling or wall, and

will mount through drywall up to 3/4” thick. The fan

mounts between 16” or 24” on center joists using the

4 provided mounting rails.

3. Select the most convenient electrical knockout and

remove using a straight-blade screw driver (Figure 1).

4. No additional vibration deadening materials are needed

for this fan.

SECTION 2

New Construction

1. Install the rails into the mounting channel on the housing. Center the mounting channel in

the slots on the housing, then from inside the housing tighten the mounting channel screws

so the channel is securely in place. Position the housing next to the joist. Line up housing

so that it will be ﬂush with the ﬁnished ceiling. Secure the ends of the rails with screws or

nails (not included) to the joists and slide the housing into the ﬁnal position (Figure 2).

SECTION 3

Existing Construction

1. Set housing in position between the joist and trace an outline onto the ceiling material

(Figure 3). Set housing aside and cut opening, being careful not to cut or damage any

electrical or other hidden utilities. Install the rails into the mounting channel on the

housing. Center the mounting channel in the slots on the housing, then from inside

the housing tighten the mounting channel screws so the channel is securely in place.

Position the housing in the previously cut hole so that it is ﬂush with the ﬁnished ceiling.

Secure the ends of the rails to the joists (Figure 2).

www.airkinglimited.com

210572203 Rev. N 1-16 2 of 12

SECTION 4

Ducting

NOTE: 4" OR LARGER RIGID DUCT IS RECOMMENDED FOR BEST PERFORMANCE.

CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL

BUILDING CODES.

NOTE: The ducting from this fan to the outside of the building has a strong effect on the air

ﬂow, noise and energy use of the fan. Use the shortest, straightest duct routing possible

for best performance, and avoid installing the fan with smaller ducts than recommended.

Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed

with existing ducts may not achieve their rated air ﬂow.

1. Connect the ducting to the fan’s duct collar . Secure in place using tape (Figure 4)

or screw clamp. Always duct the fan to the outside through a wall or roof cap. It is

recommended that low restriction termination ﬁttings be used.

2. Ensure duct joints and exterior penetrations are sealed with caulk or other similar material

to create an air-tight path to minimize building heat loss or gain and to reduce the potential

for condensation. Place/wrap insulation around duct and/or fan in order to minimize possible

condensation buildup within the duct, as well as building heat loss or gain (Figure 5).

SECTION 5

Wiring

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT

SERVICE PANEL BEFORE STARTING INSTALLATION.

CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE

IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR NATIONAL

ELECTRICAL CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL

WIRING, SECURE THE SERVICES OF A QUALIFIED ELECTRICIAN.

NOTE: This unit includes a side access panel for wiring that does not require the removal of the

fan’s blower assembly. If you choose to wire the unit from the inside, you will need to remove

the blower assembly and internal wiring compartment. Both methods are equally effective.

1a. Remove the wire compartment cover screw and place External Wire Compartment:

cover in a secure place .(Figure 6)

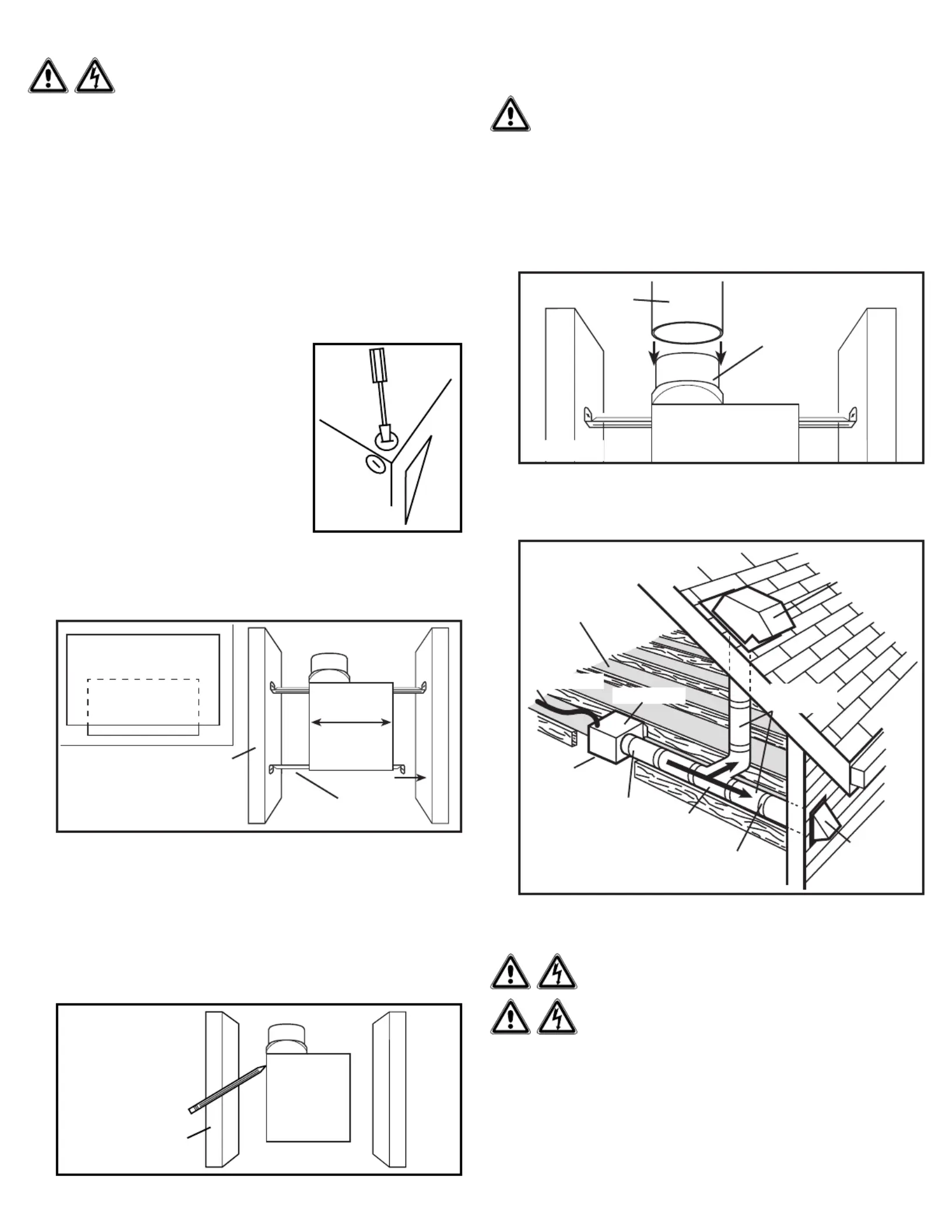

Figure 1

Figure 2

Housing

Joist

Mounting Rails

Ducting

Duct

Collar

Figure 4

Figure 5

Insulation*

(place around and

over Fan Housing

Fan Housing

Power Cable*

Seal gaps

around Housing

Round

Duct*

Seal duct joints

with tape

Round

Elbows*

Wall Cap*

Roof Cap*

(with built-in

damper)

Keep duct

runs short

*Purchase separately

Figure 3

Joist
