IMPORTANT INSTRUCTIONS -

OPERATING MANUAL

SAVE THESE INSTRUCTIONS

www.airkinglimited.com

210572120 Rev. M 5-16 1 of 12

Exhaust Fan with Light

Models: ASLC50, ASLC70

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN

THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY

INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL

INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should

always be followed to reduce the risk of ﬁre, electric shock and

injury to person, including the following:

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO

PERSON, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer.If you have

questions, contact the manufacturer.

b) Before servicing or cleaning the unit, switch power off at service

panel and lock the service disconnecting means to prevent power

from being switched on accidentally. When the service disconnecting

means cannot be locked, securely fasten a prominent warning

device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO

PERSON, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualiﬁed

person(s) in accordance with all applicable codes and standards,

including ﬁre-related construction.

b) Sufﬁcient air is needed for proper combustion and exhausting of

gases through the ﬂue (chimney) of fuel burning equipment to prevent

back drafting. Follow the heating equipment manufacturer’s guideline

and safety standards such as those published by the National Fire

Protection Association (NFPA) and the American Society for Heating,

Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local

code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

CAUTION: FOR GENERAL VENTILATING USE ONLY.

DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE

MATERIALS AND VAPORS.

d) Ducted fans must always be vented to the outdoors.

e) This unit must be grounded.

f) To avoid motor bearing damage and noisy and/or unbalanced impellers,

keep drywall spray, construction dust, etc. off power unit.

g) Read all instructions before installing or using exhaust fan.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, DO NOT USE THIS FAN WITH

ANY SOLID-STATE SPEED CONTROL DEVICE.

a) Acceptable for use over a bathtub or shower when installed in a

GFCI protected branch circuit.

WARNING: DO NOT USE IN KITCHENS.

INSTALLATION INSTRUCTIONS

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT

SERVICE PANEL BEFORE STARTING INSTALLATION.

SECTION 1

Preparing the Exhaust Fan

1. Unpack fan from the carton and conﬁrm that all pieces are present. In addition to the

exhaust fan you should have:

1 - Grill with Light Lens

4 - Mounting Rails

1 - Damper Assembly (attached)

1 - Instruction/Safety Sheet

2. Remove the fan’s venturi assembly, which is secured in place with one screw through the

venturi (Figure 1). This is a captive screw and will stay installed in the venturi. Keep the

venturi assembly and the grill in the carton until needed so they do not get damaged or lost.

3. Choose the location for your fan. To ensure the best air and sound performance, it is

recommended that the length of ducting and the number of elbows be kept to a minimum,

and that insulated hard ducting be used. Larger duct sizes will reduce noise and airﬂow

restrictions. This fan will require at least 6” of clearance

in the ceiling or wall, and will mount through drywall

up to 3/4” thick. The fan can be mounted directly to the

joist using the mounting tabs on the side of the housing

or between 16” on center joists using the 4 provided

mounting rails.

4. Select the most convenient electrical knockout hole

and insert the knockout plug into the 2nd knockout

hole (Figure 2).

SECTION 2

New Construction

1. Mounting Rail Installation: Install the rails on the housing and position the housing next to

the joist. Using the gauge on the fan’s housing, line up housing so that it will be ﬂush with

the ﬁnished ceiling. Secure the ends of the rails with screws or nails (not included) to the

joists and slide the housing into the ﬁnal position (Figure 3).

2. Mounting Tab Installation: Using the gauge on the fan’s housing, line up housing so that

it will be ﬂush with the ﬁnished ceiling. Position the fan so that the tabs rest ﬂat against the

joist and secure with four nails (not provided) to ensure proper installation (Figure 4).

www.airkinglimited.com

210572120 Rev. M 5-16 2 of 12

SECTION 3

Existing Construction

1. Mounting Rail Installation: Set housing in position between the joist and trace an outline

onto the ceiling material . Set housing aside and cut opening, being careful not (Figure 5)

to cut or damage any electrical or other hidden utilities. Install the rails on the housing and

position the housing in the previously cut hole so that it is ﬂush with the ﬁnished ceiling.

Secure the ends of the rails to the joists (Figure 3).

2. Mounting Tab Installation: Position housing against the joist and trace an outline of the

housing onto the ceiling material . Set housing aside and cut opening, being (Figure 6)

careful not to cut or damage any electrical or other hidden utilities. Place housing next

to the joist and insure that it is ﬂush with the ﬁnished ceiling. Secure with four nails (not

provided) to ensure proper installation (Figure 4).

SECTION 4

Ducting

CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL

BUILDING CODES.

1. Connect the ducting to the fan’s duct collar . Secure in place using tape or (Figure 7)

screw clamp. Always duct the fan to the outside through a wall or roof cap.

NOTE: If damper detaches from unit, reattach by snapping the collar back onto the unit. It is

designed to only ﬁt one way.

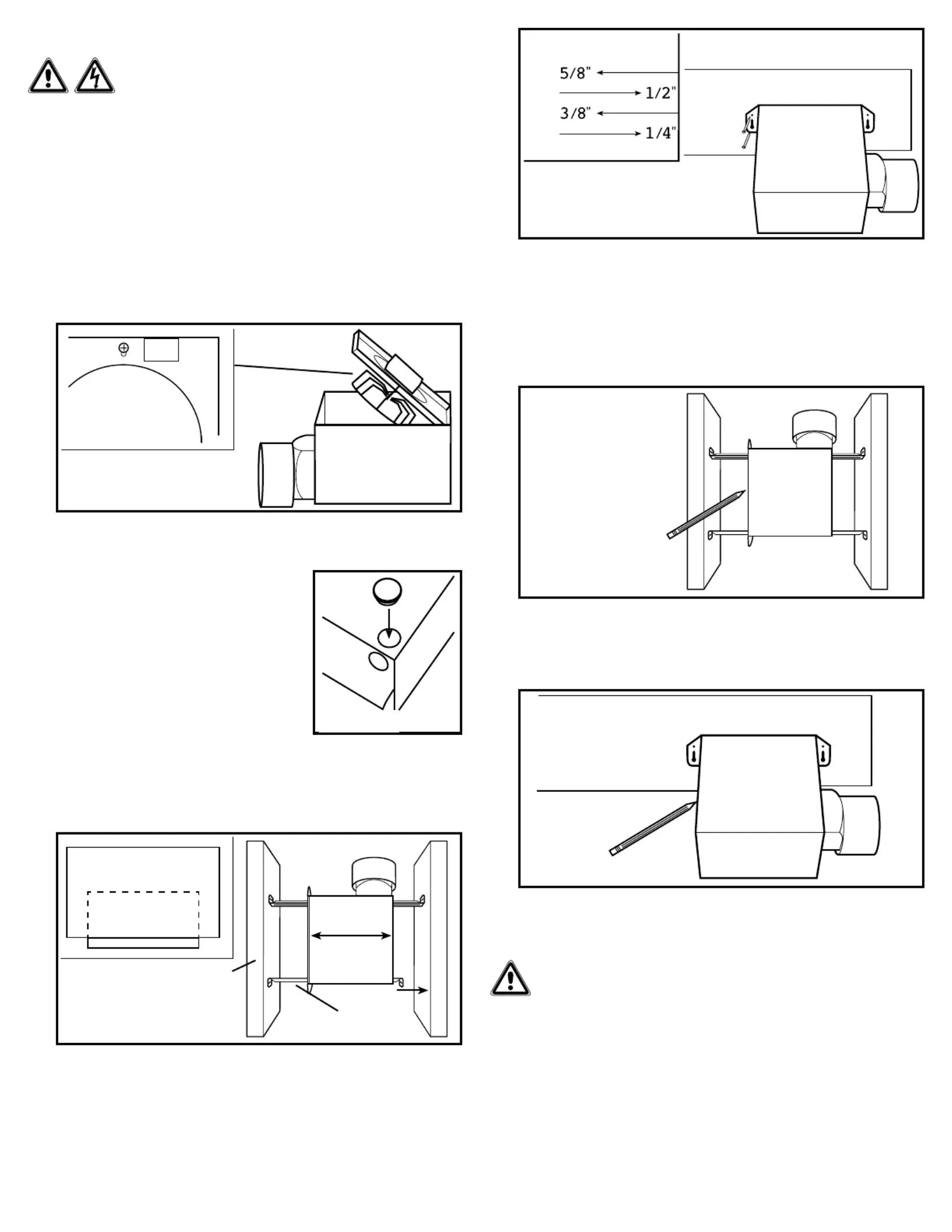

Figure 3

Housing

Joist

Mounting Rails

Figure 5

Figure 4

Figure 6

Figure 1

Figure 2
