IMPORTANT INSTRUCTIONS -

OPERATING MANUAL

SAVE THESE INSTRUCTIONS

www.airkinglimited.com

210572021 Rev. U 11-18 1 of 8

Exhaust Fan

BFQ, BFQW Series

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN

THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY

INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL

INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should

always be followed to reduce the risk of ﬁre, electric shock and

injury to person, including the following:

WARNING:

TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO

PERSON, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer.If you have

questions, contact the manufacturer.

b) Before servicing or cleaning the unit, switch power off at service

panel and lock the service disconnecting means to prevent power

from being switched on accidentally. When the service disconnecting

means cannot be locked, securely fasten a prominent warning

device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO

PERSON, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualiﬁed

person(s) in accordance with all applicable codes and standards,

including ﬁre-related construction.

b) Sufﬁcient air is needed for proper combustion and exhausting of

gases through the ﬂue (chimney) of fuel burning equipment to prevent

back drafting. Follow the heating equipment manufacturer’s guideline

and safety standards such as those published by the National Fire

Protection Association (NFPA) and the American Society for Heating,

Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local

code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

CAUTION: FOR GENERAL VENTILATING USE ONLY.

DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE

MATERIALS AND VAPORS.

d) Ducted fans must always be vented to the outdoors.

e) This unit must be grounded.

f) To avoid motor bearing damage and noisy and/or unbalanced impellers,

keep drywall spray, construction dust, etc. off power unit.

g) Read all instructions before installing or using exhaust fan.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, DO NOT USE THIS FAN WITH

ANY SOLID-STATE SPEED CONTROL DEVICE.

a) If this unit is to be installed over a tub or shower, it must be

marked as appropriate for the application and be connected to a

GFCI (Ground Fault Circuit Interrupter) – protected branch circuit.

b) Do not install wall mounted fans inside the shower area.

WARNING: DO NOT USE IN KITCHENS.

WARNING: THE DUCTING FROM THIS FAN TO THE

OUTSIDE OF THE BUILDING HAS A STRONG EFFECT

ON THE AIR FLOW, NOISE AND ENERGY USE OF THE FAN. USE

THE SHORTEST, STRAIGHTEST DUCT ROUTING POSSIBLE FOR

BEST PERFORMANCE, AND AVOID INSTALLING THE FAN WITH

SMALLER DUCTS THAN RECOMMENDED. INSULATION AROUND

THE DUCTS CAN REDUCE ENERGY LOSS AND INHIBIT MOLD

GROWTH. FANS INSTALLED WITH EXISTING DUCTS MAY NOT

ACHIEVE THEIR RATED AIRFLOW.

INSTALLATION INSTRUCTIONS

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT

SERVICE PANEL BEFORE STARTING INSTALLATION.

SECTION 1

Preparing the Exhaust Fan

1. Unpack fan from the carton and conﬁrm that all pieces are present. In addition to the

exhaust fan you should have:

1 - Grill 1 - Hardware Bag

1 - Damper Assembly (attached) 1 - Electrical Connector

1 - Mounting Bracket 3 - Wire Nuts

1 - Instruction/Safety Sheet

2. Remove the wire compartment cover and store in the carton until needed so it does not

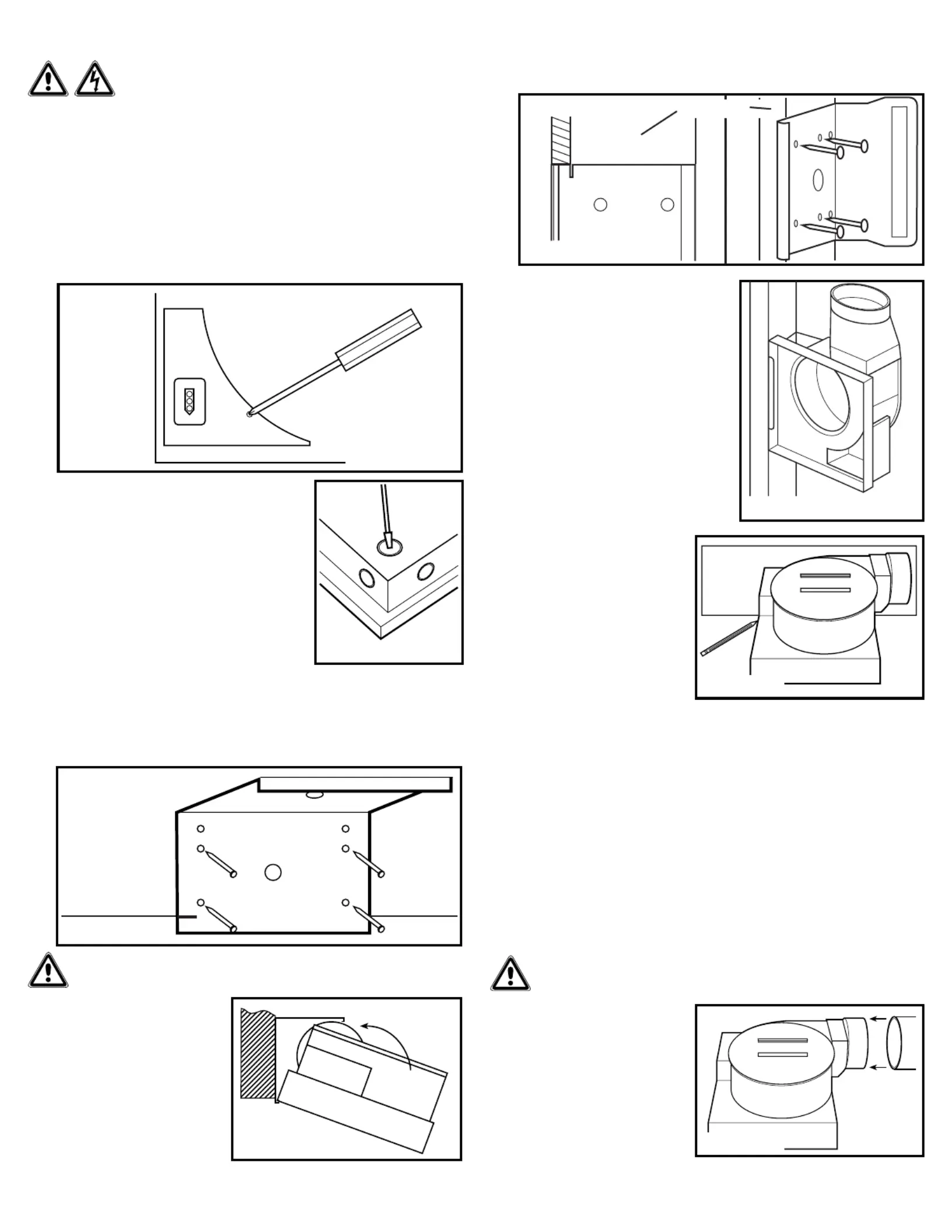

get damaged or lost (Figure 1).

3. Choose the location for your fan. To ensure the best

air and sound performance, it is recommended that

the length of ducting and the number of elbows be

kept to a minimum, the radius of each elbow be as

large as possible for the installation, and that insulated

hard ducting be used. Larger duct sizes will reduce

noise and airﬂow restrictions.

4. Select the most convenient electrical

knockout and remove using a straight-

blade screw driver (Figure 2).

5. No additional vibration deadening materials are

needed for this fan.

SECTION 2

New Construction - BFQ Models

1. Using the gauge on the mounting bracket, line up the bracket on the joist so the bottom

of the fan will be ﬂush with the ﬁnished ceiling. Nail or screw the bracket in place

securely (Figure 3).

WARNING: PROPER INSTALLATION REQUIRES A MINIMUM OF 4

SCREWS LOCATED IN HOLES CLOSEST TO DRYWALL.

2. Snap the fan body into the

bracket The fan can (Figure 4).

be snapped into position with the

duct collar facing to the left or the

right depending which is most

convenient.

www.airkinglimited.com

210572021 Rev. U 11-18 2 of 8

New Construction - BFQW Models (Oval Duct)

1. Using the gauge on the bracket, line up the bracket on the side of a wall stud such that

the bottom of the fan will be ﬂush with the ﬁnished wall. The bracket should sit one

drywall thickness forward on the stud (Figure 5).

NOTE: For proper damper operation, the duct

adaptor must be facing up towards the ceiling.

NOTE: ½” minimum thickness drywall must be used for

wall mount applications.

2. Nail or screw the bracket in place securely.

3. Snap the fan body into the bracket, making

sure the duct collar is pointing upwards

towards the ceiling (Figure 6).

SECTION 3

Existing Construction - BFQ Models

1. Position housing against the joist

or stud and trace an outline of

the housing onto the ceiling/wall

material. Set housing aside and cut

opening, being careful not to cut

or damage any electrical or other

hidden utilities (Figure 7).

2. Line up the bracket on the joist so

the bottom of the fan will be ﬂush

with the ﬁnished ceiling. Nail or

screw the snap-in bracket in place

securely (Figure 3).

3. Snap the fan body into the bracket The fan can be snapped into position (Figure 4).

with the duct collar facing to the left or the right depending which is most convenient.

Existing Construction - BFQW Models (Oval Duct)

1. Remove a section of the wall material large enough for you to ﬁt the fan housing into as

well as gain access to the top plate, and have enough space to connect the ducting. This

will typically be across two studs and approximately 24" starting at the top of the wall.

2. Follow the instructions in - to Section 2 New Constructions - BFQW Models (Oval Duct)

complete the installation.

NOTE: Wall installation into existing construction will require you to patch the wall material

around the unit.

SECTION 4

Ducting

NOTE: 4" OR LARGER RIGID DUCT IS RECOMMENDED FOR BEST PERFORMANCE.

CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL

BUILDING CODES.

1. Connect the ducting to the fan’s duct

collar Secure in place (Figure 8).

using tape or screw clamp. Always

duct the fan to the outside through a

wall or roof cap. It is recommended

that low restriction termination

ﬁttings be used.

NOTE: For oval duct connection, squeeze

standard 4" round rigid ducting to form

an oval shape then follow instructions in

Step 1.

Figure 2

Figure 4

Figure 1

Figure 6

Figure 3

Figure 5

Drywall

Wall Stud

Figure 7

Round duct

collar shown

Figure 8
