www.airkinglimited.com6727902 Rev. H 7/22 1 of 12

SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK AND INJURY TO PERSON,

OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer. If you have

questions, contact the manufacturer.

b) Before servicing or cleaning the unit, switch power off at service panel

and lock the service disconnecting means to prevent power from being

switched on accidentally. When the service disconnecting means

cannot be locked, securely fasten a prominent warning device, such as

a tag, to the service panel.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK AND INJURY TO PERSON,

OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s)

in accordance with all applicable codes and standards, including fire-

related construction.

b) Sufficient air is needed for proper combustion and exhausting of gases

through the flue (chimney) of fuel burning equipment to prevent back

drafting. Follow the heating equipment manufacturer’s guideline and

safety standards such as those published by the National Fire Protection

Association (NFPA) and the American Society for Heating, Refrigeration,

and Air Conditioning Engineers (ASHRAE), and the local code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical wiring

and other hidden utilities.

CAUTION: FOR GENERAL VENTILATING USE ONLY.

DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE

MATERIALS AND VAPORS.

d) Ducted fans must always be vented to the outdoors.

e) If this unit is to be installed over a tub or shower, it must be marked as

appropriate for the application and be connected to a GFCI (Ground Fault

Circuit Interrupter) – protected branch circuit.

f) Do not install in a ceiling with thermal insulation value greater than R40.

g) This unit must be grounded.

h) To avoid motor bearing damage and noisy and/or unbalanced impellers,

keep drywall spray, construction dust, etc. off power unit.

i) Read all instructions before installing or using exhaust fan.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY

SOLID-STATE SPEED CONTROL DEVICE.

WARNING: DO NOT USE IN KITCHENS.

WARNING: THE DUCTING FROM THIS FAN TO THE

OUTSIDE OF THE BUILDING HAS A STRONG EFFECT ON THE AIR

FLOW, NOISE AND ENERGY USE OF THE FAN. USE THE SHORTEST,

STRAIGHTEST DUCT ROUTING POSSIBLE FOR BEST PERFORMANCE, AND

AVOID INSTALLING THE FAN WITH SMALLER DUCTS THAN RECOMMENDED.

INSULATION AROUND THE DUCTS CAN REDUCE ENERGY LOSS AND

INHIBIT MOLD GROWTH. FANS INSTALLED WITH EXISTING DUCTS MAY

NOT ACHIEVE THEIR RATED AIRFLOW.

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN

THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY

INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL

INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should

always be followed to reduce the risk of fire, electric shock and

injury to person, including the following:

Exhaust Fan

D4D, D4DG, D4DH, D4DGH

IMPORTANT INSTRUCTIONS - OPERATING MANUAL

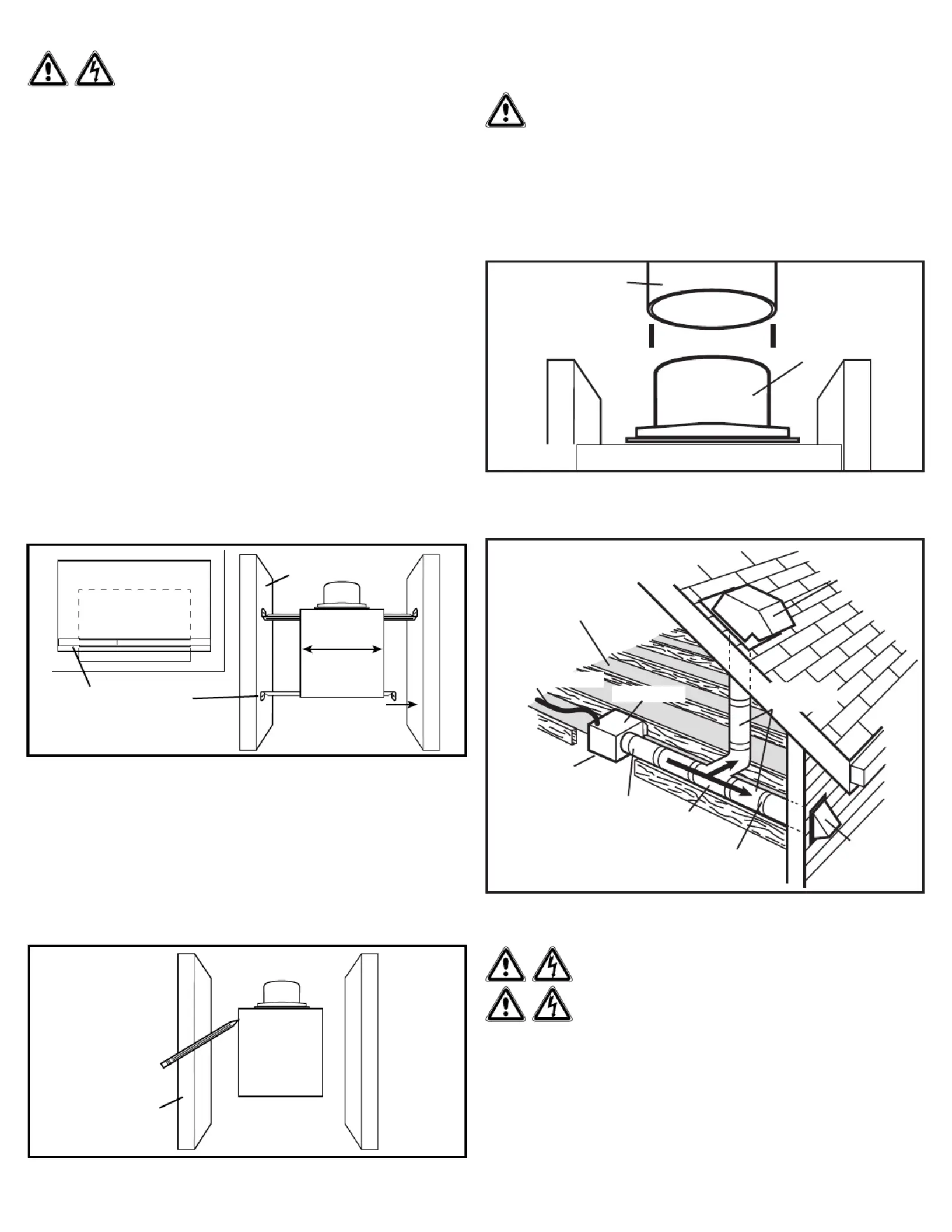

www.airkinglimited.com6727902 Rev. H 7/22 2 of 12

INSTALLATION INSTRUCTIONS

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE

PANEL BEFORE STARTING INSTALLATION.

SECTION 1

Preparing the Exhaust Fan

1. Unpack fan from the carton and confirm that all pieces are present. In addition to the

exhaust fan you should have:

1 - Grill

1 - Damper Assembly (attached)

4 - Mounting Rails

1 - Mounting Flange

1 - LED Lamp

1 - Instruction/Safety Sheet

2. Choose the location for your fan. To ensure the best air and sound performance, it is

recommended that the length of ducting and the number of elbows be kept to a minimum,

the radius of each elbow be as large as possible for the installation, and that insulated hard

ducting be used. Larger duct sizes will reduce noise and airflow restrictions. This fan will

require at least 10 of clearance in the ceiling or wall, and will mount through drywall up ”

to 3/4 thick.”

3. No additional vibration deadening materials are needed for this fan.

SECTION 2

New Construction

NOTE: If the mounting flange is installed on the fan housing, remove the two screws that connect

the ceiling mounting flange to the housing and set aside (Figure 12).

1. Install the rails into the mounting channel on the housing. Center the mounting channel in

the slots on the housing, then from inside the housing tighten the mounting channel nuts

so the channel is securely in place. Position the housing next to the joist. Line up housing

so that it will be flush with the finished ceiling. Secure the ends of the rails with screws or

nails (not included) to the joists and slide the housing into the final position (Figure 1).

Figure 1

Housing

Joist

Mounting Rails

SECTION 3

Existing Construction

NOTE: If the mounting flange is installed on the fan housing, remove the two screws that connect

the ceiling mounting flange to the housing and set aside (Figure 12).

1. Set housing in position between the joist and trace an outline onto the ceiling material

(Figure 2). Set housing aside and cut opening, being careful not to cut or damage any

electrical or other hidden utilities. Install the rails into the mounting channel on the

housing. Center the mounting channel in the slots on the housing, then from inside the

housing tighten the mounting channel nuts so the channel is securely in place. Position the

housing in the previously cut hole so that it is flush with the finished ceiling. Secure the

ends of the rails to the joists (Figure 1).

Figure 2

Joist

SECTION 4

Ducting

NOTE: 6" OR LARGER RIGID DUCT IS RECOMMENDED FOR BEST PERFORMANCE.

CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL

BUILDING CODES.

NOTE: The ducting from this fan to the outside of the building has a strong effect on the air

flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for

best performance, and avoid installing the fan with smaller ducts than recommended. Insulation

around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing

ducts may not achieve their rated air flow.

1. Connect the ducting to the fan’s duct collar Secure in place using tape or screw (Figure 3).

clamp. Always duct the fan to the outside through a wall or roof cap. It is recommended

that low restriction termination fittings be used.

Ducting

Duct

Collar

Figure 3

2. Ensure duct joints and exterior penetrations are sealed with caulk or other similar material to

create an air-tight path to minimize building heat loss or gain and to reduce the potential for

condensation. Place/wrap insulation around duct and/or fan to in order to minimize possible

condensation buildup within the duct, as well as building heat loss or gain (Figure 4).

Figure 4

Insulation*

(place around and

over Fan Housing

Fan Housing

Power Cable*

Seal gaps

around Housing

Round

Duct*

Seal duct

joints with tape

Round

Elbows*

Wall Cap*

Roof Cap*

(with built-in

damper)

Keep duct

runs short

*Purchase separately

SECTION 5

Wiring

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT

SERVICE PANEL BEFORE STARTING INSTALLATION.

CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE

IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR NATIONAL

ELECTRICAL CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL

WIRING, SECURE THE SERVICES OF A QUALIFIED ELECTRICIAN.

NOTE: This unit includes a side access panel for wiring that does not require the removal of the

fan’s blower assembly. If you choose to wire the unit from the inside, you will need to remove the

blower assembly and internal wiring compartment. Both methods are equally effective.

1a. External Wire Compartment: Remove the wire compartment cover screw and place cover

in a secure place (Figure 5).
