IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
SAVE THESE INSTRUCTIONS
www.airkinglimited.com
6727927 Rev. C 4-19 1 of 2
Motorized Damper
MD624
Installing Contractor:
Installation Date:
Model Number: MD624
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN
THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY
INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL
INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock and
injury to person, including the following:
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK AND INJURY TO
PERSON, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
b) Before servicing or cleaning the unit, switch power off at service
panel and lock the service disconnecting means to prevent power
from being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK AND INJURY TO
PERSON, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-related construction.
b) Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s guideline
and safety standards such as those published by the National Fire
Protection Association (NFPA) and the American Society for Heating,
Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local
code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
CAUTION: FOR GENERAL VENTILATING USE ONLY.
DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS AND VAPORS.
d) This unit must be grounded.
e) To avoid motor bearing damage and noisy and/or unbalanced impellers,
keep drywall spray, construction dust, etc. off power unit.
f) Read all instructions before installing or using exhaust fan.
g) For residential installations only.
h) Must use suitable weather hood with insect screen to protect air
intake.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, DO NOT USE THIS FAN WITH
ANY SOLID-STATE SPEED CONTROL DEVICE.
WARNING: DO NOT USE IN KITCHENS.
WARNING: THE DUCTING FROM THIS FAN HAS
A STRONG EFFECT ON THE AIR FLOW, NOISE AND
ENERGY USE OF THE FAN. USE THE SHORTEST, STRAIGHTEST
DUCT ROUTING POSSIBLE FOR BEST PERFORMANCE, AND
AVOID INSTALLING THE FAN WITH SMALLER DUCTS THAN
RECOMMENDED. INSULATION AROUND THE DUCTS CAN REDUCE
ENERGY LOSS AND INHIBIT MOLD GROWTH.
TM
by
INSTALLATION INSTRUCTIONS
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT
SERVICE PANEL BEFORE STARTING INSTALLATION.
CAUTION: MAKE SURE THE MAIN UNIT IS INSTALLED ACCORDING
TO ALL INSTRUCTIONS INCLUDED WITH THE UNIT.
WARNING: THIS UNIT IS TO BE USED ONLY WITH QUFRESH BY AIR
KING MODELS CAPABLY OF ACCEPTING THE 24V TRANSFORMER.
SECTION 1
Preparing the Fan
1. Unpack unit from the carton and confirm that all pieces are present. In addition to the
motorized damper you should have:
1 - 24V transformer
1 - Instruction/Safety Sheet
NOTE: FOR INSTALLATION TO QUFRESH BY AIR KING QFAM MODELS, A QMDB
RECEPTACLE WILL BE REQUIRED (AVAILABLE SEPARATELY). FOLLOW ALL INSTRUCTION
INCLUDED WITH THE QMDB BEFORE STARTING THE MOTORIZED DAMPER INSTALLATION.
NOTE: The MD624 includes a cable tie and plastic bushing inside the box. These parts are not
utilized with this installation. The bushing included with the QMDB should be utilized instead.
SECTION 2
Installation
1. Install the motorized damper to the outlet (discharge) side of the unit using 6" rigid
ducting and seal with appropriately rated tape. Use screws or suitable clamps to secure
in place. If any additional ducting will be installed to the outlet side of the motorized
damper (as with an inline installation) repeat the same procedure as above (Figure 1).
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT
SERVICE PANEL BEFORE STARTING INSTALLATION.
CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE
MADE IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR
NATIONAL ELECTRICAL CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF INSTALLING
ELECTRICAL WIRING, SECURE THE SERVICES OF A QUALIFIED ELECTRICIAN.
2. Plug the 24VAC transformer into the receptacle on the QMDB (Figure 2).
www.airkinglimited.com
6727927 Rev. C 4-19 2 of 2
3. Run the lead wires from the transformer to
the motorize damper. Make the electrical
connections to the motorized damper by
connecting the wires from the damper to
the pre installed ends .(Figure 3)
4. Restore power and test your installation.
SECTION 3
Operation
1. The receptacle will be energized anytime
the fan is running. This will in turn open
the motorized damper. When the unit stops
running, the damper will close.

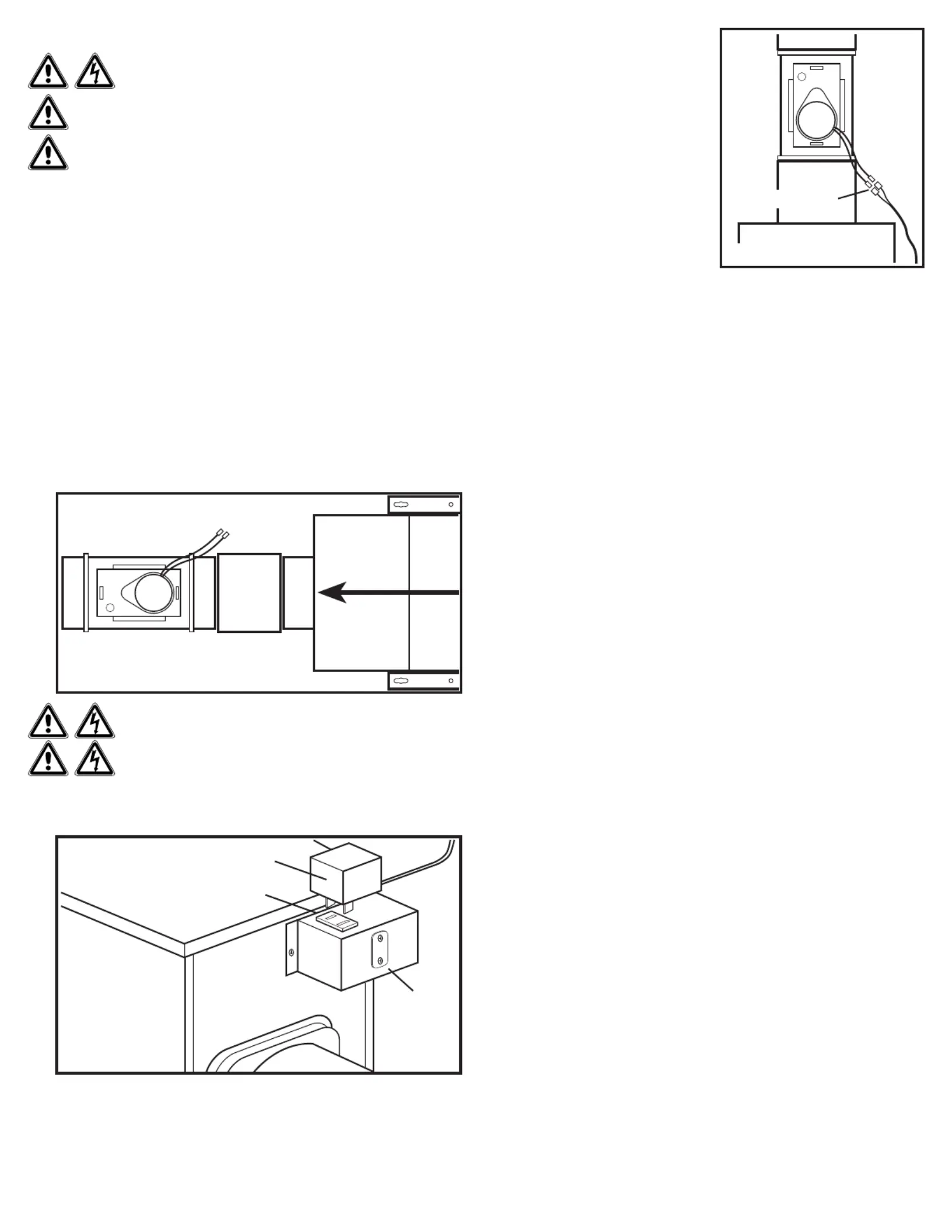

Figure 1
Air Flow
Outlet
Motorized Damper
Ducting
Figure 2
Receptacle
Transformer
QMDB
(sold separately)
Figure 3
Connectors
