Side 1/8
IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
SAVE THESE INSTRUCTIONS
www.airkinglimited.com
210575005 Rev. D 12-15 1 of 8
Through the Wall Exhaust Fan
Model: EWF-180
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN
INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL
INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock and
injury to person, including the following:
WARNING:
TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK AND INJURY TO
PERSON, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer.If you have
questions, contact the manufacturer.
b) Before servicing or cleaning the unit, switch power off at service
panel and lock the service disconnecting means to prevent power
from being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK AND INJURY TO
PERSON, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-related construction.
b) Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s guideline
and safety standards such as those published by the National Fire
Protection Association (NFPA) and the American Society for Heating,
Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local
code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
CAUTION: FOR GENERAL VENTILATING USE ONLY.
DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS AND VAPORS.
d) Ducted fans must always be vented to the outdoors.
e) This unit must be grounded.
f) To avoid motor bearing damage and noisy and/or unbalanced impellers,
keep drywall spray, construction dust, etc. off power unit.
g) Read all instructions before installing or using exhaust fan.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, DO NOT USE THIS FAN WITH
ANY SOLID-STATE SPEED CONTROL DEVICE.
a) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected to a
GFCI (Ground Fault Circuit Interrupter) – protected branch circuit.
WARNING: DO NOT USE IN KITCHENS.
INSTALLATION INSTRUCTIONS
CAUTION:
MAKE SURE POWER IS SWITCHED OFF AT
SERVICE PANEL BEFORE STARTING INSTALLATION.
SECTION 1
Preparing the Exhaust Fan
1. Unpack from carton and confirm that all pieces are present. You should have:
1 - Grill
1 - Grill Knob
1 - Wiring Compartment and screws
1 - Motor
1 - Housing
1 - Instruction/Safety Sheet
NOTE: This fan is designed to mount between exterior walls 4-1/2” to 9-1/2” in thickness.
2. Remove the motor bracket assembly from the fan housing by loosening the two screws
which secure the bracket in place .(Figure 1)
3. Slide the inner housing out from the outer housing and set aside in a safe place (Figure 2).
SECTION 2
Mounting the Housing
1. From inside the house, choose the best location to mount the housing on an exterior wall.
Make sure to locate the housing where there are no studs, electrical/mechanical utilities,
or any other obstructions.
2. Once you have selected the best location from inside the house, transfer the location to
the exterior of the house and confirm that there are no obstructions in the location and
the fan has proper clearance to operate.
3. Once the installation location has been confirmed, cut a 8-1/4” diameter hole in the
interior wall where the fan is to be located (Figure 3).
4. Drill a small hole through to the outside in the center of the 8-1/4” diameter hole, so you
can properly locate the exterior housing (Figure 3).
www.airkinglimited.com
210575005 Rev. D 12-15 2 of 8
5. On the siding of the outside wall, layout a 14-1/2” x 14-1/2” square using the small hole
drilled in Step 4 as the center point and cut out the square hole (Figure 4).
CAUTION: ONLY CUT THE EXTERIOR WALL SIDING. DO NOT CUT INTO
THE SHEATHING (PLYWOOD) UNDERNEATH.
6. Once the siding is cut, nail down all the loose ends of the siding (Figure 4).
7. In the center of the 14-1/2” square cut in step 5, mark and cut a 8-1/4” diameter hole
through the wall sheathing (Figure 5).
8. Install 1” x 2” casing strips (not included) for support on the edges of the 14-1/2” square
hole. Secure casing strips to plywood sheathing with screws or nails (not included) and
seal where the strips meet the plywood with caulk (Figure 5).
CAUTION: IF SHEATHING IS NOT PLYWOOD, YOU WILL HAVE TO ADD
ADDITIONAL SUPPORT FOR THE INSTALLATION.
9. If the wall is less than 8” thick, remove one or more of the electrical compartment
clearance knockouts located on the housing (Figure 6).
10. On the interior flange of the housing, apply a generous amount of caulking and install the
housing through the hole and onto the casing strips and secure in place using screws or
nails (not included) through the predrilled holes on the four corners of the housing. Seal
the flange where the housing meets the wall with caulk (Figure 7).

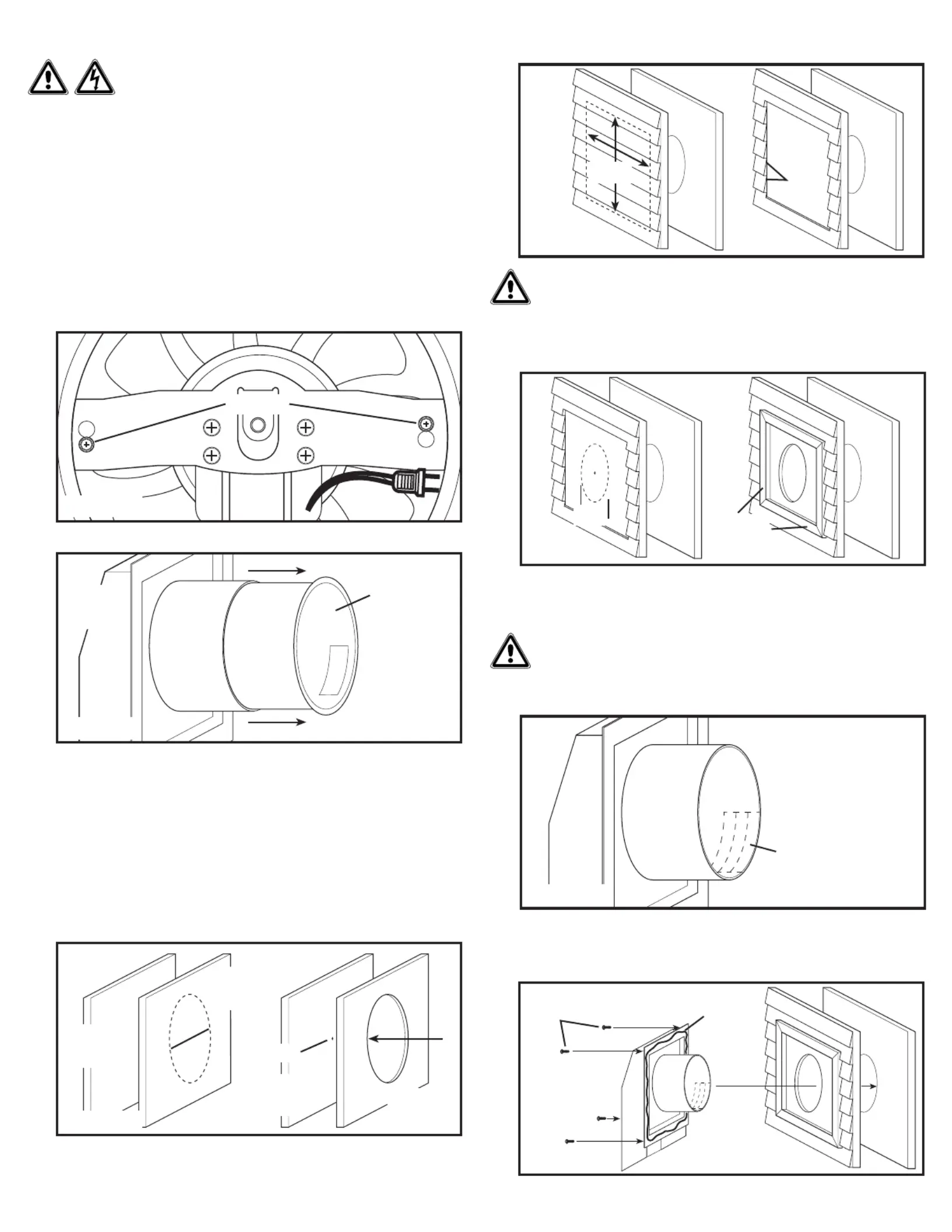

Figure 1
Screws
Figure 2
Inner
Housing
Outer
Housing
Figure 3
Exterior
Wall
Interior
Wall
Exterior
Wall
Interior
Wall
Hole
Figure 4
Nail
14½"
Figure 5
8¼"
Casing
Knockouts
Figure 6
Figure 7
Screw
Caulk
