Side 1/8

IMPORTANT INSTRUCTIONS -

OPERATING MANUAL

SAVE THESE INSTRUCTIONS

www.airkinglimited.com

210572203 Rev. AB 1-23 1 of 8

Exhaust Fan with Light

Models: LEDAK50, LEDAK80, LEDAK100,

LEDAK80H, LEDAK100H

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN

THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY

INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL

INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should

always be followed to reduce the risk of ﬁre, electric shock and

injury to person, including the following:

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO

PERSON, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the manufacturer.If you have

questions, contact the manufacturer.

b) Before servicing or cleaning the unit, switch power off at service

panel and lock the service disconnecting means to prevent power

from being switched on accidentally. When the service disconnecting

means cannot be locked, securely fasten a prominent warning

device, such as a tag, to the service panel.

WARNING: TO REDUCE THE RISK

OF FIRE, ELECTRIC SHOCK AND INJURY TO

PERSON, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualiﬁed

person(s) in accordance with all applicable codes and standards,

including ﬁre-related construction.

b) Sufﬁcient air is needed for proper combustion and exhausting of

gases through the ﬂue (chimney) of fuel burning equipment to prevent

back drafting. Follow the heating equipment manufacturer’s guideline

and safety standards such as those published by the National Fire

Protection Association (NFPA) and the American Society for Heating,

Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local

code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical

wiring and other hidden utilities.

CAUTION: FOR GENERAL VENTILATING USE ONLY.

DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE

MATERIALS AND VAPORS.

d) Ducted fans must always be vented to the outdoors.

e) This unit must be grounded.

f) To avoid motor bearing damage and noisy and/or unbalanced impellers,

keep drywall spray, construction dust, etc. off power unit.

g) Read all instructions before installing or using exhaust fan.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, DO NOT USE THIS FAN WITH

ANY SOLID-STATE SPEED CONTROL DEVICE.

a) If this unit is to be installed over a tub or shower, it must be marked

as appropriate for the application and be connected to a GFCI (Ground

Fault Circuit Interrupter) – protected branch circuit.

b) Do not install in a ceiling with thermal insulation value greater than R40.

WARNING: DO NOT USE IN KITCHENS.

WARNING: THE DUCTING FROM THIS FAN TO THE

OUTSIDE OF THE BUILDING HAS A STRONG EFFECT

ON THE AIR FLOW, NOISE AND ENERGY USE OF THE FAN. USE

THE SHORTEST, STRAIGHTEST DUCT ROUTING POSSIBLE FOR

BEST PERFORMANCE, AND AVOID INSTALLING THE FAN WITH

SMALLER DUCTS THAN RECOMMENDED. INSULATION AROUND

THE DUCTS CAN REDUCE ENERGY LOSS AND INHIBIT MOLD

GROWTH. FANS INSTALLED WITH EXISTING DUCTS MAY NOT

ACHIEVE THEIR RATED AIRFLOW.

INSTALLATION INSTRUCTIONS

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE

PANEL BEFORE STARTING INSTALLATION.

SECTION 1

Preparing the Exhaust Fan

1. Unpack fan from the carton and conﬁrm that all pieces are present. In addition to the exhaust

fan you should have:

1 - Grill 4 - Mounting Rails

1 - Light Assembly 1 - Lamp

1 - Damper Assembly (attached) 1 - Instruction/Safety Sheet

2. Choose the location for your fan. To ensure the best air and sound performance, it is

recommended that the length of ducting and the number of elbows be kept to a minimum, the

radius of each elbow be as large as possible for the installation, and that insulated hard ducting

be used. This fan will require at least 8" of clearance in the

ceiling or wall, and will mount through drywall up to 3/4"

thick. The fan mounts between 16" or 24" on center joists

using the 4 provided mounting rails.

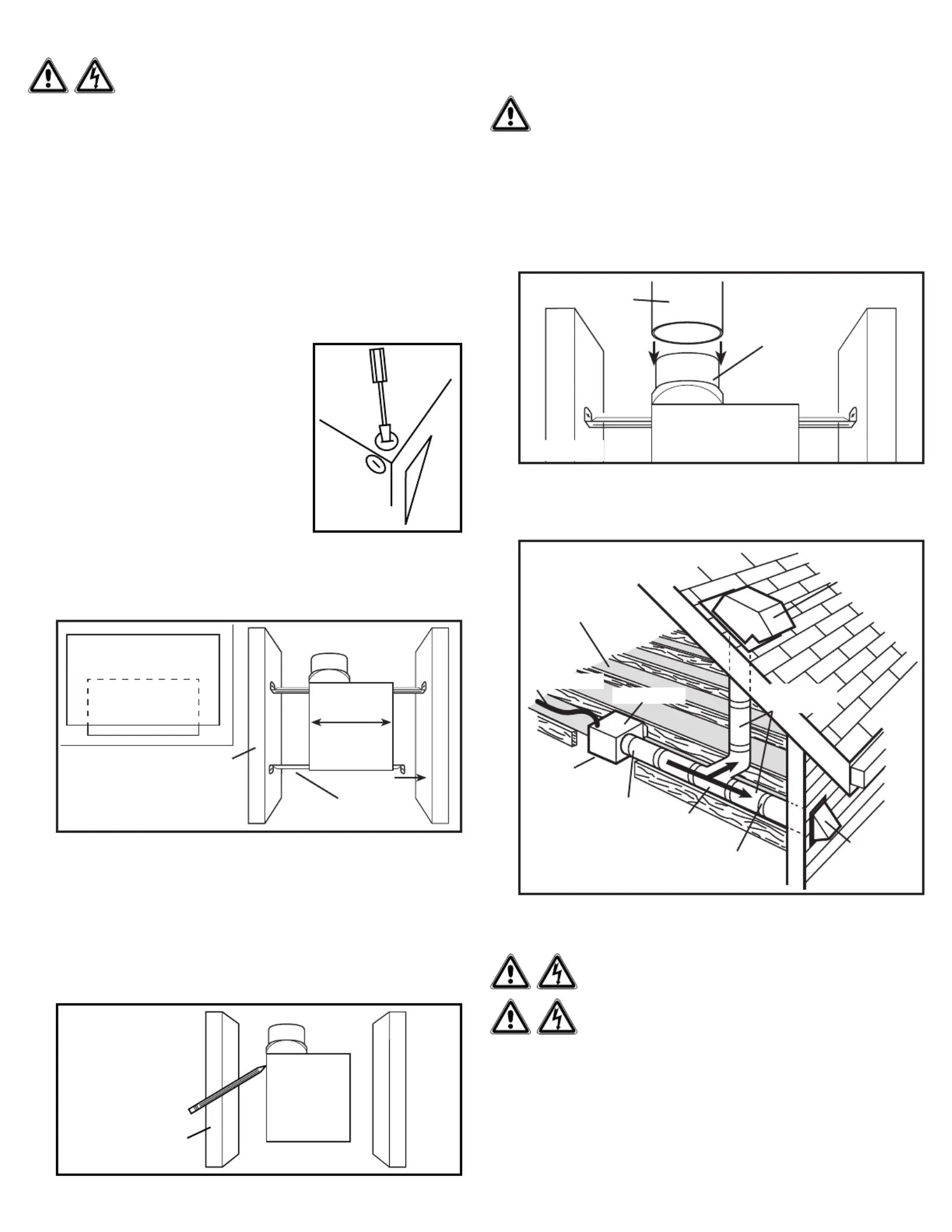

3. Using a straight-blade screw driver remove the electrical

knockout from the housing (Figure 1).

4. No additional vibration deadening materials are needed

for this fan.

SECTION 2

New Construction

1. Install the rails into the mounting channel on the housing. Center the mounting channel in the

slots on the housing, then from inside the housing tighten the mounting channel screws so the

channel is securely in place.

Position the housing next

to the joist. Line up housing

so that it will be ﬂush

with the ﬁnished ceiling.

Secure the ends of the rails

with screws or nails (not

included) to the joists and

slide the housing into the

ﬁnal position (Figure 2).

SECTION 3

Existing Construction

1. Set housing in position between the joist

and trace an outline onto the ceiling

material Set housing aside (Figure 3).

and cut opening, being careful not to

cut or damage any electrical or other

hidden utilities. Install the rails into the

mounting channel on the housing. Center

the mounting channel in the slots on the

housing, then from inside the housing

tighten the mounting channel screws so the

channel is securely in place. Position the

housing in the previously cut hole so that it is ﬂush with the ﬁnished ceiling. Secure the ends of

the rails to the joists (Figure 2).

SECTION 4

Ducting

NOTE: 4" OR LARGER RIGID DUCT IS RECOMMENDED FOR BEST PERFORMANCE.

CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL

BUILDING CODES.

NOTE: The ducting from this fan to the outside of the building has a strong effect on the air

ﬂow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best

performance, and avoid installing the fan with smaller ducts than recommended. Insulation around

the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not

achieve their rated air ﬂow.

1. Connect the ducting to the

fan’s duct collar (Figure 4).

Secure in place using tape

or screw clamp. Always

duct the fan to the outside

through a wall or roof cap.

It is recommended that

low restriction termination

ﬁttings be used.

2. Ensure duct joints and exterior penetrations are sealed with caulk or other similar material

to create an air-tight path to minimize building heat loss or gain and to reduce the potential

for condensation. Place/wrap insulation around duct and/or fan in order to minimize possible

condensation buildup within the duct, as well as building heat loss or gain .(Figure 5)

www.airkinglimited.com

210572203 Rev. AB 1-23 2 of 8

SECTION 5

Wiring

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE

PANEL BEFORE STARTING INSTALLATION.

CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE

IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR NATIONAL

ELECTRICAL CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL

WIRING, SECURE THE SERVICES OF A QUALIFIED ELECTRICIAN.

NOTE: This unit includes a side access

panel for wiring that does not require

the removal of the fan’s blower

assembly. If you choose to wire the

unit from the inside, you will need

to remove the blower assembly and

internal wiring compartment. Both

methods are equally effective.

1a. External Wire Compartment:

Remove the wire compartment

cover screw and place cover in a

secure place .(Figure 6)

1b. Internal Wire Compartment:

Remove the screws holding the

blower assembly in place and

lift assembly out of housing

(Figure 7). Remove the wire

compartment cover screw and

place the cover in a secure place

(Figure 8).

NOTE: If the fan motor plug is

connected to the fan housing

receptacle, unplug so the blower

assembly can be completely removed.

STANDARD MODELS

2a. Run wiring from an approved wall switch carrying the appropriate rating. One neutral (White), one

ground (green or bare copper), and two hot (Black, and Red leads connected to the switch, one for

each function). Secure the electrical wires to the housing with an approved electrical connector.

Make sure you leave enough wiring in the box to make the connection to the fan’s receptacle.

2b. From where you have chosen to access the fan’s junction box, connect the White wire from the

house to the two White wires from the fan. Connect one Hot (Black) wire from the wall switch

to the Black wire from the fan (this is the fan control). Connect second Hot (Red) wire from the

wall switch to the Red wire from the fan (this is the main light control). Connect the ground

wire (green or bare copper) from the house to the Green wire from the fan . Use (Figure 9)

approved methods for all connections.

Figure 6

Screw

Wire

Compartment

Cover

Figure 2

Housing

Joist

Mounting Rails

Figure 5

Insulation*

(place around and

over Fan Housing

Fan Housing

Power Cable*

Seal gaps

around Housing

Round

Duct*

Seal duct joints

with tape

Round

Elbows*

Wall Cap*

Roof Cap*

(with built-in

damper)

Keep duct

runs short

*Purchase separately

Figure 3

Joist

Figure 8

Screw Wire

Compartment

Cover

NOTE: Wire compartment conﬁguration

will be dependent on model.

Figure 9

Supply from house

Neutral (White)

Ground (Green or Bare)

Fan

Neutral (White)

Green

Hot (Black)

Red

Black

Switch

(by others)

By others

Figure 1

Ducting

Duct

Collar

Figure 4

Screws

Plug

Venturi

Figure 7
