Side 1/12
IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
SAVE THESE INSTRUCTIONS
www.airkinglimited.com
6728024M Rev. L 12-19 1 of 12
Powered Liner
LIN Series
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE
a) Use this unit only in the manner intended by the manufacturer.If you have questions,
contact the manufacturer.
b) Before servicing or cleaning the unit, switch power off at service panel and lock the
service disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE
a) Installation work and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards, including fire-related construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through the
flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such as those published by
the National Fire Protection Association (NFPA) and the American Society for Heating,
Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT
USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.
CAUTION: TO REDUCE THE RISK OF FIRE AND TO
PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE - DO NOT
VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL
SPACES, OR GARAGES.
d) Ducted fans must always be vented to the outdoors.
e) This unit must be grounded.
f) To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
g) Read all instructions before installing or using range hood.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED
CONTROL DEVICE.
WARNING: TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a) Never leave surface units unattended at high settings. Boil overs cause smoking
and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambéing food (ie. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on
fan filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface
element.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels -
a violent steam explosion will result.
d) Use an extinguisher ONLY if:
I. You know you have a Class ABC extinguisher, and you already know how to
operate it.
II. The fire is small and contained in the area where it started.
III. The fire department is being called.
IV. You can fight the fire with your back to an exit.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY
METAL DUCTWORK.
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN
THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY
INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY
AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions should always
be followed to reduce the risk of fire, electric shock and injury to
person, including the following:
INSTALLATION INSTRUCTIONS
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT
SERVICE PANEL BEFORE STARTING INSTALLATION.
NOTE : When installing the Liner outdoors, the Air King Professional Liners are approved for
use in outdoor kitchens only. Proper duct adapters, ducting, chimneys, roof/wall covered
caps, etc. must be utilized as called out in the following instructions. Do not install the liner in
an uncovered area directly exposed to the elements.
SECTION 1
Preparing the Insert
1. Unpack hood from the carton and confirm that all pieces are present. In addition to the
range hood you should have:
8 - Screws (LIN34, LIN40 models - 12; LIN46, LIN58 models - 14)
2 - LED Bulbs (LIN58 models - 4)
1 - Vertical Outlet Adapter
1 - Grease Trough
2 - Grease Baffles (LIN24, LIN46, LIN58 models - 3)
2 - Spacers (LIN24 models only)
1 - Instruction/Safety Sheet
NOTE: Some hoods may be shipped with a protective plastic adhered to the underside of the
unit. It is recommended to leave this in place during installation to protect it from scratching.
Remove when the installation is complete.
SECTION 2
Preparing the Area
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT
SERVICE PANEL BEFORE STARTING INSTALLATION.
CAUTION: WHEN CUTTING OR DRILLING INTO WALL DO NOT
DAMAGE ELECTRICAL WIRING AND OTHER HIDDEN UTILITIES.
1. Cut an appropriately sized hole for the cabinet or canopy the liner will be mounted into
(Figure 1):
LIN24M models: LIN24MD models: 24.5" x 19.375" 24.5" x 22.625"
LIN28M models: LIN28MD models: 28.5" x 19.375" 28.5" x 22.625"
LIN34M models: LIN34MD models: 34.5" x 19.375" 34.5" x 22.625"
LIN40M models: LIN40MD models: 40.5" x 19.375" 40.5" x 22.625"
LIN46MD models: LIN58MD models: 46.5" x 22.625" 58.5" x 22.625"
NOTE: The hood must be mounted a minimum of 24" and a maximum of 36" from the
cooking surface.
SECTION 3
Mounting the Liner
CAUTION: DUE TO THE WEIGHT AND BULK OF THE UNIT, IT IS
RECOMMENDED THAT THREE PEOPLE ARE PRESENT DURING INSTALLATION TO
LIFT, HOLD, AND SECURE THE UNIT IN PLACE.
1. Lift unit up into position so that the bottom flanges are in solid contact with the bottom of
the canopy or cabinet. Using the included wood mounting screws, secure the unit to the
canopy or cabinet by driving the screws through the holes (Figure 2).
www.airkinglimited.com
6728024M Rev. L 12-19 2 of 12
NOTE: If additional support is required, install a 2" x .75" strip of wood between the back of
the canopy (rear wall) and the hood. When installing the wood strip to the back of the canopy,
locate studs in the wall to support the weight of the canopy. Center the wood strip 11.5"
from the bottom of the canopy and attach the strip to at least two studs in the rear wall (do
not fasten the strip to drywall only). Lift unit up into position so that the bottom flanges are in
solid contact with the bottom of the canopy or cabinet. Using wood screws and washers (not
included) secure the hood to the wood strip through the two keyholes in the back of the hood.
Using the included wood mounting screws, secure the unit to the canopy or cabinet by driving
the screws through the holes (Figure 3).
SECTION 4
Ducting
CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND
NATIONAL BUILDING CODES.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY
METAL DUCTWORK.
1. Determine the type of ducting you will require (Figure 4).
NOTE: For models using the B600 or B900 blowers, a minimum of 8" diameter outlet adapter &
ducting is required to achieve the proper air flow. The B1125 requires a minimum 10" diameter
adapter and ducting.
NOTE: When the duct termination is similar to that shown in (passing through the wall Figure 4
to which the hood is mounted) the installation requires special consideration. Depending upon
where the wall studs are located, it may be necessary to cut one or more of the wall studs and
install a header and footer to transfer the load to the adjacent studs. Additional studs may need
to be framed into the opening to attach dry wall or secure the hood. If this is your situation Air
King recommends that you hire a professional and comply with all applicable codes.
2. Install the proper sized outlet adapter to the hood by matching up the four holes on the
flange of the adapter to the four corresponding holes on the hood and secure in place
with the provided screws. Ensure an airtight seal around the adapter by securing all
connections with ducting tape (Figure 5).

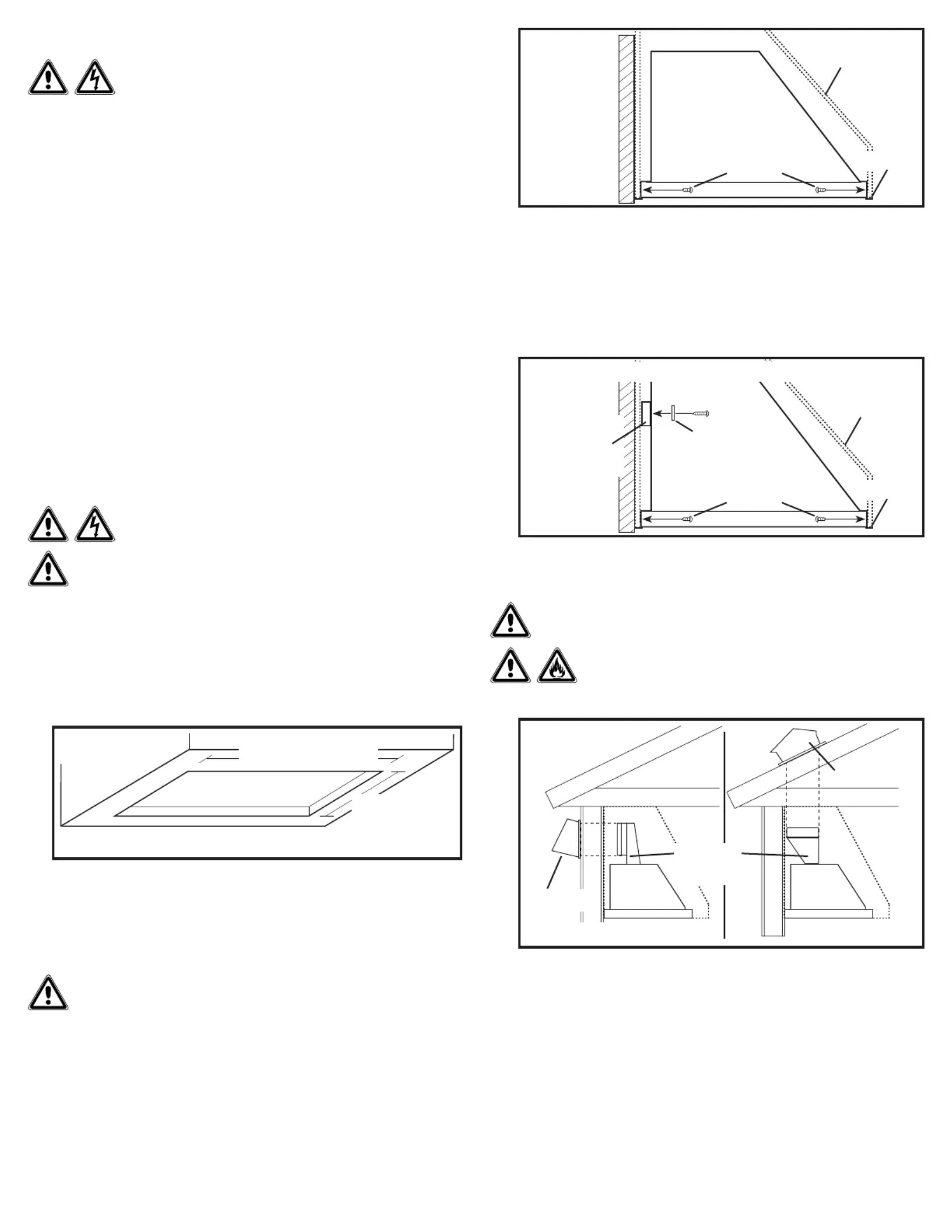

Figure 4
Wall Cap
Outlet
Adapter
Roof Cap
Horizontal
Vertical
Figure 1
24.5"/28.5"/34.5"/
40.5"/ 46.5"/58.5"
19.375"
22.625"
Figure 2
Screws
Flange
Canopy
Washer
Figure 3
Canopy
Wood
Mounting
Strip
OPTIONAL ADDITIONAL SUPPORT
Screws
Flange
