AS01K

ISSUED: OCT. 2014

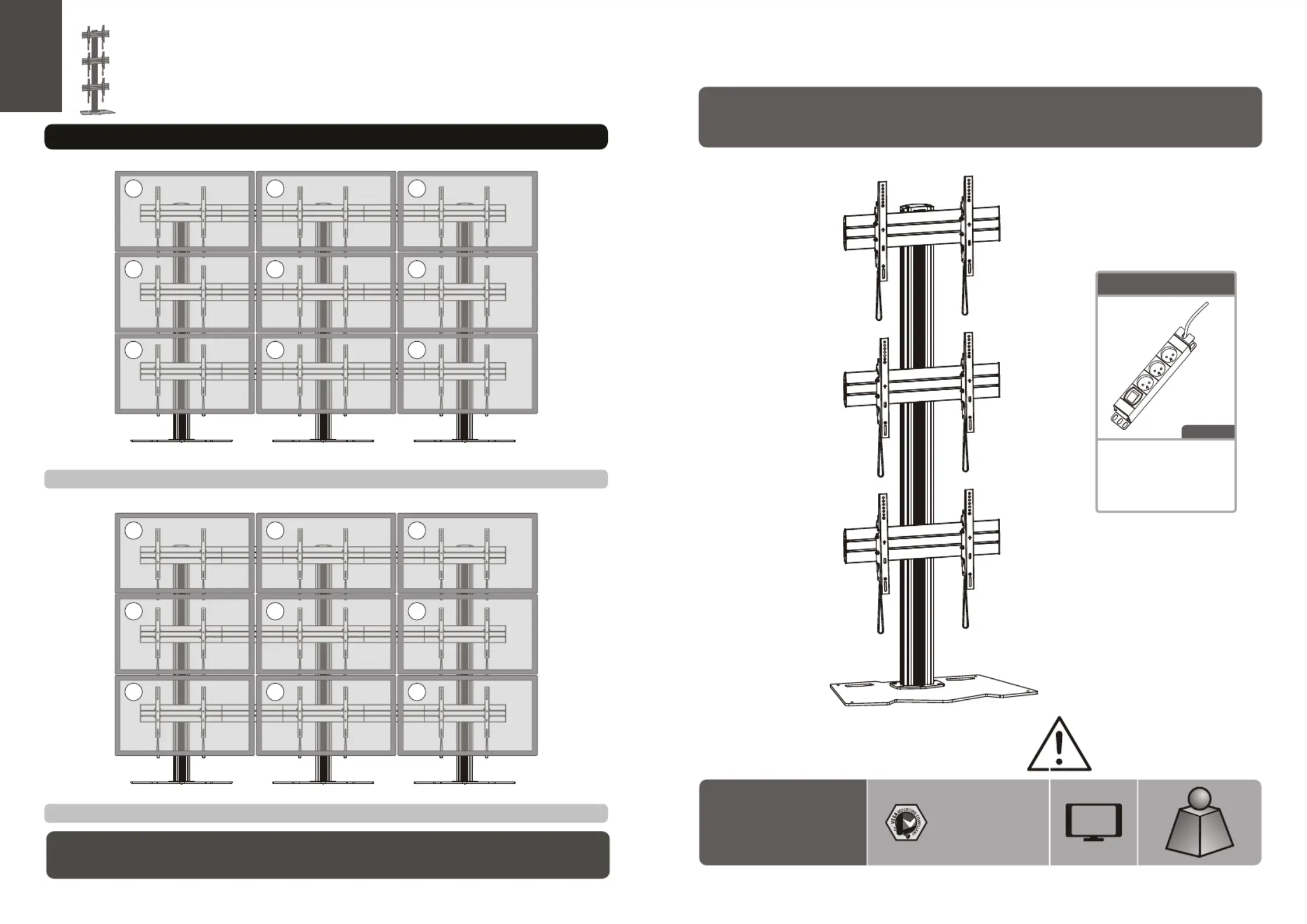

Video Wall Stand and Accessories

INSTALLATION MANUAL

CAUTION: DO NOT EXCEED

RATED LISTED WEIGHT. SERIOUS

INJURY OR PROPERTY DAMAGE

MAY OCCUR!

300x300 400x200/

00x400 600x400/

AS01346FP

55"

MAX

(

(11

110

sx3

x3)

)

RATE

ATE

ATED

50kgx3

(110lbsx3)

RATED

Maintenance

• Check that the bracket is secure and safe to use at regular intervals(at least every three months).

• Please contact your distributor if you have any questions.

Note: The accessories

are not standard equipped.

The accessories will be

selected according to

user requirement.

Optional Accessories

1 3

Note: The displays are installed by the numerical order given.

Note: The angle of displays are adjusted by the numerical order given.

WARNING

NOTE: Read the entire instruction manual before you start installation and assembly.

• Do not begin the installation until you have read and understood all the instructions

and warnings contained in this installation sheet. If you have any questions

regarding any of the instructions or warnings, please contact your local distributor.

• This mounting bracket was designed to be installed and utilised ONLY as

specified in this manual. Improper installation of this product may cause damage

or serious injury.

• Always use an assistant or mechanical lifting equipment to safely lift and position

the equipment.

• Tighten screws firmly, but do not over tighten. Over tightening can cause damage

to the items, This greatly reduces their holding power.

• This product is intended for indoor use only. Using this product outdoors could

lead to product failure and personal injury.

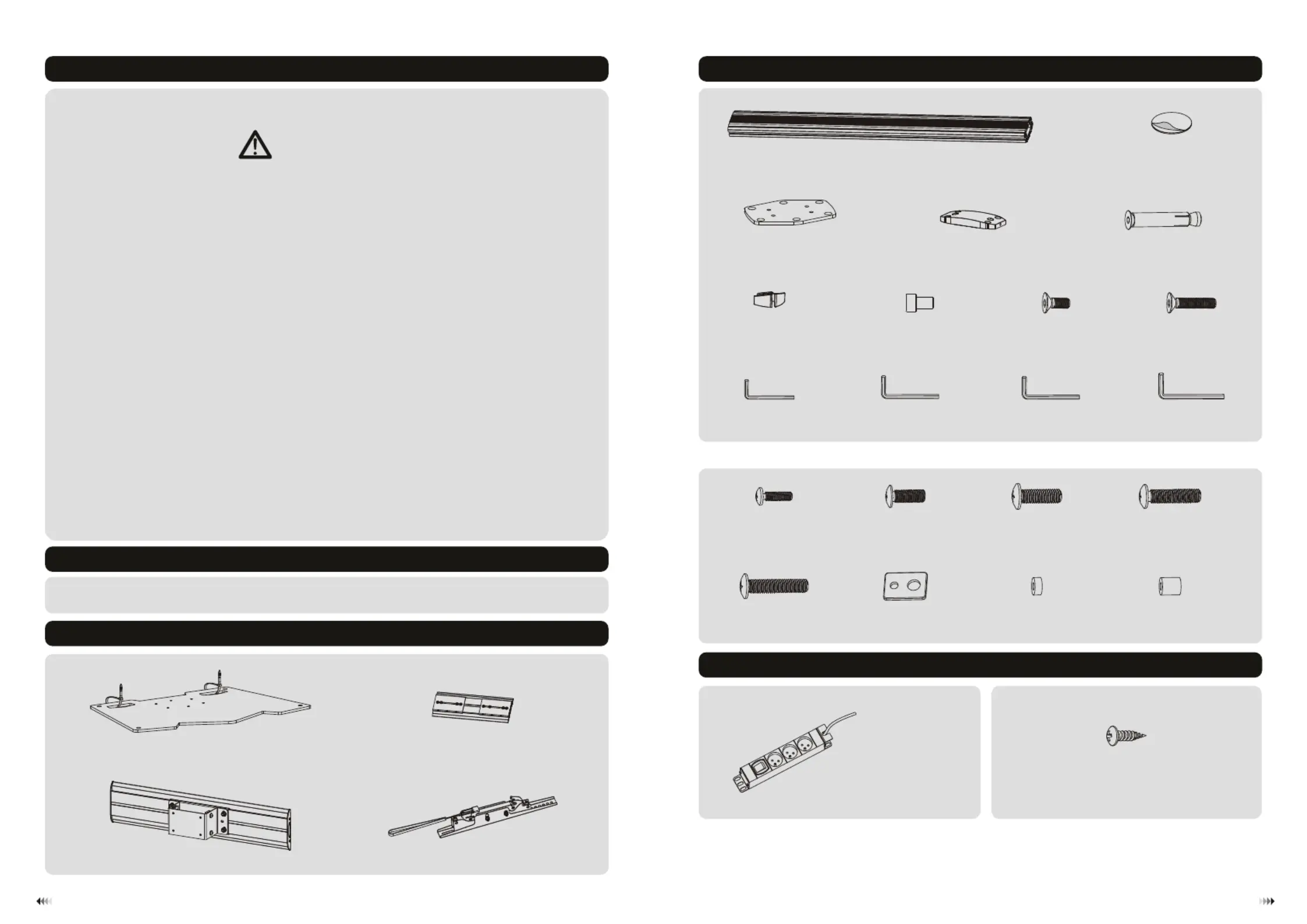

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation.

If any parts are missing or faulty, telephone your local distributor for a replacement.

AS01346FP

Package M (x3)

washer

M-F

(x4)

M8x20 (x4)

M-C

M5x14 (x4)

M-A

M6x14 (x4)

M-B

big spacer (x4)

M-H

M6x30 (x4)

M-D

M8x30 (x4)

M-E

small spacer (x8)

M-G

AS01K ( )The following accessories are optional

power socket (x1)

T-H

ST4.8x9.5 (x4)

P-G

adapter bracket (x6)

universal plate (x3)

connecting fitting (x3)

steel plate (x1)

rubber pad (x4)

column (x1)

connecting plate (x1)

top cover (x1)

iron expansion bolt (x6)

cable clamp (x12)

M8x16 (x4)

M8x16 (x6)

M8x40(x4)

5mm Allen key (x1)

6mm Allen key (x1)

3mm Allen key (x1)

4mm Allen key (x1)

Produkt Specifikationer

Mærke:	Allsee
Kategori:	Ikke kategoriseret
Model:	AS01346FP
Type:	Bærbar
Højde:	2144 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sølv
Panel montering grænseflade:	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 mm
Husmateriale:	Aluminium, Plastic, Steel
Monteringstype:	Gulv
Bæredygtighedscertifikater:	RoHS
Rotation:	Ingen
Maksimal vægtkapacitet:	50 kg
Hældningsindstilling:	Ingen
Forbedret kabelstyring:	Ja
Maksimal skærmstørrelse kompatibilitet:	55 "
Antal understøttede skærme:	3
Minimal skærmstørrelse kompatibilitet:	46 "
Montering interface kompatibilitet (min.):	200 x 200 mm
Montering interface kompatibilitet (maks.):	600 x 400 mm
