ISSUED: SEP. 2014

200x200

400x200 /400x40 0

600x400 /800x40 0

/300x30 0

AS0348T

(

)

RATE

ATE

ATED

70kg

(154lbs)

RATED

Video Wall Mount

INSTALLATION MANUAL

CAUTI ON: DO NOT EXCEED

RATED LISTED WEIGHT. SERIOUS

INJURY OR PROPERTY DAMAGE

MAY OCCUR!

200x200

400x200 /400x40 0

600x400

/300x30 0

AS0346T

70"

MAX

9. Lock the Pop-out Module with the Plastic Locking Pieces

Maintenance

• Check that the brack et is secur e and safe to u se at regular intervals(at least every three months).

• Please contact your distrib utor if you have any questions.

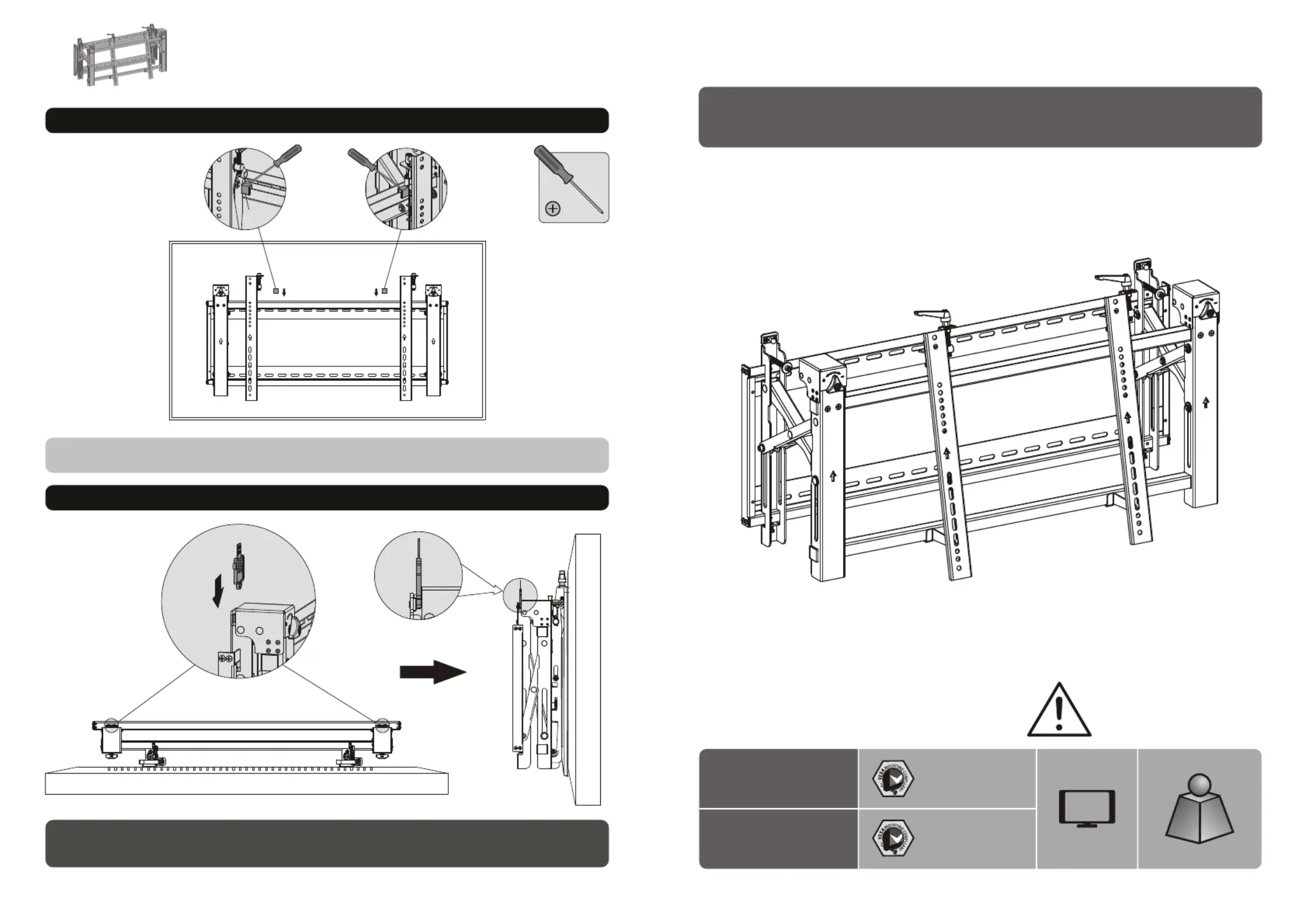

8. Fixing the Brackets Position with the Antiskid Blocks

Install the both antiskid blocks as close to the adapter brackets as possible.

Tighten screws on the antis kid blocks using a proper screwdriver to prevent display from moving.

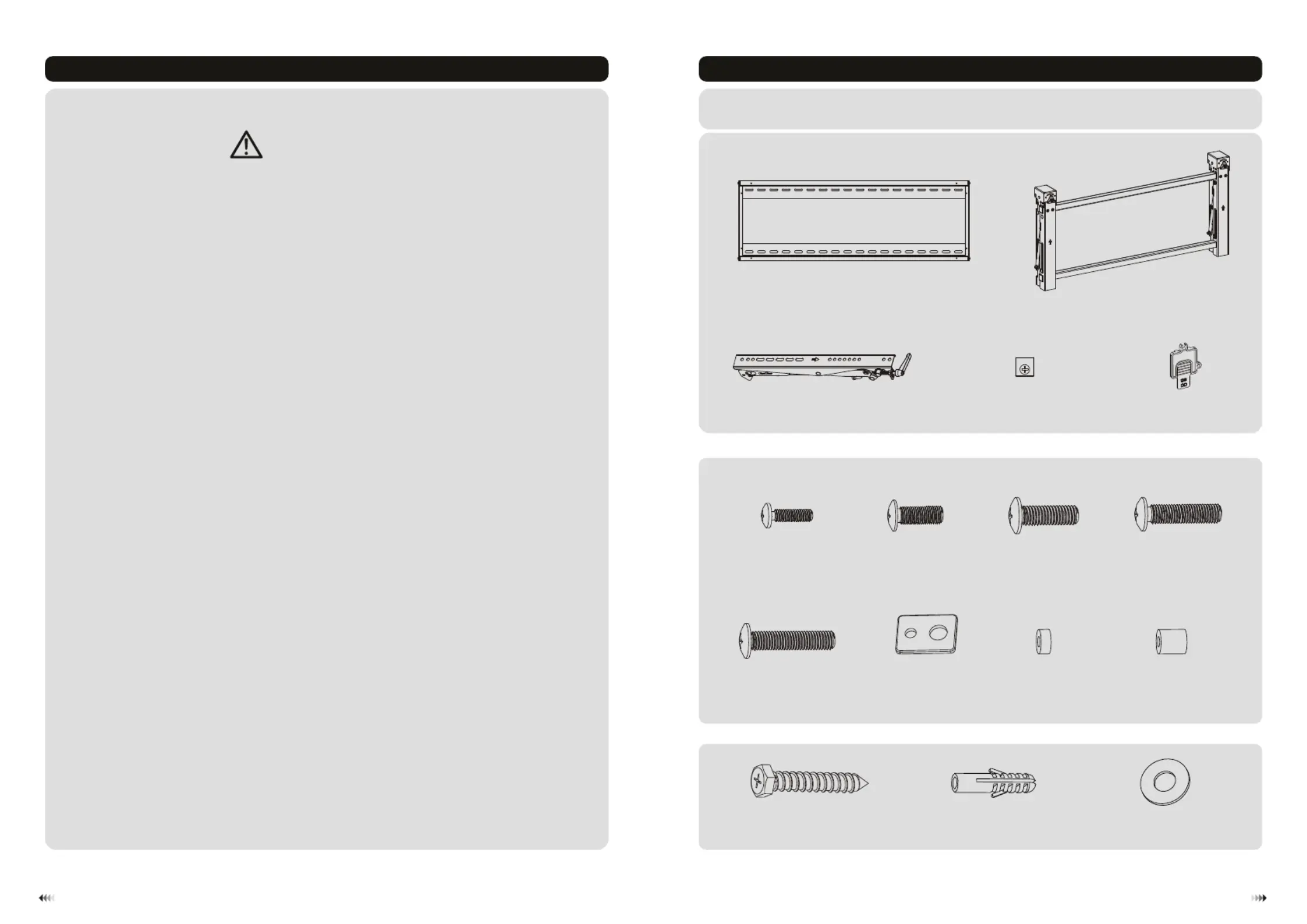

Component Checklist

IMPORTANT: Ensure that you ha ve received all parts ac cording to the compon ent checklist prior to insta llation.

If any parts are missing o r faul ty, telephone your local distri butor for a replac ement.

Package M

Package W

ST6.3x55 (x6)

W-A

concrete anchor

W-B

(x6) D6 washer (x6)

W-C

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

M5x14

M-A

(x4) M6x14

M-B

(x4)

washer

M-F

(x4)

M8x20

M-C

(x4)

big

M-H

spacer (x4)

M6x30

M-D

(x4)

M8x30

M-E

(x4) small spacer (x8)

M-G

• Do not begin the installation until you have read and understood all the instructions

and warnings contained in this installation sheet. If you have any questions

regarding any of the instructions or warnings, please contact your local distributor.

• This mounting bracket was designed to be installed and utilised ONLY as

specified in this manual. Improper installation of this product may cause damage

or serious injury.

• This product should only be installed by someone with good mechanical ability

who has basic building experience and fully understands this manual.

• Make sure that the supporting surface will safely support the combined weight of

the equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position

the equipment.

• Tighten screws firmly, but do not over tighten. Over tightening can cause damage

to the items, This greatly reduces their holding power.

• This product is intended for indoor use only. Using this product outdoors could

lead to product failure and personal injury.

wall plate

(x1) pop-out module

(x1)

adapter bracket (x2)

antiskid block (x2)

plastic locking piece (x2)
