Side 1/24
You can be killed or seriously injured if you don't immediately
You
can be killed or seriously injured if you don't
follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
MICROWAVE OVEN BUILT-IN TRIM KIT
INSTALLATION INSTRUCTIONS
Built-In Trim Kit Models MTK1627P*, MTK1630P*, MTK2227P*, MTK2230P*
UL listed for use over any electric or gas built-in oven, up to 30" (76.2 cm) wide
INSTRUCTIONS D’INSTALLATION DE LA TROUSSE DE
GARNITURE DU FOUR À MICRO-ONDES ENCASTRÉ
Trousse de garnitures modèles MTK1627P*, MTK1630P*, MTK2227P*, MTK2230P*
Homologué UL pour une utilisation au-dessus d’un four électrique ou au gaz encastré de 30po (76,2cm) de large maximum
INSTRUCCIONES DE INSTALACIÓN DEL JUEGO DE
MOLDURA EMPOTRABLE PARA HORNO MICROONDAS
Modelos de juego de moldura empotrable MTK1627P*, MTK1630P*, MTK2227P*, MTK2230P*
Aprobado por UL para utilizarse sobre cualquier horno empotrado eléctrico o a gas de hasta 30" (76,2 cm) de ancho
Table of Contents/Table des matières/Índice
MICROWAVE OVEN SAFETY ............................................ 1
INSTALLATION INSTRUCTIONS
.......................................2
Tools and Parts
................................................................2
Location Requirements
...................................................2
Required Cutout Dimensions
..........................................2
Trim Kit Frame Dimensions
.............................................3
Electrical Requirements
...................................................3
Prepare Microwave Oven
................................................ 4
Prepare Cutout/Cabinet Opening
....................................4
Install the Microwave Oven
.............................................5
Install Trim Kit Frame
.......................................................6
SÉCURITÉ DU FOUR À MICRO-ONDES
..........................8
INSTRUCTIONS D’INSTALLATION
................................... 9
Outils et pièces
................................................................9
Exigences d’emplacement
.............................................. 9
Dimensions requises des ouvertures à découper
........... 9
Dimensions du cadre de la trousse de garniture
...........10
Spécications électriques
.............................................10
Préparation du four à micro-ondes
...............................11
Préparation de l’ouverture d’encastrement
...................11
Installation du four à micro-ondes.................................12
Installation du cadre de la trousse de garniture
............ 13
SEGURIDAD DEL HORNO MICROONDAS
.................... 15
INSTRUCCIONES DE INSTALACIÓN
.............................16
Herramientas y piezas
...................................................16
Requisitos de ubicación
................................................ 16
Dimensiones de recorte requeridas
..............................16
Dimensiones del marco del juego de moldura
..............17
Requisitos eléctricos
..................................................... 17
Preparación del horno microondas
............................... 18
Preparación del recorte/abertura del gabinete.............. 18
Instalación del horno microondas
................................. 19
Instalación del marco del juego de moldura
.................20
MICROWAVE OVEN SAFETY
W11667246B
2

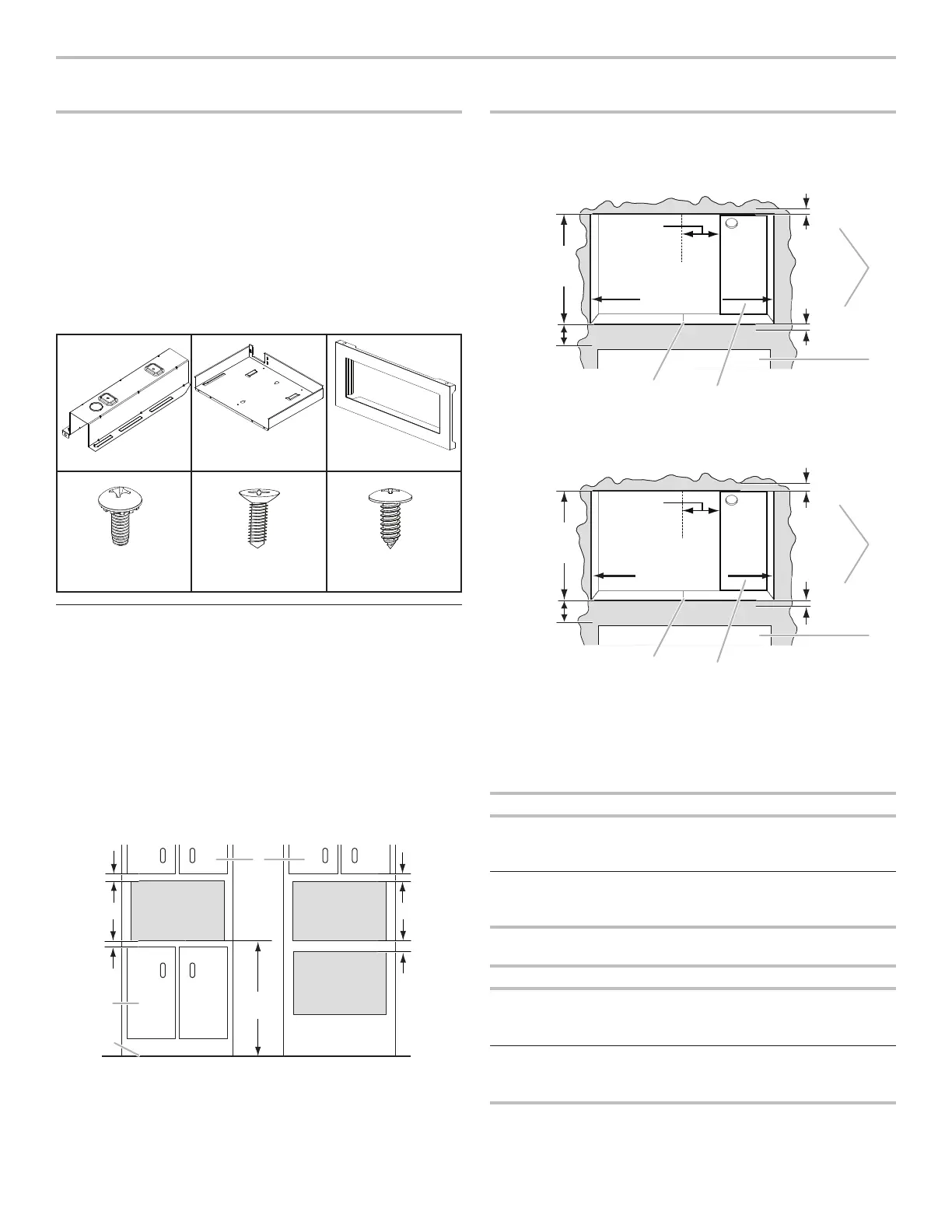

INSTALLATION INSTRUCTIONS
Tools and Parts
Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
■ Measuring tape ■ Drill
■ Pencil ■ 7/64" drill bit
■ Phillips screwdriver
Parts Supplied (not shown to scale)
Location Requirements
The microwave oven may be installed over a built-in oven. If
installing over a built-in oven, make sure there is a minimum of
3
15
⁄
16
" (10 cm) between the top of the lower oven cutout and the
microwave oven cutout oor.
The microwave oven may also be installed in a cabinet by itself
(without a built-in oven below). For best usability, we recommend
a minimum distance of 36
1
/
16
" (91.6 cm) from the oor to the
cutout oor.
Make sure the surrounding cabinetry has clearance to open and
close freely. Allow a clearance of at least 2" (5.1 cm) below the
cutout oor (3
15
⁄
16
" [10 cm] for installation above a built-in oven),
and a clearance of at least 2" (5.1 cm) above the cutout opening.
Required Cutout Dimensions-1•6 cuft•
For minimum depth requirements, see chart
Required Cutout Dimensions-2•2 cuft•
For minimum depth requirements, see chart
1.6 cuft.
Receptacle Location Minimum Depth
Within recommended
region
20" (50.8 cm) with ush receptacle;
23" (58.4 cm) with non-ush
receptacle
Outside recommended
region
23" (58.4 cm) with ush receptacle;
26" (66.0 cm) with non-ush
receptacle
2.2 cuft.
Receptacle Location Minimum Depth
Within recommended
region
22
3
⁄
4
" (57.8 cm) with ush receptacle;
26
3
⁄
4
" (67.9 cm) with non-ush
receptacle
Outside recommended
region
26
3
⁄
4
" (67.9 cm) with ush receptacle;
30
3
⁄
4
" (78.1 cm) with non-ush
receptacle
Rails (2) Bottom duct Trim kit frame
19# screw M4*10
(4 + 2 extra)
93# screw ST3*25
(4 + 2 extra)
A. Upper cabinet
B. Microwave oven
cutout
C. Lower oven cutout
D. Lower cabinets
E. Floor
3
15
/
16
"
(10 cm)
B
B
D
(91.6 cm)
C
36 "
1
/
16
2"
(5.1 cm)
2"
(5.1 cm)
2"
(5.1 cm)
E
A
A
(2.14 cm)
B
C
D
17
1
7
1
1
/
/
8
8
"
"
(43.5 cm)
(43.5 cm)
23
1
/
8
"
(58.7 cm)
(2.14 cm)
6"
(15.2 cm)
3
15
/
16
"
(10 cm)
13/16"
13/16"
minimum
maximum
A
(2.14 cm)
B
C
D
1
7
3
/
16
" (43.7 cm)
25
1
/2
"
(64.8 cm)
(2.14 cm)
6"
(15.2 cm)
3
15
/
16
"
(10 cm)
13/16"
13/16"
minimum
maximum
1
7
1
/
8
"
(43.5 cm)
A. Trim kit frame overhang
B. Cutout for lower oven
C. Recommended region for receptacle
location (no less than 6" [15.2 cm] to
the right of cutout centerline)
D. Cutout centerline
123# screw ST4*16
(7 + 3 extra)
