WASHER INSTALLATION INSTRUCTIONS
INSTRUCTIONS POUR L’INSTALLATION DE LA LAVEUSE

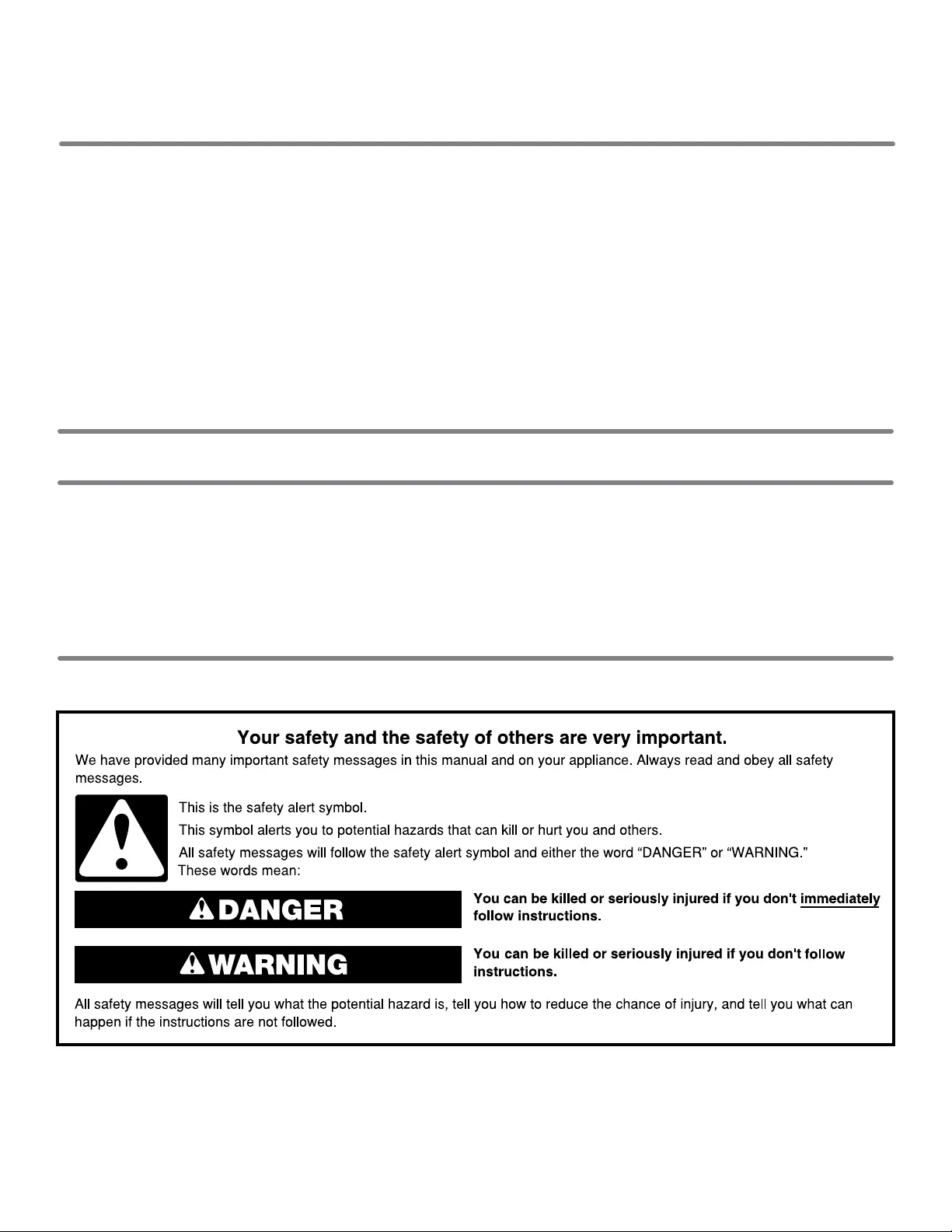

WASHER SAFETY
Table of Contents Table des matières
WASHER SAFETY ..............................................................1
INSTALLATION REQUIREMENTS 2 .....................................
Tools and Parts 2 .....................................................................
Location Requirements 2 .......................................................
Drain System 3 ........................................................................
Electrical Requirements 4 ......................................................
INSTALLATION INSTRUCTIONS 4 .......................................
Connect Drain Hose 5 .............................................................
Connect Inlet Hoses 6 .............................................................
Level Washer 7 ........................................................................
Complete Installation Checklist 8 ..........................................
SÉCURITÉ DE LA LAVEUSE .............................................9
EXIGENCES D’INSTALLATION 9 .........................................
Outillage et pièces 9 .................................................................
Exigences d’emplacement 10 .................................................
Système de vidange 11 .............................................................
Spécications électriques 11 ...................................................
INSTRUCTIONS D’INSTALLATION 12 .................................
Raccordement du tuyau de vidange...................................13
Raccordement des tuyaux d’arrivée d’eau 14 ........................
Établissement de l’aplomb de la laveuse 15 ...........................
Liste de vérication pour l’achèvement de l’installation 16 ..
W10240509E
W10240510E-SP
INSTALLATION NOTES
Date of purchase: _________________________________
Date of installation: _______________________________
Installer: ________________________________________
Model number: ___________________________________
Serial number: ___________________________________
NOTES SUR L’INSTALLATION
Date d’achat : ____________________________________
Date d’installation : _______________________________
Installateur : _____________________________________
Numéro de modèle : _______________________________
Numéro de série : _________________________________
Para obtener acceso al instrucciones de instalación en español, o para obtener información adicional acerca
de su producto, visite: www.whirlpool.com
2
Optional tools:
Parts supplied:
NOTE: All parts supplied for installation are in
cardboard insert in the top of the washer.
LOCATION REQUIREMENTS
Select proper location for your washer to improve performance
and minimize noise and possible “washer walk”. Install your
washer in a basement, laundry room, closet, or recessed area.
27"
(686 mm)
271/2"
(699 mm)
Parts needed: (Not supplied with washer)
To order, please refer to toll-free phone numbers on back page
of your Use and Care Guide.
n 8212656RP 10 ft. (3.0 m) Inlet hose, Black EPDM (2 pack)
n 8212641RP 5 ft. (1.5 m) Inlet hose, Black EPDM (2 pack)
n 8212646RP 4 ft. (1.2 m) Inlet hose, Black EPDM (2 pack)
n 8212545RP 5 ft. (1.5 m) Inlet hose, Red and Blue EPDM
(2 pack)
n 8212487RP 5 ft. (1.5 m) Nylon braided inlet hose (2 pack)
n 8212638RP 6 ft. (1.8 m) Nylon braided inlet hose, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)
n 8212637RP 6 ft. (1.8 m) Inlet hose, Black EPDM, space
saving 90° elbow, hypro-blue steel couplings
(2 pack)
Alternate parts: (Not supplied with washer)
Your installation may require additional parts. To order, please
refer to toll-free numbers on back page of your Use and Care
Guide.
If you have: You will need:
Overhead sewer Standard 20 gal. (76 L) 39" (990 mm)
tall drain tub or utility sink, sump
pump and connectors (available from
local plumbing suppliers)
1" (25 mm) standpipe 2" (51 mm) diameter to 1" (25 mm)
diameter Standpipe Adapter
Part Number 3363920
Connector Kit Part Number 285835
Drain hose too short Extension Drain Hose Part
Number 285863
Connector Kit Part Number 285835
Lint clogged drain Drain Protector Part Number 367031
Connector Kit Part Number 285835
INSTALLATION REQUIREMENTS

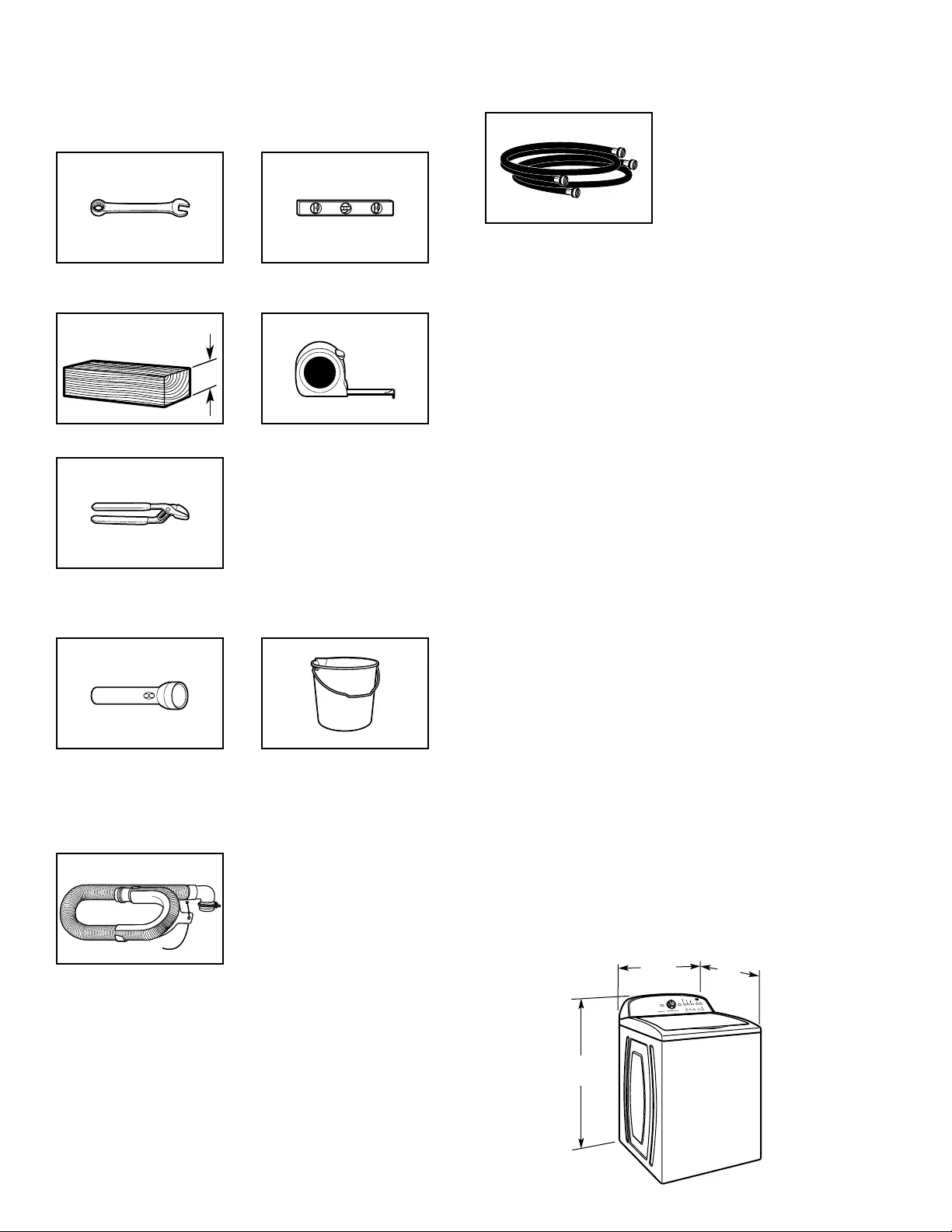

Tools and Parts
Gather required tools and parts before starting installation.
4" min
(102 mm)
Wood block
Adjustable or open end
wrench 9/16" (14 mm)
Ruler or measuring tape
Level
Inlet hoses with
flat washers
Pliers that open to
13⁄4" (44.5 mm)
Flashlight Bucket
Drain hose with clamp,
U-form, and cable tie
Tools needed:
43"
(1092 mm)
