Side 1/4

5151 San Felipe, Suite 500 • Houston, TX 77056 • www.amana-ptac.com

The wall sleeve must be installed before the air conditioner or heat pump chassis can be set in place.

Read the instructions thoroughly before proceeding.

INDEX

ATTENTION INSTALLING PERSONNEL ................................... 1

KIT ACCESSORIES ................................................................. 1

DRAIN KIT ..................................................................... 1

SUBBASE, LEVELING LEGS, MAIN DUCT & HYDRONIC HEAT KITS ........ 1

PRE-INSTALLATION CONSIDERATIONS .................................. 3

OUTDOOR ENCLOSURE PANEL REMOVAL ................................... 3

WALL SLEEVE INSTALLATION ............................................... 4

PTAC

ALL

LEEVE

INSTALLATION INSTRUCTIONS

ATTENTION INSTALLING PERSONNEL

As a professional installer you have an obligation to know the

product better than the customer. This includes all safety

precautions and related items.

Prior to actual installation, thoroughly familiarize yourself

with this Instruction Manual. Pay special attention to all

safety warnings. Often during installation or repair it is pos-

sible to place yourself in a position which is more hazardous

than when the unit is in operation.

Remember, it is your responsibility to install the product

safely and to know it well enough to be able to instruct a

customer in its safe use.

Safety is a matter of common sense...a matter of thinking

before acting. Most dealers have a list of specific good safety

practices...follow them.

The precautions listed in this Installation Manual are intended

as supplemental to existing practices. However, if there is a

direct conflict between existing practices and the content of

this manual, the precautions listed here take precedence.

RECOGNIZE THIS SYMBOL AS A SAFETY

PRECAUTIONDESCRIPTON

When 230/208 volt units are to be installed, the power supply

may be either cord connected or permanent wiring. Perma-

nent wiring may be done through the hard wire junction box,

or the accessory subbase.

When 265 volt units are to be installed, the power supply

must be permanent wiring. Permanent wiring may be done

through the accessory hard wire junction box, or the acces-

sory subbase. An exposed cord connection on 265 volt units

is not permitted.

The subbase accessory includes leveling legs. If added wall

sleeve support is required and the subbase is not to be used

an accessory leveling leg kit may be installed.

is a registered trademark of Maytag Corporation or its related companies and is used under license to

KIT ACCESSORIES

DRAIN KIT

An indoor/outdoor drain kit is available as an accessory item.

When a drain kit is to be installed, do so before installing the

wall sleeve in the wall. See the drain kit for actual installation

instructions.

SUBBASE, LEVELING LEGS, MAIN DUCT, AND H HYDRONIC EAT

KITS

Installation of these kits requires drilling of mounting holes on

both sides of the wall sleeve. The minimum required clearance

distance between the wall sleeve and wall is shown in Table 1.

If the distance between wall sleeve and wall will be at or near

the minimum clearance distance, mount these kits on the

sleeve before installing the sleeve in the wall. The kit installa-

tion instructions are included with the accessory kits.

A3495105r4

01 / 2017

16 1/16"

410 mm

Wall Receptacle Within 58" From

Bottom Right Side Corner on

208/230 VAC Units Only

42"

1065 mm

14 1/8"

359 mm

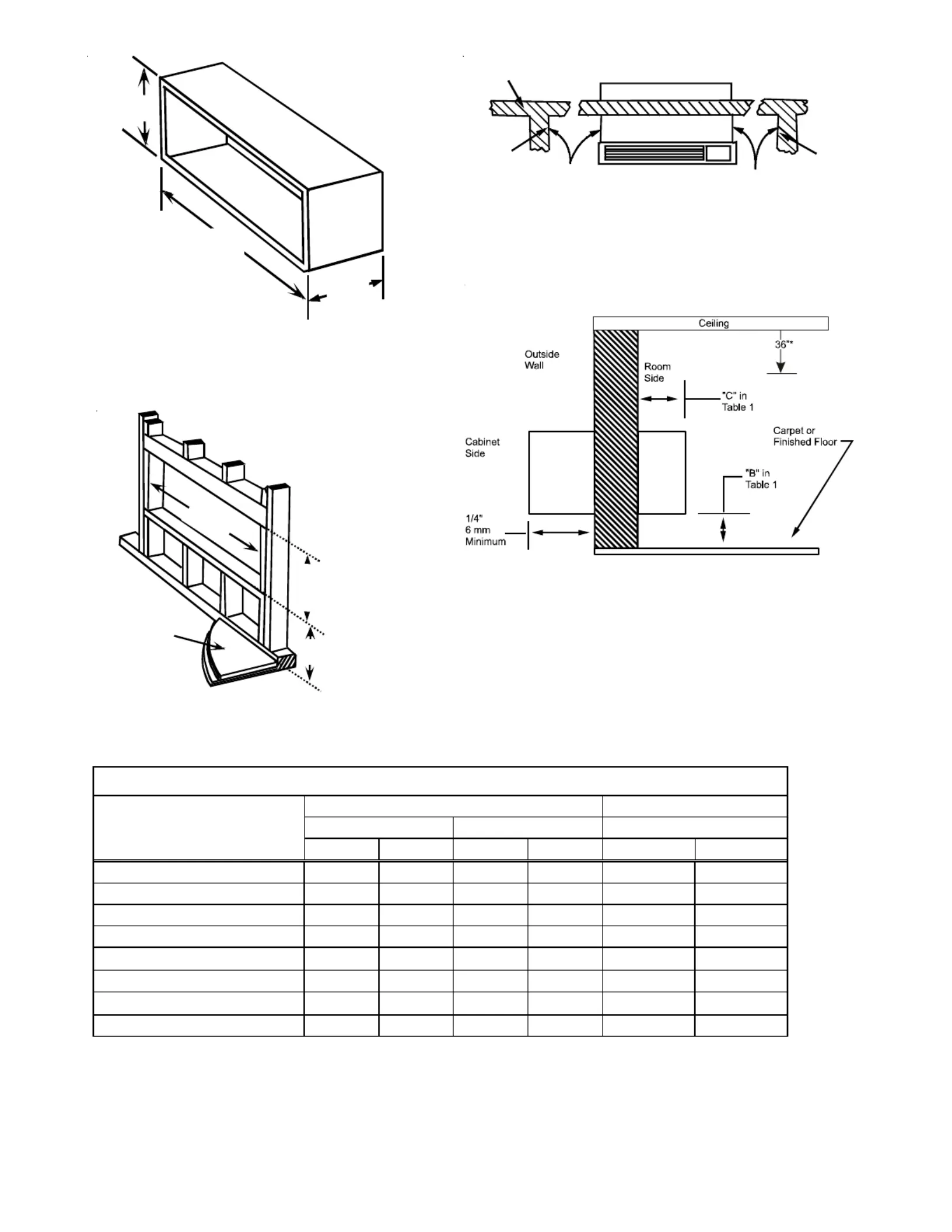

Figure 1 - Wall Sleeve Dimensions

42 1

/4"

1075

Minimum

16 1/4"

415 mm

Minimum

Finished Floor

Dimension "B"

in Table 1

Figure 2 - Minimum Wall Opening Dimensions

If inside mounted then B = 1 1/2 inches (40 mm)

To achieve a flush fit between the hydronic front and the finished wall, Dimension “C” must be between 3” and 3 1/8”. If this dimension is more than

3 1/8” there will be a gap between the front and the wall. This gap could permit occupant access to hydronic lines or other dangerous parts. For flush

mounts, internal drain kits or flashing are required to prevent leaking from external drains into space. See drain kit installation for details on sleeve

positioning for internal drain kits.

This dimension can be from 0” to 3-1/4”, but cannot exceed 3-1/4”. If this dimension exceeds 3-1/4”, the skirt around the front will not reach the floor.

Table 1

Top of Wall Sleeve

"A"

Minimum

"A"

Minimum

Internal

Adjacent

Wall

Internal

Adjacent

Wall
