Side 1/6

User Instructions

Unpacking: Thank you for purchasing the Topaz EX™ by Ameri-

can DJ . Every Topaz EX™ has been thoroughly tested and has been ®

shipped in perfect operating condition. Carefully check the ship-

ping carton for damage that may have occurred during shipping. If

the carton appears to be damaged, carefully inspect your unit for any

damage and be sure all equipment necessary to operate the system

has arrived intact. In the event damage has been found or parts are

missing, please contact our toll free customer support number for fur-

ther instructions. Please do not return the unit to your dealer without

rst contacting customer support.

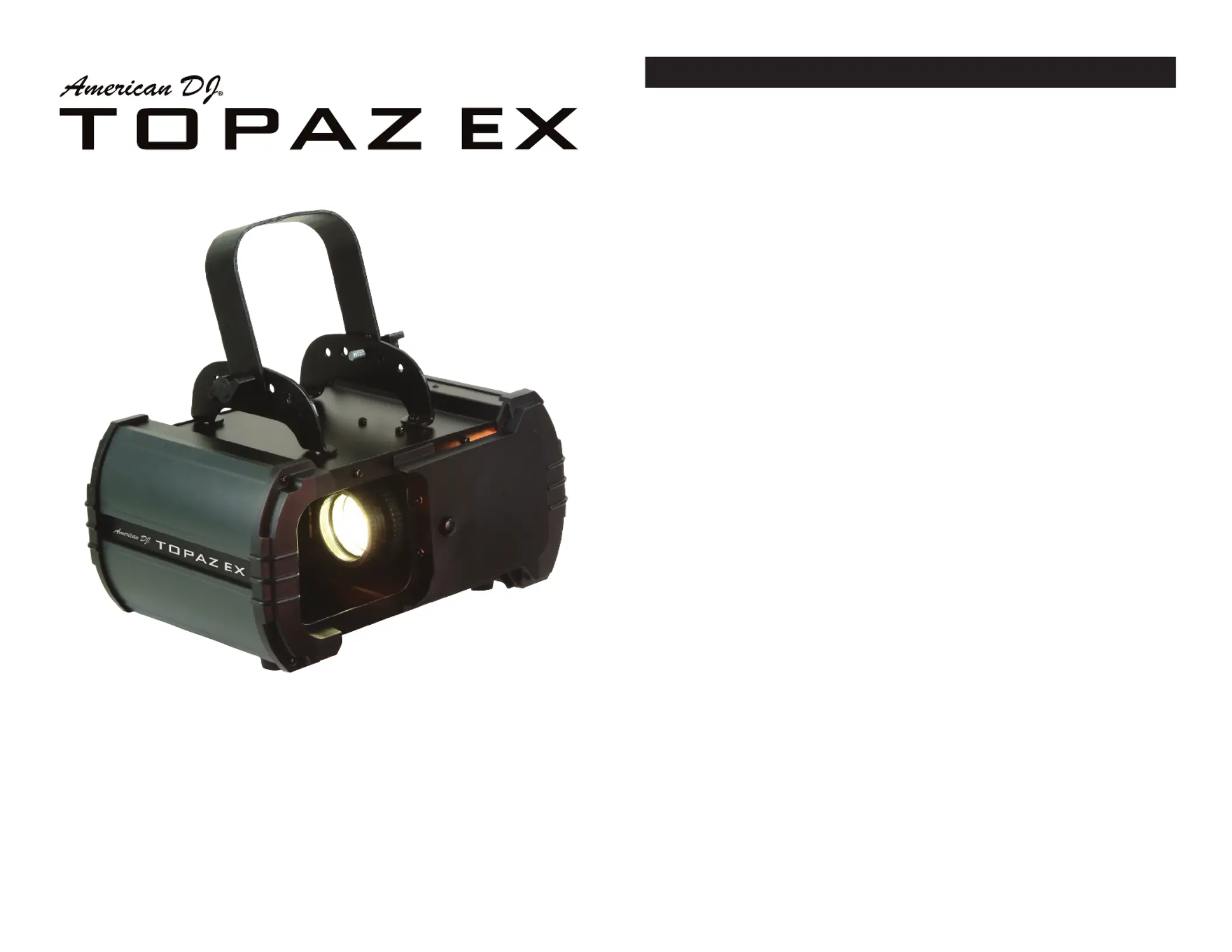

Introduction: Thank you for purchasing the American DJ Topaz ®

EX™. The Topaz EX™ is a unique multi-colored effects xture. This

unit creates a multi-colored rippling effect. The unit comes with a glass

lter that may be remove for an entirely different effect. The unit has

3-way mode switch that allows the unit to be operated in three differ-

ent modes (see page 5 for operating modes). To optimize beam inten-

sity use this xture with a fog machine or other type of special effect

smoke.

Customer Support: American DJ provides a toll free customer sup-®

port line, to provide set up help and to answer any question should

you encounter problems during your set up or initial operation. You

may also visit us on the web at www.americandj.com for any com-

ments or suggestions. For service related issue please contact Ameri-

can DJ . Service Hours are Monday through Friday 9:00 a.m. to 5:00 ®

p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

American DJ.

PLEASE recycle the shipping carton whenever possible.

Topaz EX™ General Introduction

American DJ ®

4295 Charter Street

Los Angeles, CA. 90058

www.americandj.com

6/07

Please carefully read and understand the instructions in this manual

thoroughly before attempting to operate this unit. These instructions

contain important safety information regarding the use and mainte-

nance of this unit. Please keep this manual with the unit, for future

reference.

Topaz EX™ General Instructions Topaz EX™ Precautions

Safety Issues: This unit may blow the breaker if the maximum allot-

ted load of 5 amps is reached. If the breaker needs replacement, always

replace the breaker with same exact type that was remove, unless oth-

erwise instructed by an authorized American DJ service technician. ®

Use of a different type breaker from that which is recommended may

cause fire or electric shock and will void the manufactures warranty.

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit

• Do not attempt to operate this unit if the power cord has been

frayed or broken

• Do not attempt to remove or break off the ground prong from the

electrical cord. This prong is used to reduce the risk of electrical

shock and re in case of an internal short

• Disconnect from main power before making any type of connection

• Do not remove the cover under any conditions. There are no user

serviceable parts inside

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall

• Do not attempt to operate this unit, if it becomes damaged

• This unit is intended for indoor use only, use of this product out-

doors voids all warranties

• During long periods of non-use, disconnect the unit’s main power

• Always mount this unit in safe and stable matter

• Power cords should be routed so they are not likely to be walked

on, pinched by items placed upon or against them.

• Cleaning -The fixture should be cleaned only as recommended by

the manufacturer. See page 3 for cleaning details

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (incl-

uding amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the unit.

C. The unit has been exposed to rain or water.

D. The unit does not appear to operate normally or exhibits a

marked change in performance.

Topaz EX™ Warranty Registration

The Topaz EX™ carries a one year (365 days) limited warranty.

Please fill out the enclosed warranty card to validate your purchase.

All returned service items whether under warranty or not, must be

freight pre-paid and accompany a return authorization (R.A.) number.

If the unit is under warranty you must provide a copy of your proof of

purchase invoice. Please contact American DJ customer support for ®

a R.A. number.

Fixture Cleaning:

Due to fog residue, smoke, and dust cleaning the internal and exter-

nal lenses should be carried out periodically to optimize light output.

1. Use normal glass cleaner and a soft cloth to wipe down the

outside casing.

2. Clean the external optics with glass cleaner and a soft

cloth every 20 days.

4. Clean the internal optics with glass cleaner and a soft cloth

every 30-60 days.

5. Always be sure to dry all parts completely before plugging

the unit back in.

Cleaning frequency depends on the environment in which the fixture

operates (I.e. smoke, fog residue, dust, dew). In heavy use we recom-

mend cleaning on a monthly basis. Periodic cleaning will ensure lon-

gevity, and crisp beam output.

Topaz EX™ Cleaning
