Side 1/4

Honda

2006-14 RIDGELINE

VEHICLE APPLICATIONS

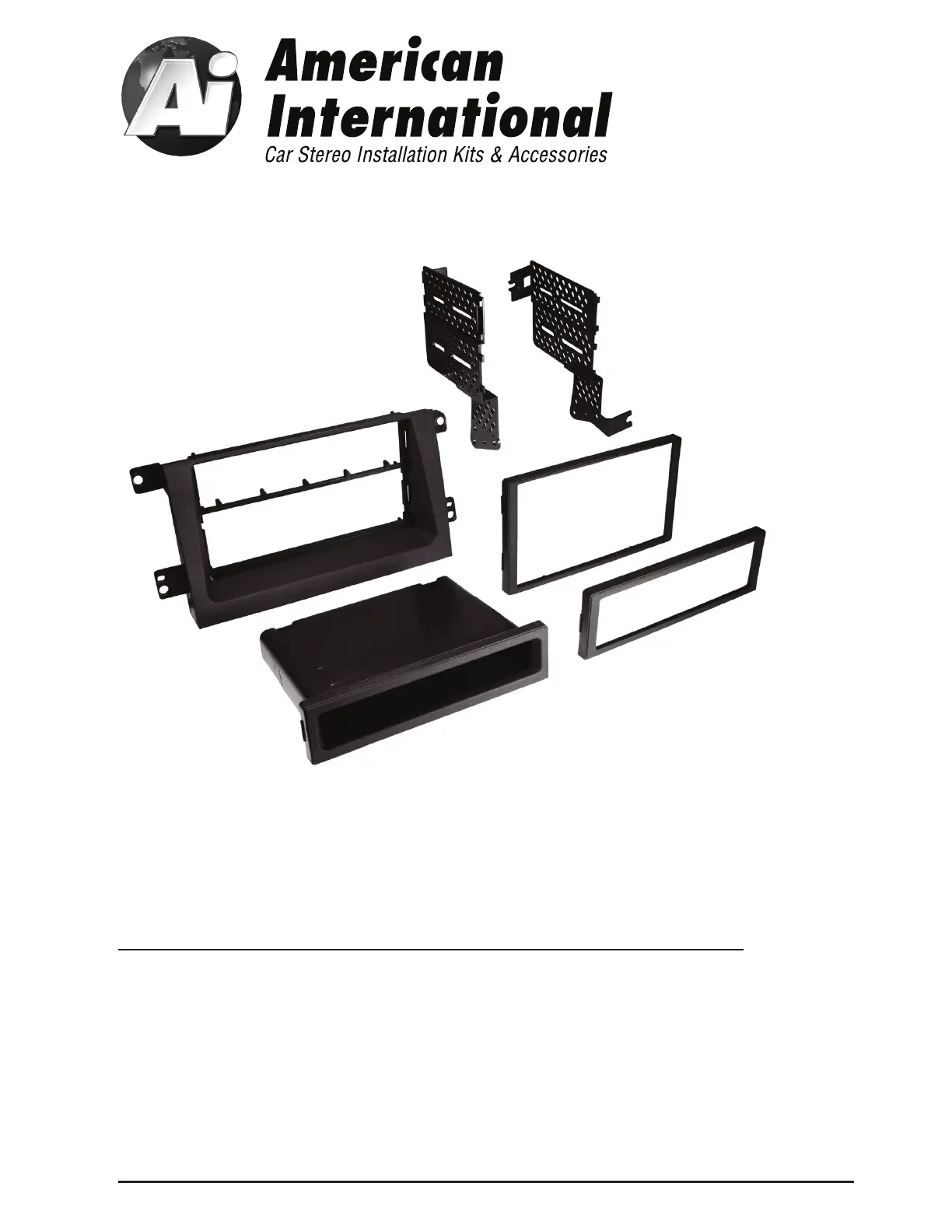

HONK836 Mounting Kit

1. Engage the parking brake.

2. Lower the steering column all the way down.

3. Carefully unfasten and pull outward the entire Radio/Dash trim bezel, disconnect all

harnesses attached to the rear of the dash trim bezel and remove bezel.

4. Remove the (5) Phillips screws securing the radio/pocket assembly to the sub-dash.

5. Carefully pull radio assembly forward, disconnect all harnesses and the antenna lead

from the rear of the radio and remove radio assembly.

NOTE: ISO trim ring (ITR-836) may be used in place of after-market radio’s removable trim ring.

DASH DISASSEMBLY INSTRUCTIONS

KIT ASSEMBLY INSTRUCTIONS

Main Frame

IMB836L

IMB836R

ITR836

(Use Optional)

Single DIN Mount Applications

1. Attach the left and right side brackets to the main bracket. See Figure B opposite page.

2. Insert pocket (part # POC836) into upper section of the main frame.

3. Attach left and right side brackets to the rear of the pocket using screws supplied.

4. Insert DIN sleeve from your new radio into the lower section of the installation kit.

5. Depress the tabs from inside the sleeves opening upward, outward, and downward

to secure sleeve to the installation kit.

6. Install radio into sleeve and lock into place.

7. Attach a rear support bracket to the rear of the new radio and adjust as necessary to

attach to the rear support stud located on the back of the pocket using the small

phillips screw supplied with kit.

8. Remove factory pocket from factory radio mounting brackets & re-attach to lower

mounting brackets of HONK836 kit using factory screws.
