Side 1/3

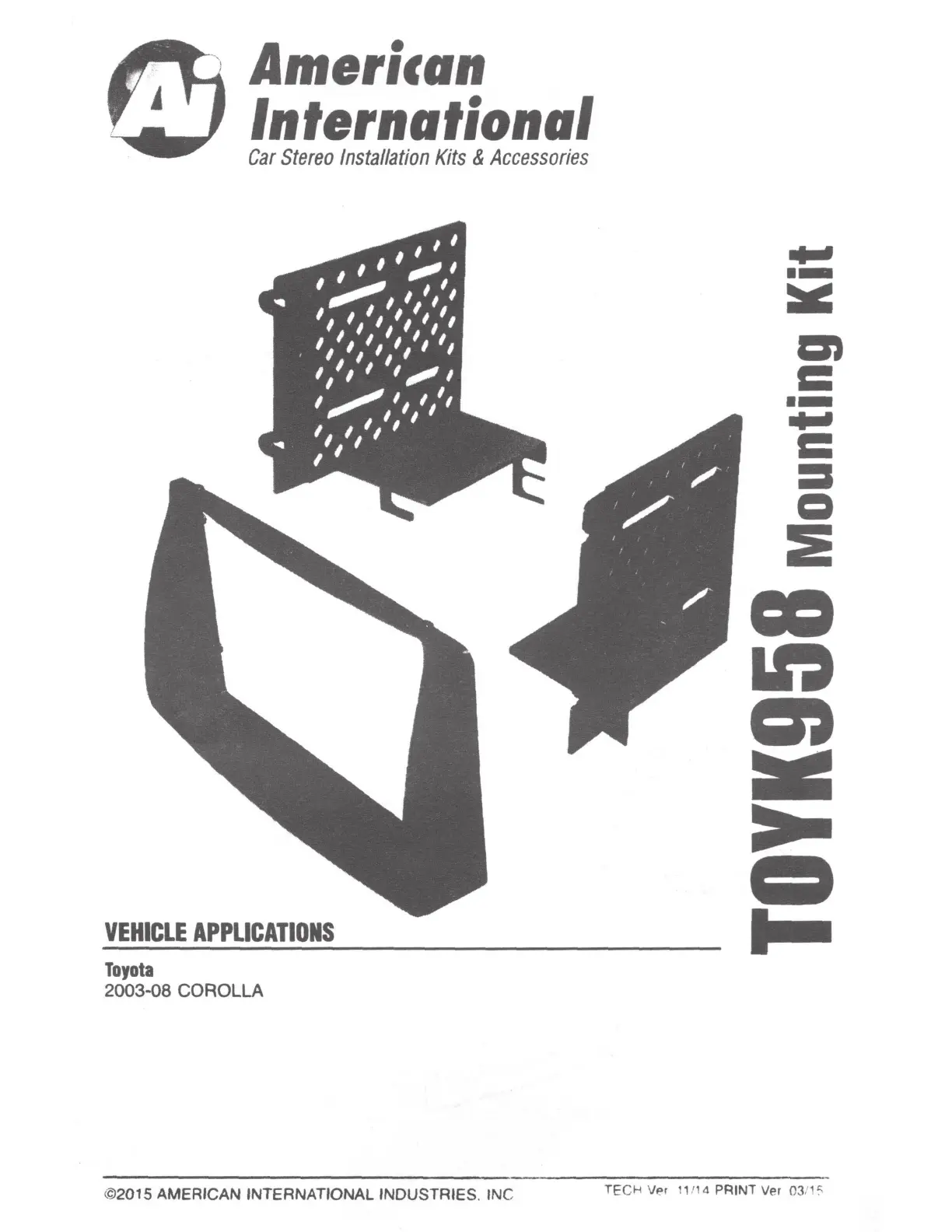

Ameri1an

International

Car

Stereo

Installation

Kits

&

Accessories

VEHICLE

APPLICATIONS

Toyota

2003-08 COROLLA

@2015 AMERICAN INTERNATIONAL INDUSTRIES. INC

...

·-

=-=

=

c::

·-

...

c::

:::1

Q

==

CID

.,

c:n

TECH Ver

1,

1

14

PRINT Ver 0311

~

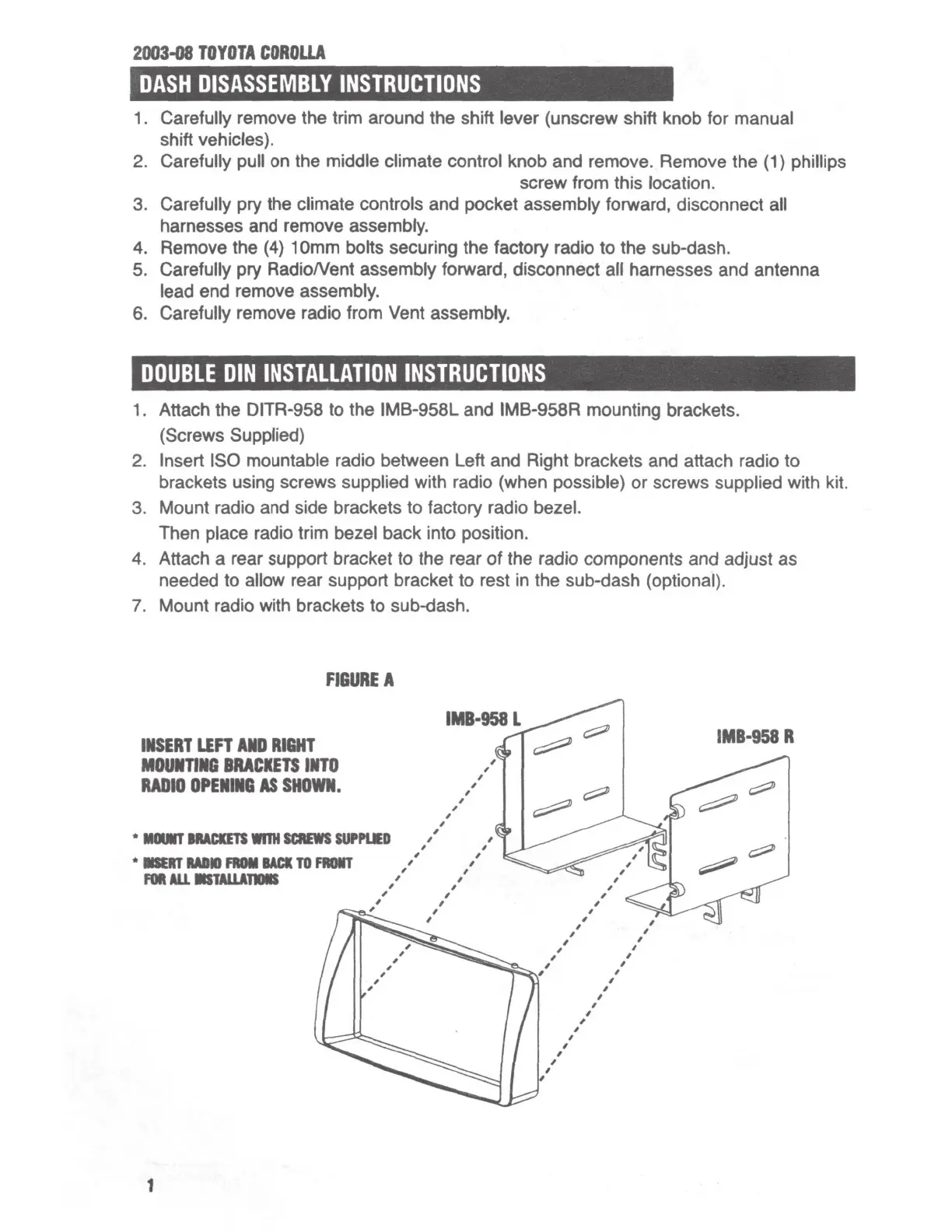

2003-GS

TOYOTA

COROUA

DASH

DISASSEMBLY

INSTRUCTIONS

1. Carefully remove the trim around the shift lever (unscrew shift knob for manual

shift vehicles).

2. Carefully pull on the middle climate control knob and remove .. Remove the (1) phillips

screw from this location.

3. Carefully pry the climate controls and pocket assembly forward, disconnect all

harnesses and remove assembly.

4. Remove the (4) 10mm bolts securing the factory radio

to

the sub-dash.

5. Carefully pry RadioNent assembly forward, disconnect all harnesses and antenna

lead end remove assembly.

6. Carefully remove radio from Vent assembly.

DOUBLE

DIN

INSTALLATION

INSTRUCTIONS

1.

Attach the DITR-958 to the IMB·958L and IMB-958R mounting brackets.

(Screws Supplied)

2.

Insert ISO mountable radio between Left and Right brackets and attach radio to

brackets using screws supplied with radio (when possible) or screws supplied with kit.

3. Mount radio and side brackets to factory radio bezel.

Then place radio trim bezel back into position.

4. Attach a rear support bracket to the rear

of

the radio components and adjust as

needed to allow rear support bracket to rest in the sub-dash (optional).

7. Mount radio with brackets to sub-dash.

FIGURE

A

INSERT

LEn

AND

RIGHT

MOUiniG

BRACKETS

liTO

RADIO

OPENING

AS

SHOWN.

,

,

,

,

,

,

,

,

,

• IIIUIT

IIIACIETS

WITH

SCREWS

SUPPLED

, '

,

,

,

,

,

,

•

-IT

RADII

FROIIIACI

TO

FROIT

FOR

ALL

IISTAI.LATIOIS

1

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

IM8·958

R
