Side 1/2

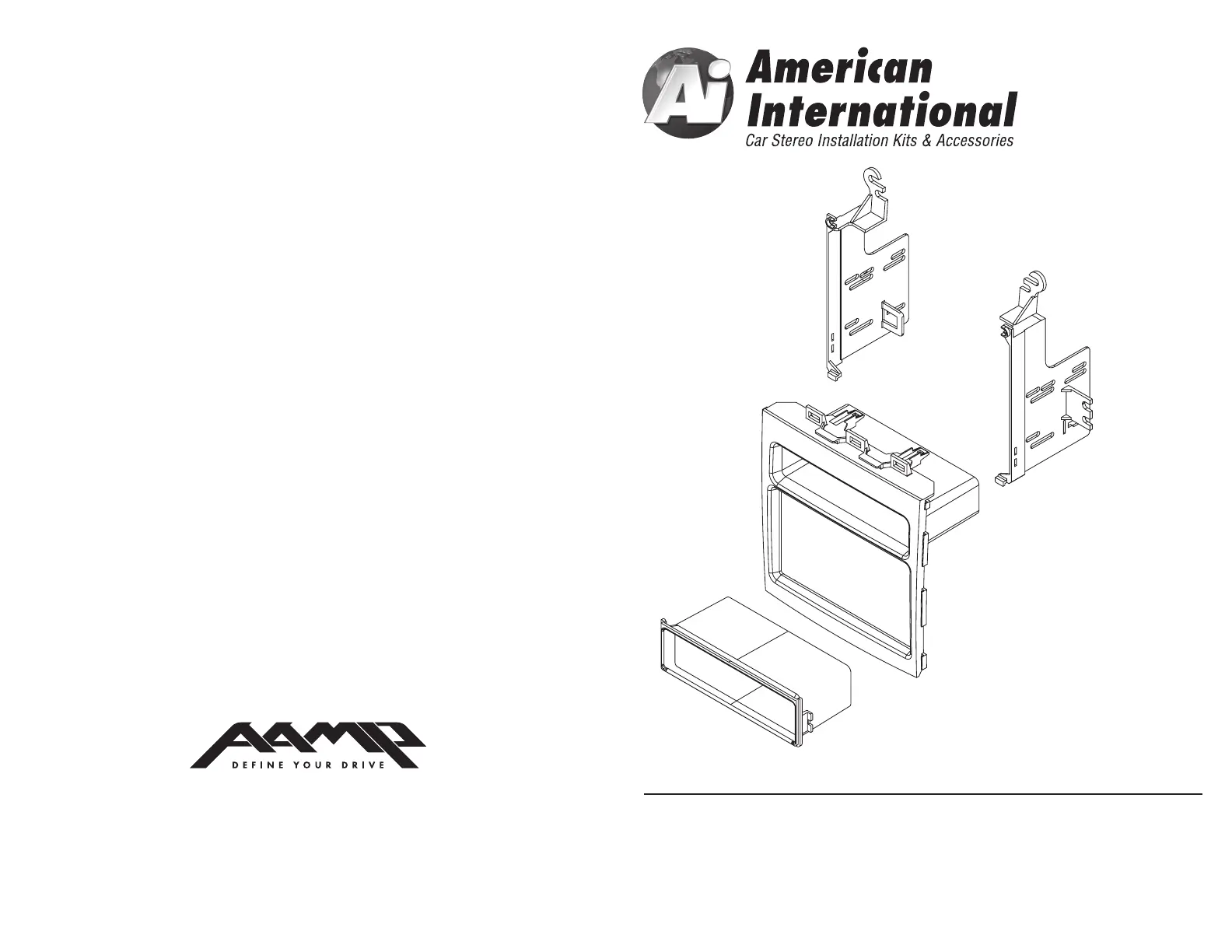

iSBK931GB

VEHICLE APPLICATION

Subaru

2018 Crosstrek

2017-18 Impreza

www.aampglobal.com www.aius.net

2500 East Francis Street Ontario, CA 91761, U.S.A.

Sales: (800) 477-2267

Intl: (727) 572-9255

Support: 888-228-5560

SBK931GB Mounting Kit

DASH DISASSEMBLY INSTRUCTIONS

1. Using a soft tool carefully unsnap and remove the air vents on both sides of the radio.

2. Unsnap and remove the trim bezel above the factory radio.

3. From the radio mounting brackets Remove (4) Phillips screws securing the radio, remove.

4. Remove (4) panel clips from the OEM radio panel. Save for kit assembly.

DOUBLE DIN INSTALLATION INSTRUCTIONS

Figure A

KIT ASSEMBLY INSTRUCTIONS

Single ISO Mount Application

1. Reinstall the (4) panel clips left over for disassembly to the rear of the

SBK931GB main panel.

2. Insert pocket into lower section of the brackets.

3. Install brackets to rear of main frame using the (2) screws provided, hooking bottom of

 bracketstomainpanelrst

4. Insert ISO mountable radio between ISO mount brackets and loosely attach to sides

of radio using screws provided with radio when possible, or screws supplied with kit.

5. Using the main frame of the as a guide, slide radio forward or backward for desired

look and then tighten screws to the radio.

Double DIN ISO Mount Application

See Fig B for bracket tab removal.

1. Reinstall the (4) panel clips left over for disassembly to the rear of the SBK931GB

main panel.

2. Remove pocket support tabs from both brackets.

3. Install brackets to rear of main frame using the (2) screws provided, hooking bottom of

 bracketstomainpanelrst

4. Insert ISO mountable radio between ISO mount brackets and loosely attach to sides

of radio using screws provided with radio when possible, or screws supplied with kit.

5. Using the main frame of the as a guide, slide radio forward or backward for desired

look and then tighten screws to the radio.

Figure B Remove shaded tabs

on left and right sides

of the brackets

(Right side not shown)
