SAVE FOR FUTURE USE
1
7301876-100
Product names listed herein are
trademarks of AS Americas Inc.
© AS Americas Inc. 2011
Putty Knife
Flush Valve
Sealant
Tape Measure
Regular Screwdriver
Adjustable Wrench
Carpenters Level
RECOMMENDED TOOLS AND MATERIALS
Pictures may not exactly define contour of china
Model 2282
BABY DEVORO FLUSHOMETER BOWL
Model 2282
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR HANDLING TO AVOID
BREAKAGE AND POSSIBLE INJURY!
NOTE: For proper operation product requires a minimum of 30 psi working line pressure
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be
sure your installation conforms to local codes.
!
CLOSET
FLANGE
CLOSET
BOLTS
10"
254mm
WAX RING
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent
damage), and install wax ring evenly
around waste flange (horn), with
tapered end of ring facing toilet. Apply a
thin bead of sealant around toilet base.
2
4
5
3
546mm
(21-1/2")
1 - 1/2
SPUD
121mm
(4-3/4")
254mm
(10")
FINISHED WALL
FINISHED
FLOOR
C/L OF OUTLET
1" N.P.T. OR 1" C.W.T. SUPPLY
TO FLUSH VALVE

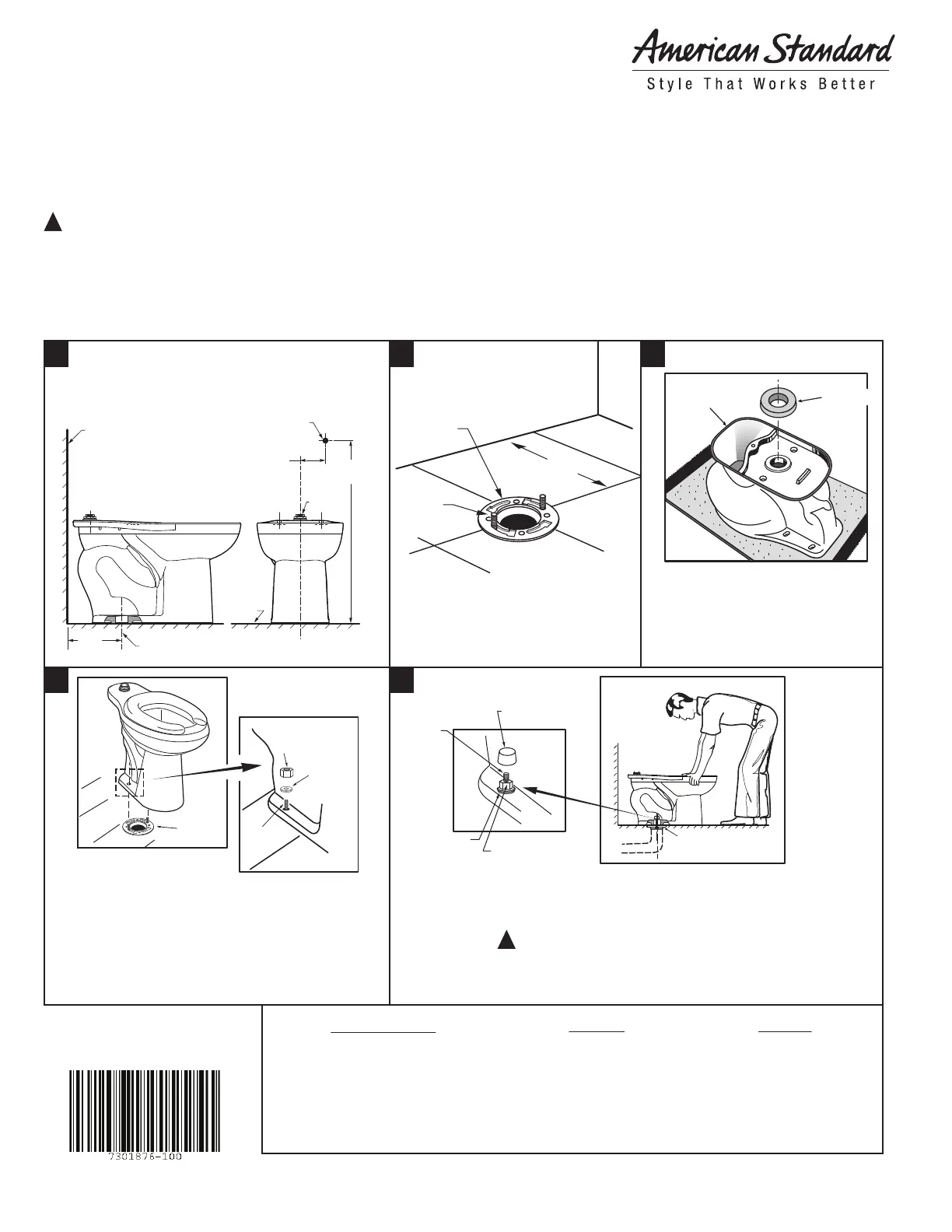

INSTALLATION INSTRUCTIONS
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet
flange so bolts project through mounting holes.
b. Loosely install retainer washers and nuts. Side of
washers marked "THIS SIDE UP" must face up!
CLOSET
BOLT
NUT
TAPERED
WASHER
FLANGE
INSTALL TOILET
a. Position toilet squarely to wall and, with a rocking motion, press bowl down fully on
wax ring and flange. Alternately tighten nuts until toilet is firmly seated on floor.
CAUTION: DO NOT OVERTIGHTEN NUTS
OR BASE MAY BE DAMAGED!
b. Install caps on washers. (If necessary, cut bolt height to size before installing caps.)
c. Smooth off the bead of sealant around base. Remove excess sealant.
CLOSET FLANGE
CLOSET
BOLT
NUT
WASHER
BOLT
CAP
!
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn
90°, and slide into place 6" (152mm) apart
and parallel to wall.
