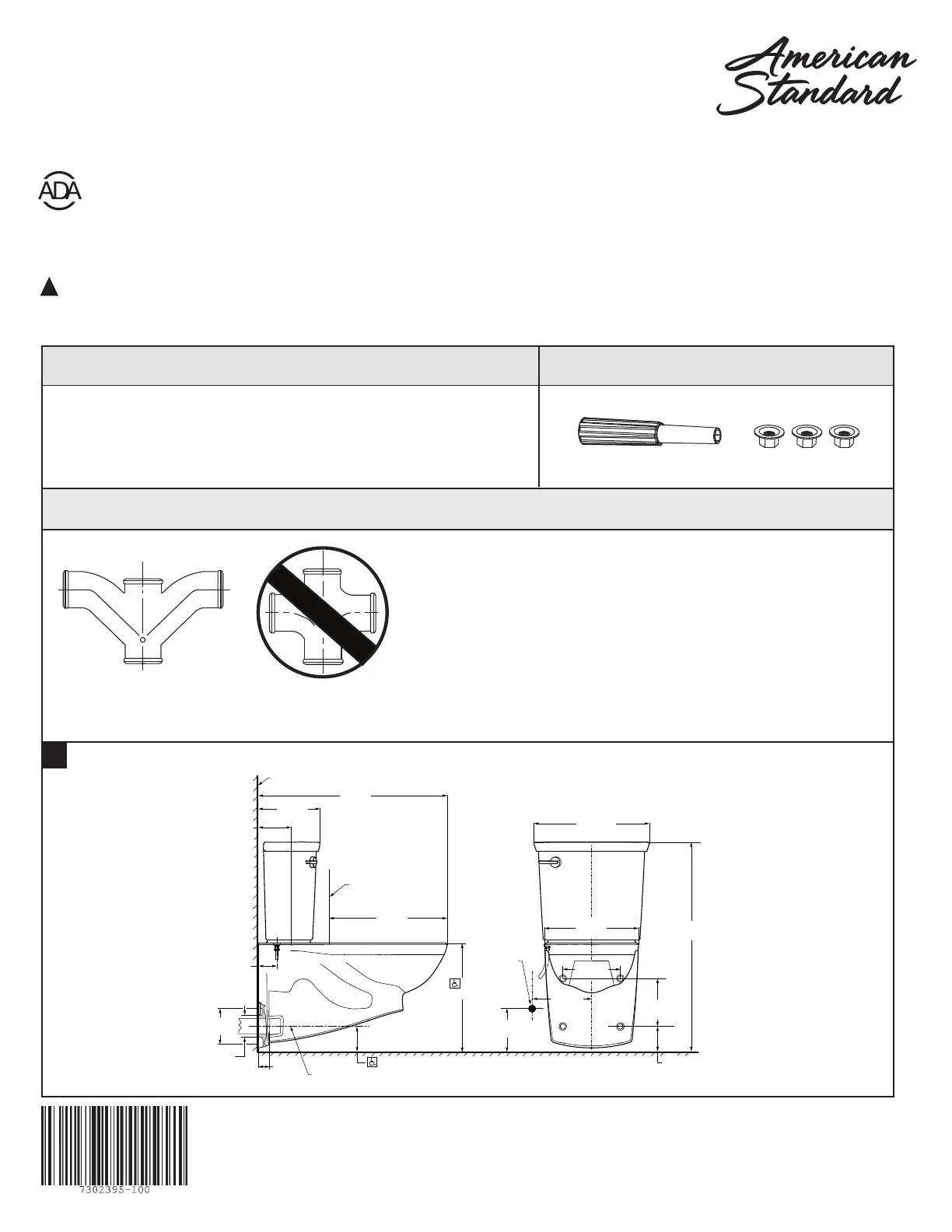

2882 SERIES
GLENWALL
®
VORMAX
®
WALL-MOUNTED TOILET
INSTALLATION INSTRUCTIONS
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR HANDLING TO AVOID
BREAKAGE AND POSSIBLE INJURY!
NOTE: For proper operation product requires a minimum of 30 psi working line pressure
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be
sure your installation conforms to local codes.
!
RECOMMENDED TOOLS AND MATERIALS
1
Pictures may not exactly define contour of china
EZ-INSTALL KIT INCLUDED WITH TANK
Attachment Handle
Nuts (3)
When installed so top of seat is 17" to 19" (432mm to 483mm) from the nished oor. MEETS THE AMERICANS WITH DISABILITIES ACT
GUIDELINES AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USEABLE BUILDING FACILITIES - CHECK LOCAL CODES.
FINISHED WALL
29-1/2"
(750mm)
9-5/8"
(245mm)
18-7/16"
(469mm)
14-5/8"
(372mm)
9"
(229mm)
17-13/16"
(453mm)
7-1/2"
(191mm)
4"
(102mm)
1-3/4"
(45mm)
5-1/8"
(130mm)
17"
(432mm)
C/L OF WASTE OUTLET
3-1/4"
(83mm)
5-1/4"
(133mm)
4-1/8" (105mm)
C/L OF SEAT POST
HOLES 5-1/2"
(140mm CENTERS)
3-7/8"
(98mm)
SUPPLY AS
REQUIRED
32-13/16"
(833mm)
*7-1/2"
(191mm)
*8-1/2"
(216mm)
BACK-TO-BACK INSTALLATION
Recommended fitting type for
back-to-back installations.
Depending upon your plumbing and venting conditions, the
flow from the toilet in a back-to-back installation may create
a vacuum on the system and draw water from the opposing
bowl. The National Standards Plumbing Code prohibits the
use of a cross fitting for drainage as throw over is possible.
The code does approve a directional "Y" style fitting with
proper venting to direct the water downward and away from
the other toilet.
Closet Carrier Support
Putty Knife
Regular Screwdriver
Adjustable Wrench
Sealant
Tape Measure
Carpenters Level
Water Supply Line - Verify length required
