Side 1/7

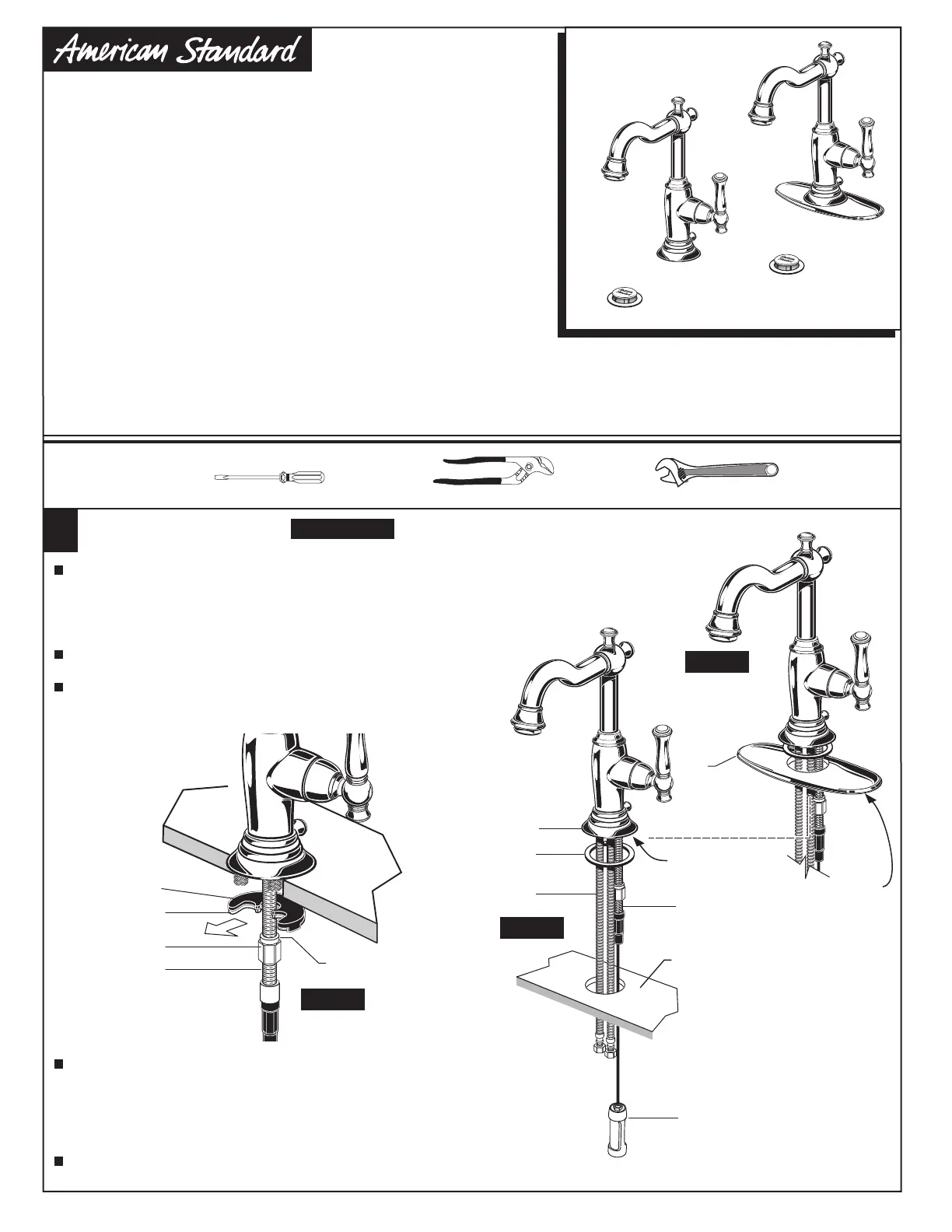

M965227
Certified to comply with ANSI A112.18.1
Installation
Instructions
MONOBLOCK LAVATORY
FAUCET with
Speed Connect™ Drain
Adjustable Wrench Screwdriver Channel Locks
Recommended tools
7440.101
1
QUENTIN™
To ensure that your installation proceeds smoothly-please read these instructions carefully
before you begin.
Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only
on American Standard faucets.
*Your new American Standard faucet is designed to work only with the Speed Connect drain.
Speed Connect Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
COLLAR ON
MOUNTING NUT
8
2
4
3
1
9
1
Turn off hot and cold water
supplies before beginning.
CAUTION
GROOVE
(FAUCET
BASE)
MOUNTING SURFACE
6
4
7
5
Fig. C.
Fig. B.
Fig. A.
PUTTY
IF REQUIRED
INSTALL FAUCET
Installation less ESCUTCHEON PLATE:
Seat SEAL (1) into under side of FAUCET BASE (2).
Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN
CABLE ASSEMBLY (8) through the mounting hole of lavatory or
mounting surface. Fig. B.
Installation with ESCUTCHEON PLATE: Apply a light bead of plumbers putty
to underside of ESCUTCHEON PLATE (9) if mounting surface is uneven. Place ESCUTCHEON
PLATE (9) onto sink or mounting surface.
Feed FAUCET SUPPLIES (3), MOUNTING
STUD (4) and DRAIN CABLE ASSEMBLY (8) through
ESCUTCHEON PLATE and PUTTY
PLATE (9)
and mounting hole of lavatory or mounting surface. Fig. A.
From below, push GASKET (7) and RETAINING WASHER (5) onto
MOUNTING STUD (4). Secure Faucet with MOUNTING NUT (6),
pulling faucet to front of sink, so SUPPLIES (3) rests against
mounting hole. Before final tightening, make sure collar on
MOUNTING NUT (6) is seated into RETAINING WASHER (5).
Fig. C .
Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)
to complete faucet mounting.
M965227
DOWN
WHITE FOAM
GASKET
NOT VISIBLE
DRAIN
FLANGE
Fig. A. Fig. B.
1

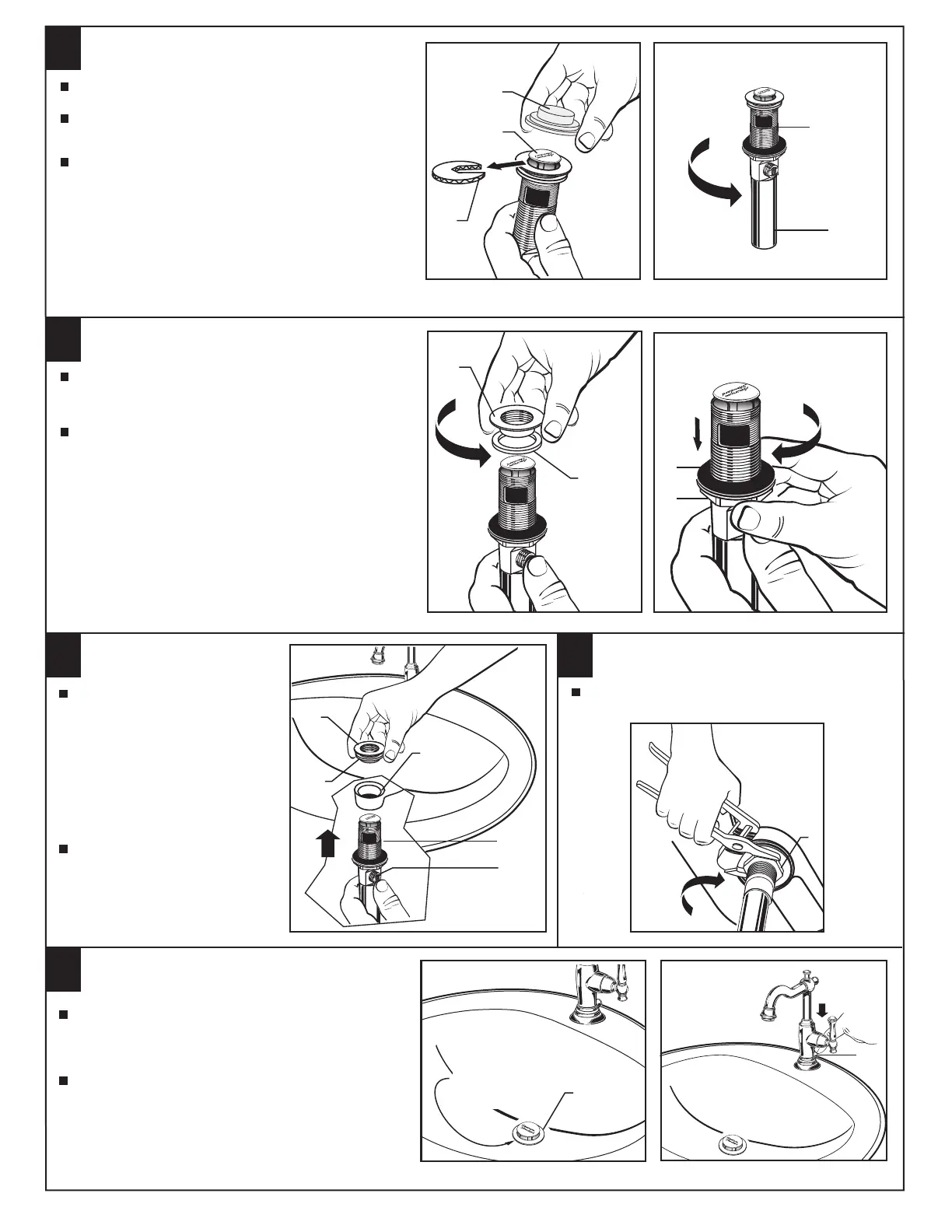

Thread FLANGE (1) counter-clockwise and remove
FLANGE (1) and FOAM GASKET (2) from drain
body.
Fig. A.
Thread LOCKNUT (3) clock-wise to bottom of
drain body. Push GASKET (4) down against
LOCKNUT (3).
Fig. B.
INSTALL POP-UP DRAIN
Tighten TAILPIECE (4) on DRAIN BODY before
installing DRAIN BODY.
Fig. B.
6
2
4
3
2
TIGHTEN LOCKNUT
1
REMOVE FLANGE
Remove CLEAR PLASTIC COVER (1).
Remove CARDBOARD SPACER (2) from under
DRAIN POP-UP (3).
2
2
3
3
1
1
Tighten LOCKNUT (1) firmly with Adjustable
Wrench or Channel Locks.
INSTALL DRAIN FROM
BELOW FIXTURE
5
From under side of SINK
install DRAIN BODY (1) up
through drain outlet.
Note: No plumber’s putty
or caulk is required.
The CABLE ATTACHMENT
POINT (2) must face towards
the rear of the SINK.
Install FOAM GASKET (3) and
FLANGE (4) onto drain body
from above SINK and tighten
FLANGE (4) firmly.
4
Fig. A. Fig. B.
Fig. A. Fig. B.
POP-UP KNOB (1) must be fully down. Fig. B.
FLANGE GASKET AND POP-UP KNOB
Check DRAIN FLANGE in SINK to ensure that
WHITE FOAM GASKET (3) is fully compressed
and not visible. Fig. A.
DRAIN
BODY
4
REAR
OF SINK
2
DRAIN
OUTLET
1
3
4
