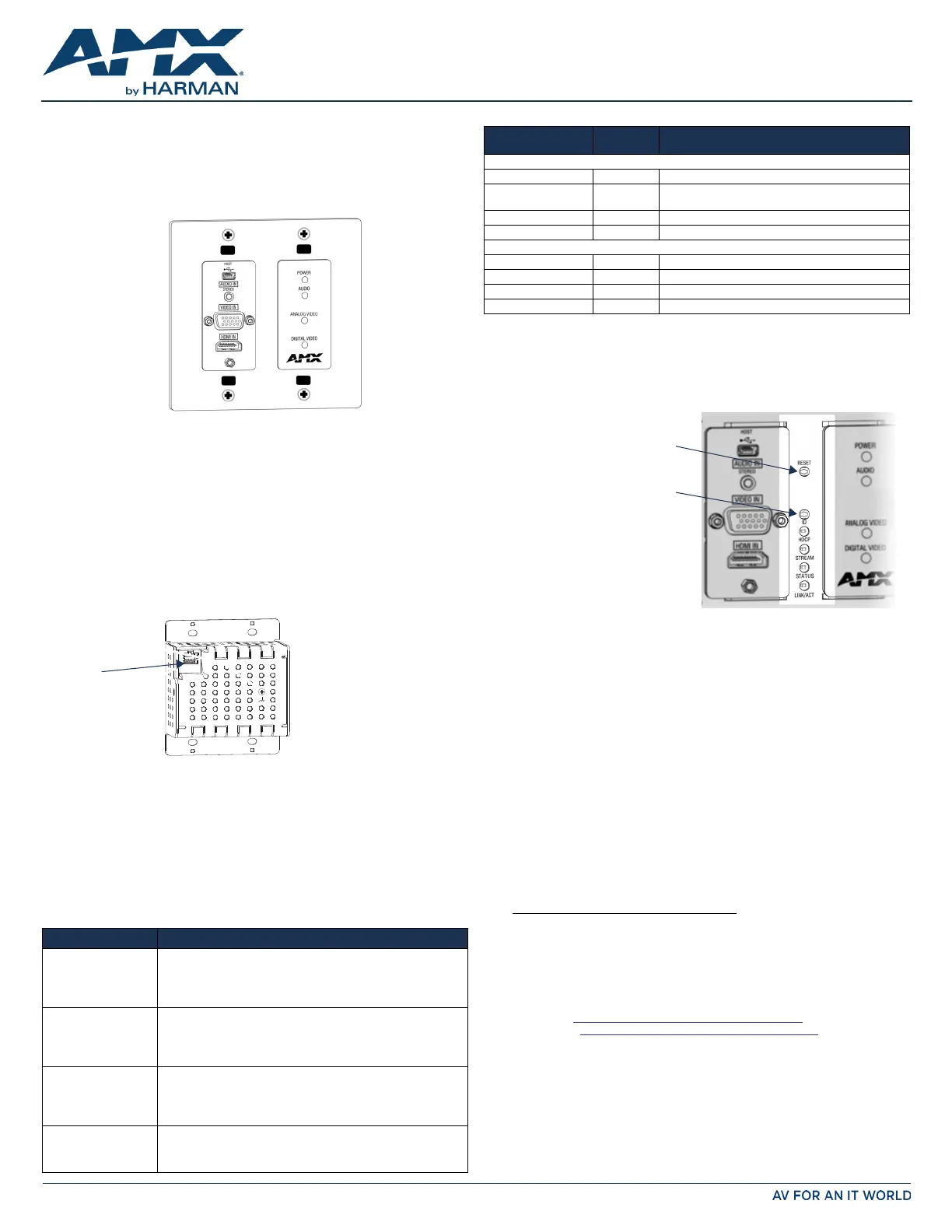

Side 1/2

QUICK START GUIDE

N2315 4K Series Wallplate Encoder

Overview

The SVSI N2315 Decor Style Wallplate Encoder is part of the N2300 Series and used in

conjunction with N2322 Series Decoders for transmission of HDMI or analog video over

Ethernet. All Encoders and Decoders of the N2300 Series feature balanced audio, HDMI

video connection, and Power-over-Ethernet (PoE). The N2322 Decoder supports

output scaling and limited output downscaling options.

FIG. 1 N2315 WALLPLATE ENCODER

Installing the N2315 Wallplate Encoder:

Follow the steps below to mount your new N2315 4K Encoder into an existing dual gang

electrical box.The instructions given assume the box is already installed with Ethernet

access running to it.

1. Connect the PoE-enabled Ethernet cable to the rear connector of the N2315 4K

Encoder. This provides both network and power connection to the Encoder.

2. Place the N2315 4K Encoder display into the box and secure it with four screws

(included in shipment).

3. Check LEDs for normal display (see the LED table at right).

4. Attach the (customer-provided) front cover plate to the unit to complete

installation.

Attaching Signal and Control Cables

The following table explains how to attach cables to the front of the Encoder.

IMPORTANT: Encoders must be securely mounted and connected to the switch before

attaching the remaining cables.

NOTE: Any switch handling the N2315 4K Encoder video streams must be configured to

support jumbo frames.Disable the wireless adapter on your computer (it must be hard-

wired to the switch).

Basic Cabling Guidelines

This table shows LED states on initial power up. If not normal, check connections.

* The LEDs for DIGITAL VIDEO ANALOG VIDEO AUDIO , , and each indicate the

configured state of the connectors (not necessarily the presence of signals through the

Encoder).

Additional Buttons

The front-center section of the unit is shown in FIG. 3. This section is covered by the

cover plate once it has been installed.

Establishing Connection

N2315 4K Encoders are shipped with DHCP as their default IP mode. The IP address is

assigned automatically based on the network DHCP server. If no DHCP server is found,

the unit will use mode instead (with a default IP address of 169.254.xxx.xxx).Auto IP

Before using your N2315 4K Encoder unit, it must be configured using the free N-Able

device management software. However, you will not be able to configure units until they

are in the same subnet as the host computer. The sample steps below show how the

required changes (to the host computer’s IP settings) are made in a Windows

environment.

Steps for IP address configuration:

1. From the dialog box, select Control Panel > Network and Internet Network and

Sharing Center.

2. Select .Change adapter settings

3. Select the wired interface connected to your AV network.

4. Click the button.Properties

5. Scroll down in the list to the Internet Protocol Version 4 (TCP/IPv4) option.

Highlight it and click the button.Properties

6. Enable the option, and enter the static IP addressUse the following IP address

provided to you by your network administrator.

NOTE: If the computer does not need Internet access, you can simply enter a unique

169.254.xxx.xxx IP address with a 255.255.0.0 Subnet mask. Please contact your

network administrator if you are unsure of how to configure the existing interface. If the

computer has a statically-assigned IP address, click on the Advanced button. Then click

Add to enter a unique 169.254.xxx.xxx address with a subnet of 255.255.0.0.

Steps for auto discovering devices on the network:

1. Use the host computer to download and install the latest version of N-Able:

PC version - http://www.amx.com/products/N-ABLE-PC.asp

Mac version - http://www.amx.com/products/N-ABLE-MAC.asp

2. Attach your N2315 4K Encoder unit(s) to the layer-3 network switch.

3. Connect the host computer to the layer-3 network switch.

4. Open the N-Able application.

If all devices do not appear automatically, click the button on the Auto Discover

Unit Management tab. This issues a broadcast command that will discover all units

even if they are not in the same IP subnet.

FIG. 2 CONNECT ETHERNET TO ENCODER

Connector Description

HDMI IN Digital Video Connection

For video encoding of a source, connect from the digital

source to the Encoder’s connector using a video HDMI IN

cable with an HDMI connector (or adapter).

VIDEO IN Analog Video Connection

For video encoding of an source, connect the source analog

to the Encoder’s VIDEO IN VGA port using a video cable with a

VGA connector (or component adapter).

AUDIO IN - STEREO Audio Encoding

Insert an analog audio cable from the source into the AUDIO

IN STEREO jack (optional), OR use the embedded audio from

the video source.

HOST USB Control (optional)

Attach a USB cable from the PC to the Encoder’s USB mini-B

port.

Wallplate is available

in white (WH) and

black (BL)

RJ45 PoE

connector

Indicator LEDs Normal

power up

Indicates

Front-Right LEDs

POWER Green PoE power is applied.

AUDIO* Green Configured to pass analog audio

(coupled with digital or analog video path).

ANALOG VIDEO* Green Configured to pass analog video:

DIGITAL VIDEO * Green Configured to pass HDMI with embedded audio.

Front-Center LEDs (located under customer-provided cover plate, if installed)

HDCP Yellow On when HDCP is active.

STREAM Green On when the unit is streaming video to the network.

STATUS Green On flashing (green) when there is software activity.

LINK/ACT Green On when there is Ethernet activity.

FIG. 3 BUTTONS LOCATED ON FRONT-CENTER OF UNIT

RESET button - Resets Encoder’s CPU.

ID button - Identifies the unit in N-Able.

Can also set Encoder back to factory

defaults ( ).press and hold 30 seconds

HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

5090359-00 REV: A

Last Revised: 7/2017

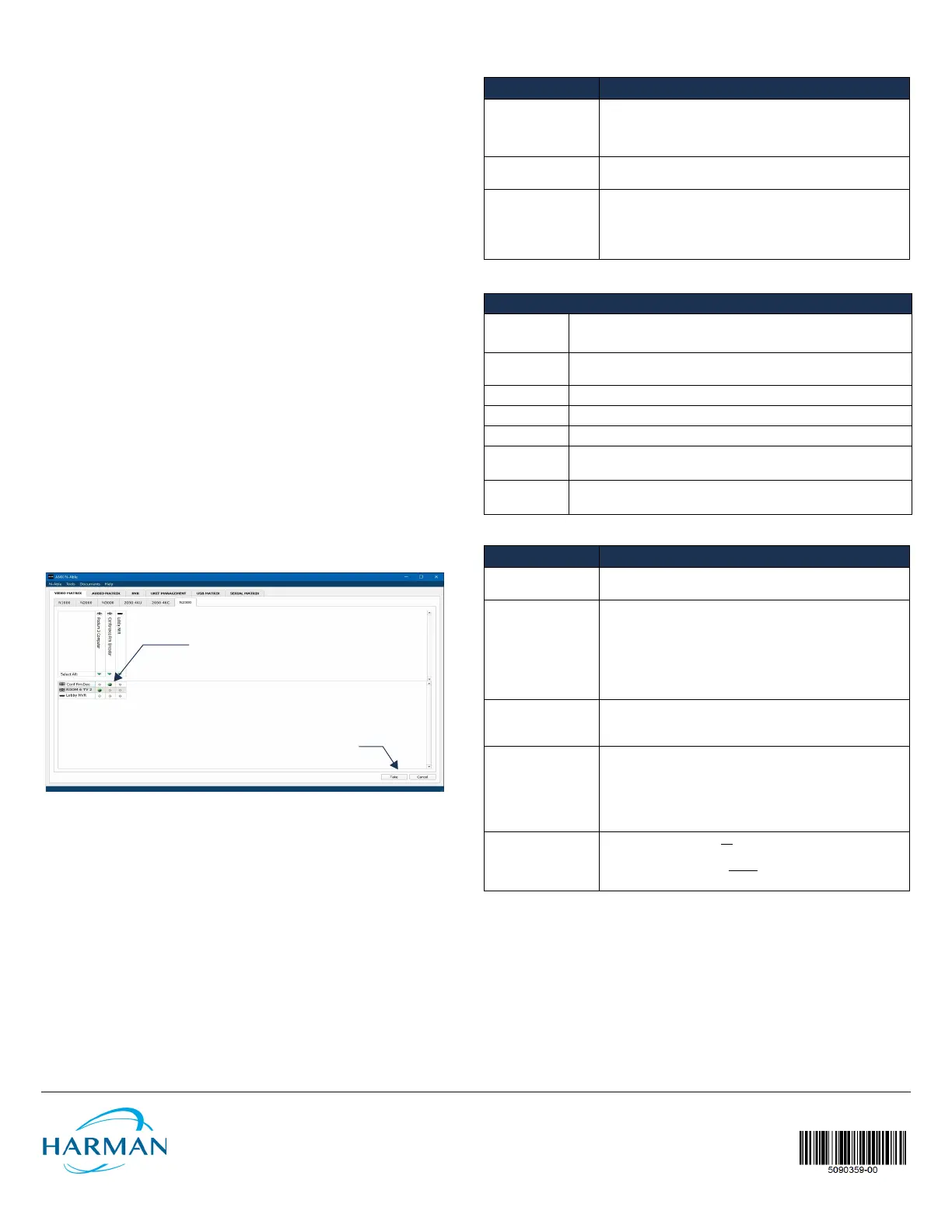

Logging in Using N-Able Software

Once the host IP address is configured properly, you can view all discovered units using

the N-Able software. Access the N2315 4K Encoder units from the following tabs:

• tab - is listed in the Unit Management N2300 Encoder/Decoder Type field.

• tab - N2315 4K Encoder units are found on the sub-tab of Video Matrix N2300

this screen.

Double-click the unit’s name (in one of the lists mentioned above) to view its Settings

page. If prompted, enter admin and password for the default username and password.

Once logged in, you can change the username and password (using the options on the

unit’s page). From this page, you can access any of the main pages of the Settings

unit’s GUI.

NOTE: If you would like for N-Able to support auto-login to your units, make sure N-Able’s

Device Auto-login settings match the unit’s username and password (by selecting N-Able

> Settings from the N-Able tool bar).

NOTE: N2315 4K Encoder units can be configured to force HTTPS connections, so your

web browser may give you a security warning. N-Able on Windows will ask you to

download OpenSSL for Windows to connect HTTPS.

Basic KVM Setup

The N2315 Wallplate Encoders and N2322 Decoders are KVM-capable. By default, USB

connections are enabled and configured to follow video switching. Follow these steps

for basic KVM setup.

1. On the N2315 Wallplate Encoder, connect the USB Mini-B port to the computer to

be controlled.

2. Connect the computer’s video output to the Encoder’s port. HDMI IN

3. On the N2322 Decoder, connect the to the display. HDMI OUT

4. Connect a USB keyboard and mouse to the Decoder’s USB Standard-A ports (they

can be plugged into either port).

5. Using N-Able, click the Unit Management tab.

6. Click the button to discover your new devices (if you have not Auto Discover

already done so).

7. Once discovery is complete (and you see the new units listed in N-Able), click the

Video Matrix tab.

8. On the matrix, click the common cell for the desired Encoder/Decoder streaming

combination. See the screen shot below for an example.

9. Click the button to make the change to your matrix. The radio button turns Take

green to indicate the connection was successful.

Video/USB Switching Options

Specifications

Troubleshooting Guidelines

Please contact technical support at svsisupport@harman.com or 256.461.7143

(x9900) for assistance with any installation issues.

FIG. 4 CREATING STREAMING COMBINATIONS

Enabling this cell causes

Conf Rm Dec to listen

to . Conference Rm Encoder

Click to apply changes. Take

Enabling this cell causes

Switching Option Description

USB Follows Video By default, units can be switched using N-Able without

modifying the configuration. When you switch video streams

(using the matrix as shown above) the USB functionality will

follow the video.

Independent USB

Switching

Use N-Able’s tab to switch USB control (without USB Matrix

affecting video).

Independent Video

Switching

To switch video streams affecting USB control, first without

select N-Able > Settings from N-Able’s main menu. When the

N-Able Settings USB dialog box is displayed, disable the

follows Video switching for KVM units. Now you can use the

Video Matrix to switch video streams only.

Product Specifications

Models

Available: NMX-ENC-N2315-WP-BL (black)

NMX-ENC-N2315-WP-WH (white)

Power

Requirements:

Powered via a PoE switch or other equipment with a PoE source.

Conforms to IEEE 802.3af Class 3 (802.3at Type 1).

Dimensions: 4 1/16" x 3 1/2" x 2 1/4" (10.31 cm x 8.84 cm x 5.72 cm)

Weight: Approx. .75 lb (0.34 kg)

Certifications: FCC, CE, and UL

Environmental: Temperature: 32° to 104°F (0° to 40°C)

Humidity: 10% to 90% RH (non-condensing)

Installation Mounts onto standard 2 gang US back boxes

Mounts into standard decor style wallplates (not included)

Problem Possible Solution

Video is not

transmitting.

• Verify that the Encoder setting is turned on.TX Enable

Local Play graphic is

displayed.

• Verify Decoder is assigned to view a valid stream of an

active Encoder.

• Verify that Encoder and Decoder are on the same subnet.

• Verify Decoder is currently in live play mode (black text on

matrix view).

• Verify network is properly configured and set up. If needed,

connect Encoder directly to Decoder to bypass network.

Host Play graphic is

displayed.

• Verify Encoder is in live play mode (black text in matrix).

• Verify source is attached and is outputting a valid signal

( LED on Encoder is on).HDMI

Black screen/no

graphic is displayed.

• Set Decoder to local play. If the local play graphic does not

appear, check the display input settings and cabling.

• If local play appears, set Decoder to live play and verify

network is configured properly.

• If screen is black with a slight sparkle effect, verify that your

switch has Jumbo Frame support enabled.

No audio is detected. • If there is no audio on all Decoders, verify audio settings are

correct on Encoder.

• If there is no audio on a single Decoder, verify audio settings

are correct on Decoder.

Produkt Specifikationer

Mærke:	AMX
Kategori:	Ikke kategoriseret
Model:	NMX-ENC-N2315-WP

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX NMX-ENC-N2315-WP stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret AMX Manualer

AMX NMX-WP-N2510 Manual

30 Juli 2025

AMX NMX-ACC-N9101 Manual

30 Juli 2025

AMX NMX-ACC-N9206 Manual

30 Juli 2025

AMX NMX-ENC-N2312 Manual

30 Juli 2025

AMX NMX-ATC-N4321 Manual

30 Juli 2025

AMX RMS-ENT Manual

30 Juli 2025

AMX RMS-ENT-SMA Manual

30 Juli 2025

AMX NMX-VRK Manual

30 Juli 2025

AMX HPA-MYT-TX Manual

16 Juni 2025

AMX HydraPort HPX-AV102A-MDP Manual

15 Juni 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

DataComm 45-8021-1S Manual

31 Juli 2025

Tripp Lite Protect It! TLP648USBC Manual

31 Juli 2025

Tripp Lite N286-100G-SR4SJ Manual

31 Juli 2025

Tripp Lite SRGP4PLASTIC Manual

31 Juli 2025

Tripp Lite PR4.5 Manual

31 Juli 2025

Odisei Music Travel Sax 2 Manual

31 Juli 2025

AEG WSA-AP Manual

31 Juli 2025

Ikea KNIVSHULT 706.006.59 Manual

31 Juli 2025

Tripp Lite Protect It! TLM626TEL15 Manual

31 Juli 2025

Tripp Lite Protect It! TLP366CUBEUSBB Manual

31 Juli 2025
