Specifications
2CH audio equipment, amplifiers, powered speakers, PA systems, AV cameras
and players.
2CH analog audio ( in or out )
SPDIF Out (2CH digital audio)
Connectors
Note: Cables not included.
One (1) RCA receptacle for SPDIF out.
One (1) 3.5mm jack for analog audio (in or out).
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jack for IR Emitter or IR Sensor.
One (1) DB9 Serial Port for RS232.
Four (4) DIP Switches for device ID addressing and Transmitter/Receiver setting.
Maximum Distance
Excluding 3.5mm cable
length.
Cat5e/6: 330 ft (100 m)
Note: When installed in an electrically noisy environment, an STP cable must be
used. Also, cross-connections in the signal path reduce the effective distance
depending on the grade of twisted cable used.
100BaseT for Point to Point; 1000BaseT for other configuration.
RJ45 Pin Configuration
Reverse Polarity Sensitive.
Use EIA/TIA 568A or 586B
straight-through wiring.
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
One (1) Cat 5e/6 or better twisted pair cables required.
This device supports PoE (PD), an external power supply is not included. It is
intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional
power supply (500993) may be purchased separately.
Transmitter: 2.9W Receiver: 1.8W
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
3.70” x 3.68” x 0.97” (94 x 93.5 x 24.6 mm)
Regulatory: FCC, CE, RoHS Flammability: 94V0
500755 AUDIO / RS232 over IP PoE Transceiver
500755-2PK AUDIO / RS232 over IP PoE Transceiver Kit
(2PK kit includes two 500755 units)
Accessories
(These items are sold
separately)
500905 3-Port Rackmount Transceiver Chassis
500920 16-Port Rackmount Transceiver Chassis
500917 Wall Mount Transceiver Bracket Kit
500998 IR Emitter, and 500994 IR Sensor
500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
500755 AUDIO / RS232 over IP PoE Transceiver

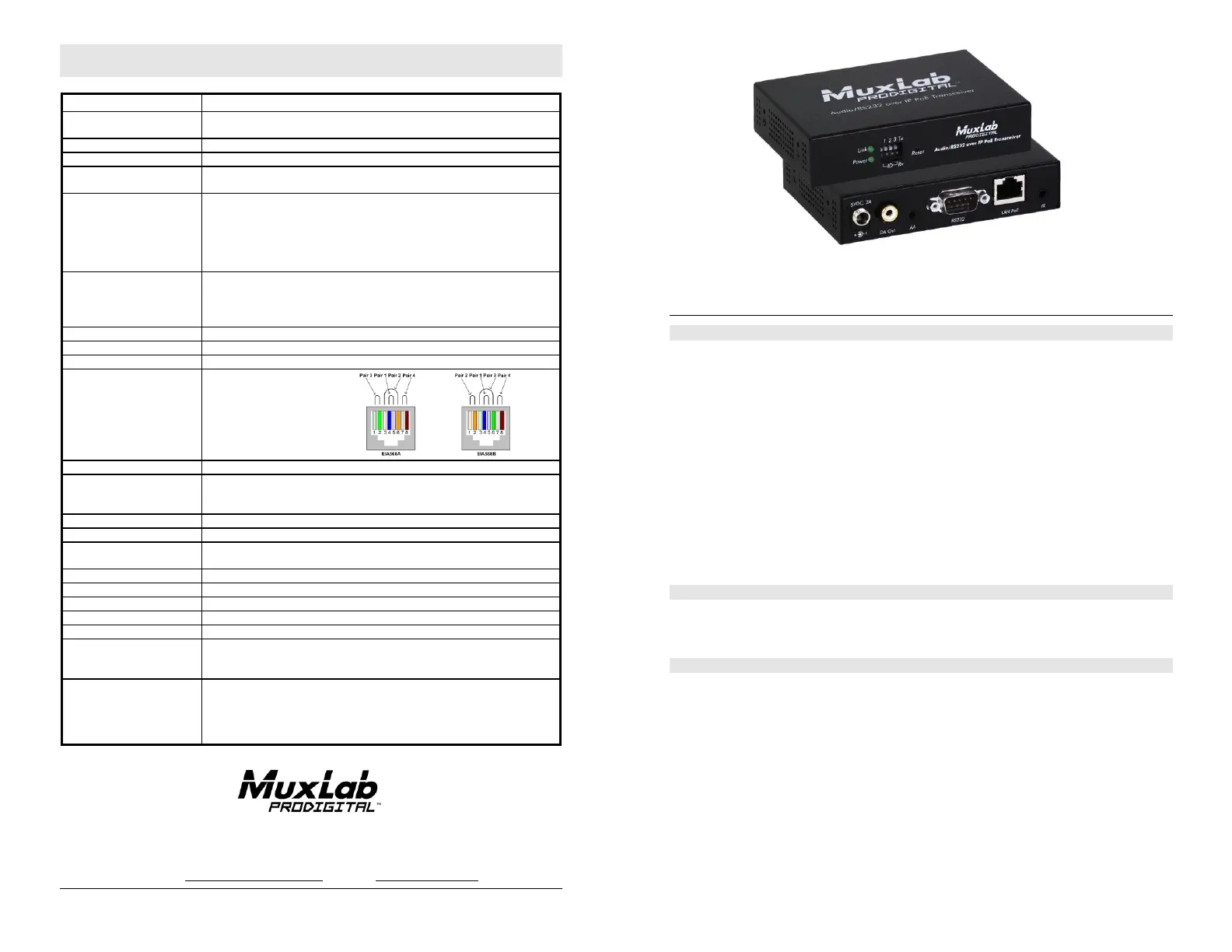

Quick Installation Guide
Overview
The AUDIO / RS232 over IP PoE Transceiver allows 2CH audio signals to be extended up to 330ft
(100m) via one (1) Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. Point-
to-multipoint and multipoint-to-multipoint is possible by connecting several Transceivers to the
same local Ethernet network, and the device supports PoE (PD) if used with a PoE (PSE) Ethernet
Switch. These Transceivers may be purchased individually (part number 500755) or as a kit of two
Transceivers (part number 500755-2PK). The Transceiver supports RS232 and IR transmission for
remote control of end devices. The IR Emitter (500998) and IR Sensor (500994) are not included,
but if required, may be purchased separately. The Transceiver can be configured as a Transmitter
or Receiver.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must
have Gigabit ports and DHCP Server capability and additionally support the IGMP communication
protocol for the multipoint-to-multipoint case. MuxLab recommends using the Cisco SG300 Series
Managed Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and
utilization of the 500755 and other MuxLab IP based products via an Ethernet web interface.
Applications
Applications include; commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems, with
respect to the audio portion of these applications.
Installation
1. The Transceiver must first be set as either a Transmitter or Receiver. This may be
accomplished via the dip switch position #4. Reference the Operating Manual for further
instructions on how to set the dip switches. The remaining instructions are based on the
Transceiver being set as either a Transmitter or Receiver.
2. Identify the connectors on the Transmitter and Receiver as indicated on the product labels,
see the above front and rear product views for further details.
3. Verify that the distance between the Transmitter and Receiver is within MuxLab
specifications (see Specifications table for further details).
