Fusion Remote Max User’s Manual

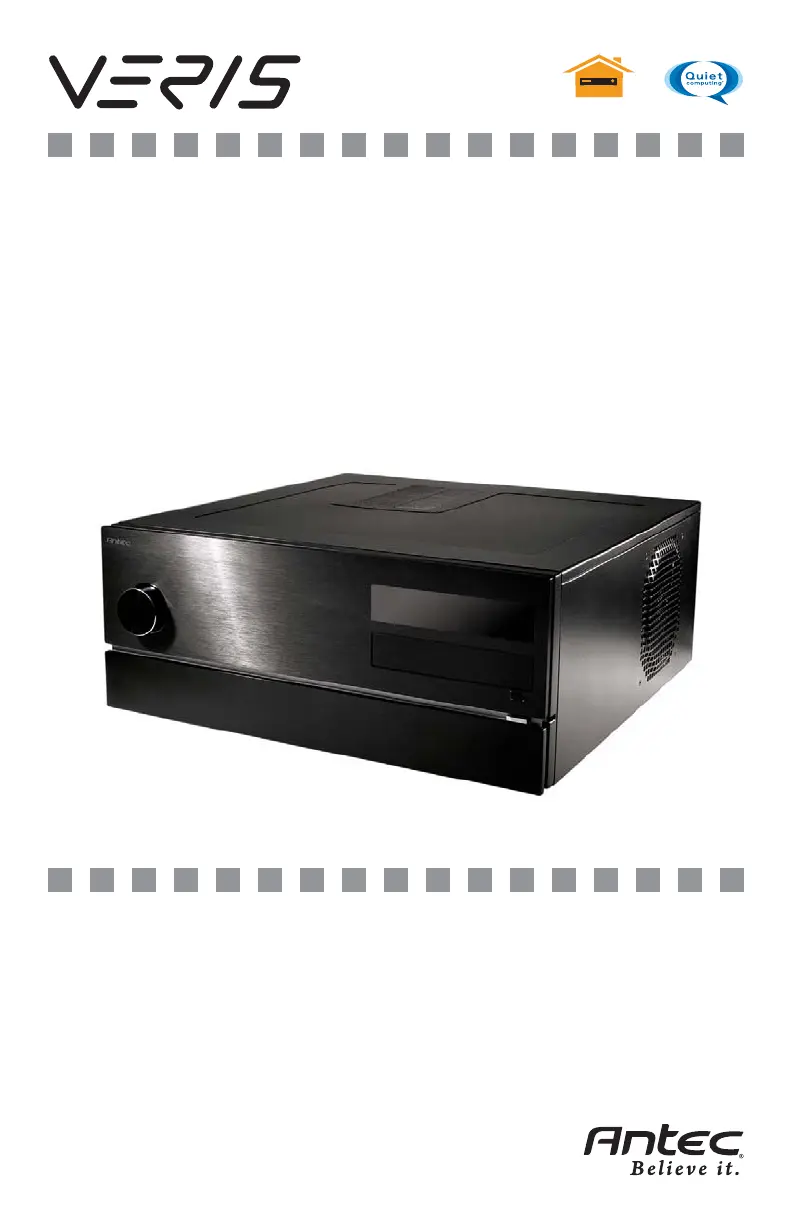

Fusion Remote Max – Media Center Case
The Fusion Remote Max comes without a power supply. Make sure you choose a
power supply that is compatible with your computer components and has a long
enough power harness to reach your motherboard and peripheral devices.
We recommend our TruePower Quattro, TruePower Trio, or NeoPower power
supplies for the latest ATX specification compliance, broad compatibility, and
power savings capability.
Although care has been taken to prevent sharp edges in your Antec case, we
strongly recommend taking the appropriate time and care when working with it.
Avoid hurried or careless motions. Please use reasonable precaution.
Setting Up
1. Place the case upright on a flat, stable surface.
2. Remove the thumbscrew from the back of the top panel. Slide the panel to-
wards the rear to remove it from the case.
3. Inside the case you should see some wiring with marked connectors (USB,
PWR etc.), an installed I/O panel and a toolbox containing all the screws you
need to install the components.
The Triple Chamber structure
Upon opening the top panel, you will find that the case is divided into three chambers:
the power supply (PSU) chamber, the motherboard chamber and the HDD chamber.
This triple chamber structure isolates the heat and noise within each chamber,
resulting in much quieter and cooler operation than a traditional desktop case design.
In the motherboard chamber, a 140mm TriCool fan is installed on the side of the
case and a 120mm TriCool™ rear fan is installed at the rear of the case right next
to the CPU for effective CPU cooling.
In the PSU chamber, there is room for two hard drives. The HDD chamber can hold
2 more hard drives.
Installing the Motherboard
This manual does not cover CPU, RAM, or expansion card installation.
Please consult your motherboard manual for specific mounting instructions and
troubleshooting.
Disclaimer
This manual is intended only as a guide for Antec’s Computer Enclosures. For more
comprehensive instructions on installing the motherboard and peripherals, please
refer to the user’s manuals that come with those components.
