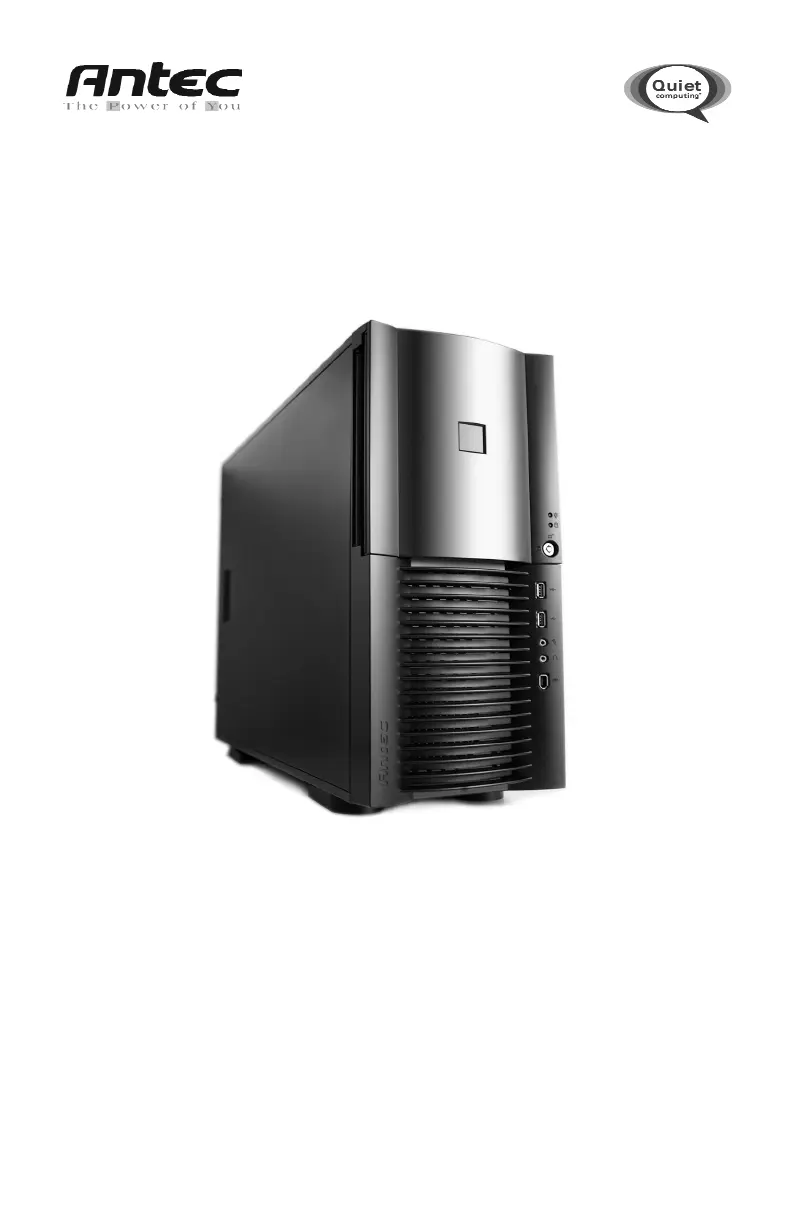

Side 1/7

The high quality of our products is assured by a continuous process of refinement of their

technical features. Therefore, it is possible that your product may differ in some respect from the

descriptions contained in this manual. This is not a problem – it is an improvement. All features,

descriptions, and illustrations contained herein are valid as of the date of publication.

TITAN550 – SERVER CASE

Your case includes a pre-installed TruePower 2.0 (TP2-550EPS12V) power supply, one of the quietest

tested power supplies on the market. All TruePower PSUs feature Antec’s Low Noise Technology,

which allows TruePower to deliver an optimum balance between noise reduction and necessary

cooling. The power supply fans will always run at the lowest speed possible for existing load and

conditions. The result? Your power supply will run considerably quieter than traditional power supplies.

Make sure you turn the switch to the ON ( I ) position before you boot up your computer for the

first time. Normally, you won’t need to switch to the OFF (O) position, since the power supply

includes a soft on/off feature. This lets you turn your computer on and off by using the soft

switch on your computer case. If your computer crashes and you can’t shut it down using the soft

switch, you can switch the main power to the OFF (O) position to clear the problem, then reboot.

The Titan has implemented a newly designed double hinge door, which allows the door to open

up to 270º. The front bezel is easy to remove and replace for easy system installation. Titan550 features

6 individual hard drive trays, cooled by two 92mm fans. These drive trays are front accessible to

further ease system integration or upgrading. Additionally, this case also comes with an adjustable

card guide for long add-in cards.

[Applies only to models designed for sale in the European Union: TruePower 2.0 Series

Power Supply models designed for the EU include Power Factor Correction (PFC) circuitry in

accordance with European standard regulation code EN61000-3-2. By altering the input current

wave shape, PFC improves the power factor of the power supply and results in increased energy

efficiency, reduced heat loss, prolonged life for power distribution, and consumption equipment,

and improved output voltage stability.]

SETTING UP

1. Take the case out of the box. Remove the Styrofoam and the plastic bag. Place the case

upright on a flat, stable surface. The power supply fan should be at the back, facing you.

2. Note (not applicable to models designed for the European Union): Before installation,

check the red voltage switch setting on the power supply. It should match your local voltage

(115V for North America, Japan, etc. and 230V for Europe and many other countries). If

it doesn’t match, please change the setting. If you don’t you could damage your equipment

and void your warranty.

3. Remove the thumbscrews from the right side panel. Slide the panel towards the back of

the case to remove the side panel.

4. Inside the case you should see the power supply, some wiring with marked connectors

(USB, PWR etc.), and installed I/O panel, a power cord and a tool bag containing more

hardware (screws, brass standoffs, etc.), twelve pairs of 3.5" metal drive rails with the rubber

grommets and six pairs of plastic 5.25" drive rails. You need to remove the front bezel in

order to install your 5.25" drives or 3.5" internal drives.

Disclaimer

This manual is intended only as a guide for Antec’s Computer Enclosures. For

more comprehensive instructions on installing your motherboard and peripherals,

please refer to the user’s manuals which come with your components and drives.

Produkt Specifikationer

Mærke:	Antec
Kategori:	Computerbehuizing
Model:	Titan 650
