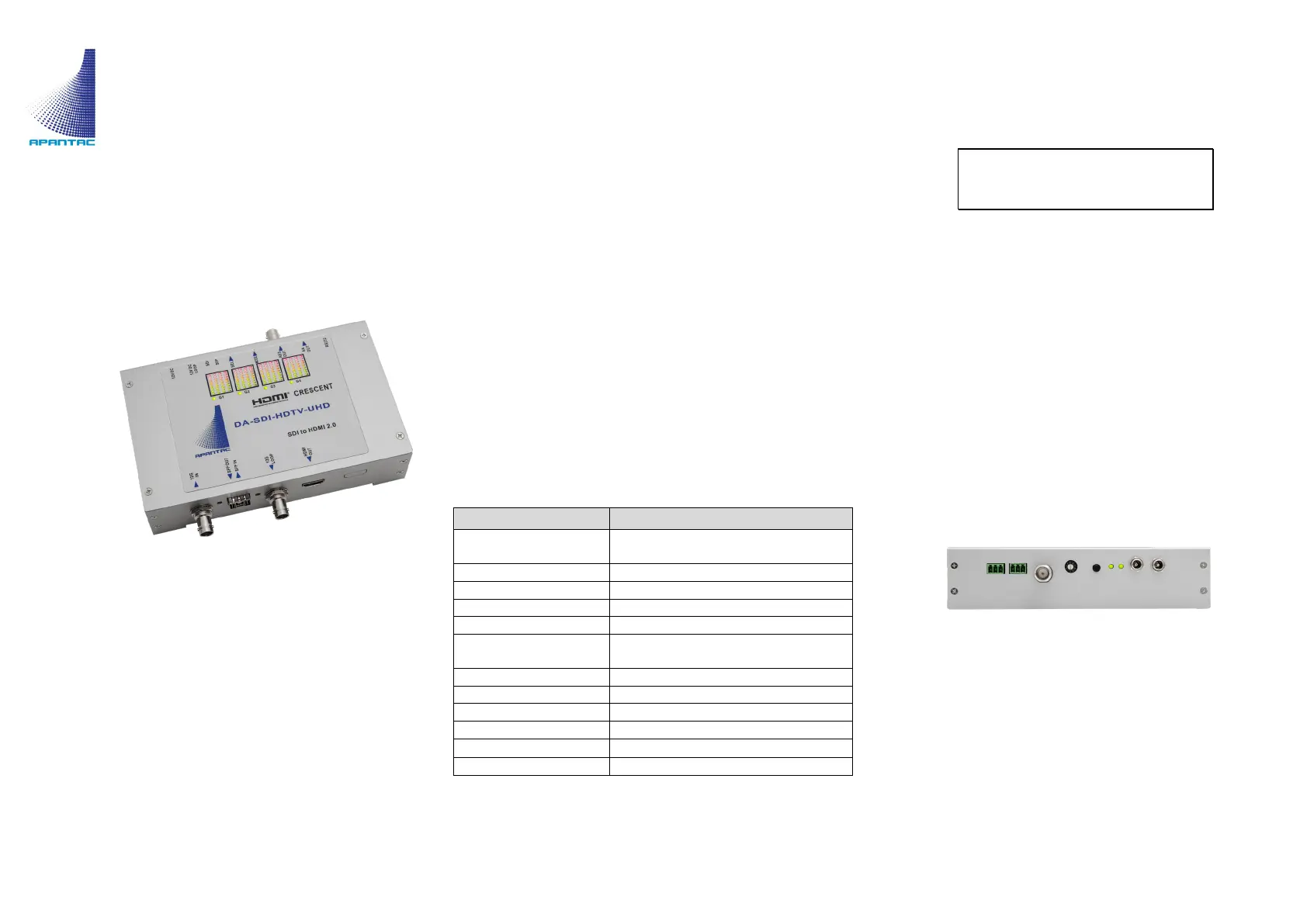

DA-SDI-HDTV-UHD

User Manual

12G SDI to HDMI 2.0

Converter w/o

Scaler

OVERVIEW

DA-SDI-HDTV-UHD is a 12G SDI to HDMI 2.0 converter.

Supports up to 12G SDI and converts to HDMI 2.0

output with optional SDI fiber input

PACKAGE CONTENTS

• DA-SDI-HDTV-UHD

• Locking Power Supply (12V/3.34A)

• Magnetic Mounting Plate

FEATURES

• Supports up to 12G SDI input

• SDI loop out

• Supports up to HDMI 2.0 output

• 1 x HDMI output

• 1 x SFP output for optional SDI SFP

• Cables

SPECIFICATIONS

Function

DA-HDTV-SDI-UHD

DESCRIPTION

HDMI 2.0 (UHD) to 12G Converter with

Looping HDMI input

VIDEO INPUT

1 x HDMI 2.0

INPUT RESOLUTIONS

HDMI 1.4/2.0 up to 3840x2160P

VIDEO OUTPUT

1 x HDMI Loopout, 1 x SDI, 1 x SFP

OUTPUT RESOLUTIONS

Up to 12G SDI

AUDIO OUTPUT

8 Channels of SDI Embedded Audio,

AES/AA stereo pairs

ROTARY SWITH

Audio pair selection

RS-232

FW Upgrade Port

POWER

12V DC 3.34A

POWER LOOP OUT

12V DC 3.34A

Cable Distance

10 m on Certified 4K Cables

Housing

Metal

FRONT VIEW

1. 12G Input

2. LED for SFP status

3. SFP cage for optional SDI Fiber Rx

4. LED for SDI status

5. SDI loopout

6. HDMI output

REAR VIEW

1. RS-232

2. AA monitoring output

3. AES monitoring output

4. Rotary switch for audio pair selection

5. Selection switch for BNC or SFP input

6. LED for SFP I/O status

7. 12V DC Loop out to power external device

8. 12V DC input

TOP VIEW

LED audio meter showing individual audio and group

INSTALLATION

• Connect the power supply

• Connect a certified 4K HDMI signal to the HDMI input

• Connect the SDI output to the receiving device via a

12G rated coax cable

• Use the rotary switch to select the stereo pair for AA

or AES monitoring output

• Insert the optional SDI SFP, if fiber output is needed

ACCESSORIES

• 12V 3.34A power supply

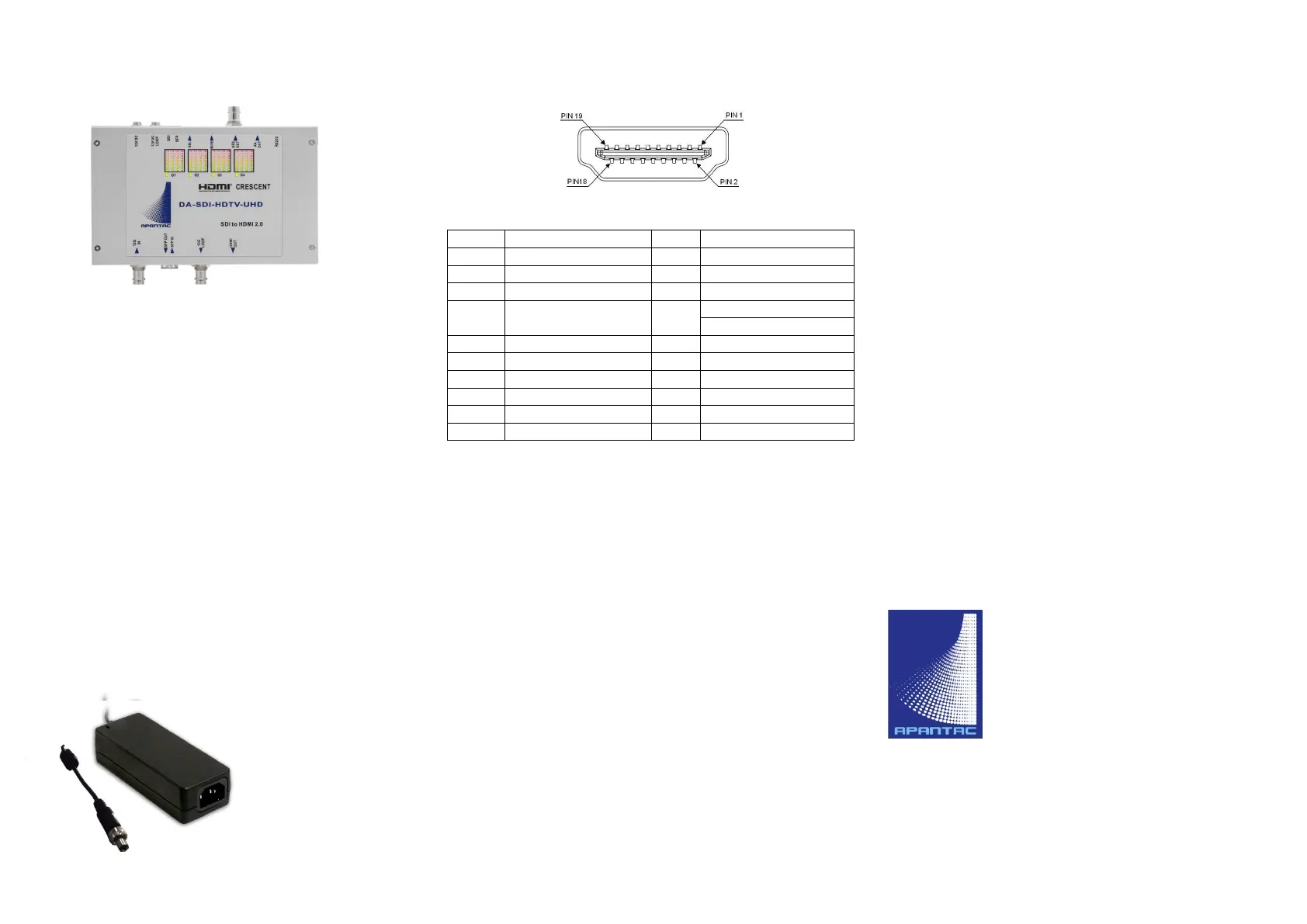

HDMI PINOUTS

Pin#

Signal

Pin#

Signal

TMDS Data 2+

TMDS Clock Shield

TMDS Data 2 Shield

TMDS Clock

TMDS Data 2-

CEC

TMDS Data 1+

Reserved

(N. C on device)

TMDS Data 1 Shield

SCL

TMDS Data 1-

SDA

TMDS Data 0+

DDC/CEC Ground

TMDS Data 0 Shield

+5 Power

TMDS Data 0-

Hot Plug Detect

TMDS Clock +

APANTAC reserves the right to change the product specification without

prior notice.

10200 SW ALLEN BLVD, STE C

BEAVERTON, OR 97005, USA

PHONE +1 503 968 3000, FAX +1 503 389 7921

The content of this document are provided in connection with Apantac

LLC (“Apantac”) products. Apantac makes no representation or

warranties with respect to the accuracy or completeness of the contents

of this publication and reserves the right to make changes to

specifications and product descriptions at any time without notice
