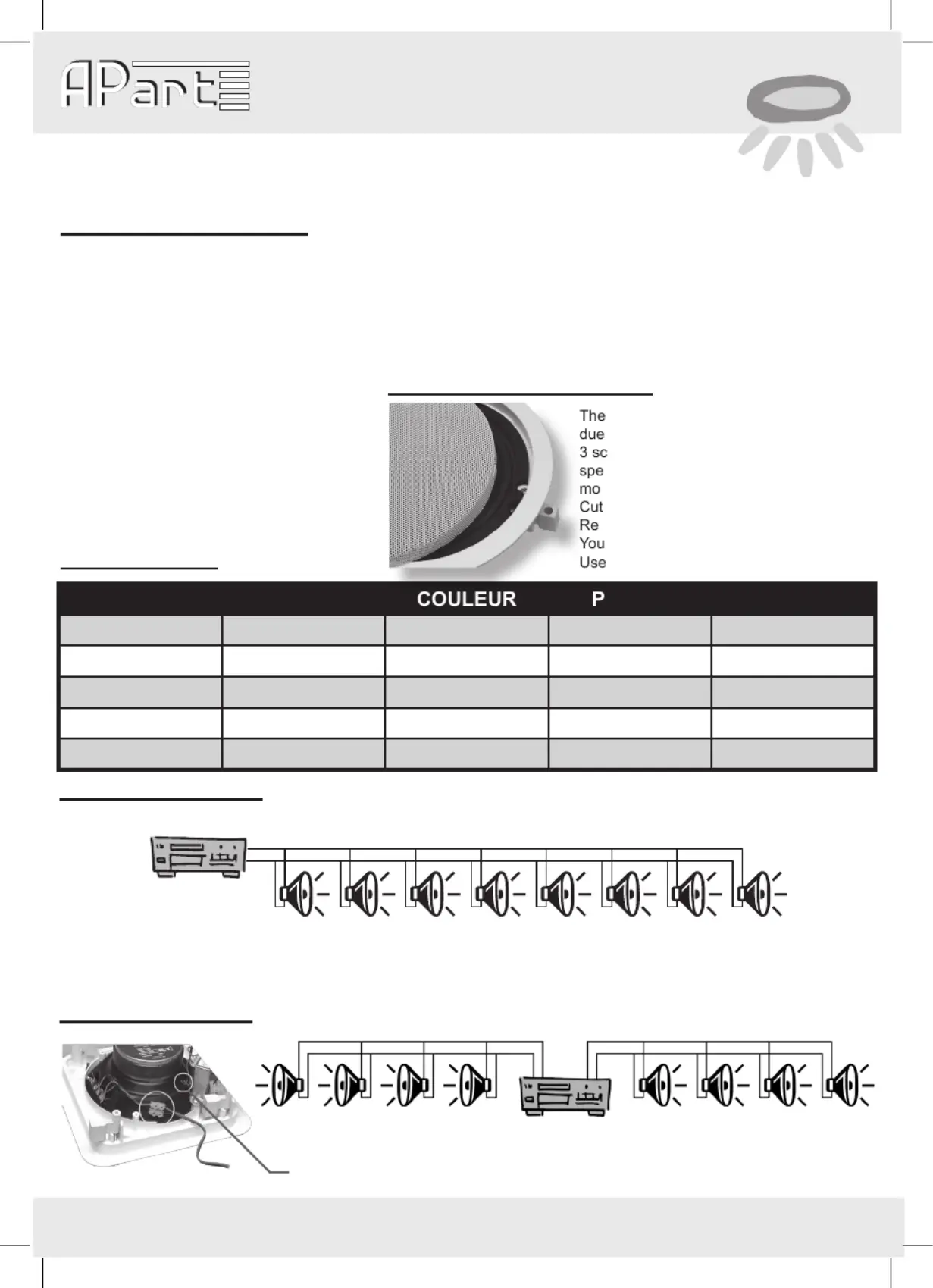

CEILING LOUDSPEAKER

COLOUR KLEUR OWER IMPEDANCE

Black Zwart Noir Common

RED ROOD ROUGE 2.5 Watt 4KΩ

GREEN GROEN VERT 5 Watt 2KΩ

YELLOW GEEL JAUNE 10 Watt 1KΩ

BROWN BRUIN BRUN 20 Watt 500R

CM20T

WWW.APART-AUDIO.COM INFO@APART-AUDIO.COM

• Type : 2 - Way HiFi

• Woofer : 6.5” Enforced Polypropylen

• Tweeter : 1” Silk Dome

• Rated Power RMS : 20 W / 100Volt

• Music Power RMS : 32 W / 100Volt

• Rated Power RMS : 40 W / 16Ω

• Music Power RMS : 60 W / 16Ω

• Sound Pres. Level (SPL) 1W/1M : 92dB

• Frequency range : 60 Hz - 20 kHz

• Trafo Power Tappings : 20 - 10 - 5 - 2.5W

• Dispersion @ 1-4-8 KHz : 180°- 80° - 45°

• Dimensions outside Ø : 205MM

• Dimensions Cutout Ø : 183MM

• Depth : 80MM

• Weight : 1.62Kg

Technical Specifications

The APart CM20T 2-way built-in loudspeaker can be

used as a 16 Ohm or 100 Volt loudspeaker. In 16 Ohm use,

you can connect up to 4 loudspeakers in parallel on each channel of a

standard 4 Ohm amplier. For 100 use, the CM20T is equipped with a high-

quality 20 Watt 100 Volt transformer with several power tappings. Therefore

it can be used with high ceilings or places where more back ground noise is

present. The loudspeaker has a 6 ½” enforced Polypropylen woofer what re-

sults in a very low distortion. To complete the sound a 1” tweeter has been in-

tegrated. It makes the CM20T very suitable for the distribution of microphone

calls and back ground music. The housing is made of high quality ABS.

The woofer is made out of enforced polypropylen, what makes it moisture-

proof. The standard colour is white. From 12 pieces on, the loudspeakers

can be painted optionally in any other RAL colour

Power Tappings

20 20 10 5 5 5 2.5 2.5++ + + + + +70 Watt =

120Watt Amplier

Amplier power must be higher than total power of all speakers.

Het versterkervermogen moet hoger zijn dan de som van de vermogens van de luidsprekers.

La puissance de l’amplicateur doit etre plus élevée que la puissance totale des haut parleurs.

100 Volt Technology

16 ohm Technology

Mounting the loudspeaker

16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω

4Ω 4Ω

Disconnect 100Volt transformer

16 ohm connection

loudspeaker is easy to install,

to its simple, quick mounting system

rews which are hidden behind the loud-

aker grill, what gives the loudspeaker a

dern and striking design.

out Ø : 183 MM

move the grill before mounting.

can see four Philips head screws.

these screws to thigthen the dog-ears.

Picture shown is the CMS20T
