WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
Page 1 / 2
240701
1. Attach the two fixture mounting screws (C) to the mounting strap (A),
and screw in 2 to 3 turns.
2. Attach the mounting strap (A) to the outlet box by using two mounting
screws (B).
3. Pull out the source wires from the outlet box. Make wire connections
using wire connectors (D) as follows:
• Connect the hot wire (black insulation) from the fixture to the black
wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the
white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting strap (A)
with the green ground screw, then depending on local code, connect
it to the house ground wire with the wire connector (D).
Carefully put all of the wires back into the outlet box.
4.
Attach the pan to the mounting strap (A) by inserting the two fixture mounting
screws (C) and rotate the pan until it locks in place. Then secure the fixture
mounting screws (C) tightly with a screwdriver.
5. Thread the threaded pipe (F) into the coupling, and secure it with the hex nut (E).
6. Install 2 x 60W Max. medium base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
7. Attach the glass shade, rubber pad (G), cap (H) and metal frame onto the threaded pipe (F) in order, and
secure with the finial (I).
Max. 60W
Medium Base bulb
(not included)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
OF25515RC / C0316
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit box.

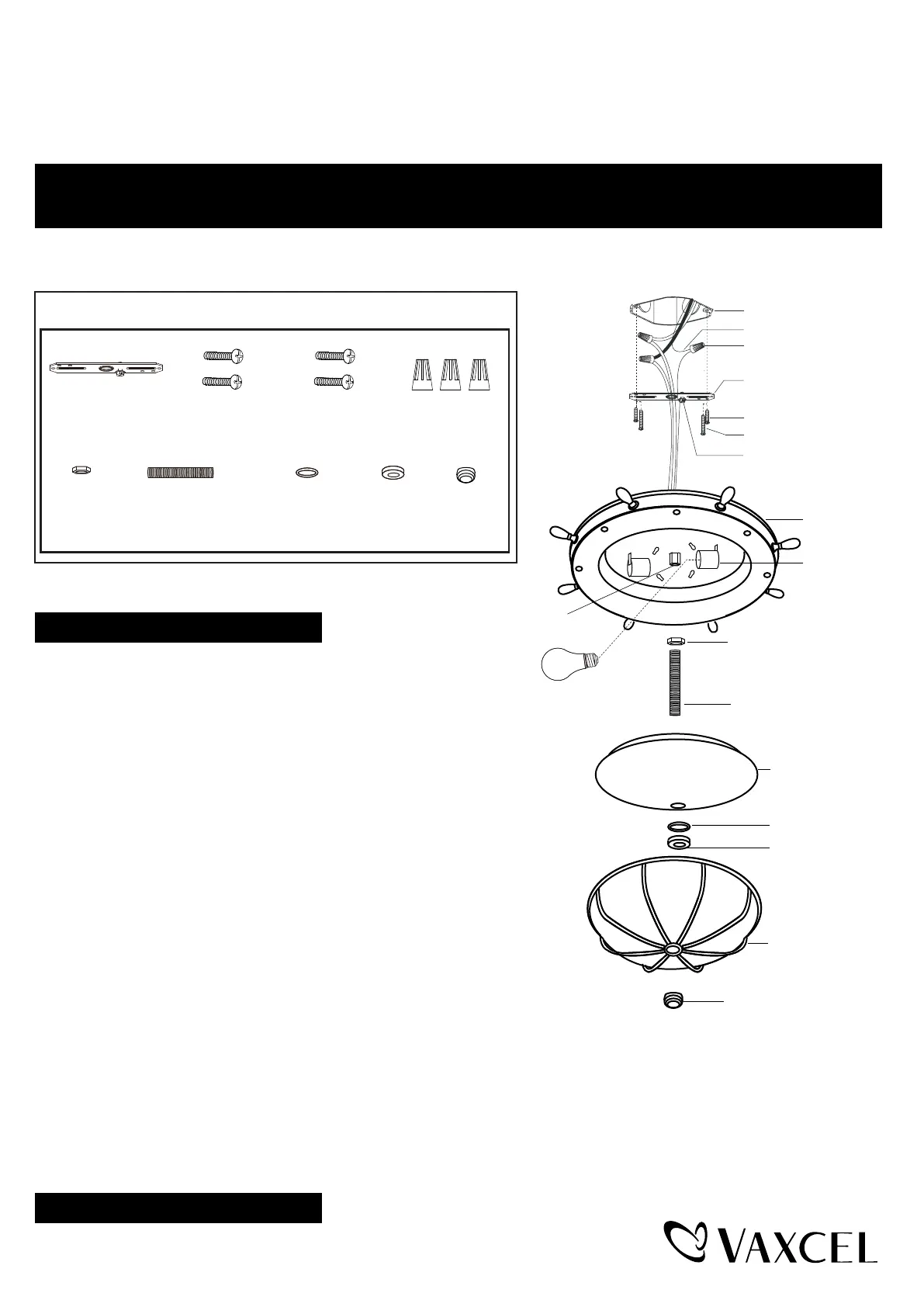

Installation Steps
Hardware Package (included):
Mounting Screw (B)Mounting Strap (A) Fixture Mounting
Screw (C)
Hex Nut (E)
Threaded Pipe (F) Rubber Pad (G) Cap (H) Finial (I)
Hex Nut (E)
Threaded Pipe (F)
Glass Shade
Rubber Pad (G)
Cap (H)
Metal Frame
Finial (I)
Outlet Box
House Ground Wire
Wire Connector (D)
Fixture Mounting Screw (C)
Mounting Strap (A)
Green Ground Screw
Pan
Socket
Coupling
Mounting Screw (B)
Wire Connector (D)
