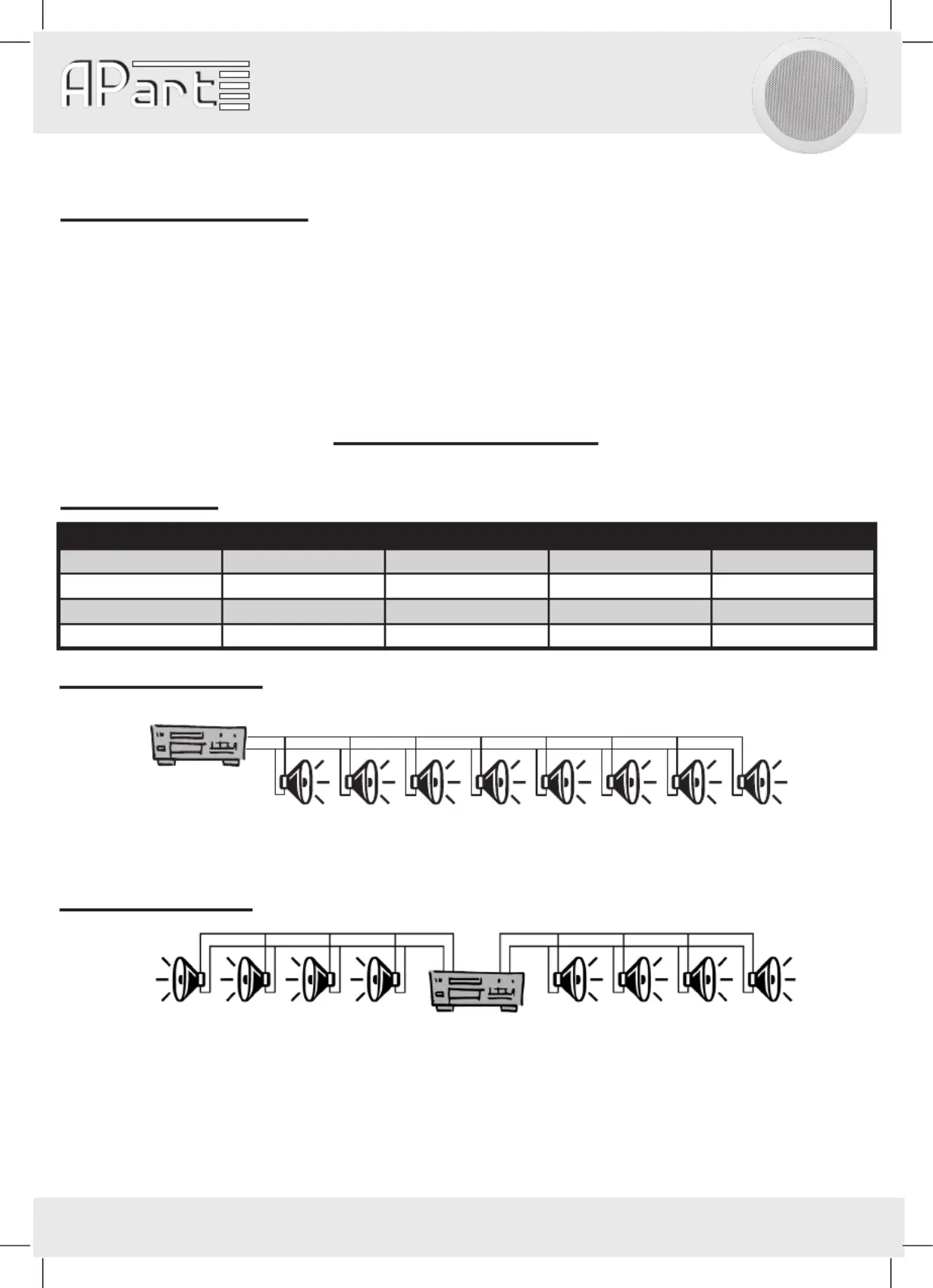

CEILING LOUDSPEAKER

COLOUR KLEUR COULEUR POWER IMPEDANCE

Black Zwart Noir Common

GREEN GROEN VERT 1.5 Watt 6.66 KΩ

WHITE WIT BLANC 3 Watt 3.33 KΩ

RED ROOD ROUGE 6 Watt 1.66 KΩ

CM3T

WWW.APART-AUDIO.COM INFO@APART-AUDIO.COM

• Type : Dual Cone

• Woofer : 3” Coated Paper

• Rated Power RMS : 6 W / 100 Volt

• Music Power RMS : 10 W / 100 Volt

• Rated Power RMS : 10 W / 16 Ω

• Music Power RMS : 20 W / 16 Ω

• Trafo Power Tappings : 6 - 3 - 1.5W

• Impedance: 16 Ω / 100 Volt

• Dimensions Outside Ø : 105 mm

• Dimensions Cutout Ø : 82 mm

• Mounting Depth : 70 mm

• Weight : 0.525 Kg

Technical Specifications

The APart miniature metal CM speaker is a high quality built-in loudspeaker. It has a

full metal frame and a coated dual paper cone for the lowest distortion and increased

resistance against moisture. It can be used for 100 volt speaker lines as well as low

impedance systems, such as hi, surround or multi room ampliers/receivers.

For 100 volt systems, different power taps are present on the high quality built-in line

transformer: for background music with low background noise, you can use the lower

power taps. For maximum sound pressure level, use the highest power tap. The

APart technology avoids any overload of your amplier by applying the unique IMC

protection device.

For use as a low impedance speaker, you can bypass the transformer and connect

directly to the speaker. Our special impedance of 16 ohms allows you to connect up

to 4 speakers per channel onto a regular amplier than can drive 4 ohms, and 2 – 3

speakers onto an amplier than can drive 6 ohms. The APart technology offers you a

rich, clear and efcient sound, surpassing most of the regular 8 ohm speakers.

Power Tappings

6 6 6 3 3 3 1.5 1.5++ + + + + +30 Watt =

40Watt Amplier

Amplier power must be higher than total power of all speakers.

Het versterkervermogen moet hoger zijn dan de som van de vermogens van de luidsprekers.

La puissance de l’amplicateur doit etre plus élevée que la puissance totale des haut parleurs.

100 Volt Technology

16 ohm Technology

Mounting the loudspeaker

The speaker is very easy to install, rst connect the speaker wires, then simply

grab the two spring clamps together and carefully slide the speaker in the mount-

ing hole.

16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω

4Ω

16Ω

Please disconnect the 100 Volt transformer for use in low Z applications. Connect the speaker lines

on the speaker directly. All necessary connection hardware is already included and mounted on the

speaker.

Gelieve de 100 V transformator bij gebruik in lage Z toepassingen af te koppelen. Koppel de luidsprekerka-

bels rechtstreeks op de luidsprekers aan. Alle benodigde verbindingsstukken zijn inbegrepen en reeds op de

luidspreker gemonteerd.

Veuillez déconnecter le transformateur lors d’usage en applications basse-Z. Connectez les cables haut-

parleur directement sur l’haut-parleur. Tout les pièces de connection sont comprises et déjà installées sur

l’haut-parleur.

Produkt Specifikationer

Mærke:	APart
Kategori:	Højttaler
Model:	CM3T
Type:	I væggen/på væggen/i loftet højttalere
Vægt:	525 g
Produktfarve:	Hvid
Udgangseffekt (RMS):	6 W
Dimensioner (BxDxH):	105 x 70 x 105 mm
Impedens:	16 ohm (Ω)
Lyd-output kanaler:	1.0 kanaler
Peak Music-Udgangseffekt (PMPO):	10 W
Woofer diameter:	76.2 mm
