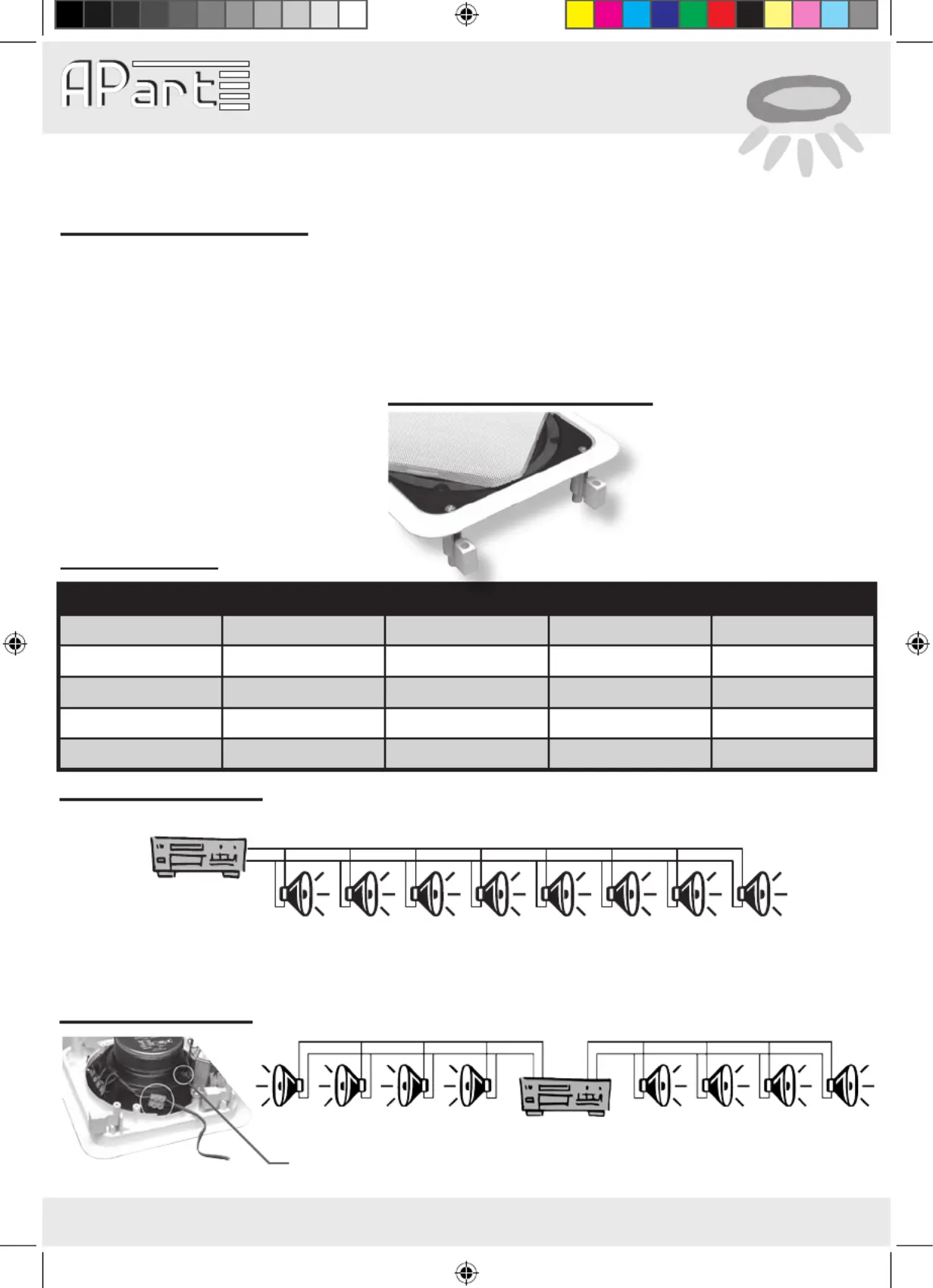

CEILING LOUDSPEAKER

COLOUR KLEUR COULEUR POWER IMPEDANCE

Black Zwart Noir Common

RED ROOD ROUGE 2.5 Watt 4KΩ

GREEN GROEN VERT 5 Watt 2KΩ

YELLOW GEEL JAUNE 10 Watt 1KΩ

BROWN BRUIN BRUN 20 Watt 500R

CMS20T

WWW.APART-AUDIO.COM INFO@APART-AUDIO.COM

• Type : 2 - Way HiFi

• Woofer : 6.5” Enforced Polypropylen

• Tweeter : 1” Silk Dome

• Rated Power RMS : 20 W / 100Volt

• Music Power RMS : 32 W / 100Volt

• Rated Power RMS : 40 W / 16Ω

• Music Power RMS : 60 W / 16Ω

• Sound Pres. Level (SPL) 1w/1m : 92dB

• Frequency range : 60 Hz - 20 kHz

• Trafo Power Tappings : 20 - 10 - 5 - 2.5W

• Dispersion @ 1-4-8 KHz : 180°- 80° - 45°

• Dimensions outside(HxW) : 201 x 201MM

• Dimensions Cutout(HxW) : 176 x 176MM

• Depth : 75MM

• Weight : 1.65Kg

Technical Specifications

The APart CMS20T 2-way square built-in

loudspeaker is loved by every interior de-

signer for its beautifull shape and perfect sound quality. It

can be used as a 16 Ohm or 100 Volt loudspeaker. In 16

Ohm use, you can connect up to 4 loudspeakers in paral-

lel on each channel of a standard 4 Ohm ampliﬁer. For

100 use, the CMS20T is equipped with a high-quality 20

watt 100 Volt transformer with several power tappings. The

loudspeaker has a 6 ½” woofer and 1” tweeter. It makes

the CMS20T very suitable for the distribution of microphone

calls and Back Ground Music.

Power Tappings

20 20 10 5 5 5 2.5 2.5++ + + + + +70 Watt =

120Watt Ampliﬁer

Ampliﬁer power must be higher than total power of all speakers.

Het versterkervermogen moet hoger zijn dan de som van de vermogens van de luidsprekers.

La puissance de l’ampliﬁcateur doit etre plus élevée que la puissance totale des haut parleurs.

100 Volt Technology

16 ohm Technology

Mounting the loudspeaker

Disconnect 100Volt transformer

16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω

4Ω 4Ω

16 ohm connection

Cutout (HxW) : 176 x 176MM

Remove the grill before mounting.

You can see four Philips head

screws.

Use these screws to thigthen the

dog-ears.
