Volume Control

OUTIN - 24V +

100Volt

com

TOTAL LOUDSPEAKER POWER : 3 - 50 WATTS MAXIMUM !!!

USE ONLY HIGH IMPEDANCE

100VOLT LOUDSPEAKERS

E-VOL50

• Type : Euro

• Handling power : 50 watt

• Voltage : 100 Volt

• 24V priority : Yes (20mA)

• Attenuation steps : 11 + “0”

• Build-in box : E-MODIN

• Build-on box : E-MODON

• Dimensions (H x W x D) : 80 x 80 x 70 mm

• Weight : 0.3 Kg

• Colour : white

Introduction

Tech. Specifications

The APart E-VOL50 is a 100 Volt volume control that can handle up to 50 watt of power.

It is very durable due to the step by step attenuation in 11 steps + zero position.

The volume control is equipped with a 24V priority relais. This way a microphone call will always come through at

maximum volume, no matter what position the volume control is in.

The E-VOL50 is build on a universal chassis that can easily be integrated with

Gira, Jung and Euro. Different cover plates are available for the UK market.

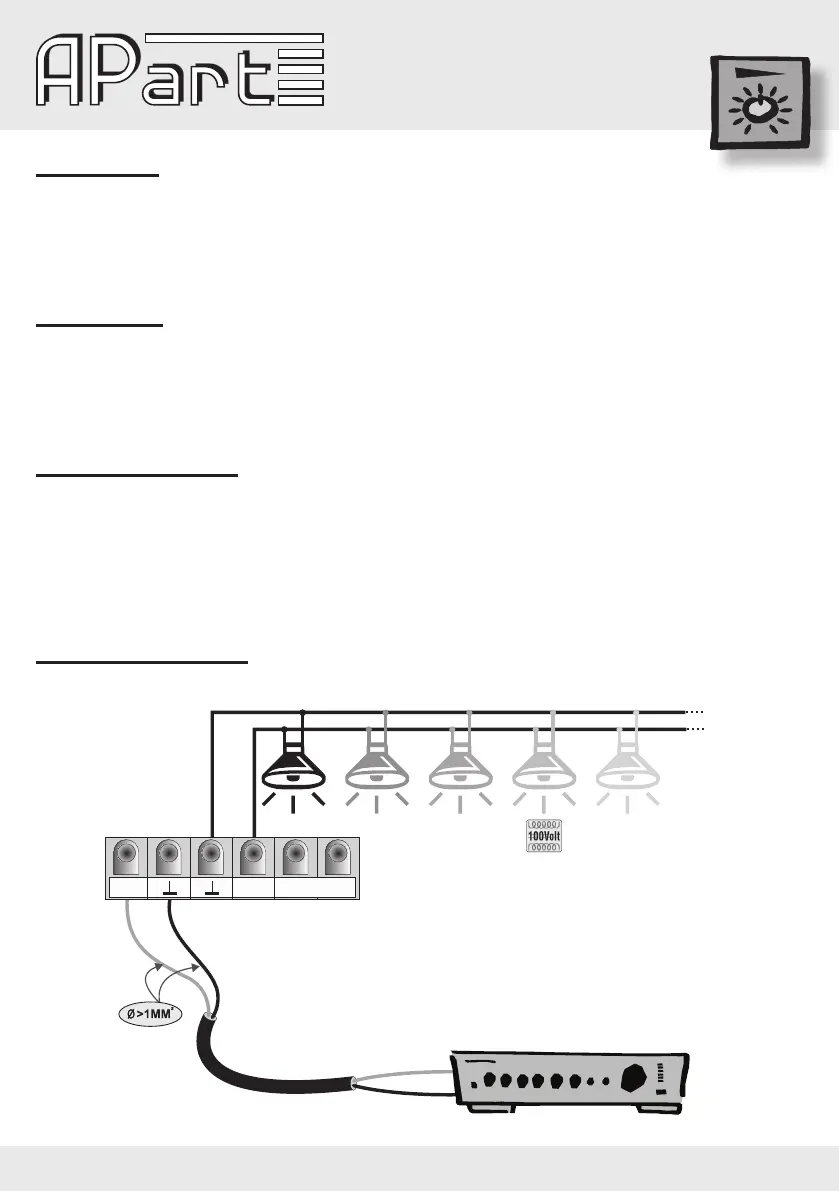

2-WIRE CONNECTION

Please avoid

- Please avoid any power overload, measure your speakerlines before connecting.

- In reality, a lot of speakers have much higher load than the value listed in their specication.

Our APART speakers are especially engineered within their specication, so no risk for overload when using them !

- Please never apply clipped or overloaded levels from your amplier to this volume control.

It may cause overheating and damage ! Our APART ampliers are automatically limited to avoid such

distorted signals !

WWW.APART-AUDIO.COM

Volume Control

OUTIN - 24V +

+ -

24V

100V

Microphone

100Volt

com

Amplifier

24Volt Priority output

• MA200

• MA200R

• MA200CDR

• MA125

• PA240P (only 30pcs)

e.g. You can use one of

these APart amplifiers

to connect up to 50pcs

volume controllers.

TOTAL LOUDSPEAKER POWER : 3 - 50 WATTS MAXIMUM !!!

USE ONLY HIGH IMPEDANCE

100VOLT LOUDSPEAKERS

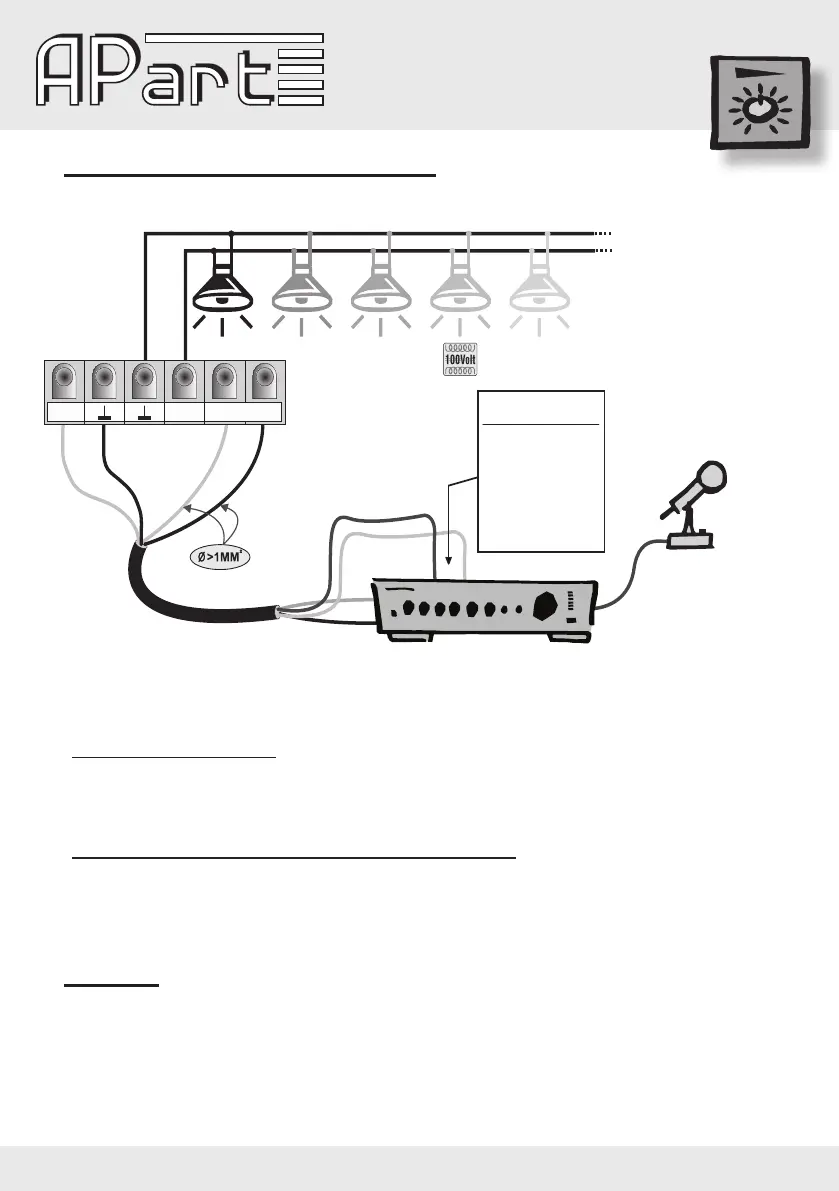

4-WIRE CONNECTION WITH PRIORITY

• Keep the inside of the wallbox clear of all wires, this to prevent short circuits between the wires in the wallbox

and the printed circuit of the volume controller.

• Don’t use solid copper conductor wires, the screw connectors on the printed circuit board of the volume con-

troller are designed for flexible wires.

• Don’t connect more then one wire in each onboard screw connectors of the volume controller.

• Don’t use force when mounting the volume controller in the wallbox.

Mounting

What does a priority system do ?

When the volume controller is turned to 0 there is no background-music. (e.g. meeting room, office)

At this moment if there is a microphone call the information is lost.

With the priority system connected, the volume controller is set to maximum volume during the microphone call.

In this way there is no information lost.

To be able to use a priority system you need the following components :

- Volume controller with priority relay

- Amplifier with 24Volts priority output contact (24Volts / 1A : you can connect up to 60pcs of volume controllers)

- 4-wire cable connection

- Microphone (MICPAT-D)

E-VOL50
