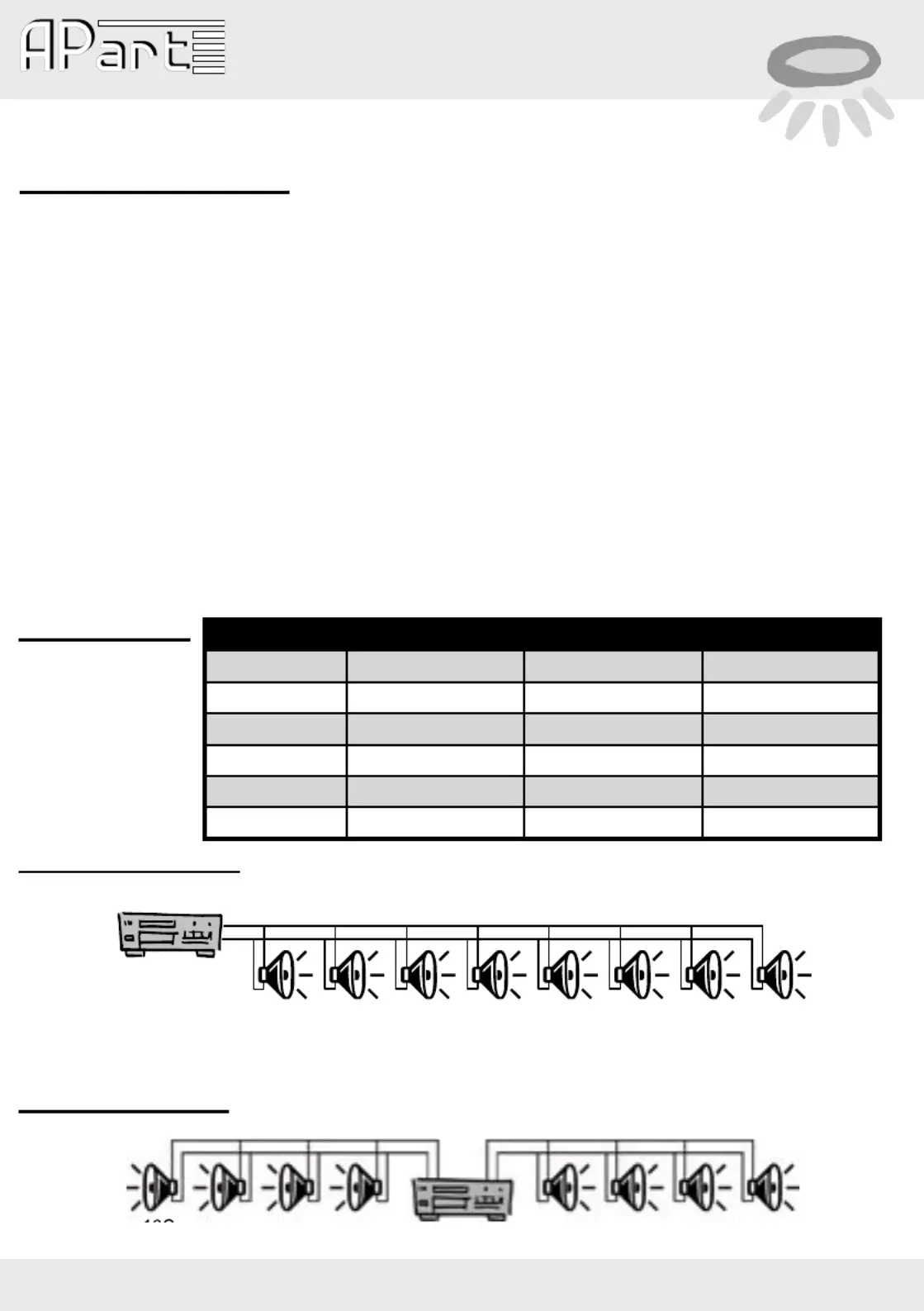

SURFACE MOUNT LOUDSPEAKER

SWITCH POWER IMPEDANCE AMPLIFIER

1 30 Watts 333Ω 100 Volt

2 15 Watts 666Ω 100 Volt

3 6 Watts 1.6KΩ 100 Volt

4 3 Watts 3.3KΩ 100 Volt

5 OFF OFF OFF

6 16Ω / 80 Watt 16Ω HiFi amp

SDX5T

WWW.APART-AUDIO.COM INFO@APART-AUDIO.COM

• type : 2-way hiFi Pro, sealed box

• woofer : 5,25” CP type

• tweeter : 1” mylar ferro cooled

• protection : system auto-reset 1-guard

• impedance : 16Ω

• 100Volt trafo selector: 30-15-6-3-OFF-16Ω

• RMS power low-imp.

AES rated : 70 Watts

music - program : 80 Watts

dynamic peak : (lo-cut) 250 Watts

SPL 1 watt / 1 m : 90dB

SPL max peak : 114dB

• Freq range : 70 - 20000 Hz

• dispersion : 120° H x 100° V

• IP rating : 54

• enclosure material : enforced PolyPlastic

• bracket included : U-type

• dimensions (h x w x d) : 244 x 179 x 154

• weight : 2,35 Kg

Technical Specifications

The SDX5T 2-way design cabinet

loudspeaker probably is one of the most

cost-effective loudspeakers for the contractor market.

The loudspeaker can be used as a 16Ω or 100V

loudspeaker. In 16Ω use, you can connect up to 4

loudspeakers in parallel on each channel of a standard

4Ω amplifier. For 100V use, the loudspeaker is

equipped with a high quality 30 Watt transformer with

several power taps. Further, the SDX5T is equipped

with an auto-reset protection system. It makes the

SDX5T loudspeaker very suitable for the distribution of

background music or microphone calls. The loudspeaker

comes standard with a U-type bracket. The SDX5T

loudspeakers can be used outdoor. However, be aware

of the fact that the loudspeaker terminals are not

protected and that the grill is made of plasticized painted

metal. This means direct exposure to rain or water is

not recommended. In case this is really needed, we

recommend to use the APart MASK loudspeaker series.

Power Tappings

30 30 15 6 6 6

3 3

++ + + + + +99 Watt =

120 Watt Ampliﬁ er

Ampliﬁ er power must be higher than total power of all speakers.

Het versterkervermogen moet hoger zijn dan de som van de vermogens van de luidsprekers.

La puissance de l’ampliﬁ cateur doit etre plus élevée que la puissance totale des haut parleurs.

100 Volt Technology

16 ohm Technology

16Ω

16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω

4Ω 4Ω

Produkt Specifikationer

Mærke:	APart
Kategori:	Højttaler
Model:	SDX5T-SLV
Type:	I væggen/på væggen/i loftet højttalere
Vægt:	2350 g
Produktfarve:	Sølv
Udgangseffekt (RMS):	70 W
Dimensioner (BxDxH):	179 x 154 x 244 mm
Materiale:	Plast
Frekvensområde:	70 - 20000 Hz
Impedens:	16 ohm (Ω)
Lyd-output kanaler:	2.0 kanaler
Peak Music-Udgangseffekt (PMPO):	100, 250 W
Diskant diameter:	25.4 mm
Woofer diameter:	133.4 mm
