Digital Remote Wheels!
DRW-1 SUP2.2!
!
!
!
!
Date 01.08.2019!
!
!
!
USER MANUAL
!
!

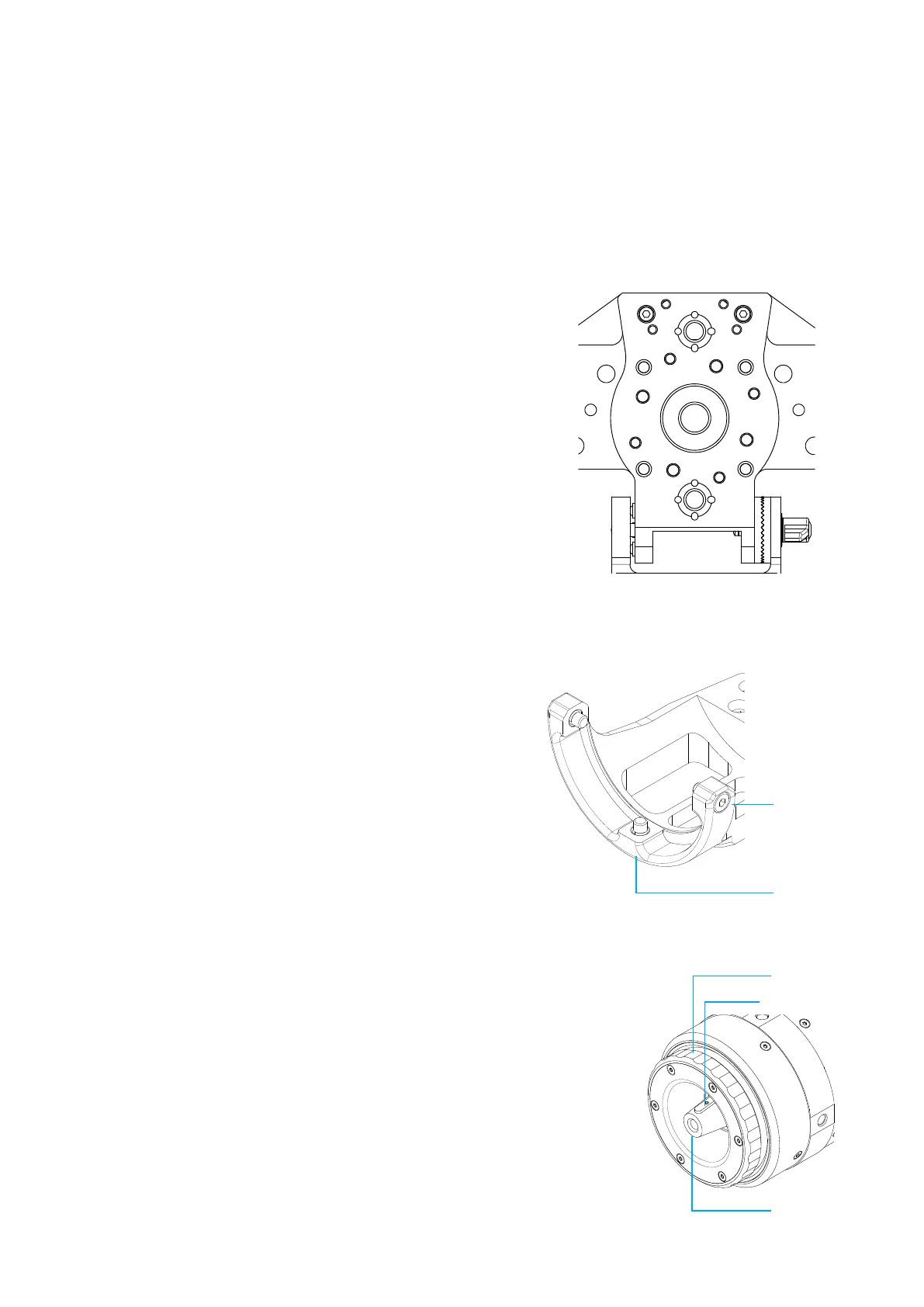

3 DRW-1 Setup
3.1
Mounting the DRW-1 base!
!
The bottom of the DRW-1 mounting base offers multiple mounting options:
3/8” threads for long camera dovetail plates,
like the O’Connor plate (08283), !
Euro style quick release plate (2575-120),
Sachtler sideload plate M (1164),
Cartoni Camera plate Focus12-18-22 (AH859)
Cartoni Camera plate - Cine style slide (AH833)
Below are three circular threaded sets for Mitchell !
and Euro mounts. !
The following brackets can be used: !
Mitchell Mount K2.0010427, Euro Mount K2.0010426 !
and the O'Connor Mitchell Base 08281.
!
NOTE
To ensure a tight fit, use a minimum of two 3/8” !
screws when a dovetail plate is used and four !
screws for the Euro Mount and the Mitchell Mount.
3.2!
Mounting the DRW-1 modules
!
There are three M3 threads positioned at the left,
at the bottom, and the right side of the DRW-1
module.
Place the DRW-1 module carefully into the
DRW-1 carrier and tighten all three screws!
using a 3mm hex key.
NOTE
Ensure that all three screws are tightened evenly,
otherwise the DRW-1 module will have a loose fit,
which may affect the application.
3.3 !
Mounting the hand wheel!
!
Turn the location pin of the drive shaft to a 12:00 o’clock position.
Turn the blue fluid drag ring (friction) to the right to reach full friction.
Locate the groove inside the mounting hole of the hand wheel and
bring it into the 12:00 o’clock position too.
Now place the wheel onto the conic drive shaft. !
When the hand wheel has reached its final position, !
tighten the blue locking screw.
NOTE
Turn the fluid drag ring (friction) fully back to the left to reach
the lowest possible friction level.
DRW-1 Setup
M3 Screw
M3 Screw
Location Pin
Drive Shaft
Fluid Drag Ring
(Friction)
6
