ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identica-

tion or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or tness for a particular purpose. In no event shall ASRock, its

directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of prots, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published March 2013

ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

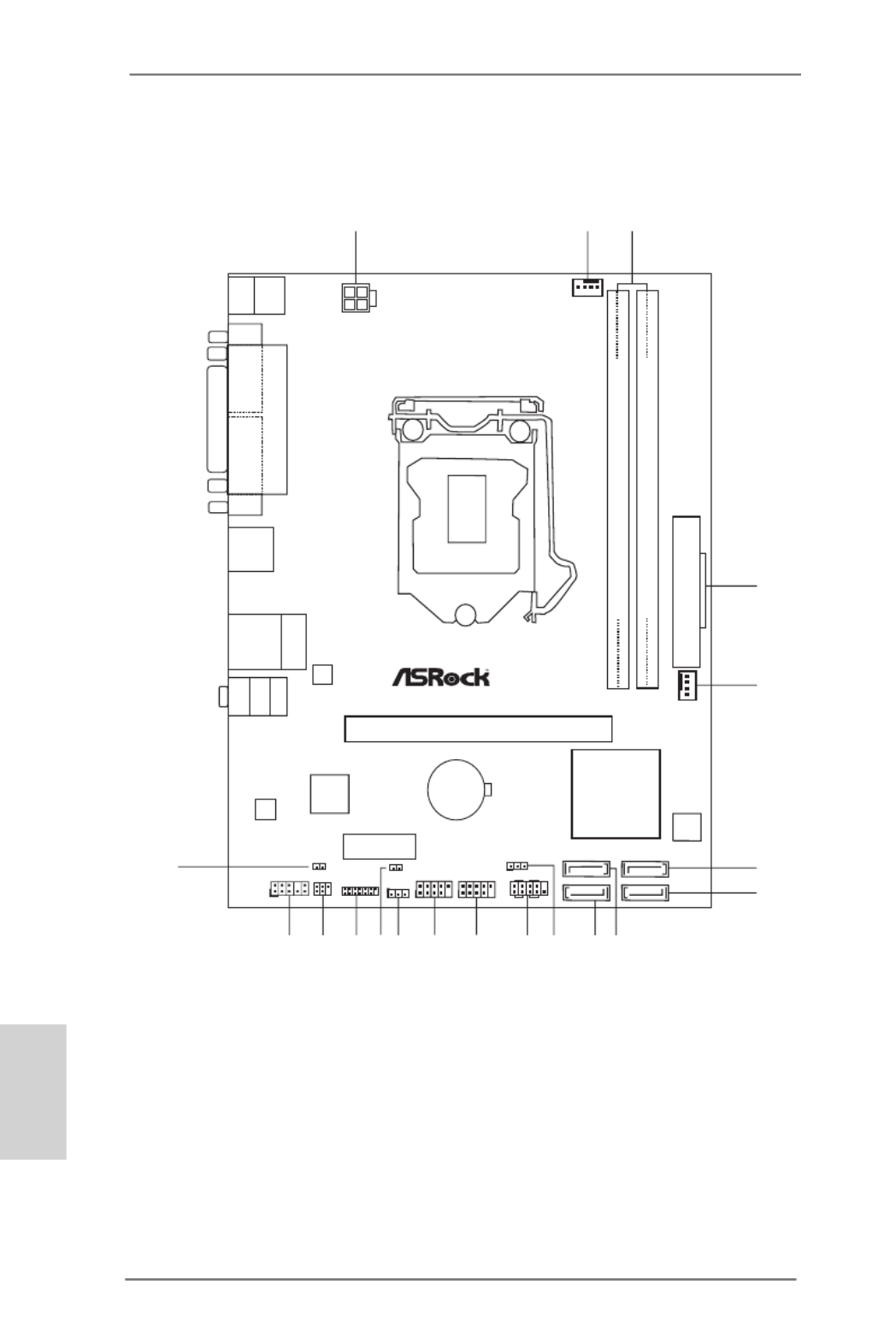

Motherboard Layout

English

1 ATX 12V Power Connector (ATX12V1) 10 Power LED Header (PLED1)

2 CPU Fan Connector (CPU_FAN1) 11 System Panel Header (PANEL1)

3 2 x 240-pin DDR3 DIMM Slots 12 USB 2.0 Header (USB6_7)

(Dual Channel: DDR3_A1, DDR3_B1) 13 USB 2.0 Header (USB4_5)

4 ATX Power Connector (ATXPWR1) 14 Clear CMOS Jumper (CLRCMOS1)

5 Chassis Fan Connector (CHA_FAN1) 15 Chassis Intrusion Header (CI1)

6 SATA2 Connector (SATA_1) 16 LPC / TPM Header (LPC/TPM1)

7 SATA2 Connector (SATA_0) 17 Infrared Module Header (IR1)

8 SATA2 Connector (SATA_3) 18 Front Panel Audio Header (HD_AUDIO1)

9 SATA2 Connector (SATA_2) 19 SPDIF Out Connector (SPDIF_OUT1)

* The parallel port (LPT1) and serial port (COM1) on the I/O panel are for H61M-PS4 only.

DDR3_A1 (64 bit, 240-p in modu le)

DDR3_B1 (64 bit, 240-pin modul e)

Intel

H61

PCIE1

AUD IO

COD EC

ATX1 2V1

USB 6_7

HDLE D RESET

PLED PWRB T N

PANEL 1

CLR CM O S1

PLE D1

CPU _ FAN 1

HD_ AUD IO 1

USB 4_5

CMOS

BAT T ER Y

PCIE2

LAN

CI1

XFa st RAM

XFa st USBXFa st LAN

RoHS

ATXPWR1

32M b

BIOS

SAT A_ 2 SAT A_ 0

SAT A_ 3 SAT A_ 1

SPDIF_ OU T 1

IR1

LPC / T PM 1

Super

I/O

CHA _ FAN 1

PS2

Keyb oard

PS2

Mouse

Top:

LIN E IN

Cen t e r:

FRO NT

Bot t o m :

MIC IN

Top :

RJ- 45

USB 2. 0

T: USB2

B: USB3

USB 2.0

T: USB0

B: USB1

PARALLEL PORT*

COM1* VGA1

1 2 3

1112

14 1315161718

Produkt Specifikationer

Mærke:	Asrock
Kategori:	Bundkort
Model:	H61M-PS4
Bredde:	- mm
Dybde:	- mm
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	4
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Maksimal opløsning:	2048 x 1536 pixel
Hurtig installationsvejledning:	Ja
Kabler inkluderet:	SATA
Lyd-output kanaler:	5.1 kanaler
Certificering:	FCC, CE, WHQL
Strømkilde type:	ATX
Maksimal intern hukommelse:	16 GB
Mikrofonindgang:	Ja
Medfølgende software:	Google Chrome Browser, Toolbar
Processorproducent:	Intel
Drivere inkluderet:	Ja
Antal VGA-porte (D-sub):	1
Ethernet-grænsefladetype:	Gigabit Ethernet
Trusted Platform Module (TPM):	Ja
Prøvesoftware:	AntiVirus Software, CyberLink MediaEspresso 6.5
Komponent til:	PC
Antal serielle porte:	1
Kølingstype:	Passiv
Antal PS/2-porte:	2
Processor sokkel:	LGA 1155 (Socket H2)
Intel® Clear Video HD Teknologi (Intel® CVT HD):	Ja
DirectX-version:	11
Kompatibel processor serie:	Intel Celeron, Intel Pentium
Bundkort chipset familie:	Intel
Bundkort chipsæt:	Intel® H61
Lydchip:	Realtek ALC662
Understøttede hukommelsestyper:	DDR3-SDRAM
Antal hukommelsesstik:	2
Hukommelses slots type:	DIMM
Ikke-fejlkorrigerende kode:	Ja
Understøttede hukommelsesclock-hastigheder:	1066,1333,1600 Mhz
Ikke-bufferet hukommelse:	Ja
LAN Kontroller:	Realtek RTL8111E
Hukommelseskanaler:	To-kanals
USB 2.0-stik:	2
S/PDIF-udgangsstik:	Ja
CPU-ventilatorstik:	Ja
ATX strømstrik (24 stikben):	Ja
Indbrudsttik til kabinet:	Ja
Antal kabinetventilatorstik:	1
Lydstik på frontpanel:	Ja
Antal SATA II stik:	4
Motherboard form faktor:	micro ATX
Understøttede lagerdrev brugerflader:	SATA II
Maksimal grafikadapterhukommelse:	1760 MB
BIOS-type:	UEFI AMI
BIOS-hukommelsesstørrelse:	32 Mbit
ACPI-version:	1.1
Wake-on-LAN klar:	Ja
Antal parallelle porte:	1
Antal understøttede processorer:	1
PCI Ekspres x16 (Gen 3.x) slots:	1
TPM-stik:	Ja
Grafikadapter familie:	Intel
PC sundhedsovervågning:	CPU, FAN, Power supply, Temperature
PCI Ekspres x1 (Gen 2.x) slots:	1
Seriel port overskrifter:	1
Diskret grafik support:	Ja
Antal PCI Express-slots:	2
Påkrævet processor med Intel Graphics Technology:	Ja
Seriel port via intern header:	Ja
Forbruger infrarøde headere:	Ja
