ASRock N68PV-GS Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published September 2008

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

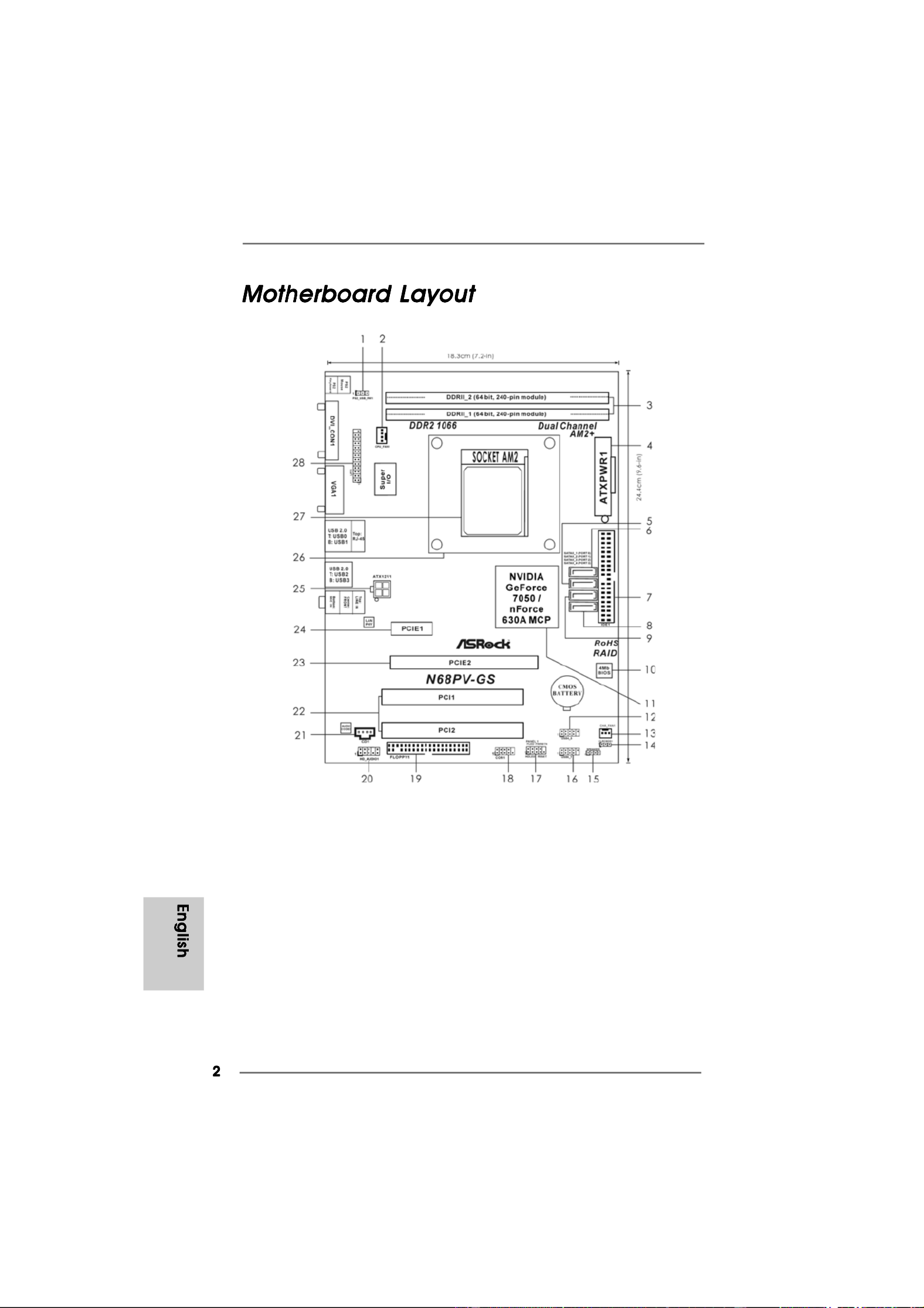

ASRock N68PV-GS Motherboard

1 PS2_USB_PW1 Jumper 16 USB 2.0 Header (USB6_7, Blue)

2 CPU Fan Connector (CPU_FAN1) 17 System Panel Header (PANEL1, Orange)

3 2 x 240-pin DDR2 DIMM Slots 18 Serial Port Connector (COM1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 19 Floppy Connector (FLOPPY1)

4 ATX Power Connector (ATXPWR1) 20 Front Panel Audio Header

5 Secondary SATAII Connector (SATAII_2 (PORT1)) (HD_AUDIO1, Lime)

6 Primary SATAII Connector (SATAII_1 (PORT0)) 21 Internal Audio Connector: CD1 (Black)

7 Primary IDE Connector (IDE1, Blue) 22 PCI Slots (PCI1- 2)

8 Fourth SATAII Connector (SATAII_4 (PORT3)) 23 PCI Express x16 Slot (PCIE2)

9 Third SATAII Connector (SATAII_3 (PORT2)) 24 PCI Express p2-x1 Slot (PCIE1)

10 SPI Flash Memory (4Mb) 25 ATX 12V Power Connector (ATX12V1)

11 NVIDIA GeForce 7050 / nForce 630A MCP 26 CPU Heatsink Retention Module

12 USB 2.0 Header (USB4_5, Blue) 27 AM2 940-Pin CPU Socket

13 Chassis Fan Connector (CHA_FAN1) 28 Print Port Header (LPT1, Purple)

14 Clear CMOS Jumper (CLRCMOS1)

15 Chassis Speaker Header

(SPEAKER 1, Purple)

Produkt Specifikationer

Mærke:	Asrock
Kategori:	Bundkort
Model:	N68PV-GS
Bredde:	244 mm
Dybde:	183 mm
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	4
Lyd-output kanaler:	5.1 kanaler
Strømkilde type:	ATX
Maksimal intern hukommelse:	8 GB
Mikrofonindgang:	Ja
Kompatible operativsystemer:	Win 2000, XP, Vista
Processorproducent:	AMD
Antal VGA-porte (D-sub):	1
Grafikadapter:	GeForce 7
Netværksfunktioner:	10/100/1000 Mbit
Antal PS/2-porte:	2
Processor sokkel:	Sokkel AM3
PCI Express x16 slots:	1
Kompatibel processor serie:	AMD Phenom
Lydchip:	Realtek ALC662
Antal hukommelsesstik:	2
Ikke-fejlkorrigerende kode:	Ja
LAN Kontroller:	Realtek RTL8211CL
USB 2.0-stik:	2
Antal SATA stik:	4
CPU-ventilatorstik:	Ja
Antal COM-stik:	1
ATX strømstrik (24 stikben):	Ja
Antal DVI-D-porte:	1
Motherboard form faktor:	micro ATX
Maksimal grafikadapterhukommelse:	256 MB
PCI Ekspres x1 slots:	1
BIOS-hukommelsesstørrelse:	32 Mbit
RAID-niveauer:	0, 1,0+1, 5,JBOD
Strømstik til ventilator:	Ja
CD/AUX lyd, indgående:	Ja
Floppy-drev, stik:	Ja
PCI-slots:	2
