Switch’nstor | ASW205T

5 port 2.5GBASE-T unmanaged Ethernet switch

Quick Installation Guide

Adapter x4

Type A

Type C

Type I

Type G

AC adapter

Foot pads

Quick Installation Guide

Screws

Anchors

AC adapter

AC adapter comes with four adapters that cover a wide variety of countries.

To install, press the socket adapter and rotate.

Diagrams are also located on the AC adapter.

To remove, press the latch and rotate socket adapter counter clockwise.

Separate the socket adapter from the AC adapter.

Latch

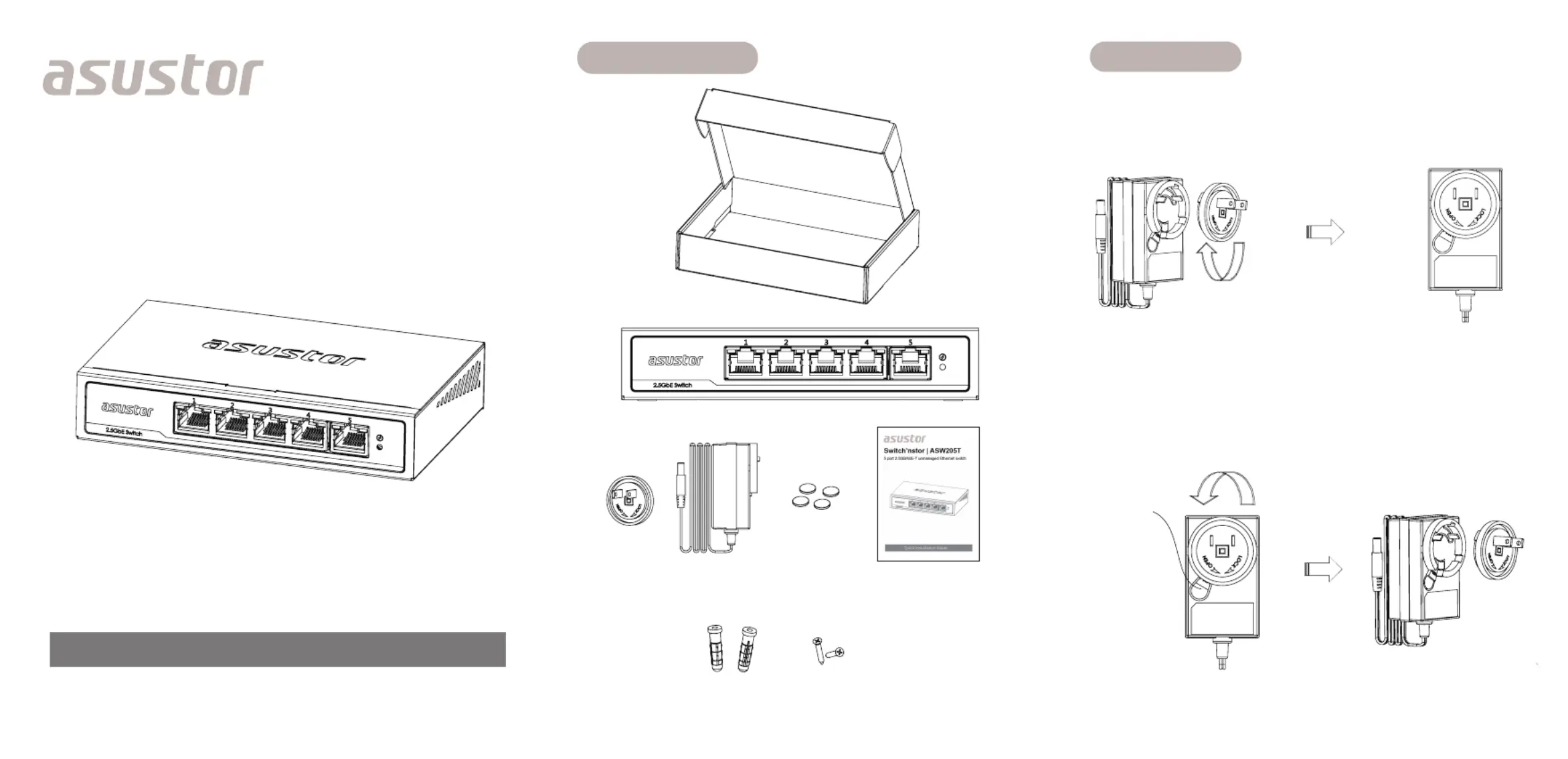

Package Contents

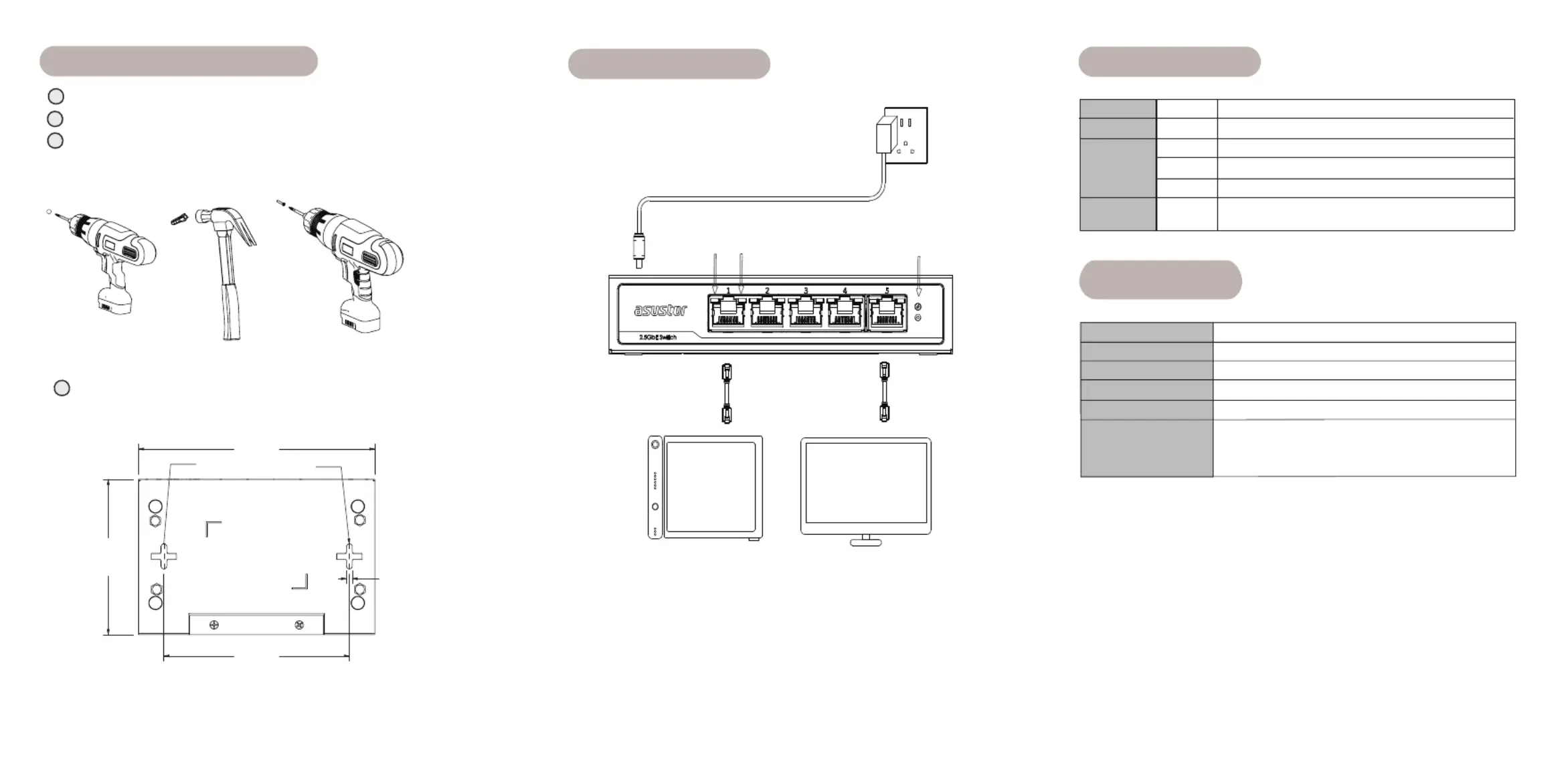

Wall Mounting Instructions

Drill two 6 mm holes into a wall spaced 110 mm apart. (FIGURE 1).

Hammer an anchor into each hole. (FIGURE 2).

Tighten screws into the anchors, leaving 5 mm exposed. (FIGURE 3).

FIGURE 1

FIGURE 2

FIGURE 3

140.0

92.0

3.5

110.0

Mounting holes

Align the mounting holes with the screws and hang it on the wall.

（ ).FIGURE 4

FIGURE 4

NAS

Connecting Power

AC adapter

Left LED

Right LED

Power LED

LED Indicators

Power LED

Left LED

Right LED

Color

Green

Orange

Yellow

Description

Power On

Connected at 2.5-Gigabit speeds

Connected at Gigabit

speeds

Blinking: Transferring data.

On: Working as intended.

Speciﬁcations

Supported speeds

Authorized representative in Europe: Asustor B.V .

Address: Ambachtweg 37, 2841 MB Moordrecht, Netherlands

Chipset

Input voltage range

Dimension

Operating environment

2.5-Gigabit Unmanaged Ethernet Switch

10M/100M/1G/2.5G

DC 12V 2A：

92 L x 140 W x 28 H mm（）（）（）

Description

RTL8371+RTL8221B

Operating Temperature : 0°C-40°C (32-104°F)

Operating Humidity : < 85% No condensation

Non-Operating Temperature: -10°C-85°C (14-176°F)

Off

Connected at 10M or 100M

speeds

Produkt Specifikationer

Mærke:	Asustor
Kategori:	Netværkskort/adapter
Model:	ASW205T
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	140 mm
Dybde:	90 mm
Højde:	28 mm
Vægt:	350 g
Pakkevægt:	715 g
Pakkedybde:	206 mm
Pakkebredde:	282 mm
Pakkehøjde:	49 mm
Opbevaringstemperatur (T-T):	-10 - 85 °C
Relativ luftfugtighed ved drift (H-H):	0 - 85 %
Relativ luftfugtighed ved opbevaring (H-H):	0 - 85 %
Strømforbrug (typisk):	10 W
Driftstemperatur (T-T):	0 - 40 °C
Ethernet LAN-datahastigheder:	100,1000,2500 Mbit/s
Hurtig start guide:	Ja
Pakketype:	Kasse
Strømkilde:	Vekselstrøm/jævnstrøm
Certificering:	FCC, CE, VCCI, BSMI, C-TICK, KCC
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
LED-indikatorer:	Activity, Power, Speed
Harmoniseret systemkode (HS):	85176990
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ingen
Switch-type:	Ikke administreret
10G understøttelse:	Ingen
Flowkontrol support:	Ja
Basis omskiftning RJ-45 Ethernet porte, antal:	5
Basis omskiftning RJ-45 Ethernet porttype:	2.5G Ethernet (100/1000/2500)
Opbevar-og-frem:	Ja
MAC adresselabel:	16000 entries
Switch kapacitet:	25 Gbit/sek.
Jumbo Frames support:	Ja
Jumbo rammer:	12000
Stativ-montering:	Ingen
Strømstik:	DC-in-stik
Strømforsyning inkluderet:	Ja
Pakke bufferlager:	4.1 MB
Hastighed for videresendelse:	18.6 Mpps
Gennemløb:	12.5 Gbit/sek.
Ventilatorfri:	Ja
