Installation Guide

AWM-LTHT

AWM QR HD VESA Tilt Head

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Do not remove/ throw away the black plastic sleeve on the channel clamp, arm links or arm base.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is not suitable for outdoor use or mobile applications.

! Do not over-tighten screws and adjustment points on product.

! This product is compatible with AWM Series monitor arm products: AWM-AHX, AWM-LC, AWM-A46T & AWM-A71T.

! VESA mounted accessories (such as mini PC brackets and mounts), offset VESA locations, and unevenly weighted monitors

(relative to the center of the VESA mounting interface) exert additional leverage that can exceed the capacity of the mount

even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.

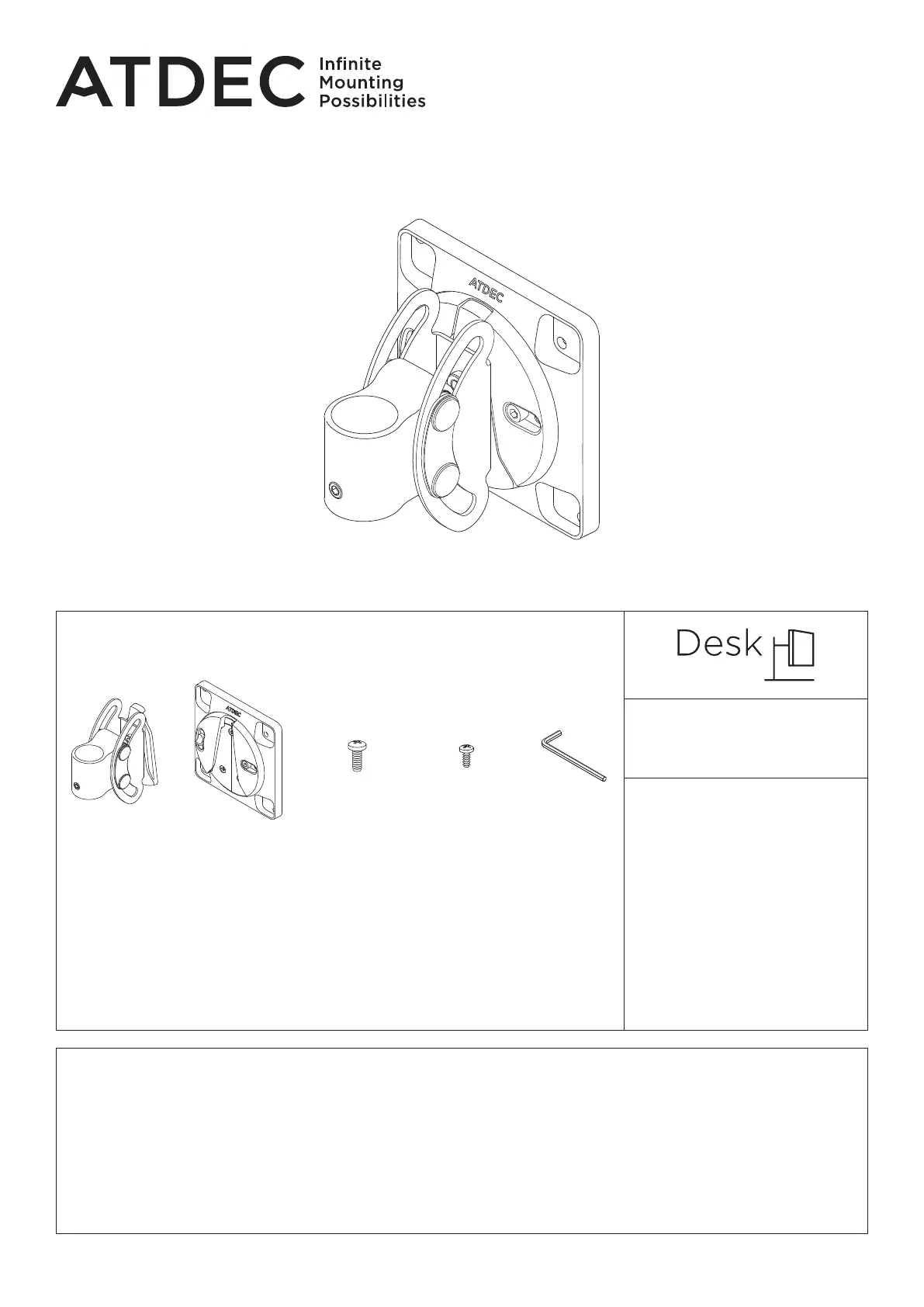

COMPONENT CHECKLIST

Heavy Duty

Tilt Head

(x1)

Screw

M4x10mm

(x4)

Security

Screw

(x1)

4mm

Hex Key

(x1)

VESA Head

(x1)

REQUIRED TOOLS

WEIGHT RANGE

Flat Monitors

0 - 18kg

(0 - 40lbs)

Curved Monitors

0 - 12kg

(0 - 26.5lbs)

• Phillips Head Screwdriver

Monitor weight should be within

the weight range of all modular

elements that make up the complete

monitor mounting solution.

AWM-LTHT Page 2 of 3

1.1 Slide release switch up

and click into unlocked

position, then remove VESA

head from the tilt head.

1.2 Check VESA mounting compatibility of monitor.

Click

Slide

100mm

75mm

100mm

75mm

NOTE: For other sizes, use a suitable adaptor plate

(sold separately).

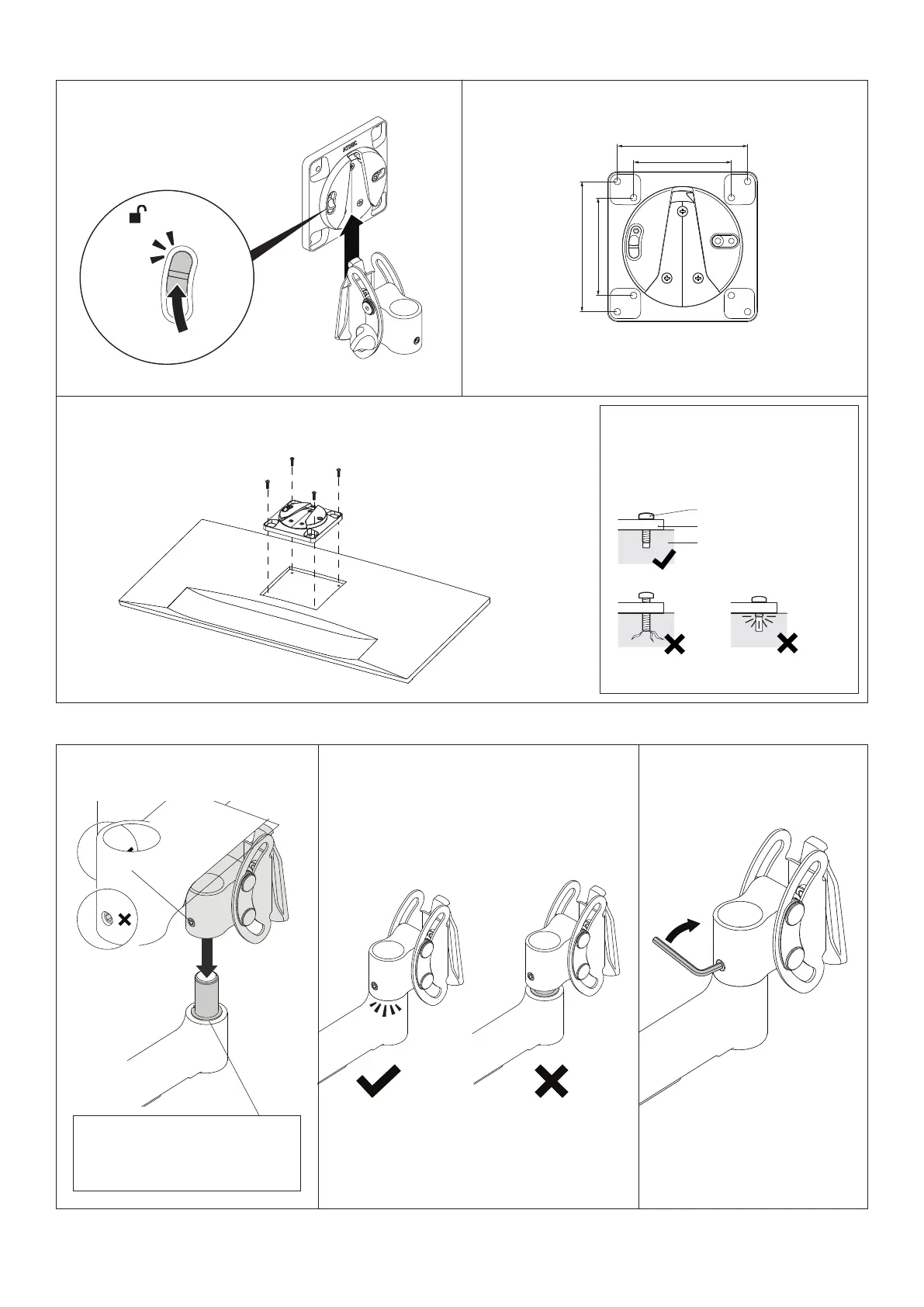

1. Attach VESA head to monitor

1.3 Attach VESA head onto monitor with provided screws.

(Alternatively, use fasteners specied by the monitor manufacturer).

Too long

Monitor

VESA Plate

VESA Screw

Too short

NOTE: Ensure screw length suits the

monitor VESA mounting holes.

2. Attach tilt head onto arm

2.1 Push tilt head onto the

shaft at the end of the

monitor arm.

2.3 Tighten the joint screw with

4mm Hex Key.

NOTE: Check the tilt

head rotation is smooth

after tightening.

2.2 Ensure tilt head is fully pushed onto shaft.

IMPORTANT! Ensure plastic

sleeve is tted on shaft before

attaching tilt head.
