Side 1/3

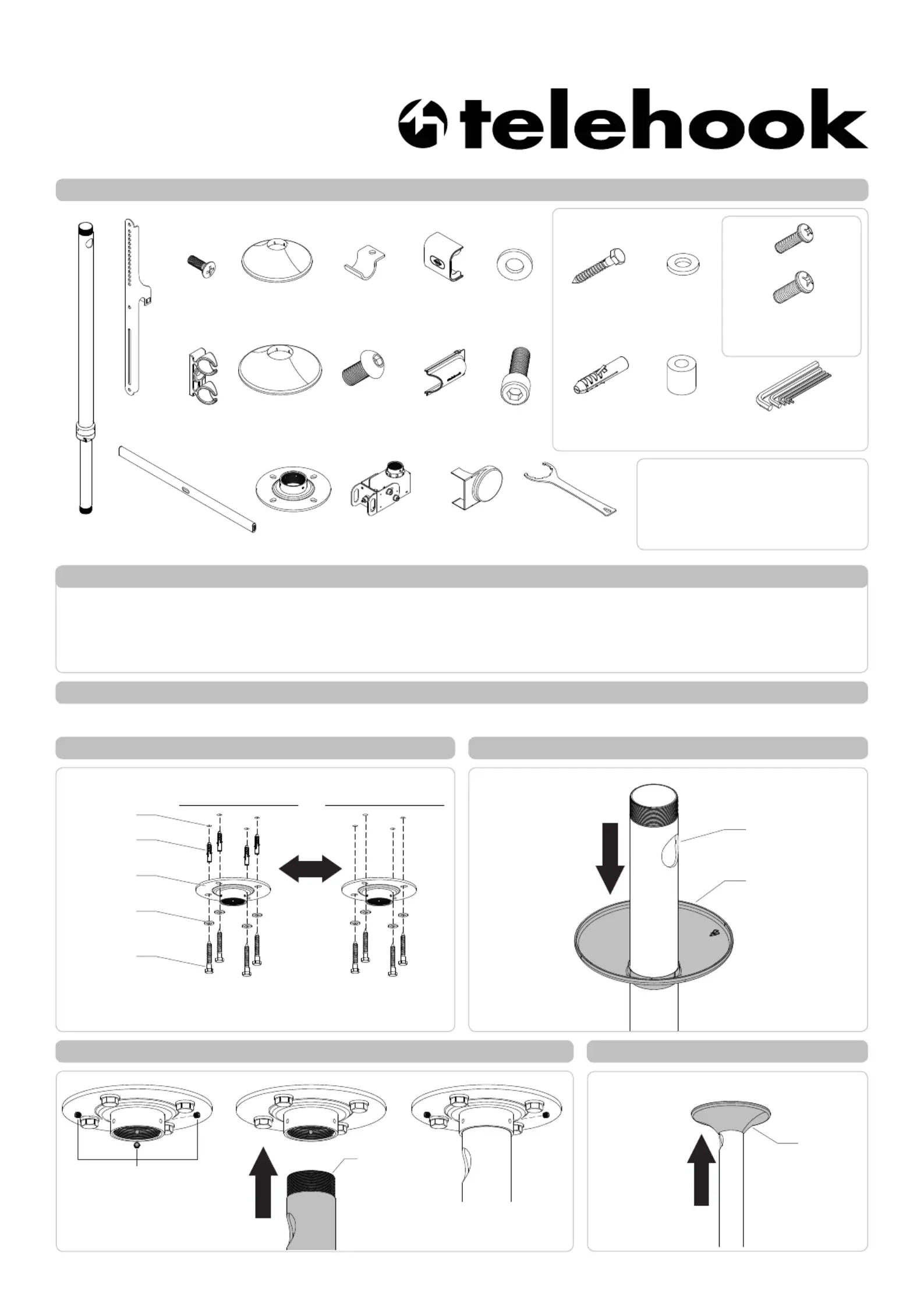

Installation Instructions

TH-3070-CTL

TH-3070-CTS

TH-3070-CTLW

TH-3070-CTSW

Component Checklist

Ceiling Tilt Short Mount / Ceiling Tilt Long Mount

Mounting

Cover

Horizontal Rail

M6/M8

Spacer (x4 each)

2mm/2.5mm/3mm

5mm/8mm Allen Key

M10 Coach

Bolt (x4)

Nylon

Anchor (x4)

HARDWARE

Display Mounting

Screws (x4 each)

M6x16mm/30mm/45mm

M8x16mm/30mm/50mm

Tools Required:

• Power Drill

• 7mm(0.25”) Drill Bit

• 12mm(0.5”) Masonry Drill Bit

• Phillips head screw driver

• 17mm(0.7”) Socket Wrench or Shifter

Mounting

Bracket (x2)

Pole

Assembly

Ceiling Cover

! IMPORTANT - Install Telehook Ceiling Mount as per installation instruction.

! This product supports a maximum load of 65kg (143lbs.).

! This product has a universal mounting hole pattern that suits a broad range of TV’s:

From 200-800mm in width and 200-500mm in height.

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Step 2. Install Mounting Plate to the ceiling

Using the Mounting Plate as a template, mark and drill 4 holes.

NOTE: Drilled hole sizes,

For Masonry Ceiling, Ø12mm (0.5”) and 70mm (2.75”) deep.

For Timber Ceiling, Ø7mm (0.75”).

Masonry Ceiling

Timber Ceiling

Drilled Holes

Nylon Anchor

Mounting Plate

M10 Washer

Coach Screw

Step 3. Install Mounting Cover

PUSH

Pole Assembly

Mounting Cover

Step 4. Attach Pole Assembly to Base Plate

Remove the three set

screws using the supplied

3mm Allen Key.

Set Screws

INSERT

Insert the three set screws

using the supplied 3mm

Allen Key to secure.

4A 4B 4C

Pole Assembly

Step 5. Position Mounting Cover

PUSH

Mounting

Cover

Mounting

Plate

Bracket Locking

Plate (x2)

M8x15mm

Screw (x2)

Cable

Clip (x2)

M4x12mm

Screw (x2)

Clamp Cover

Bottom

Clamp Cover

Middle

Clamp Cover

Side (x2)

Head Clamp

Assembly

Tightening Tool

M6/M8/M10

Washer (x4 each)

M10x30

Screw

M10

asher

Step 7. Install the Ceiling Cover

Step 9. Install the Horizontal Rail

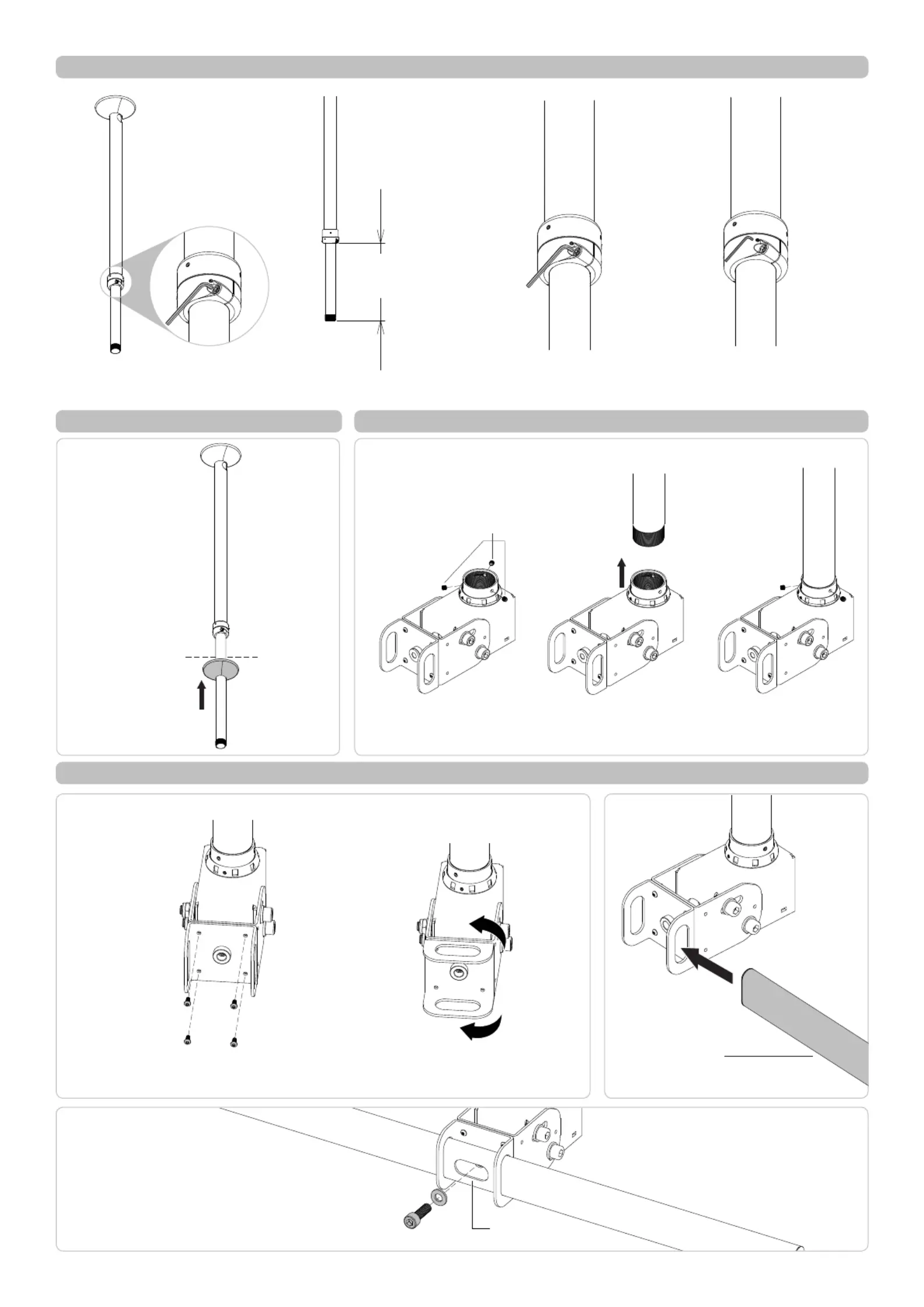

Step 6. Set the Height of the Pole

Whilst supporting the lower half of Pole

Assembly loosen the Socket Cap Screws

(x2) using the supplied 5mm Allen Key.

Slide Pole Assembly to the

desired height.

Height Adjustment

CTL: 1050-1900mm

CTS: 550-900mm

Tighten the Socket Cap Screws

(x2) to set the height using the

supplied 5mm Allen Key.

If necessary, centralise the Pole Joint

by tightening the Set Screws (x2) to suit

using the 2.5mm Allen Key.

6B 6C 6D

Push up to the ceiling

Step 8. Install the Clamp Head

Loosen the three set screws

using the supplied 3mm Allen

Key.

Set Screws

ATTACH

Secure the collar with the

three set screws using the

supplied 3mm Allen Key.

8A 8B 8C

1. Loosen the 4 screws using the supplied

2.5mm Allen Key.

2. For Portrait orientation, rotate the head

clamp 90° and insert the 4 screws again

using the supplied 2.5mm Allen Key.

9A. To Set Orientation

NOTE: The rail mount is factory set in

landscape orientation.

INSERT

Horizontal Rail

9B. Insert

Horizontal

Rail

9C. Secure Horizontal Rail

1. Make sure the large slot of Horizontal Rail is facing front.

2. Align the holes of the Horizontal Rail and Head Clamp.

3. Lock in place with M10 Screw and Washer using the

supplied M8 Allen Key.

If the lower pole hangs

below a suspended

ceiling, push the ceiling

cover up to the ceiling.

Large Slot
