Side 1/1

1/1

AtlasIED.com

TELEPHONE: (800) 876-3333

FAX (800) 765-3435

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

©2018 Atlas Sound L.P. The Atlas “Circle A”, Soundolier, and Atlas Sound are trademarks of Atlas Sound L.P. IED is a registered trademark of Innovative Electronic Designs LLC.

All Rights Reserved. All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS001567 RevB 8/18

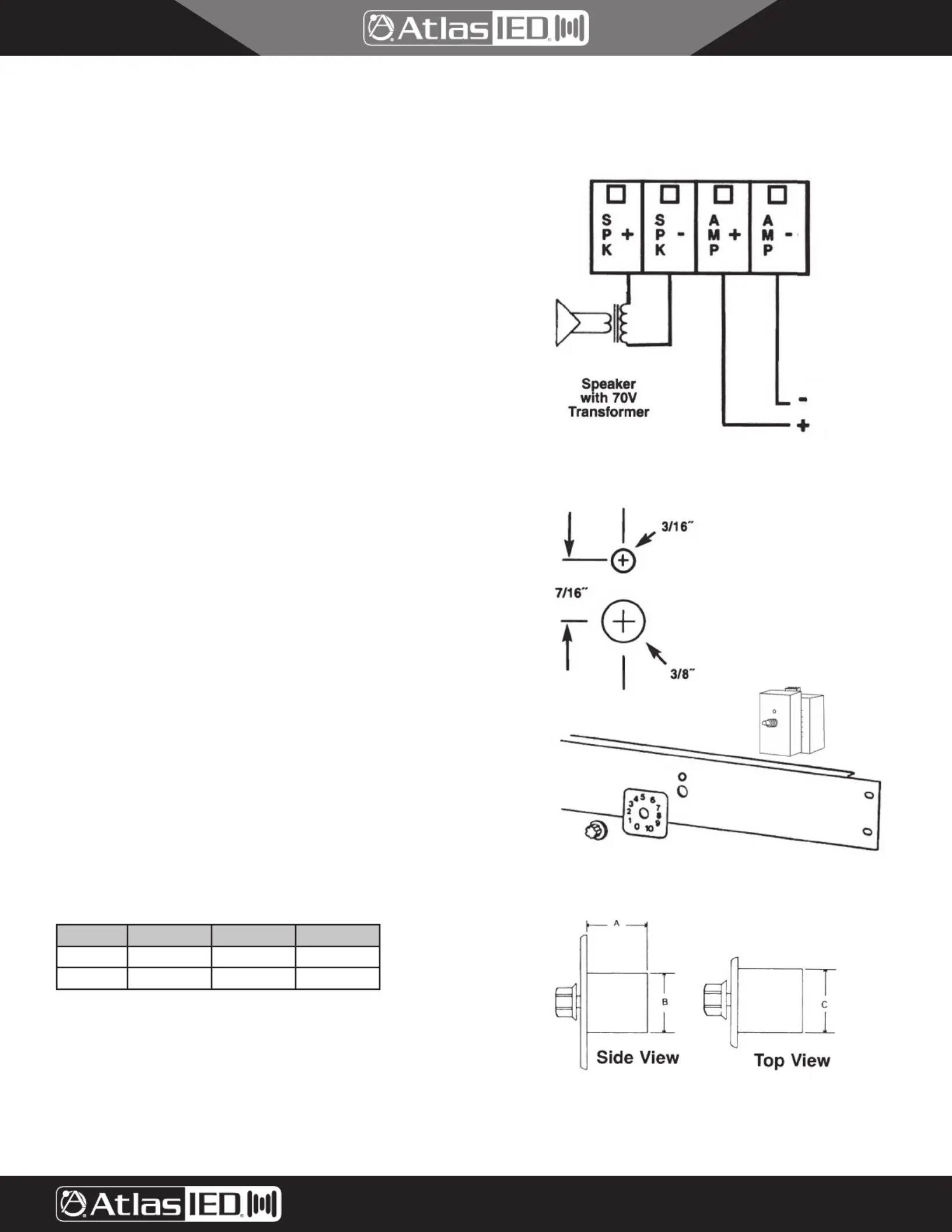

Wiring

Each terminal will hold up to 2-16AWG stranded wire. For larger wires or

home run situations, a small length of wire and a wire nut are recommended.

Attach wire according to label on terminal block as shown. Install the unit

with the terminal block on top. This will ensure that the OFF position is in

the bottom.

Note: Installation must be made by qualified service personnel, and meet

all local codes.

Rack Mount (-RM)

1. Drill holes in panel using the template to the right.

2. Peel off adhesive backing on escutcheon overlay.

3. Align hole openings with holes in panel and affix to surface.

4. Remove plate, knob and nut from attenuator.

5. Insert bushing through large hole in panel making sure that the small

indentation on the bracket lines up with the small hole in the panel.

6. Fasten attenuator to panel with the nut.

7. Fit attenuator knob on shaft. Tighten screw on knob to secure.

To simplifiy rack mount installation specify the AtlasIED ATPLATE-052.

Plate is pre-drilled for (6) AtlasIED attenuators and includes filler plugs

for instances when the plate is “short loaded”.

Dimensions

Note: E408-250 will require a 2 gang extra deep E.O. box

E408-100 / E408-250

Install Sheet

Model A B C

E408-100 2

1

/ " (64mm) 22

3

/ " (70mm) 14

3

/ " (45mm)4

E408-250 2

1

/ " (64mm) 3" (76mm) 22

1

/ " (64mm)2
