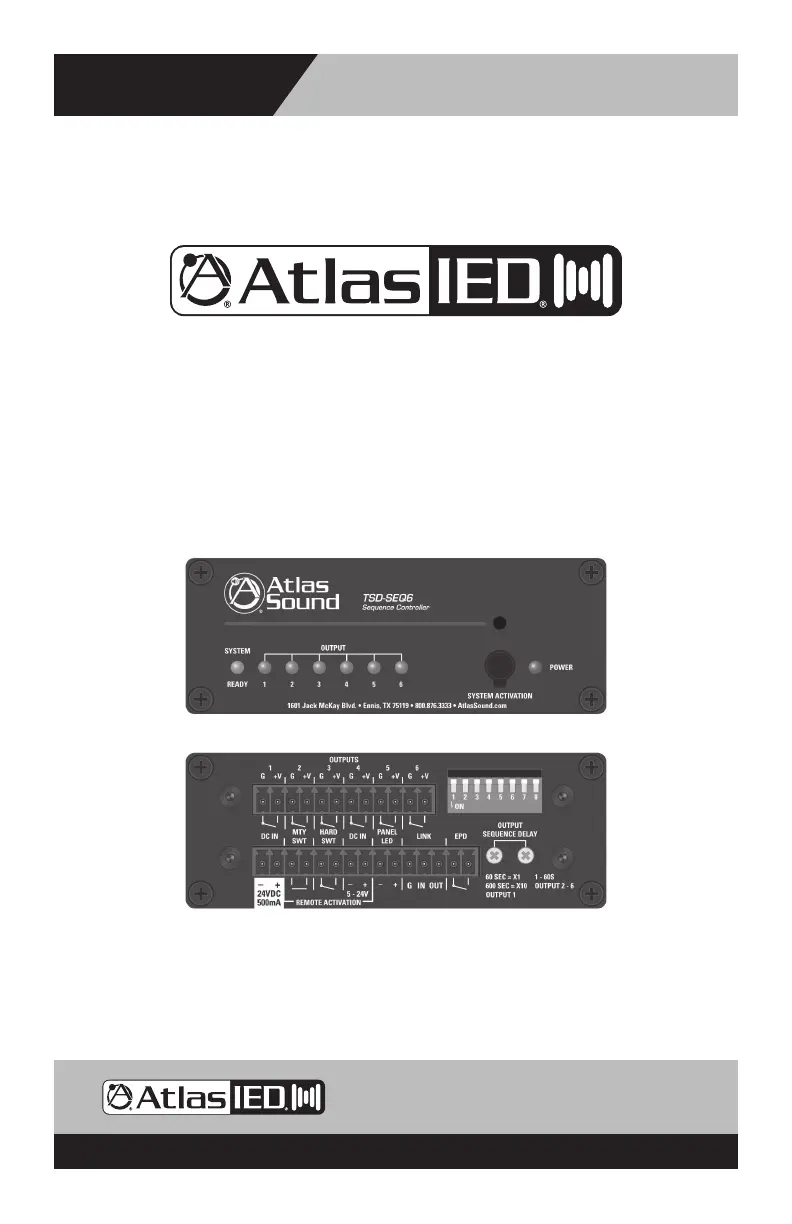

Owner’s Manual
TSD-SEQ6
Sequencer Controller
AtlasIED.com – 2 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
Description
The AtlasIED TSD-SEQ6 Sequencer Controller features 6 outputs that are configurable individually
to be either a 24VDC output or Hard Switch Contact Closure (CC). There are two separate output
sequence time delay trimmers ranging from 1 second to 10 minutes. Activation can be done via the
front panel or remotely via Hard Switch CC, Momentary Switch or DC Voltage. The TSD-SEQ6 also
incorporates an Emergency Power Down (EPD) port for local fire codes. You can link two
TSD-SEQ6 units together giving you 12 sequenced outputs.
The TSD-SEQ6 is part of a full line of AtlasIED Time Saving Devices. These compact
(1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the
easiest, most efficient, and cost-effective way. All models are made from high quality components
and include removable individual I/O connectors for quick and precise wiring, separate ground
terminals for all I/Os assuring secured connections, and removable level controls that can be
replaced with tamper-resistant security covers. The TSDs are highly efficient and meet most energy
standards as one 24V DC power supply (available separately) can power multiple Atlas Time Saving
Devices.
Features
• 6 Sequenced Outputs
• Assignable 24VDC or Hard Switch
Contact Closure (CC) per Output
• Sequence 1 is Adjustable: Delay Time
1 Second to 10 Minutes
• Sequences 2 - 6 are Adjustable: Delay Time
1 Second to 1 Minute
• Remote Activation via 5-24VDC,
Momentary Contacts, Hard Switch Contacts
• Status Indicator for Each Output
• Emergency Power Down “EPD” Port
• Link Out for Two TSD-SEQ6 Controllers
• Voltage Output for Remote
LED Status Display
• Separate Wiring Port for Each I/O
• Cable Management System
• Multiple Mounting Congurations
• Removable Phoenix Style I/O Connectors
• Meets Most Energy Standards
• Compact Chassis Design
Interfaceable Atlas Products
• ECM-20
• ECM-20M
• ECM-15SH
• ECM-20SH
• ECM-30
• ECM-2063
Installation
• Churches
• Restaurants
• Sports Bars
• Schools
• Industrial Facilities
• House of Worship
